Straddle Carrier Types

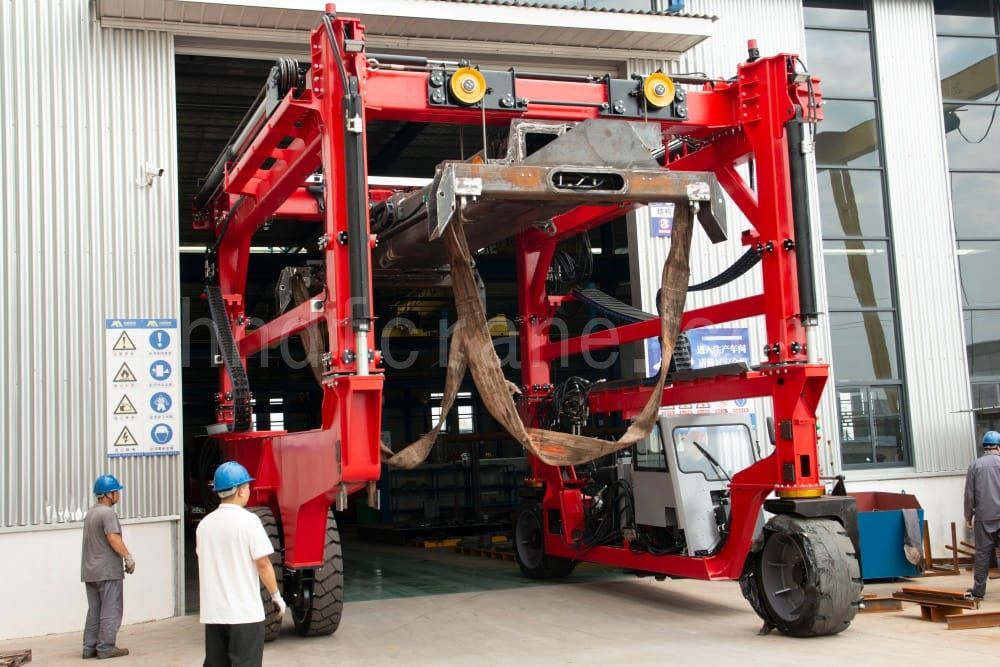

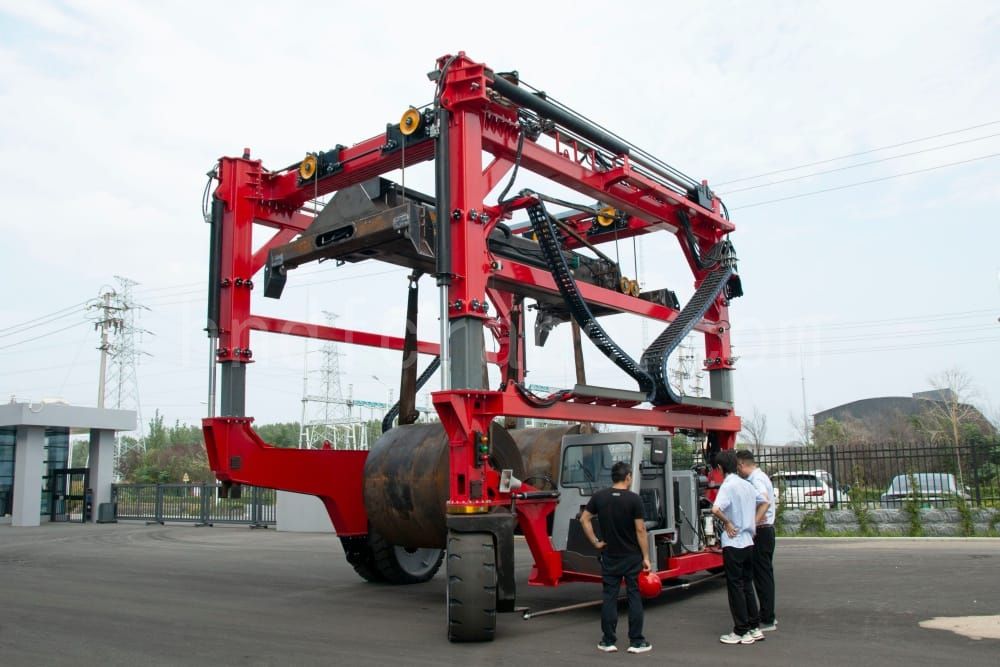

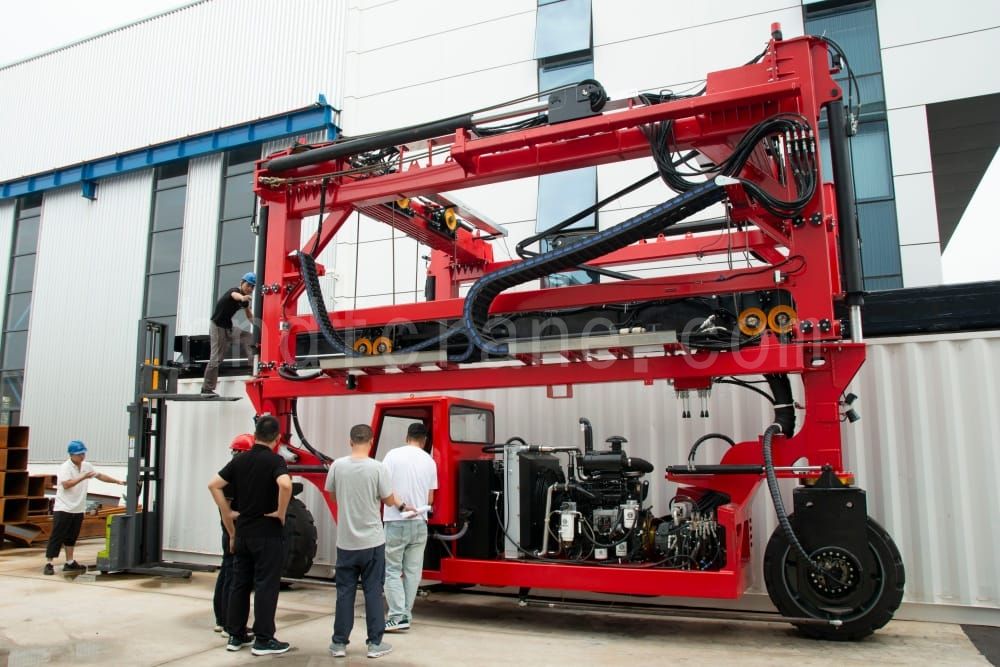

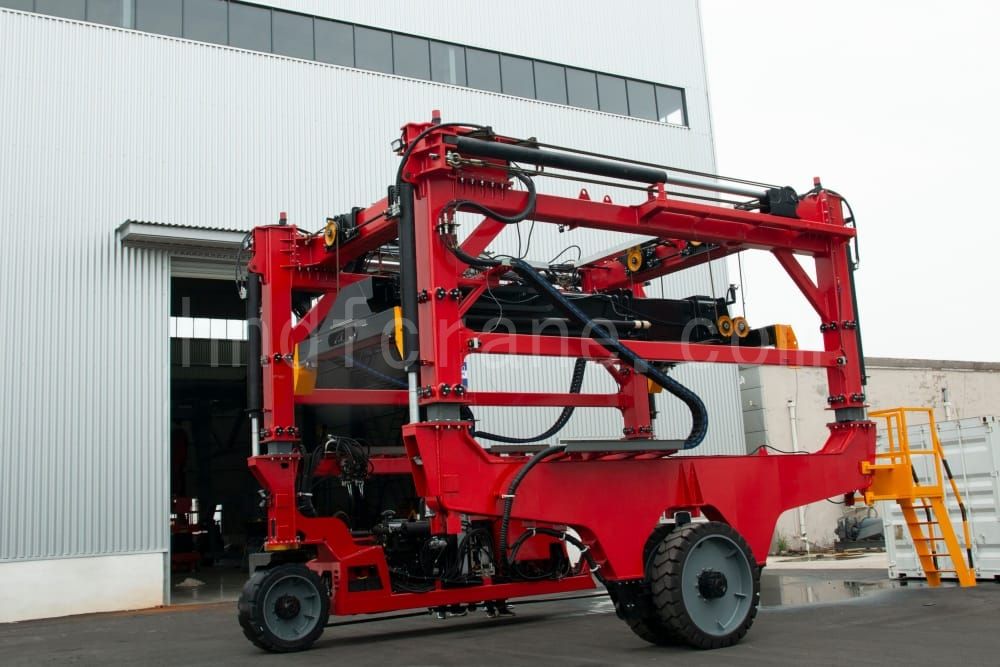

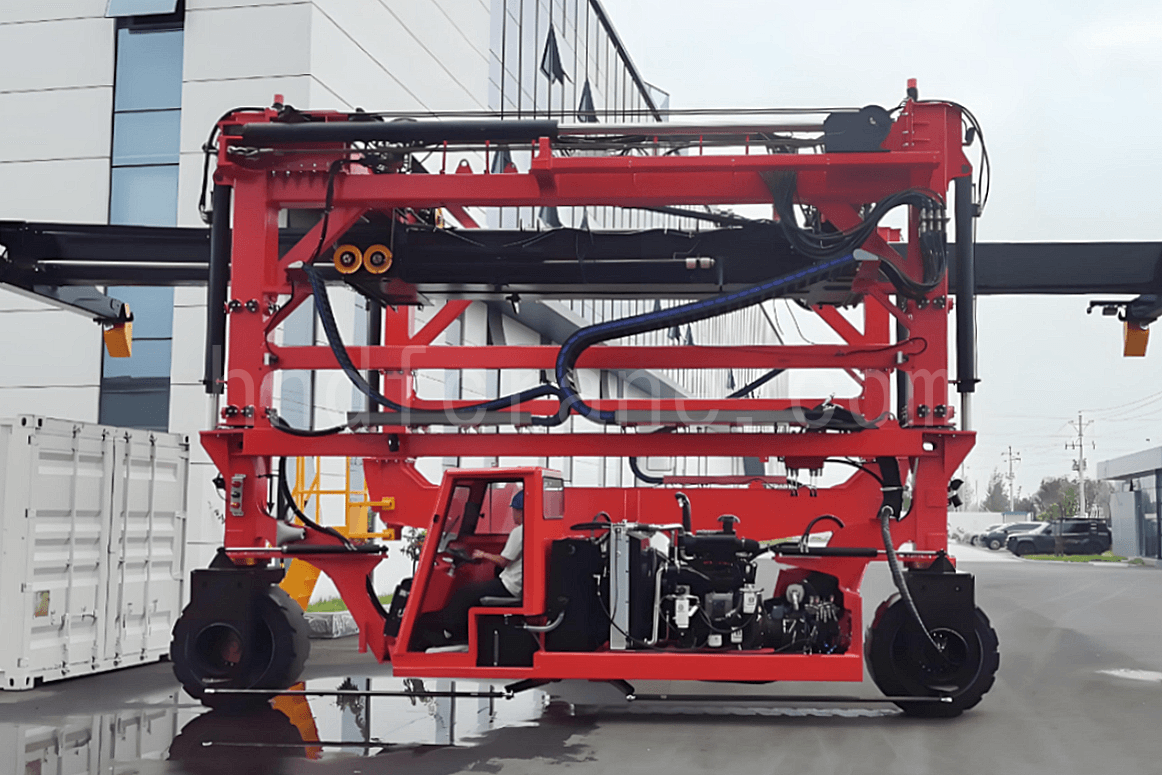

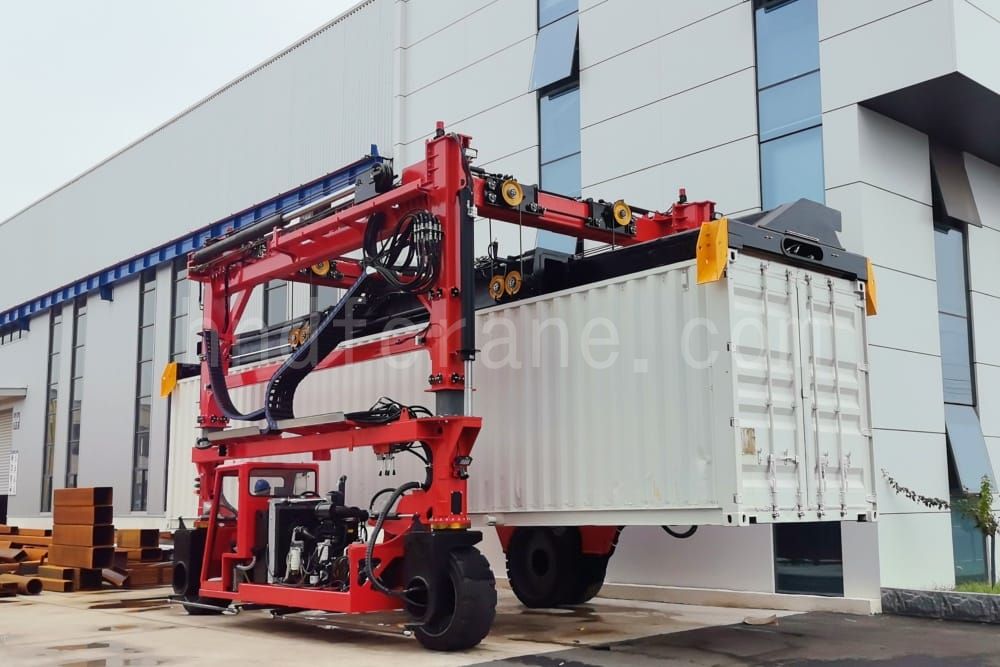

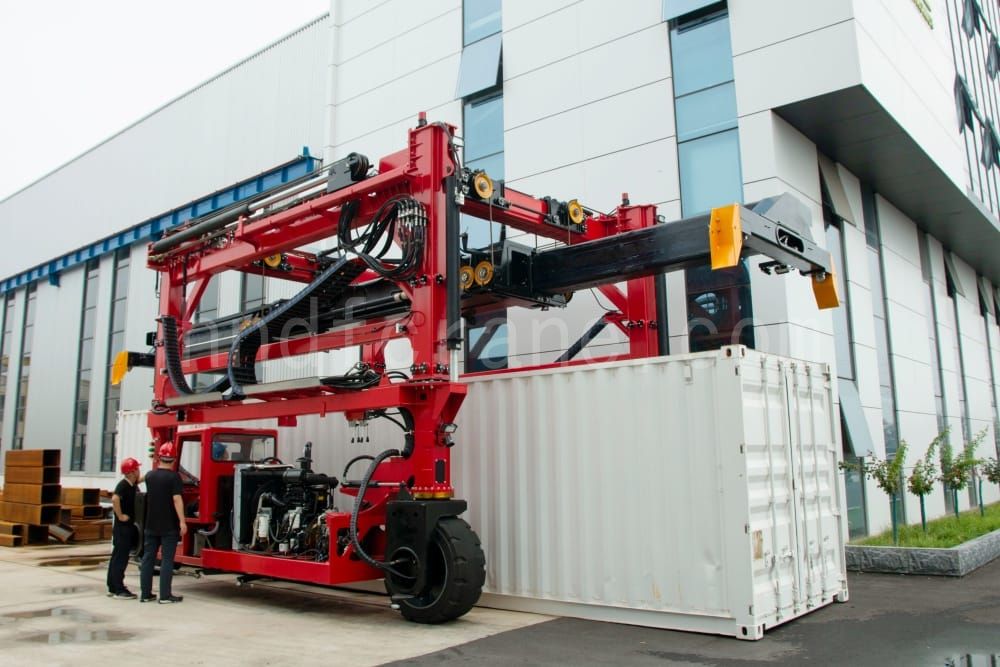

Diesel Straddle Carrier
The Diesel Straddle Carrier is designed for heavy-duty and continuous operation in ports and logistics yards. Equipped with a reliable diesel power system and advanced hydraulic drive, it provides strong traction, high lifting efficiency, and long operational endurance.
It is ideal for environments requiring long-distance travel, multiple shift operation, or where charging infrastructure is limited.
Diesel Straddle Carrier Features
- FEM Design Standard: Finite element analysis is conducted during the design phase to ensure structural safety and reliability.
- Premium Imported Components: Key parts are sourced from internationally recognized brands, ensuring low failure rates and long service life.
- Advanced Control System: Equipped with world-class programming and control technology to enhance travel precision and operational reliability.
- Excellent Maneuverability: Multiple steering modes allow flexible movement and easy operation via remote control or cabin driving.
- Space-Saving Design: Small turning radius minimizes the required working area and improves site utilization.
- Cost Efficiency: No need for rail installation or concrete paving — the carrier runs smoothly on compacted ground, reducing infrastructure costs.
Diesel Straddle Carrier Parameters
| мадэль | MST3531 | MST6037 | MST8037 | |
| Ёмістасць | 35t | 60t | 80t | |
| Length×Width×Height | 9200×5100×5500mm/7110×5100×6100mm | 9250×5700×6350mm | 12500×6000×6350mm | |
| Effective Inner Width | 3100mm | 3750mm | 3750mm | |
| Wheel Base | 6010mm | 6600mm | 7400mm | |
| Level 2 Lift Height | N/A |1550mm | 1750mm | 1750mm | |
| Max.Lifting Height(Below spreader) | 4600mm|6150mm | 6300mm | 6300mm | |
| Min.Ground Clearance | 230mm | 310mm | 310mm | |
| Tire Qty | 4 | 4 | 8 | |
| Deadweight(not contain spreader) | 19T|21T | 35T | 45T | |
| Weichai Engine-China StageII | 103KW | 129KW | 176KW | |
| Closed Travel Pump | Hytek/Danfoss/PMP | |||
| Empty-load max.speed | 115m/min | 80m/min | 80m/min | |
| Full-load max.speed | 80m/min | 50m/min | 50m/min | |
| Turning Radius | 6950mm | 8900mm | 13000mm | |
| No-load/full-load Gradeability | 6%/3% | |||
| Control mode | Cab(remote control optional) | |||
| Tires | solid tire | |||
| Lifting Tools | Chain+Lock/Automatic Spreader | Oversized LoadSpreader | ||
| Remarks Theengine can be optionally equippedwith National IV,and optional accessorybrand | ||||

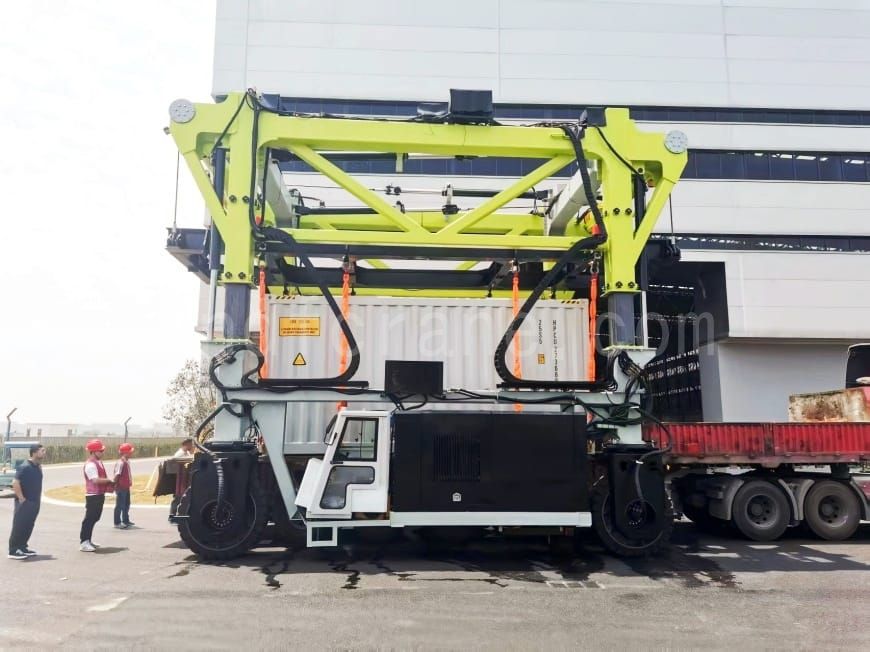

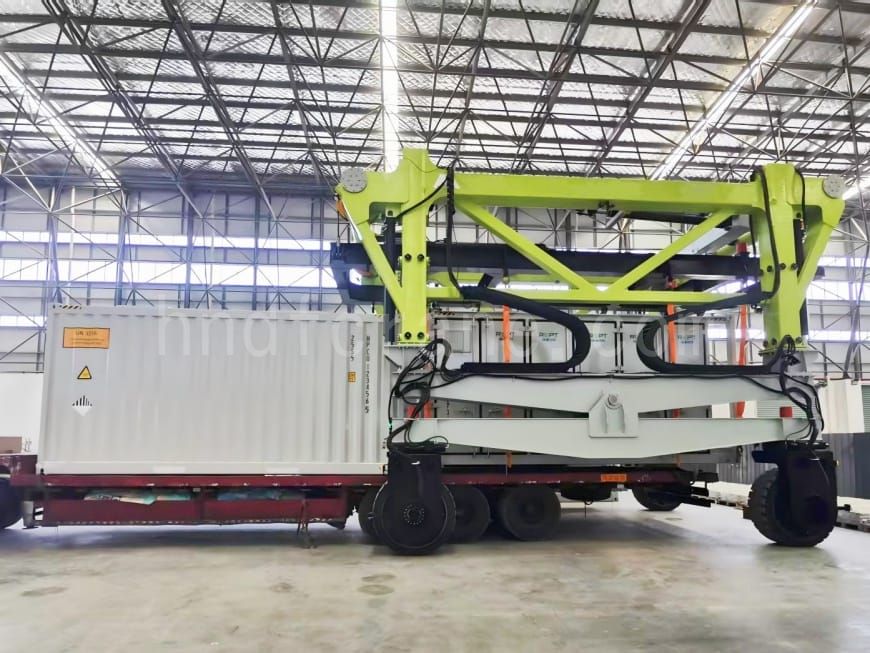

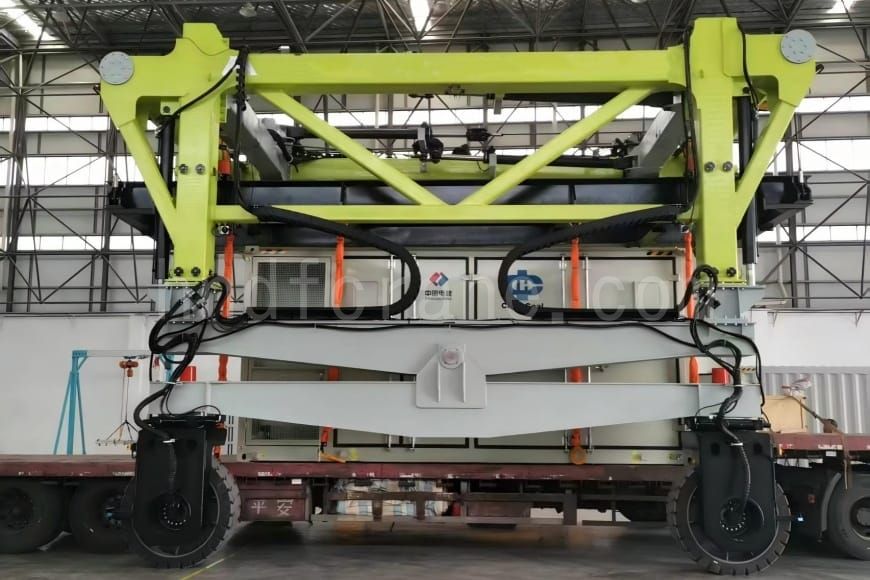

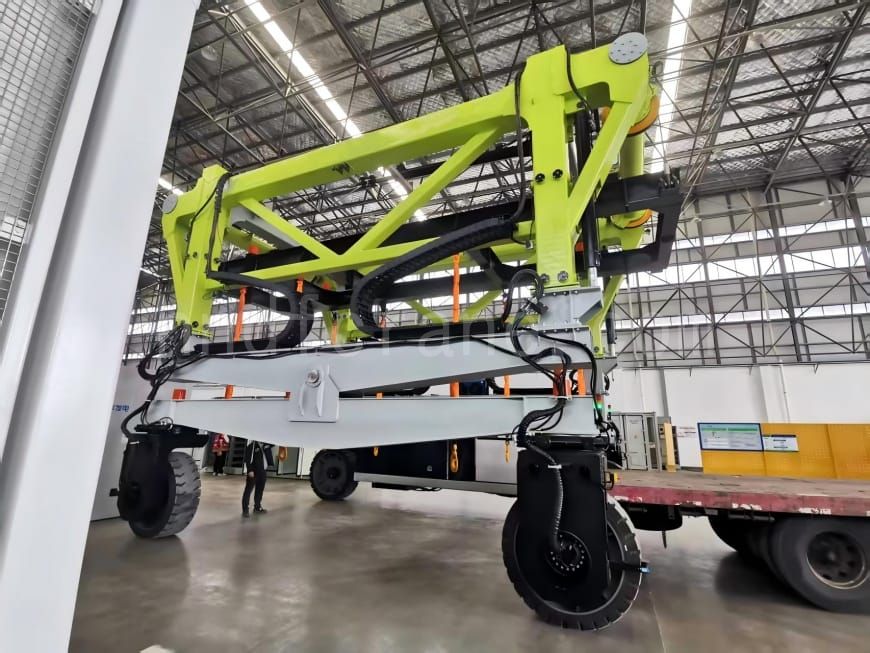

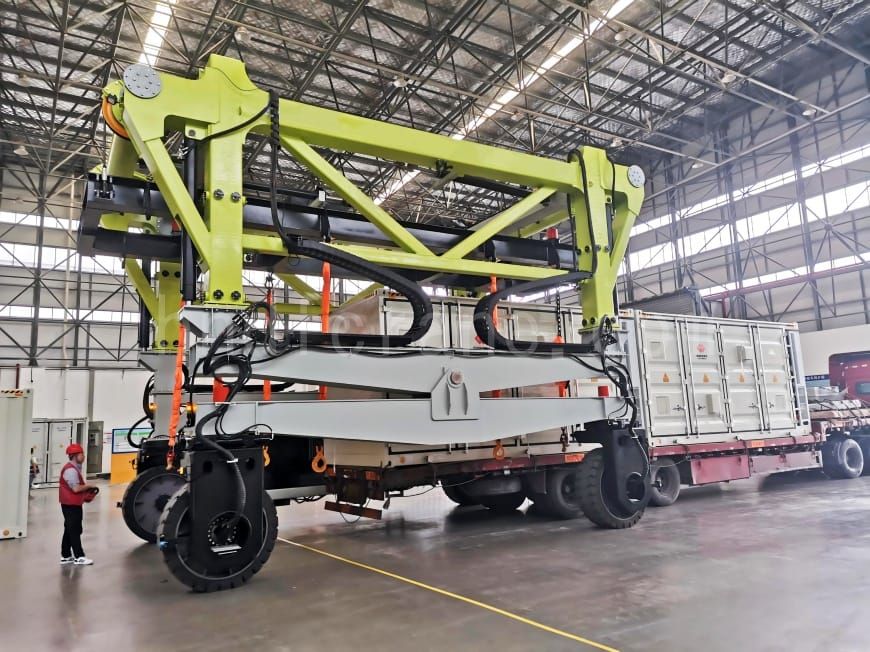

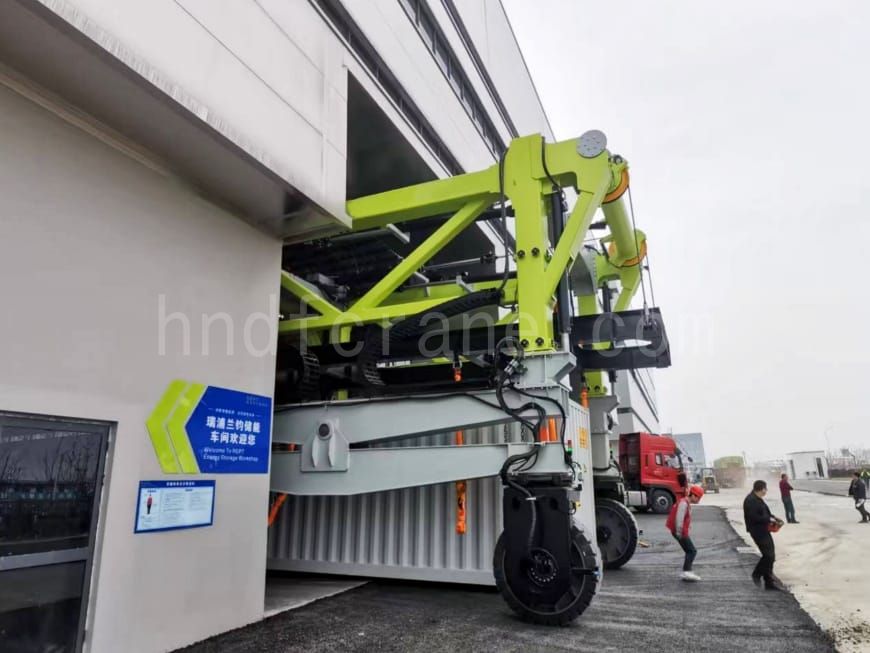

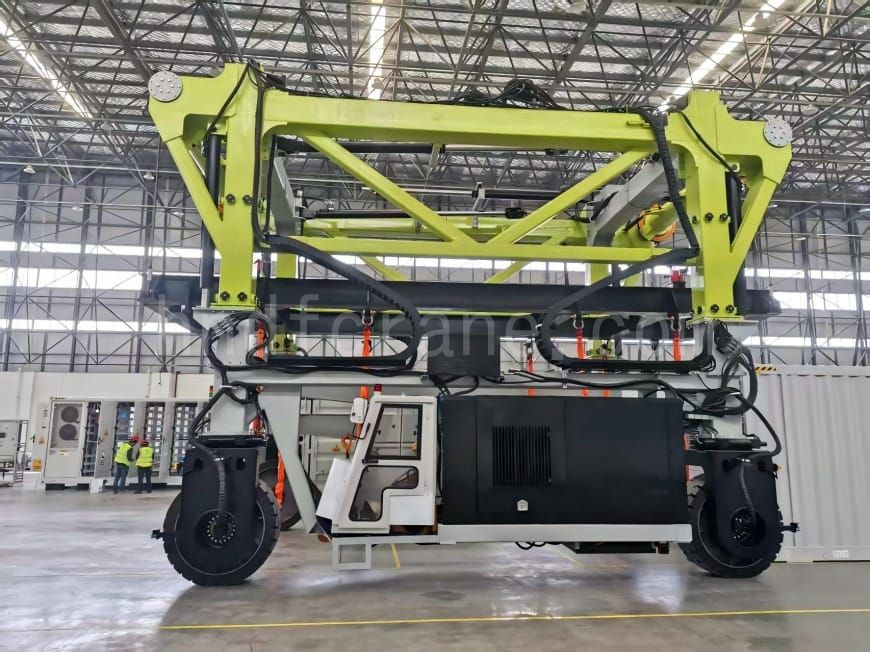

Electric Straddle Carrier
The Electric Straddle Carrier adopts a battery-powered drive system with zero-emission operation and reduced maintenance requirements.
Featuring smooth control, low noise, and high energy efficiency, it is especially suitable for indoor or urban logistics areas with environmental regulations.
Its modular battery pack supports fast charging or battery swapping to ensure uninterrupted performance.
Electric Straddle Carrier Features
- Zero Emissions: Powered by batteries, achieving zero emissions during operation.
- Low Noise: Operates with significantly reduced noise, minimizing auditory impact on personnel.
- Lower Operating Costs: Electricity is more economical than diesel, resulting in lower overall operating expenses.
- Low Maintenance Requirements: Simple maintenance of batteries and motors reduces downtime and improves cost efficiency.
- Reduced Vibration: Low vibration during operation provides a smoother and more comfortable working environment for operators.
- No Diesel Odor: Eliminates fuel fumes, creating a cleaner and more pleasant workplace.
Electric Straddle Carrier Parameters
| мадэль | MST3531EV | MST6037EV | MST8037EV |
| Ёмістасць | 35t | 60t | 80t |
| Length×Width×Height | 7110×5100×6100mm | 9250×5700×6350mm | 1250×6000×6350mm |
| Effective Inner Width | 3100mm | 3750mm | 3750mm |
| Wheel Base | 6010mm | 6600mm | 7400mm |
| Level 2 Lift Height | 1550mm | 1750mm | 1750mm |
| Max.Lifting Height(Below spreader) | 6150mm | 6300mm | 6300mm |
| Min.Ground Clearance | 230mm | 310mm | 310mm |
| Tire Qty | 4 | 4 | 8 |
| Dead weight(not containspreader) | 21T | 35T | 45T |
| Permanent Magnet Synchronous Motor | 85KW | 105KW | 125KW |
| Lithium Battery | Lithium Iron Phosphate | ||
| Closed Travel Pump | Hytek/Danfoss/PMP | ||
| Empty-load max.speed | 115m/min | 80m/min | 80m/min |
| full toad max.speed | 80m/min | 50m/min | 50m/min |
| Turning Radius | 6950mm | 8900mm | 13000mm |
| Empty-load/full-load Gradeability | 6%/3% | ||
| Control mode | Cab(remote control optional) | ||
| Tires | Solid tire | ||
| Lifting Tools | Automatic Spreader | Oversized Load Spreader | |
| Remarks: Optional accessory brands. | |||

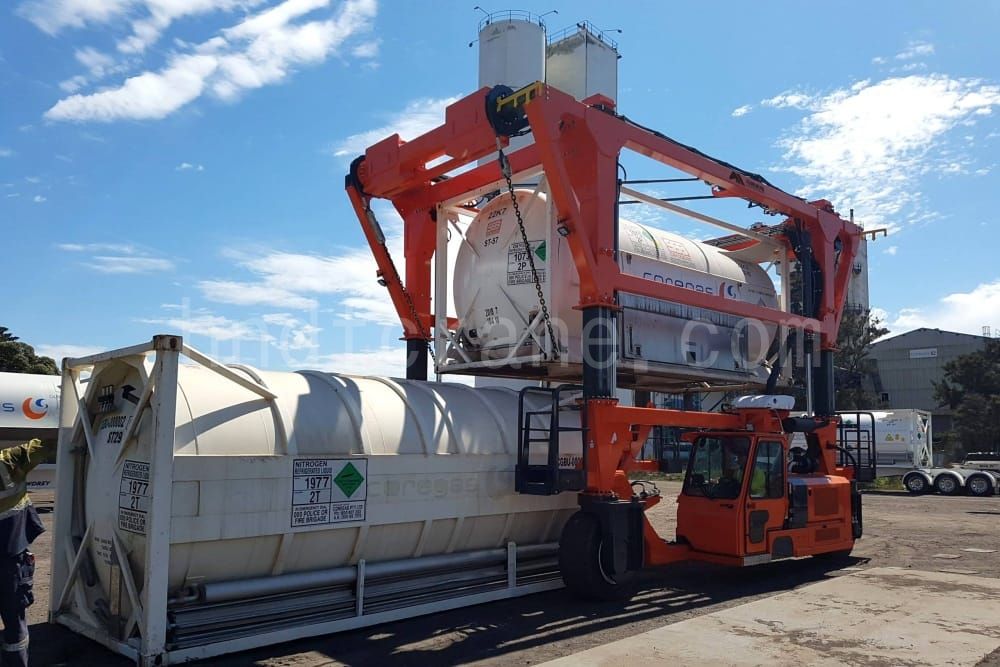

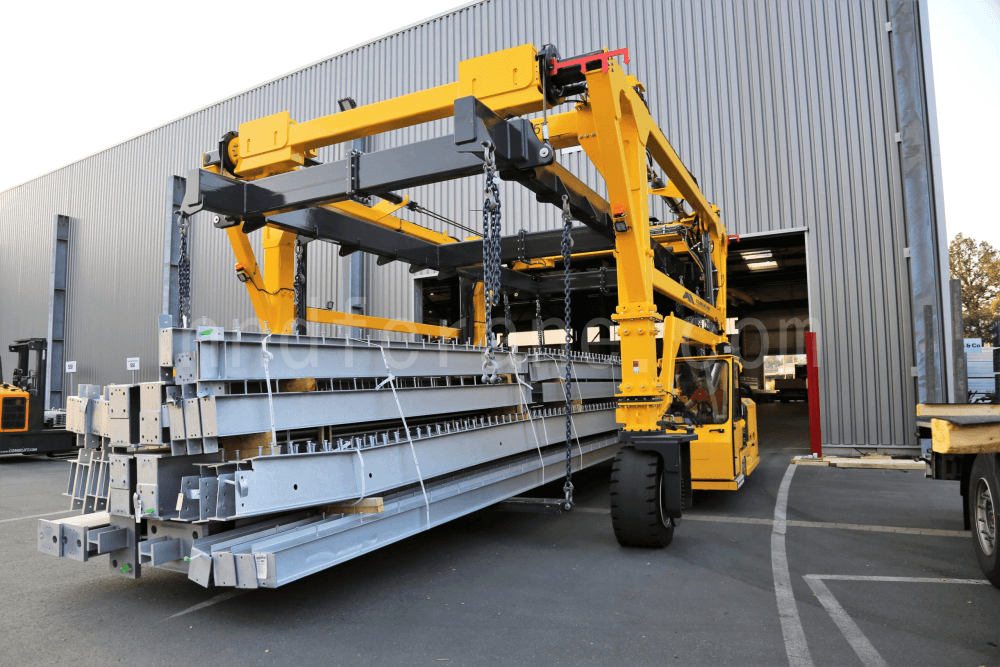

Application Fields

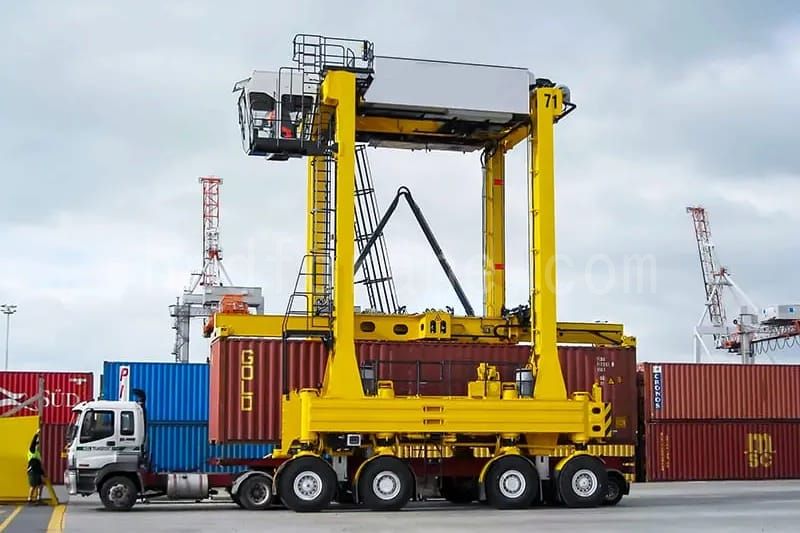

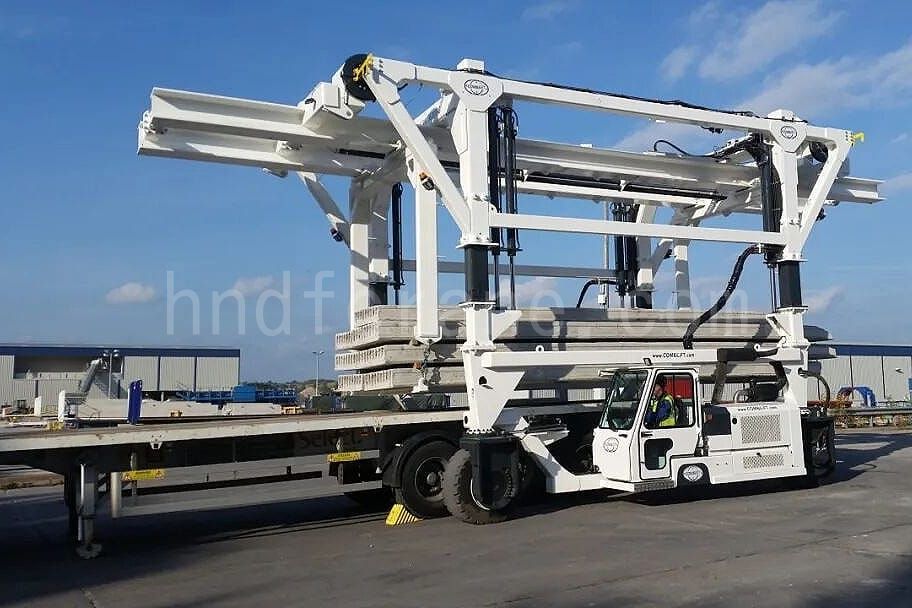

Straddle Carriers are mainly applied in container terminals, logistics centers, manufacturing bases, and energy storage facilities.
They are designed for container handling, modular cargo transfer, and yard stacking operations, offering flexible movement without the need for fixed rails.
With high adaptability to different ground conditions and compact operational areas, they are widely used for:
Why Choose DAFANG CRANE
As a leading lifting equipment manufacturer in China, DAFANG CRANE has established a strong reputation for engineering excellence, reliability, and global service capability.
DAFANG CRANE at a Glance
- 30+ Years of Manufacturing Experience: Proven expertise in crane design, production, and global project execution.
- Comprehensive Product Portfolio: Covering overhead cranes, gantry cranes, hoists, straddle carriers, and customized lifting systems.
- Global Presence: Exported to 120+ countries with thousands of successful installations across ports, factories, and logistics centers.
- Advanced Production Facilities: Equipped with large-scale fabrication workshops, precision machining centers, and automated welding lines.
- Strong Engineering Capability: In-house R&D team specialized in mechanical design, automation, and electrical control systems.
- Certified Quality Assurance: Compliant with ISO, CE, and SGS standards to ensure safety, performance, and long service life.
- Reliable After-Sales Service: Professional support covering on-site installation, commissioning, training, and maintenance.
DAFANG Straddle Carriers deliver efficient, reliable, and sustainable cargo-handling performance for modern logistics operations.
Looking for a reliable straddle carrier solution? Contact DAFANG CRANE today to discuss your project requirements. Our engineering team will help you customize the perfect lifting system to match your application needs.
