Articulating jib cranes provide maximum material handling flexibility in a manufacturing facility. They include two rotating arms that enable the system to maneuver loads around obstacles. They provide easy rotation and precision load placement when placing loads in tight areas. These cranes can even reach around corners and under other equipment. Articulated jibs are generally speaking easier to move than straight jib cranes, but they are more expensive.
Due to their exceptional maneuverability and flexibility, articulating jib cranes enable you to position loads in places that traditional jibs can’t reach. They’re an excellent choice for moving materials through doorways or around other pieces of equipment on the shop floor. The ease of rotation from the boom of an articulating jib crane combined with its low movement force enables you to place loads quickly, efficiently, and precisely. If you want to get the job done quickly and with maximum accuracy, this system can meet your needs.
Articulating jib cranes are employed in precision machining, factory workshops, automotive manufacturing, new energy production lines, energy and chemical industries, and other settings requiring temporary equipment maintenance. They are also utilised for short-distance hoisting, production lines involving frequent and intensive assembly operations, laboratory production lines, and machine tool loading/unloading tasks. These applications reduce labour intensity and enhance production efficiency.
Articulating Jib Cranes Structural Composition
- Vertical support column: This is the primary support structure, which is usually anchored to the floor or a foundation. It can also be wall-mounted or attached to another structure.
- Articulated arm: The arm consists of two or more segments connected by pivot points or joints, enabling the arm to bend at different angles. This provides increased flexibility and allows the arm to navigate around obstacles in the work area.
- Trolley hoist or chain hoist: The hoist is mounted on the outermost segment of the articulated arm and is used for lifting, lowering, and moving loads. The hoist can be manual, electric, or pneumatic, depending on the application and required lifting capacity.
- Rotation: The base of the articulated jib crane allows for rotation, typically ranging from 180 to 360 degrees, depending on the design and workspace constraints.
Articulating Jib Cranes Features
- Able to work around corners and other obstacles. Wall-mounted and ceiling-mounted articulated jibs are available where floor-mounted arms are unsuitable.
- An economical solution for intensive lifting tasks in areas where crane coverage is limited by the jib’s working radius.
- Easy arm positioning when handling loads near the mast.
- Improved ergonomics: the articulated arm’s flexibility reduces operator strain, enhancing productivity and minimizing injury risk.
- Customizable: articulated jib cranes can be tailored with different arm lengths, lifting capacities, and power options to meet specific application requirements.
- Space-saving: the foldable arm can be installed directly beside machinery, ideal for confined work areas.
- Fully customizable options include mobile articulated jibs, stainless-steel versions, intelligent lifting models, and tailored height, travel, arm length, and arm materials.
- Compatible with smart hoists, air hoists, and pneumatic balancers, making it a versatile workstation lifting solution.
- Free-standing column installation available.
- Sealed spherical bearings at pivot points.
- Compatible with cranes and vacuum lifters.
5 Articulating Jib Cranes Solutions We Provide

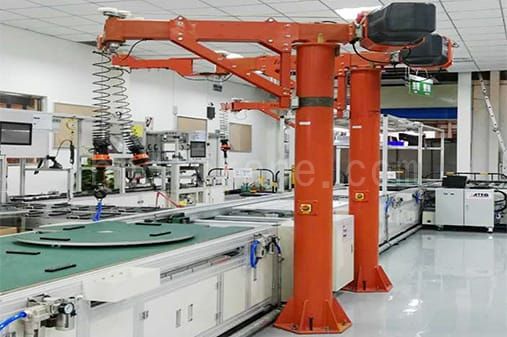

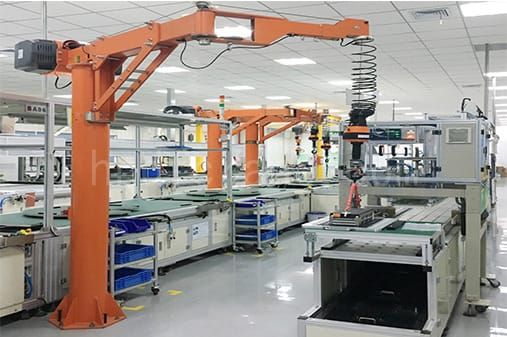

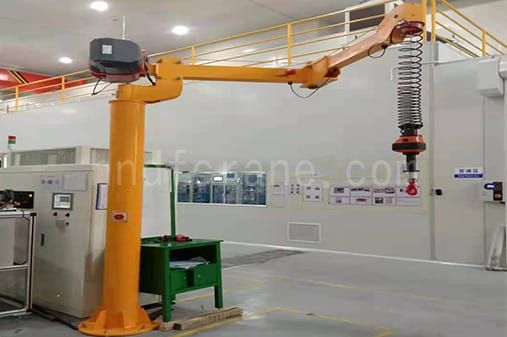

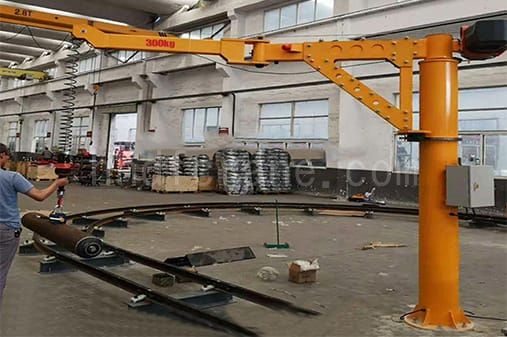

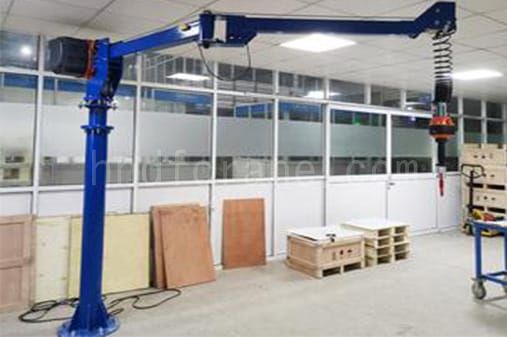

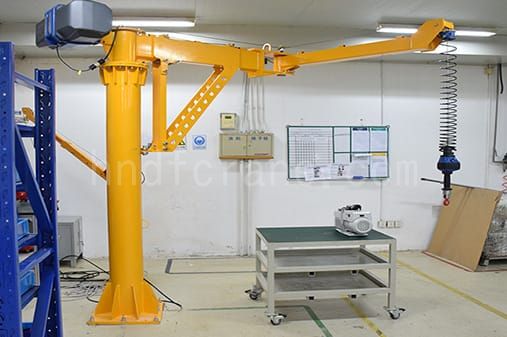

Freestanding Articulating Jib Cranes
- Easy to install in most locations.
- Inner and outer arms provide full 360° rotation.
- The baseplate is anchored with bolts to a reinforced concrete foundation for maximum stability.

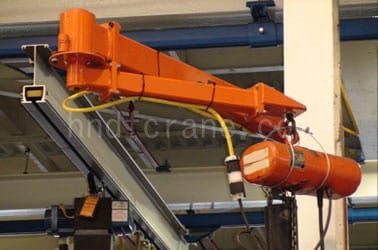

Wall Mounted Articulating Jib Cranes
- 360° outer arm and 180° inner arm rotation for flexible coverage.
- Ideal for single workstations with full access to one jib.
- High headroom design fits tight or crowded spaces.
- Clear floor area with low overhead installation needs.

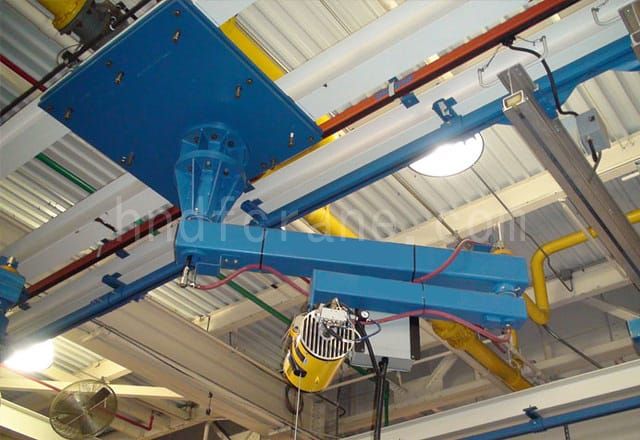

Ceiling Mounted Articulating Jib Cranes
- Offer more headroom and more clearance—both below and above the boom.
- Outstanding headroom permits installation in tight locations, such as low ceilings or crowded workshops.

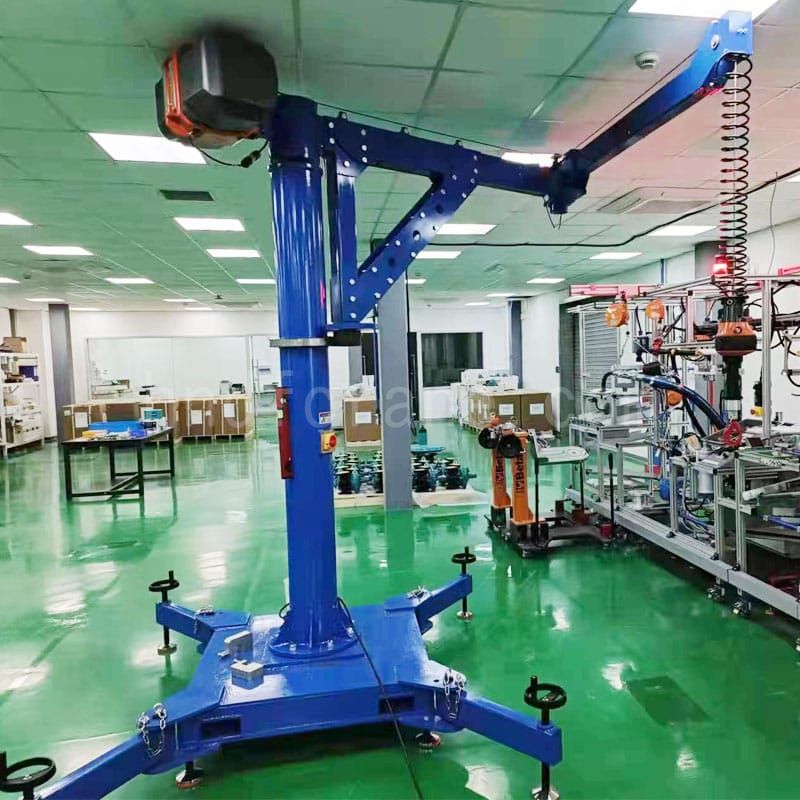

Portable Base Articulating Jib Cranes
- Installs easily almost anywher.
- Inner and outer arms rotate 360°.
- Baseplate anchors to a counterweight base for stable, portable use.

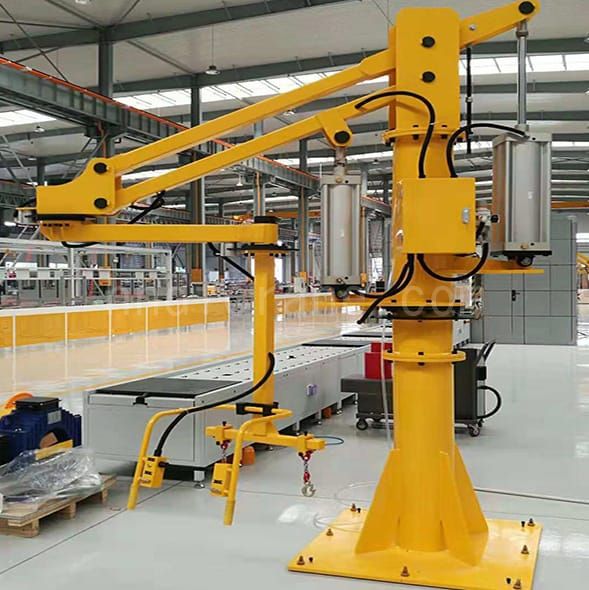

Pneumatic Articulating Jib Arm
- Powered entirely by 0.5–0.6 MPa standard compressed air, with no electrical supply required.
- Safe for flammable, explosive, and dusty environments.
- Lowers safety risks, cuts costs, and boosts reliability.
Dafang Crane Articulating Jib Cranes Cases

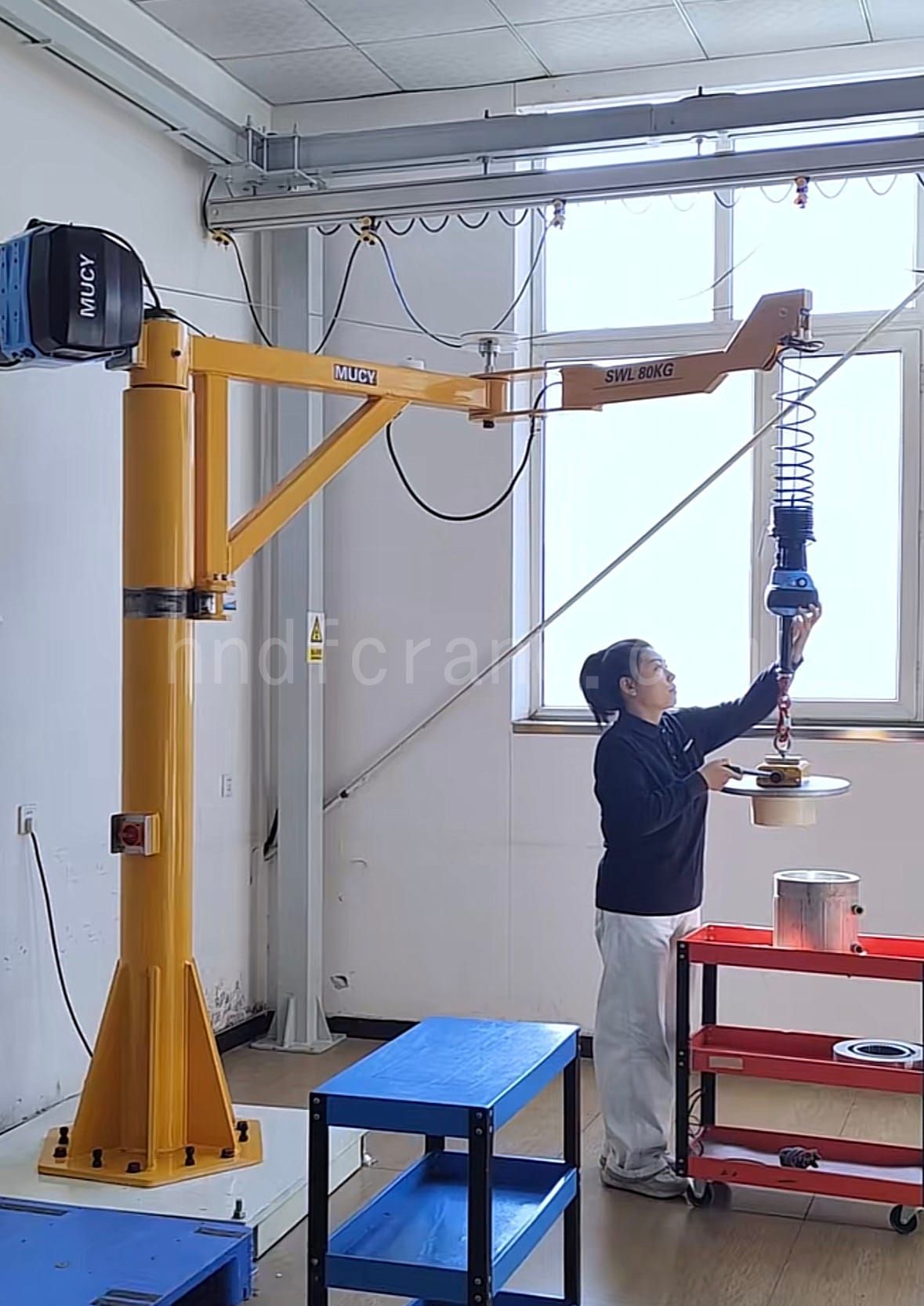

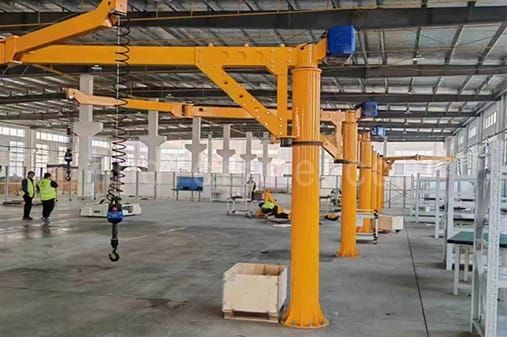

Freestanding Articulating Jib Cranes Sold to Hebei China
- Equipped with magnetic grippers for secure and reliable handling.
- Designed for precision assembly tasks.
- Micron-level alignment with zero deviation.
- Faster processes with improved quality and efficiency.

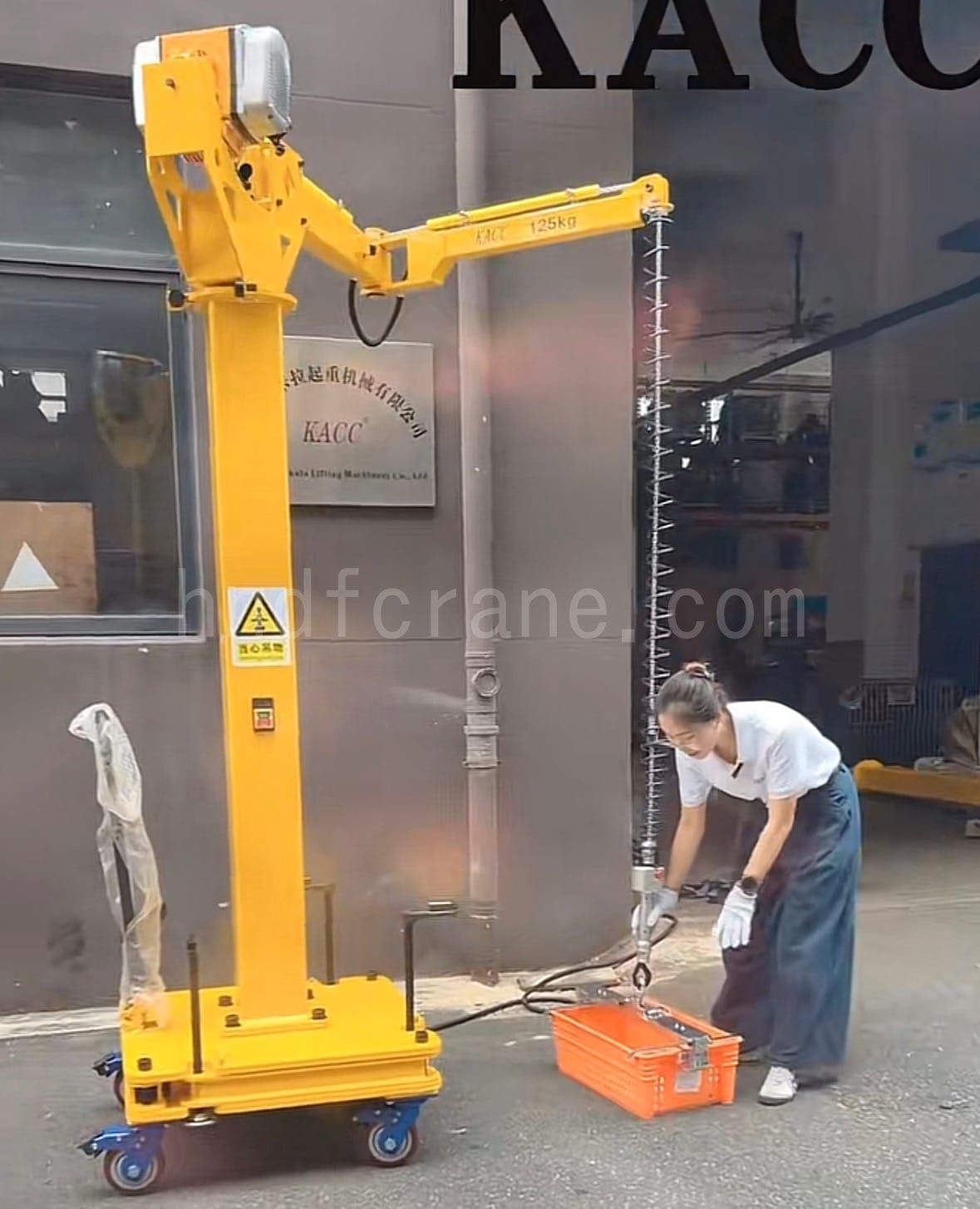

125kg Portable Base Articulating Jib Cranes Sold to Zhejiang China
- 2 m arm length, 2.8 m height, with full 360° rotation.
- Equipped with a custom fixture for lifting plastic turnover bins.
- Used in the food service industry.
- Includes a manual push handle for easy positioning.

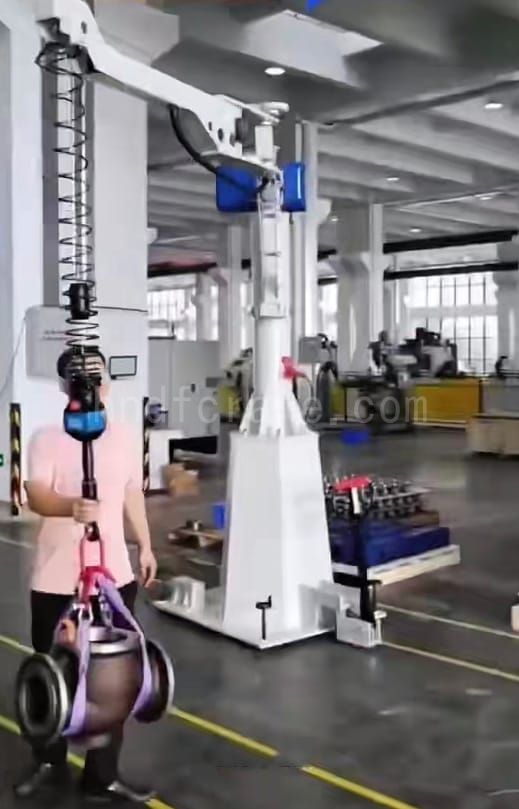

Portable Base Articulating Jib Cranes Sold to Shandong China
- Full 360° rotation.
- One-hand pressure-sensing control.
- Handle panel with real-time lifting speed adjustment from 0–35 m/min.
- For workshop workpiece handling.
