Produkteinführung
The aluminum jib cranes adopt a lightweight, high-strength extruded aluminum alloy enclosed track design. An aluminum wall bracket jib crane can be installed on walls or pillars, can be installed on walls or pillars, with a maximum lifting capacity of 1000 kg and a 5-meter arm length. This aluminum alloy track can reduce the rotating weight of the boom by 56% to 68%, making the rotation of the cantilever 40% easier than that of ordinary cantilever cranes. The tie rod design minimizes deflection and makes positioning more accurate. The aluminum tie rod jib crane can be used as a useful tool for repetitive work station operations, such as stacking objects on pallets or simply moving them from one fixed point to another.
Aluminum Jib Cranes Features
- Using lightweight aluminum alloy track profiles, these aluminum jib cranes can be configured to meet almost any application needs.
- Anodized aluminum extruded profiles and enclosed tracks help maximize strength, durability, and aesthetics.
- Nylon wheels ensure that the trolley moves smoothly and safely in the enclosed track.
- There is no need to install expensive foundations, and the installation process of the aluminum jib crane is fast and efficient.
- Lightweight, this kind of rail has a higher moment of inertia to weight ratio. Compared with traditional steel rails, these cantilever cranes also have unusually high torsional stiffness; the height of the rail is much larger than the width, thereby maximizing the stiffness-to-weight ratio.
- Can be rotated 270 degrees
- Top and bottom pivot bearings for easy rotation
- Freestanding or wall-mounted options
- Can provide a rotary stop device at any desired angle
- Power or manual rotation
Three Aluminum Jib Cranes Solutions We Provide

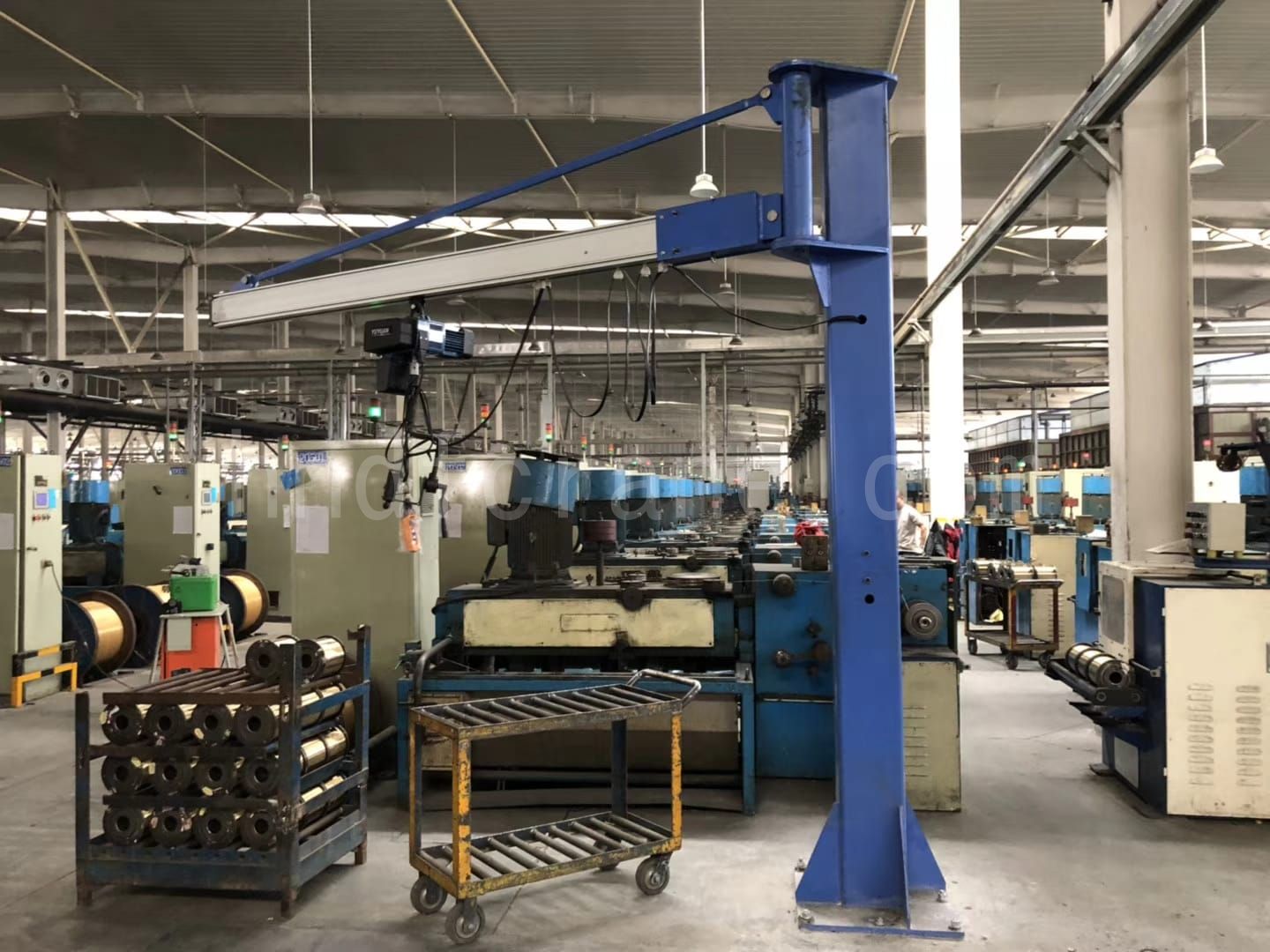

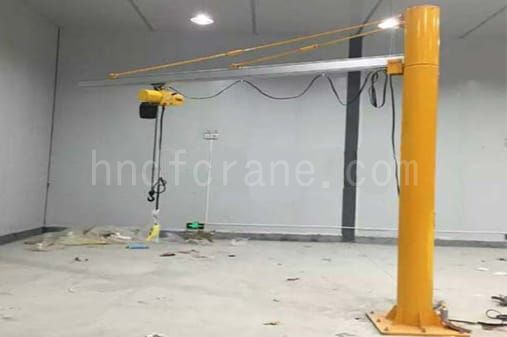

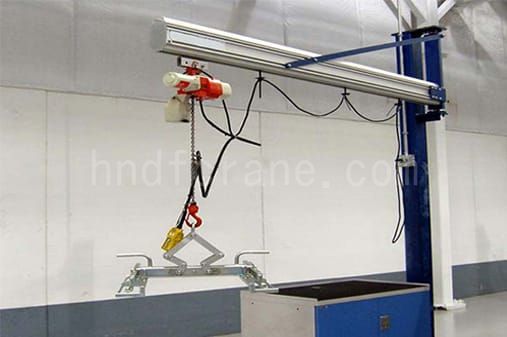

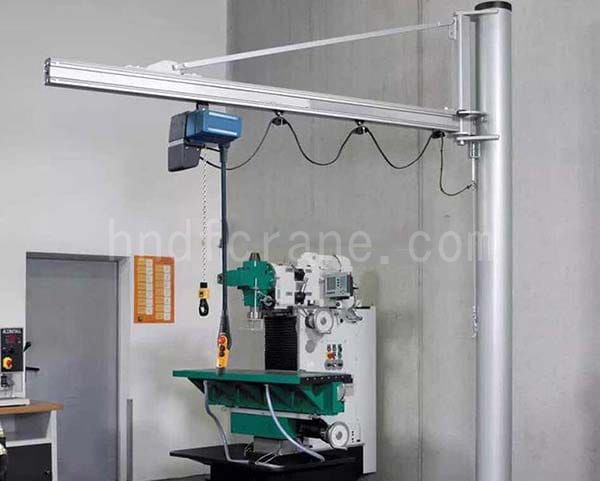

Freestanding Aluminum Jib Crane
- Uses standard extruded aluminum linear rail as the jib arm.
- Column base anchored to a concrete foundation with foundation bolts.

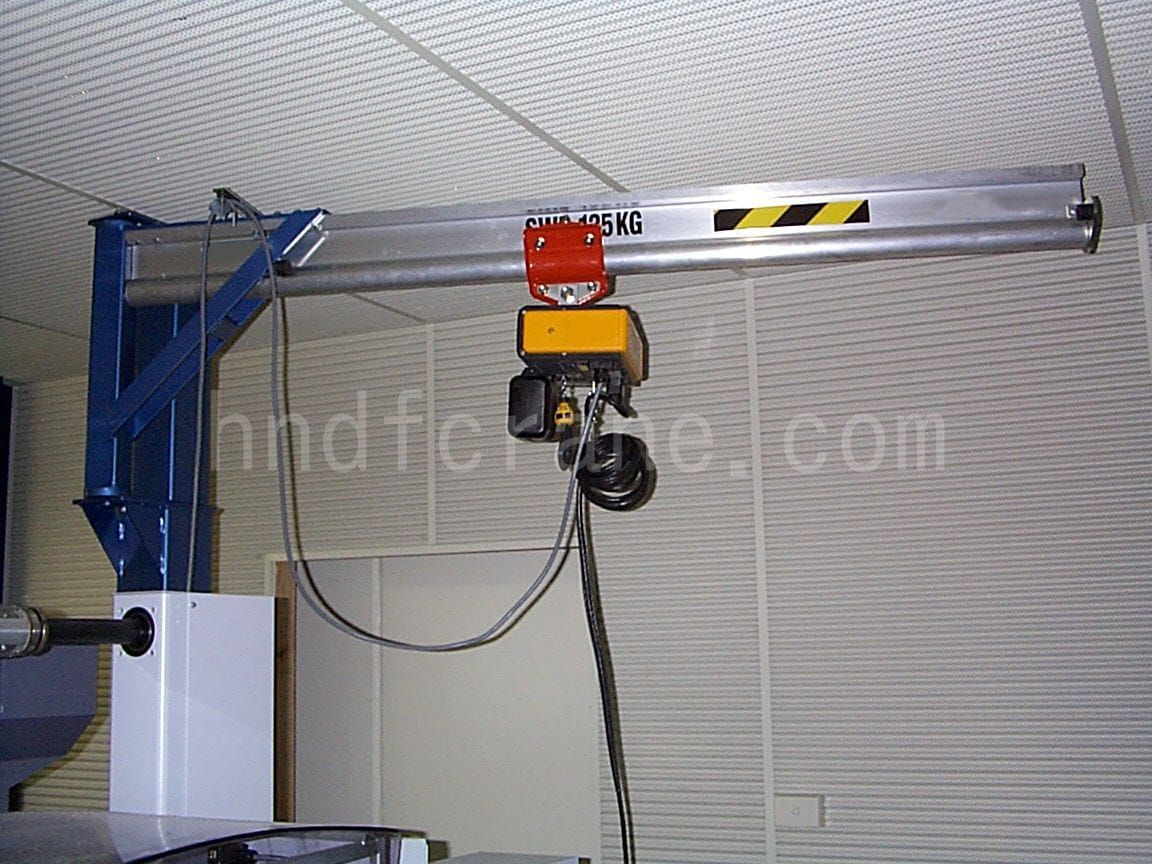

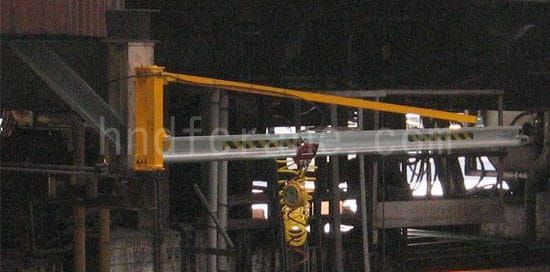

Aluminum Wall Mounted Jib Crane
- Mounts directly to existing walls, columns, or machinery.
- Requires no floor space, making it ideal for compact work areas.
Full Aluminum Jib Crane
- Ideal for environments requiring high cleanliness or low contamination.
- Column structure includes reserved connection points for rail systems.
Aluminum Jib Cranes Price
The price of an aluminum jib crane depends on several key factors—such as arm length, rotation angle, capacity, installation height, track type, and the lifting device you plan to pair it with. Since every workstation is different, we provide customized quotations based on your specific material-handling needs.
Get your free quote now! Tell us your required lifting capacity, arm length, rotation range, and working environment. Our team will design a tailored aluminum jib crane solution using lightweight, low-resistance extruded aluminum track—and provide a quotation immediately.
Dafang Crane Aluminum Jib Cranes Cases

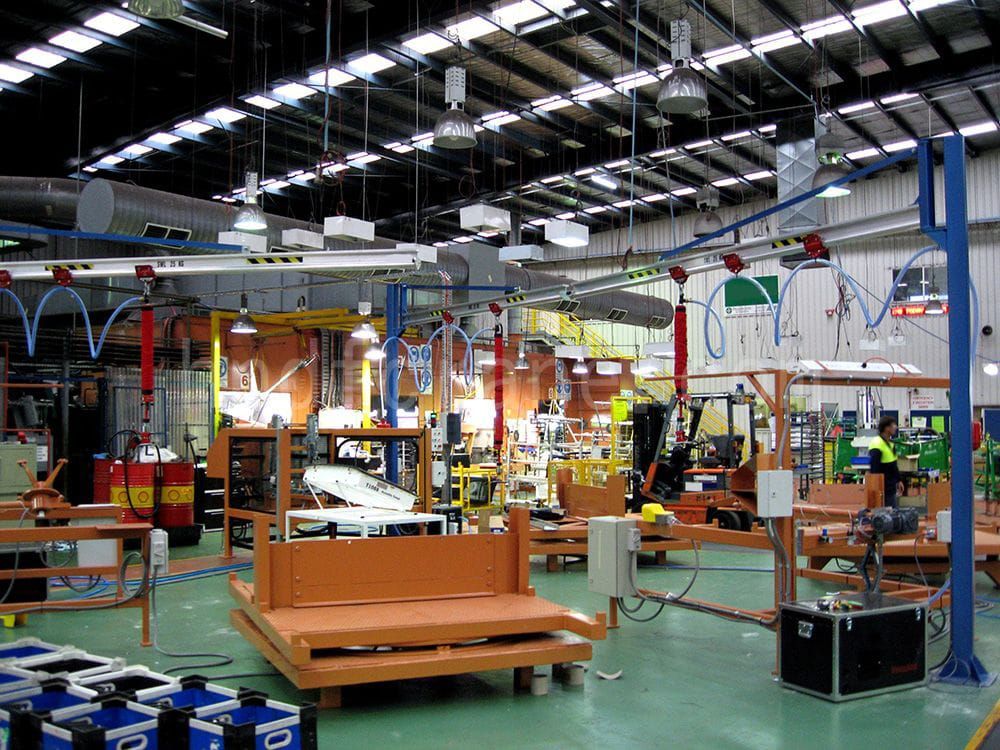

Aluminum Jib Crane Used for Linear Conveying of Materials
- Location: Shanghai, China
- Industry: Manufacturing & Processing
- Anwendung: Connect multiple loading/unloading stations for linear and loop material transfer.
- System Design: Modular aluminum structure suitable for varied workflow paths.
- Operational Advantage: Lightweight aluminum jib enables easy movement.
- Customization: Tailored layout based on workshop requirements for cost-effective deployment.
- Customer Benefits: Improved transfer efficiency, reduced manual handling effort, flexible expansion, better overall cost control.
Aluminum Jib Crane Used for Glass Processing & Handling
- Location: Munich, Germany
- Industry: Glass Processing & Handling
- Anwendung: Lifting and placing lightweight glass panels into various fixtures for edge processing and quality inspection.
- System Design: Standard aluminum jib crane with vacuum suction attachment, suitable for tight workspaces.
- Operational Advantage: Lightweight aluminum arm minimizes rotation resistance, enabling smooth manual lifting, tilting, and rotation.
- Customer Benefits: Efficient glass handling, minimal manual effort, reduced product damage, enhanced quality control, and lower operator injury risk.
Aluminum Jib Crane Used for Paper Handling
- Location: Dubai, UAE
- Industry: Printing & Paper Handling
- Anwendung: Handling and loading heavy paper rolls onto new printing machines within low-ceilinged spaces.
- System Design: Inverted jib crane combined with a close-coupled electric chain hoist, designed for tight spaces and future expansion of roll size.
- Operational Advantage: Operators can lift and rotate heavy rolls easily without structural modifications to the building.
- Customer Benefits: Reduced manual effort, faster roll replacement, safer and more comfortable work environment.

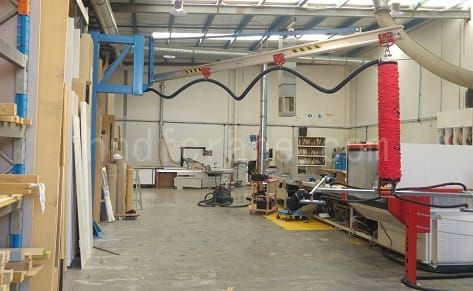

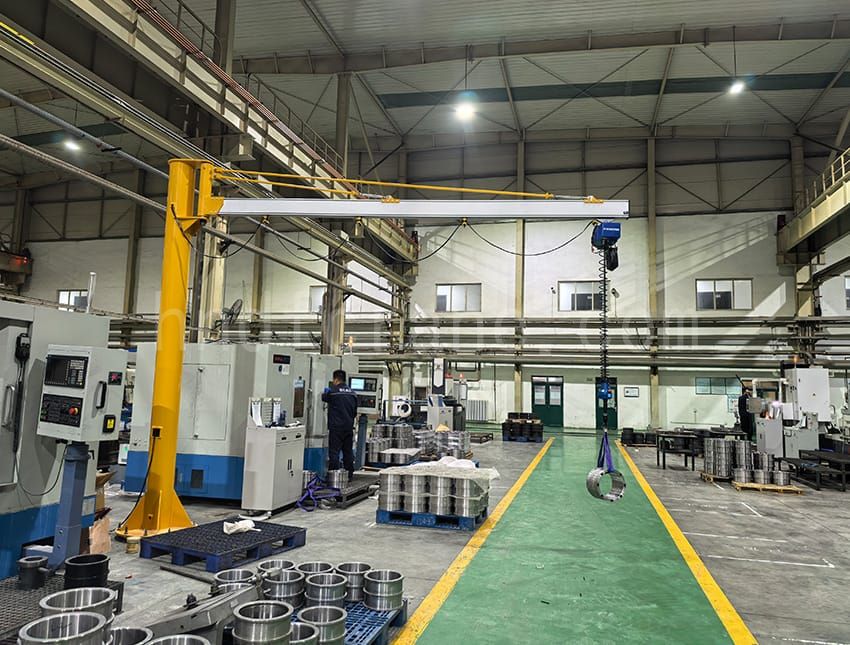

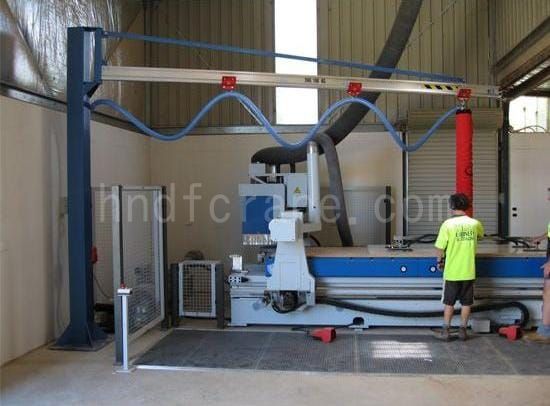

Aluminum Jib Crane Used for Manufacturing Plant
- Location: Istanbul, Turkey
- Industry: Cabinet Manufacturing
- Anwendung: Moving daily material batches from the staging area to CNC machining stations across a large workspace without interrupting production flow.
- System Design: 5-meter long-arm aluminum jib crane with custom mounting brackets integrated into existing warehouse shelving to avoid occupying floor space.
- Operational Advantage: Equipped with a vacuum lifter capable of handling various board sizes, shapes, and materials up to 160 kg.
- Customization: Tailored to fit between concrete walls and tightly positioned shelving racks, providing full work area coverage with no additional building modifications.
- Customer Benefits: Reduced manual labor, improved workflow continuity, enhanced operator safety, higher productivity, and significant overall cost savings.
Why Choose Dafang Crane Aluminum Jib Cranes
Advanced Technology & Intelligent Manufacturing
Dafang combines European lifting technology with large-scale intelligent production to deliver lightweight, low-resistance aluminum jib cranes.
Strong Manufacturing Strength
Established in 2006 with USD 84.65 million registered capital and a 1,053,000 m² smart factory producing 80,000+ lifting units annually.
Global Coverage & Fast Support
Exported to 100+ countries and supported by 130+ global service centers for quick response and dependable after-sales service.
Lightweight & Easy Operation
Built with high-strength aluminum profiles, ergonomic rotation structures, and low-friction trolleys for smooth, effortless movement.

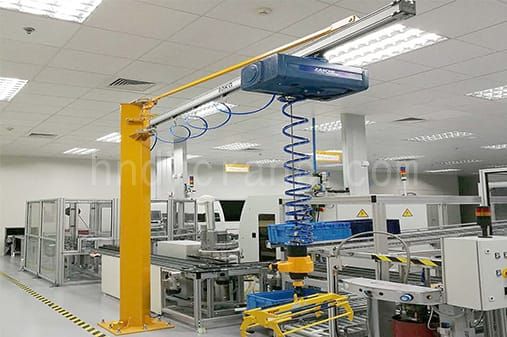

Clean, Quiet & Corrosion-Resistant
Naturally dust-free, low-noise, and corrosion-resistant—ideal for precision manufacturing, electronics, food, and biopharmaceutical industries.
Versatile for Multiple Work Environments
Modular design and flexible installation options suit general manufacturing, warehousing, assembly, machining, and confined spaces.
Multiple Configuration Options
Available in wall-mounted, column-mounted, and full aluminum rail jib crane systems.
Reliable Components & Global Standards
Equipped with internationally recognized components and tested to CE, GOST, and ASME standards to ensure stable, low-maintenance performance.
Delivers Long-Term Value
Engineered for safe, efficient, and effortless workstation lifting—your trusted partner in material handling.
