Cast Crane Sheaves: Cost Effective and Customizable Solutions

Cast Crane Sheaves Product Introduction

Cast crane sheaves are a process in which the metal is smelted into a liquid metal that meets certain requirements and poured into the mold through the casting process. After cooling, solidification, and cleaning, the cast crane sheaves’ predetermined shape, size, and performance are achieved. Because the cast crane sheaves blanks are almost fully formed, free machining or small-scale machining is used, reducing costs and production time to some extent. This method offers low production costs and high efficiency. For some cast crane sheaves with large size, irregular shape, and complex structure, casting is an ideal production method. Pulley casting is the basic process of modern device manufacturing industry.

Cast Crane Sheaves Classification

Cast SteelCrane Sheaves

• Imkoniyat: Up to 200t
• High hardness: ZG25Ⅱ material has high density and extremely high hardness.
• Good wear resistance: its own density is a bit higher, its wear resistance is high, and its carrying capacity is stronger.
• Good toughness and light weight: good mechanical toughness and strong impact resistance.

Cast Iron Crane Sheaves

• Imkoniyat: Up to 100t
• Wire rope wear is relatively small: HT250 material contains graphite and has self-lubricating characteristics, which can effectively reduce friction, have good shock absorption performance, and extend the service life of wire rope.
• Cost-effective: the sand casting process is simple and the raw materials are extensive, which significantly reduces the procurement cost while meeting the standard requirements.

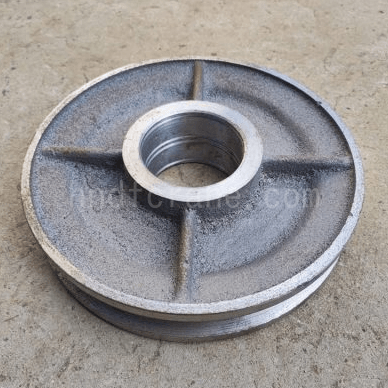

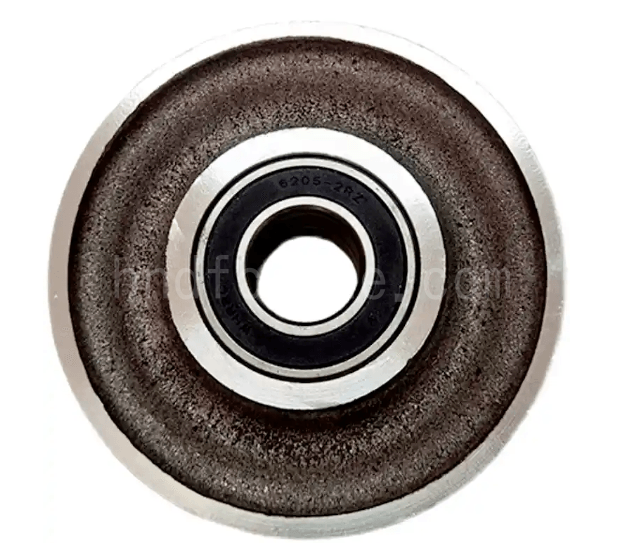

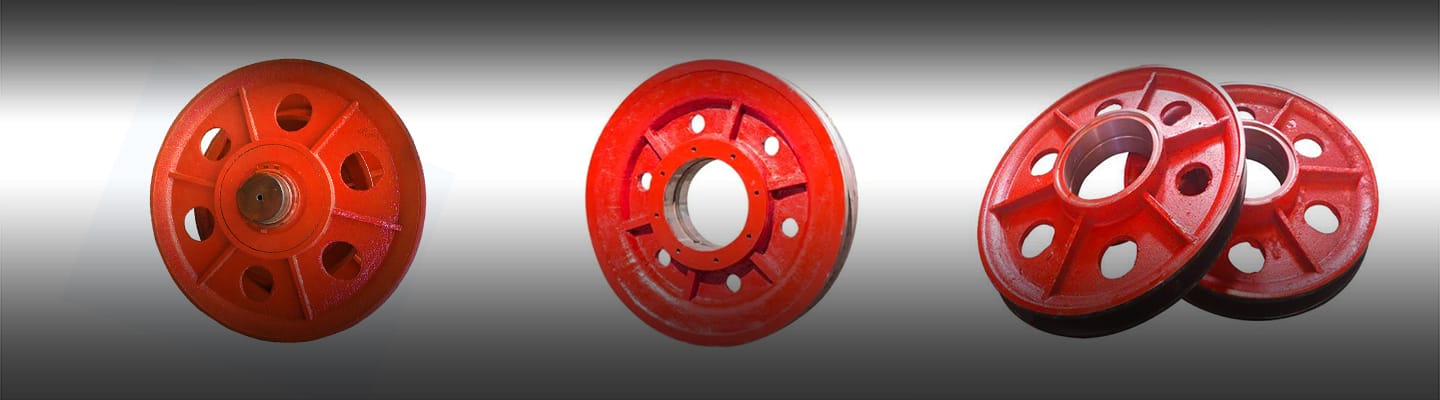

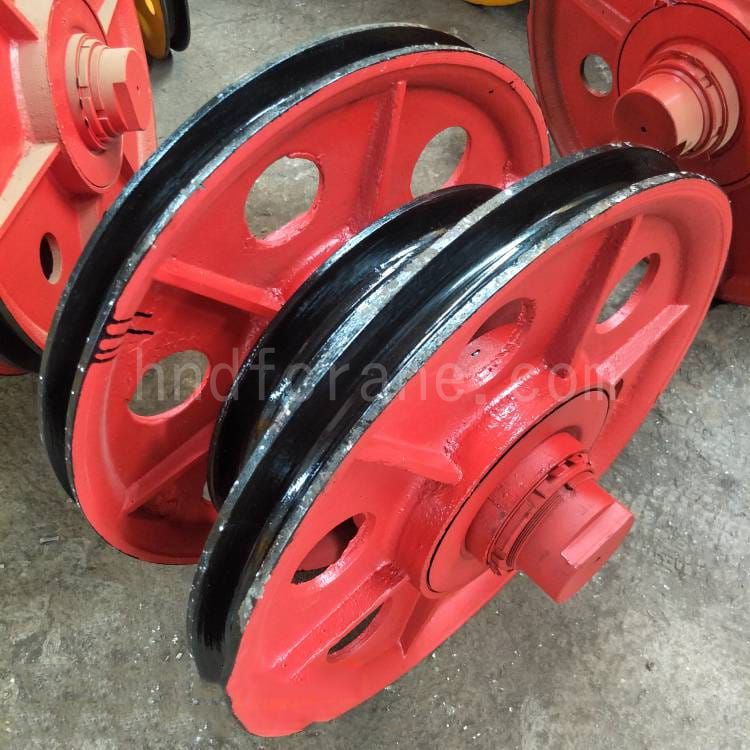

Cast Steel Crane Sheaves

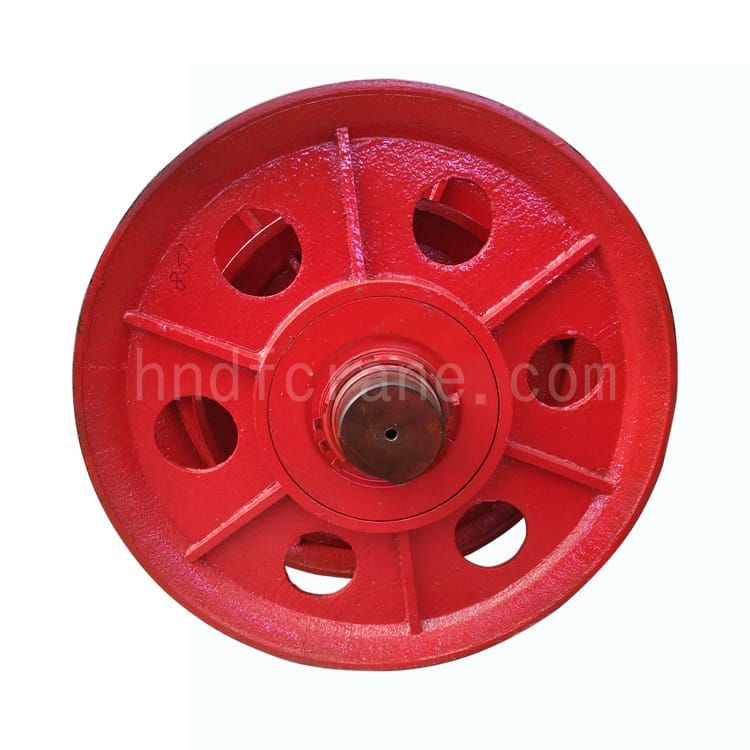

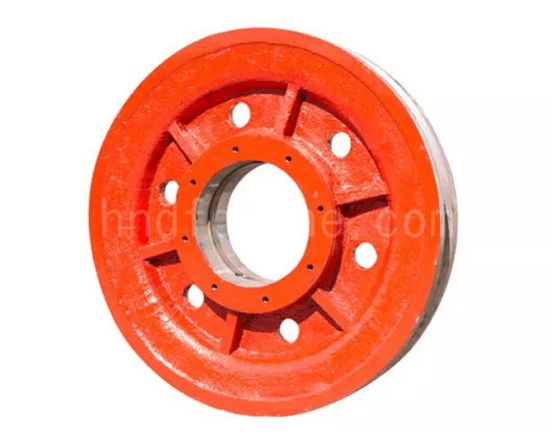

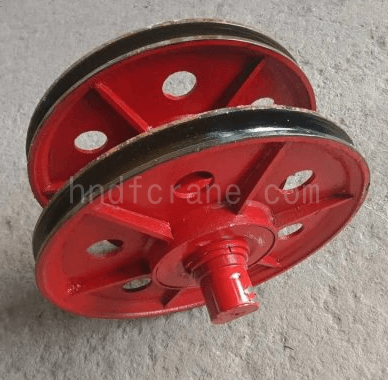

Cast Steel Crane Sheaves Introduction

Cast steel crane sheaves have higher strength and can withstand greater tensile pressure, but the wear on the wire rope is greater than that of cast iron sheaves. It is ideal for occasions with high operating conditions. Standard cast steel sheaves generally use lost foam casting, which has a low production cost and high efficiency. For some cast crane sheaves with large size, non-standard shape, and complex technology, cast steel crane pulleys are an ideal way to make them. Moreover, the lost foam casting method is used, and the pulley is not limited by the equipment in terms of diameter and other dimensions, which is more flexible. However, due to the influence of factors such as casting technology, the quality directly depends on the quality of the casting blank.

Cast Steel Crane Sheaves Advantages

• Enhanced Toughness and Plasticity

Cast steel crane sheaves are engineered with material properties similar to high-grade steel. They possess higher hardness and superior flexibility compared to cast iron, resulting in greater plasticity and impact resistance. This makes them highly versatile for a broader range of industrial applications.

• Lightweight Design for Operational Efficiency

Due to the lower density of cast steel compared to traditional iron, cast steel crane sheaves are significantly lighter for the same volume. In lifting operations, where the movable pulley travels with the load, a lighter sheave reduces energy consumption and manual labor intensity, explaining its widespread adoption over cast iron alternatives.

• Corrosion Resistance and Extended Service Life

During operation, cast steel crane sheaves develop a natural protective surface layer that shields the component from rain and chemical erosion. Unlike cast iron, which is prone to rust and structural degradation when exposed to moisture, cast steel maintains its integrity, offering a substantially longer service life.

• Advanced Wear Resistance through Flame Hardening

By optimizing carbon content, the structural strength of these sheaves surpasses iron. Specifically, with flame quenching, the surface hardness reaches HRC48–HRC52, extending the wear life by more than 30%.

• Optimized Stress Distribution for Heavy-Duty Lifting

Featuring a dual-hub design, these sheaves uniformly disperse stress across the structure. This makes them the definitive choice for high-tonnage lifting operations where structural reliability is nonnegotiable.

Optional configurations with tapered roller bearings or sliding bearings support a wide operating temperature range from -40°C to 200°C. Fully ISO 14001 certified, these cast steel crane sheaves are the ideal choice for extreme environments such as metallurgical blast furnaces and offshore oil drilling platforms.

Cast Steel Crane Sheaves Applications

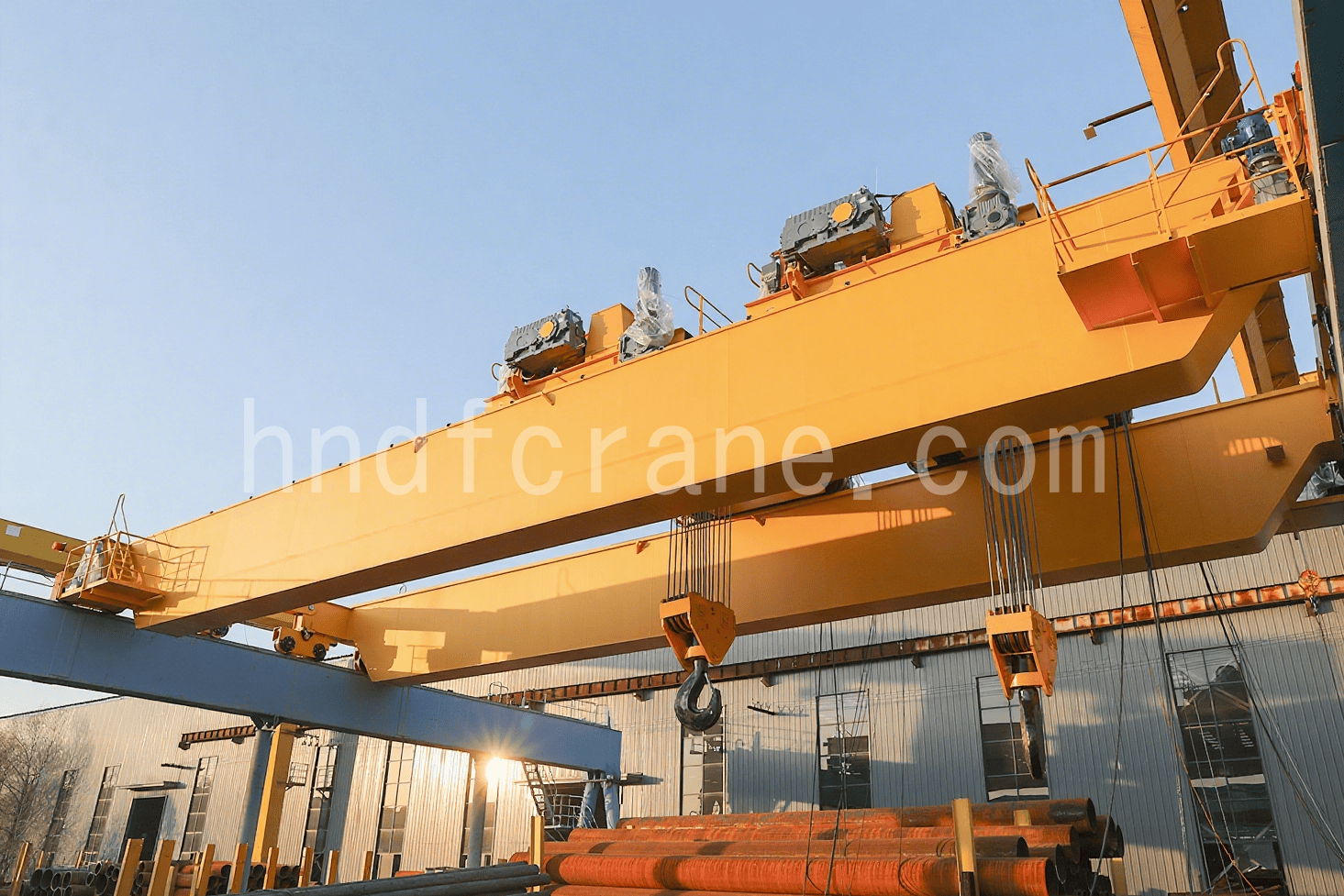

Cast Crane Sheaves for Explosion Proof Overhead Cranes

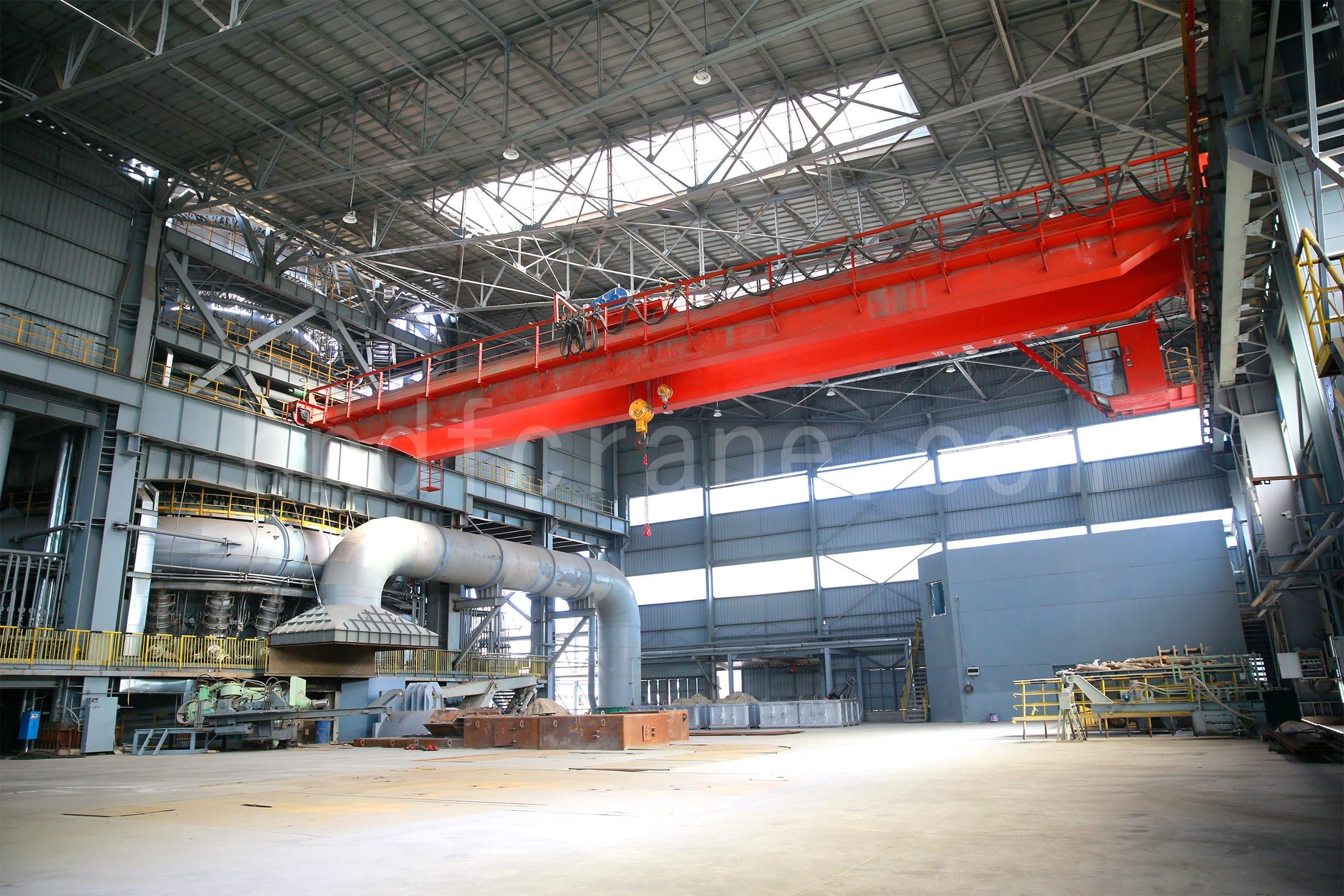

Cast Crane Sheaves for Foundry Overhead Cranes

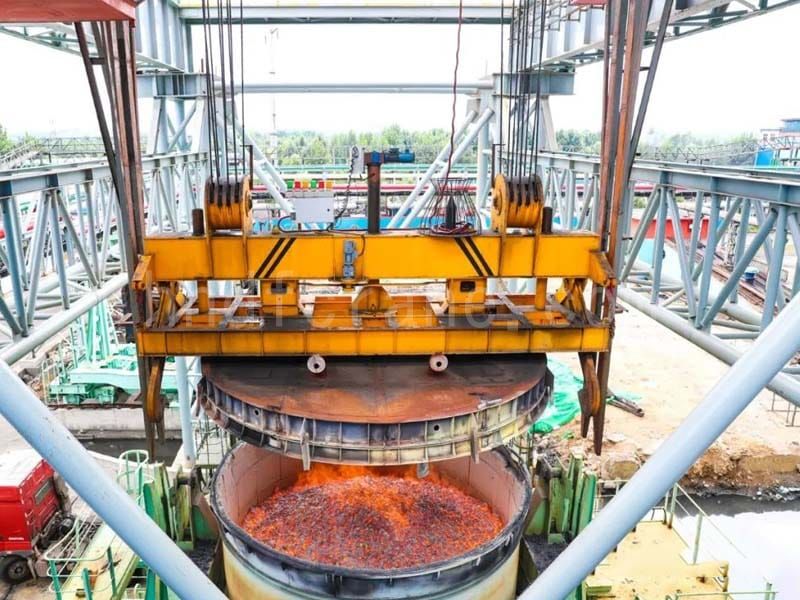

Cast Crane Sheaves for Intelligent Coke Tank Crane

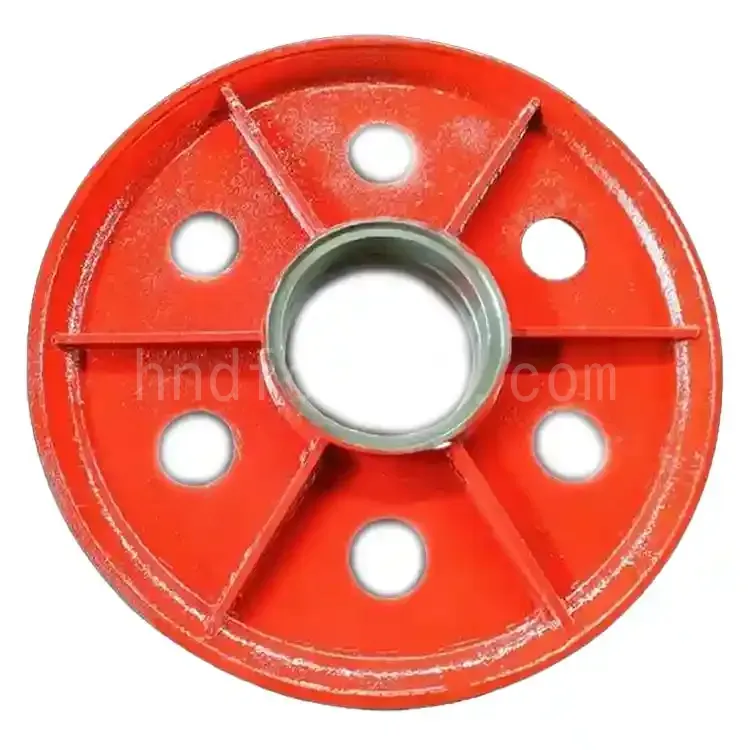

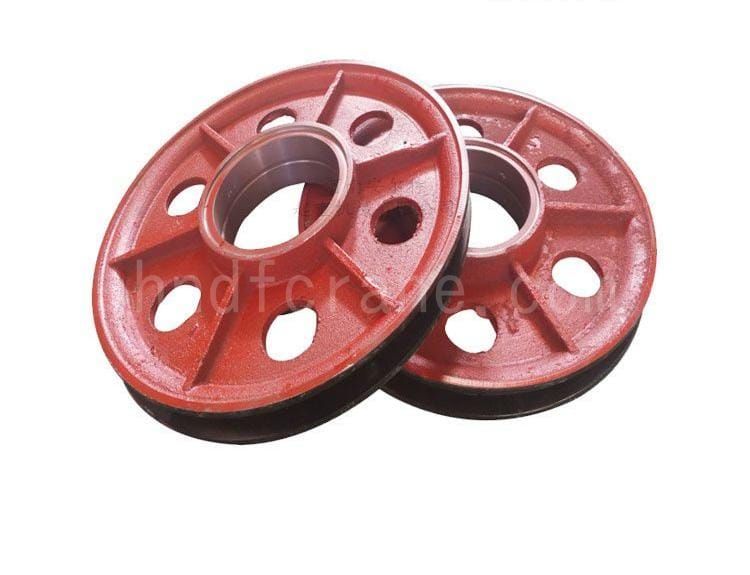

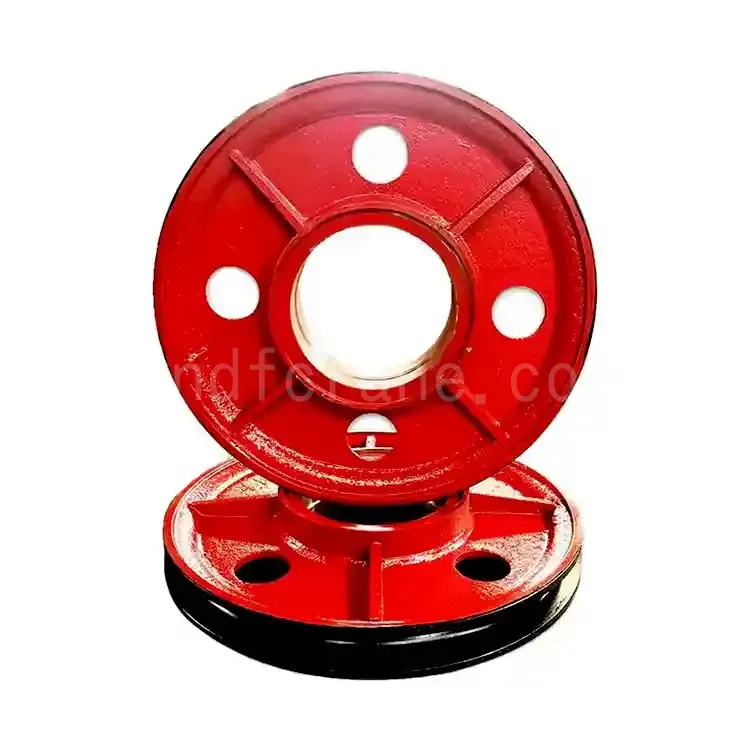

Cast Iron Crane Sheaves

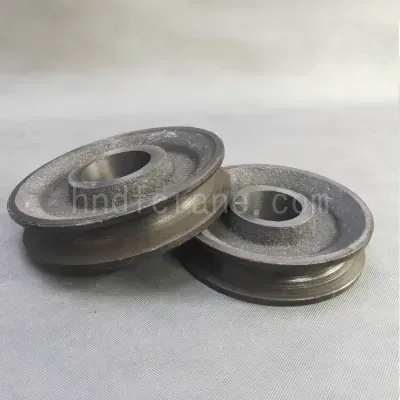

Cast Iron Crane Sheaves Introduction

Cast iron crane sheaves use gray cast iron (HT15-33) or ductile iron (QT-10). The cast crane sheaves have good process performance and are easy to cut, especially since the wear on the wire rope is small, but because of their low strength and brittleness, poor durability, they can easily cause rim fracture and crushing when used, and it is more economical and ideal for small tonnage or infrequent equipment use. Cast iron crane sheaves use sand-cast iron casting technology; cast iron is an ideal material for making crane pulleys because of its good fluidity during casting and relatively few casting defects.

Cast Iron Crane Sheaves Advantages

• High carrying capacity and stability: high-quality cast iron materials coupled with heat treatment technology ensure reliable carrying capacity. The recommended static safety factor is ≥3 (depending on the application conditions).
• Long service life: Graphite in cast iron provides natural lubrication, combined with quenching, tempering and shot peening treatment, which can reduce friction and surface wear.
• Cost-effective manufacturing: The casting process can achieve integrated, complex geometries and reduce unit costs in large-scale production.

Cast Iron Crane Sheaves Applications

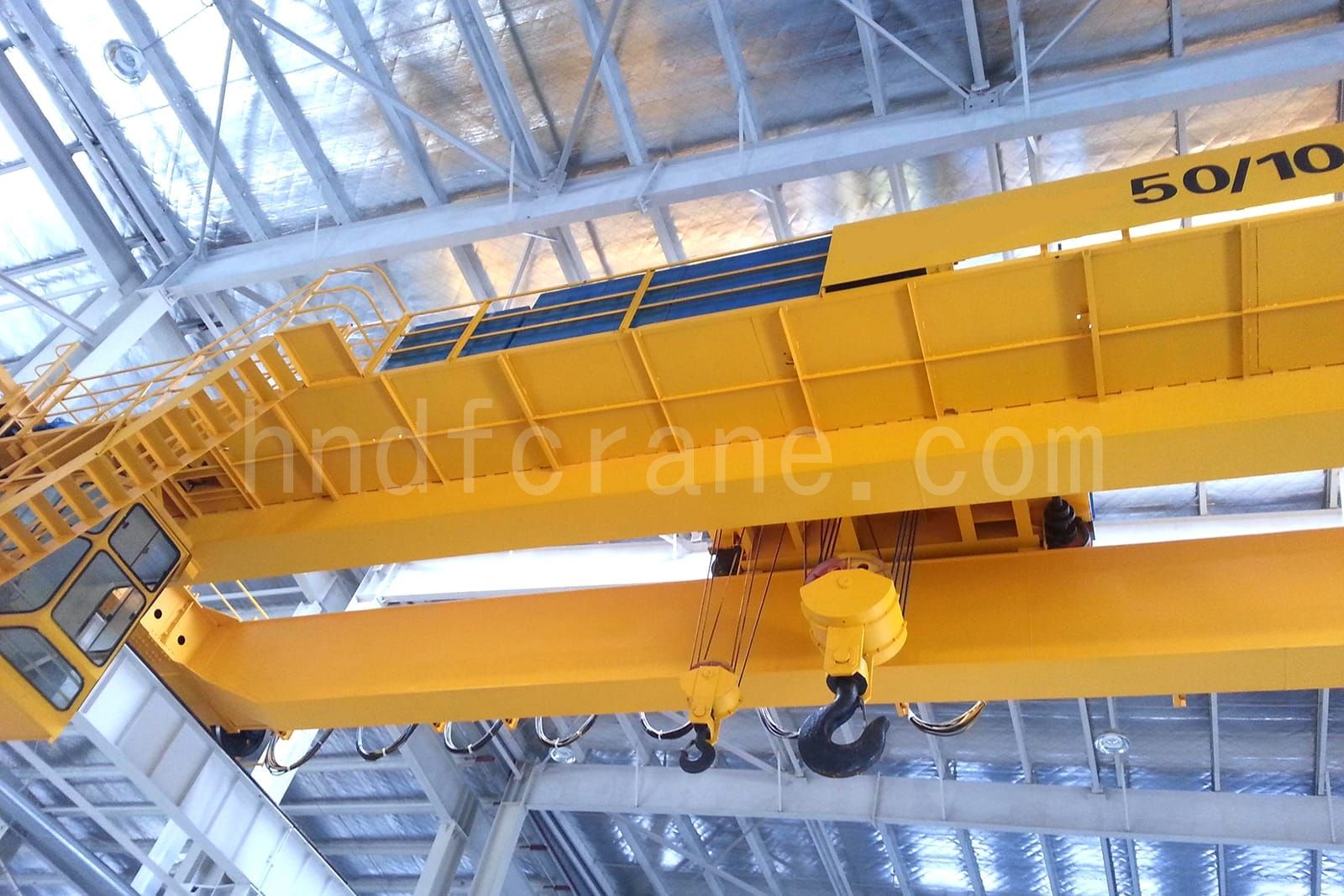

Cast Crane Sheaves for Overhead Cranes

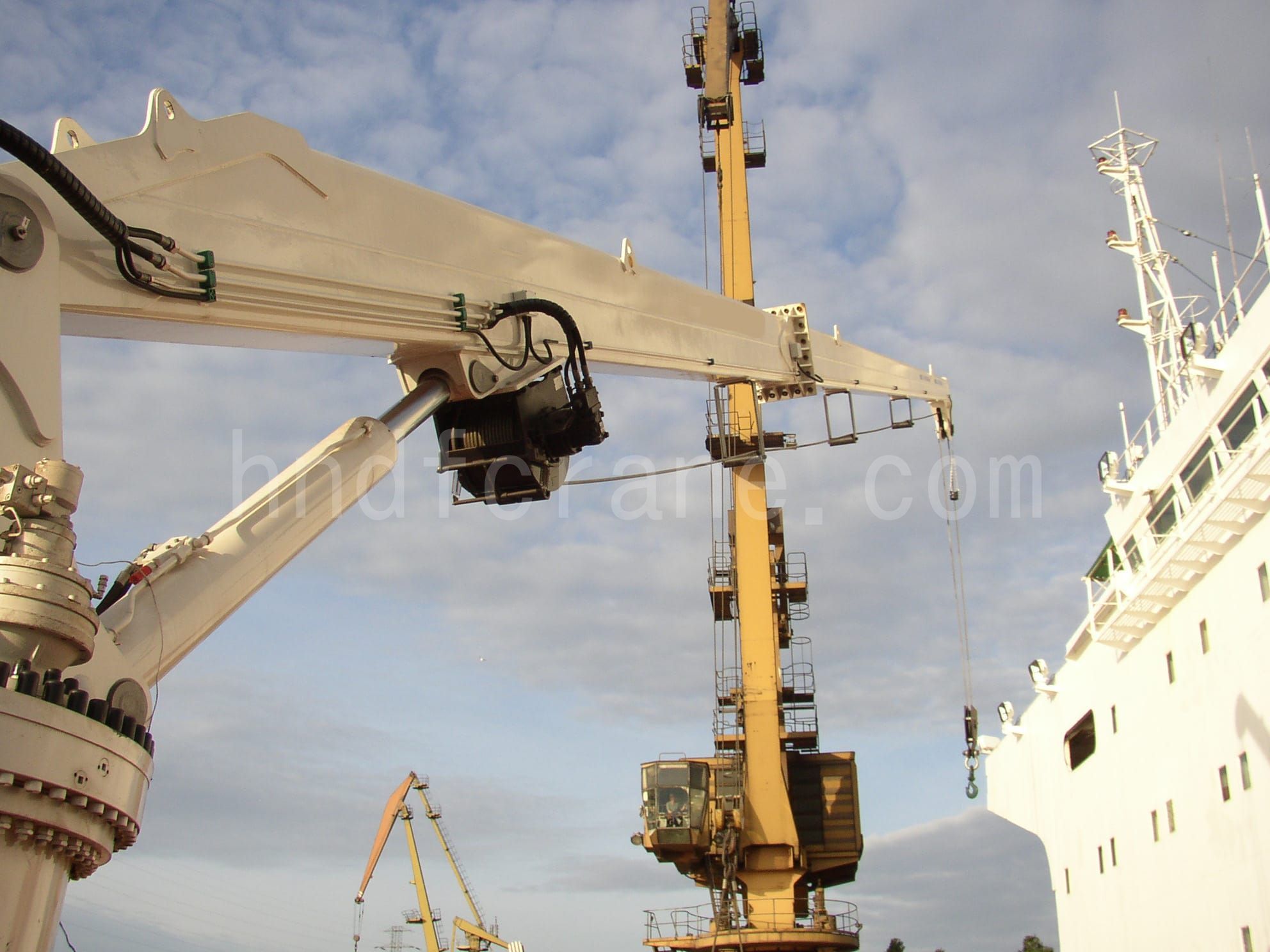

Cast Crane Sheaves for Marine Cranes

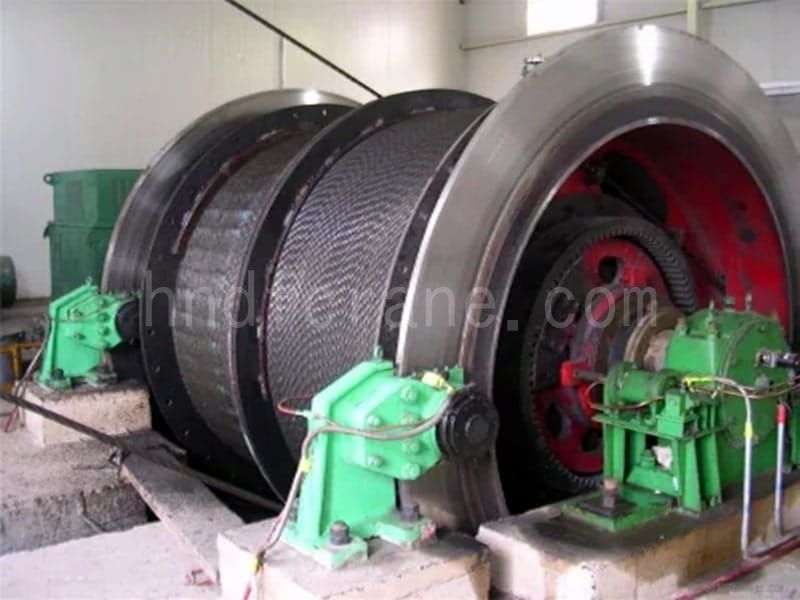

Cast Crane Sheaves for Mine Winches

Cast Iron Crane Sheaves Process flow

The advantage of sand casting is that it is cost-effective and suitable for complex shapes, but each link needs to be strictly controlled to minimize the defect rate. The production process involves mold design and quality control to ensure the strength, wear resistance, and dimensional accuracy of crane pulleys. The following are the detailed production process steps, unfolded in order:

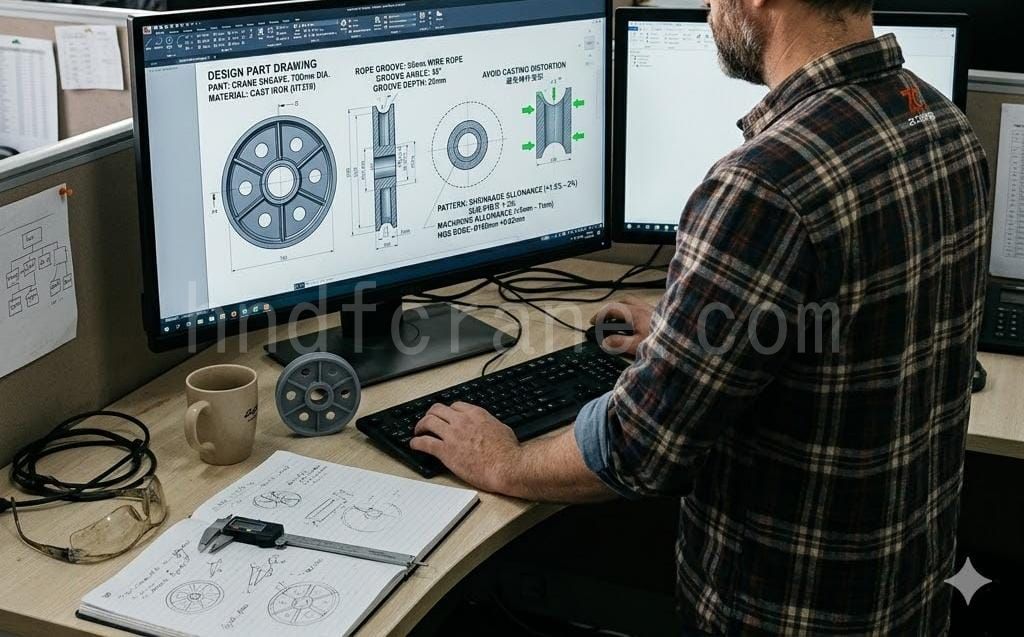

Design Part Drawing

• In accordance with the design drawings for the crane sheaves (including dimensions, groove shape and bore requirements).
• The design must take into account shrinkage (typically 1–2%) and machining allowances to prevent deformation of the casting.

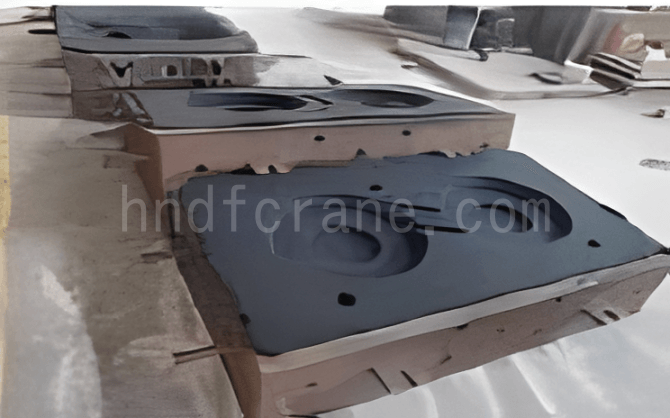

Mold Preparation

• A mixture of silica sand, clay and additives is used to make sand.
• The pattern is placed in the sand box, the upper box and the lower box are compacted and formed to form a cavity, and the pouring system (gate, riser, vent) is set up.
• Use the core to form the internal cavity or shaft hole of a large pulley casting.

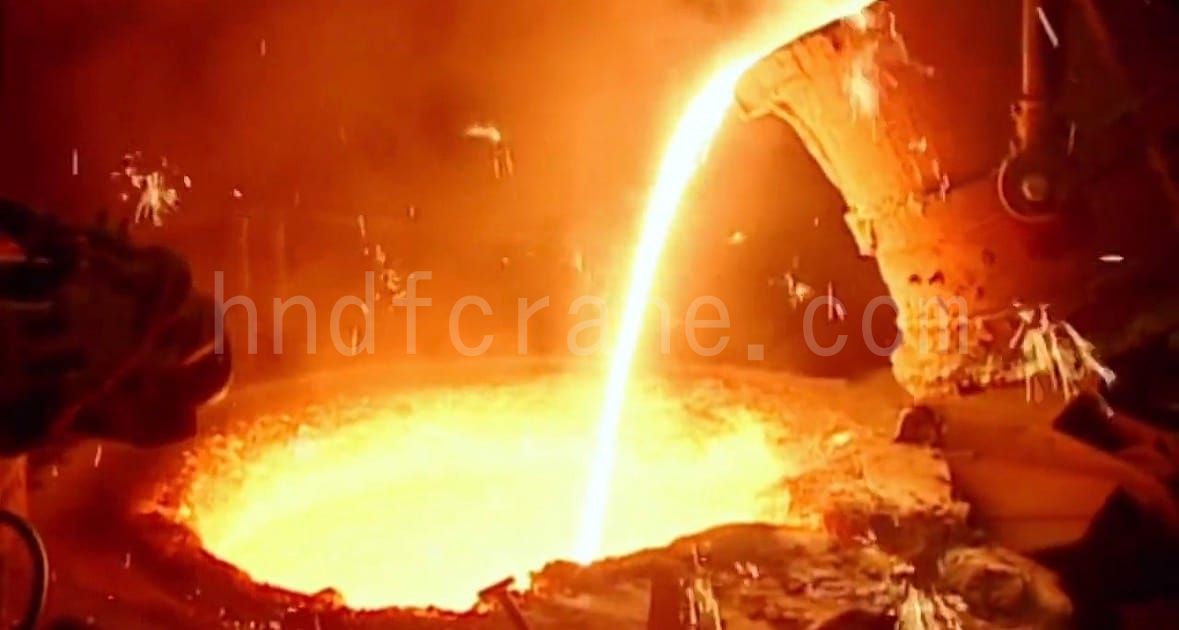

Melting

• The metal is smelted in an intermediate frequency induction furnace or cupola, and the temperature is controlled at 1350-1500°C.
• The smelting process needs to strictly monitor the chemical composition and temperature to avoid the introduction of impurities and cause defects.

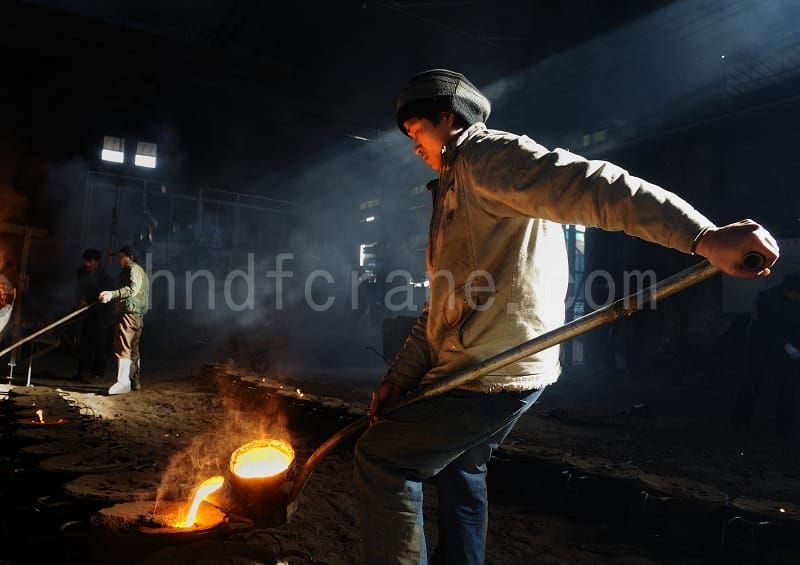

Pouring

• Pour the molten metal liquid from the furnace into the gate of the sand mold.
• The pouring speed needs to be controlled evenly to prevent pores or cold isolation defects.
• The thickness of the casting (usually thicker) needs to be considered when pouring to ensure that the liquid metal fully fills the cavity.

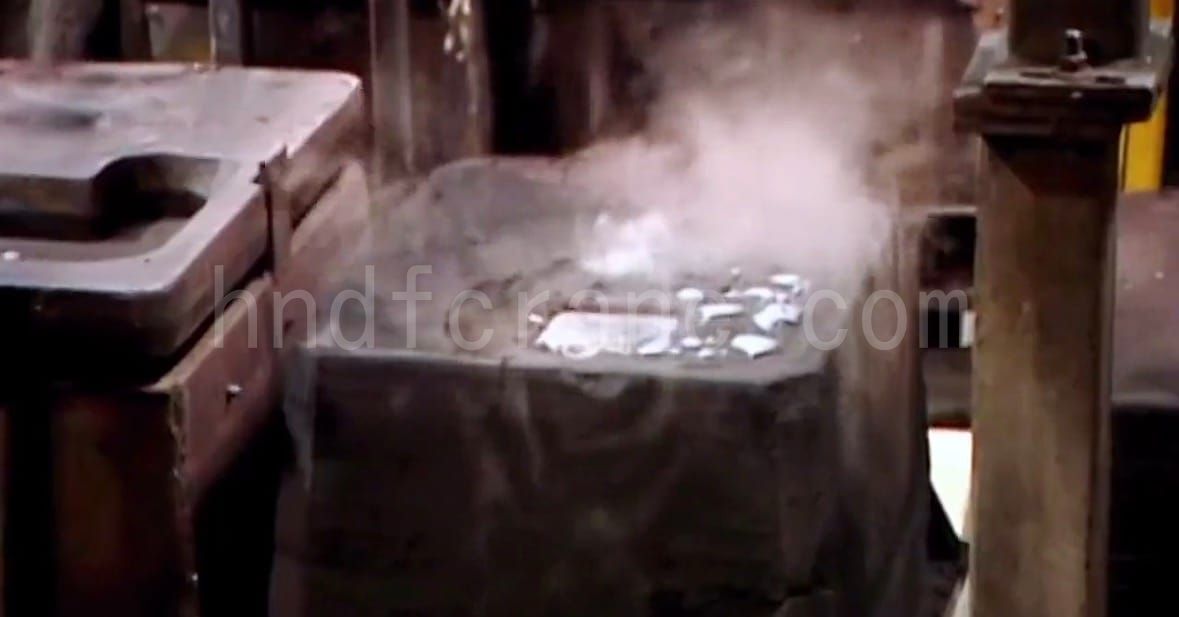

Cooling and Shakeout

• After pouring, let the casting cool naturally in the sand mold (the time depends on the size of the casting, usually a few hours to a day).
• Control shrinkage during cooling to avoid cracks.
• Vibrate the sand box when the mold is released, separate the sand mold and remove the casting.Remove excess pouring system and riser.

Cleaning

• Use sandblasting or mechanical methods to remove residual sand and oxide layers from the surface of castings.
• Perform machining (such as turning wheel grooves, drilling holes), and check the dimensional accuracy.
• Heat treatment (annealing) to eliminate internal stress.

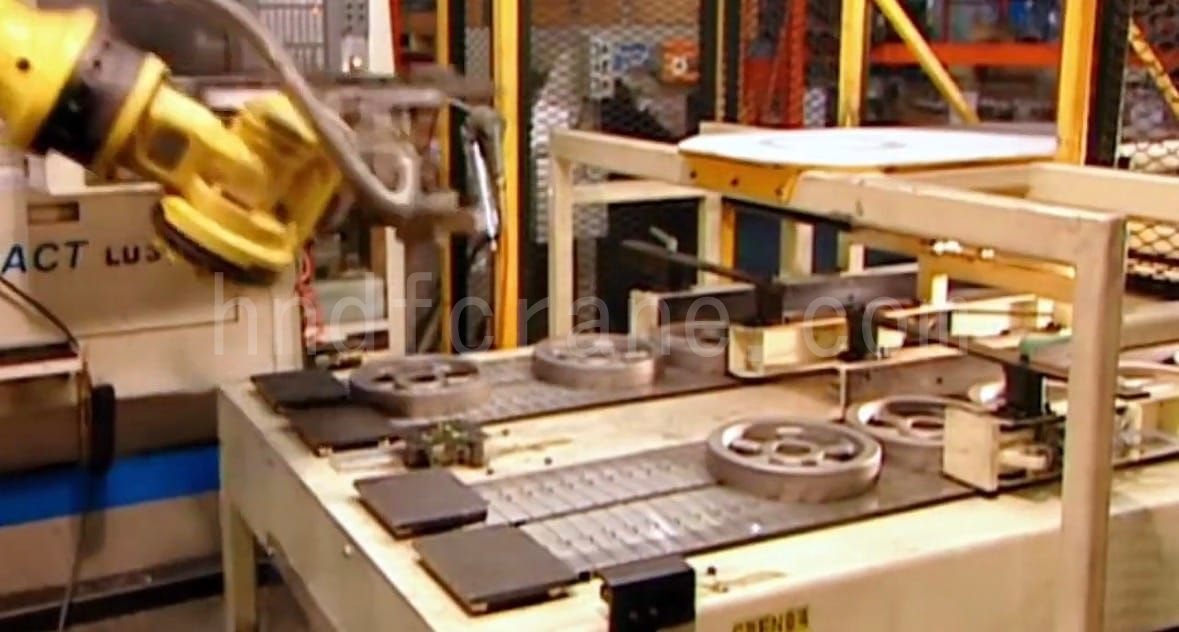

Nozik ishlov berish

• Final surface treatment (painted and rust-proof).
• Quality inspection, including hardness testing, non-destructive flaw detection (ultrasonic or X-ray) to detect internal defects.

Quality Control and Packaging

• Implement quality inspections throughout the process to ensure that the pulleys comply with ISO standards or industry specifications (such as lifting machinery GB/T 3811).
• Qualified products are packaged and shipped.
