10t Low Headroom Single Girder Overhead & Steel Structure

June 26, 2017


10t Low Headroom Single Girder Overhead & Steel Structure


Key Facts


Technical Parameter

  1. Capacity :10t
  2. Span: 10m
  3. Lfit Height: 4.2m
  4. Lift Speed: 7m/min
  5. Winch Travel Speed: 20m/min
  6. Crane Travel Speed: 30m/min
  7. Voltage: 380V, 50HZ, 3AC
  8. Reinstall stand column, pave runway beam and rails

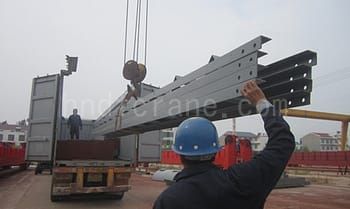

  9. Add reinforcement structure to ensure crane's stable travel.

Detailed Informaiton

Normally, if client choose to use overhead crane, there will have support bracket, runway beam inside the workshop, which are necessary devices for overhead crane.

However, there are some workshop do not have the above devices, then if want to use overhead crane need reinstall the steel stand column and pave rails.

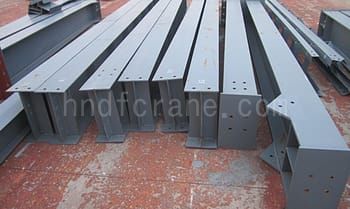

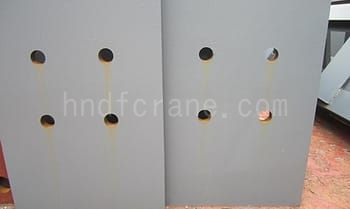

 This project is exactly reinstall all the steel structure. All the weld work will be finished before delivery, when client receive goods, only need assemble all spare parts by high strength bolts.

For such project, workshop data is very crucial, and pls feedback us the span and lift height you require, our engineer will calculate and choose suitable design for you!
