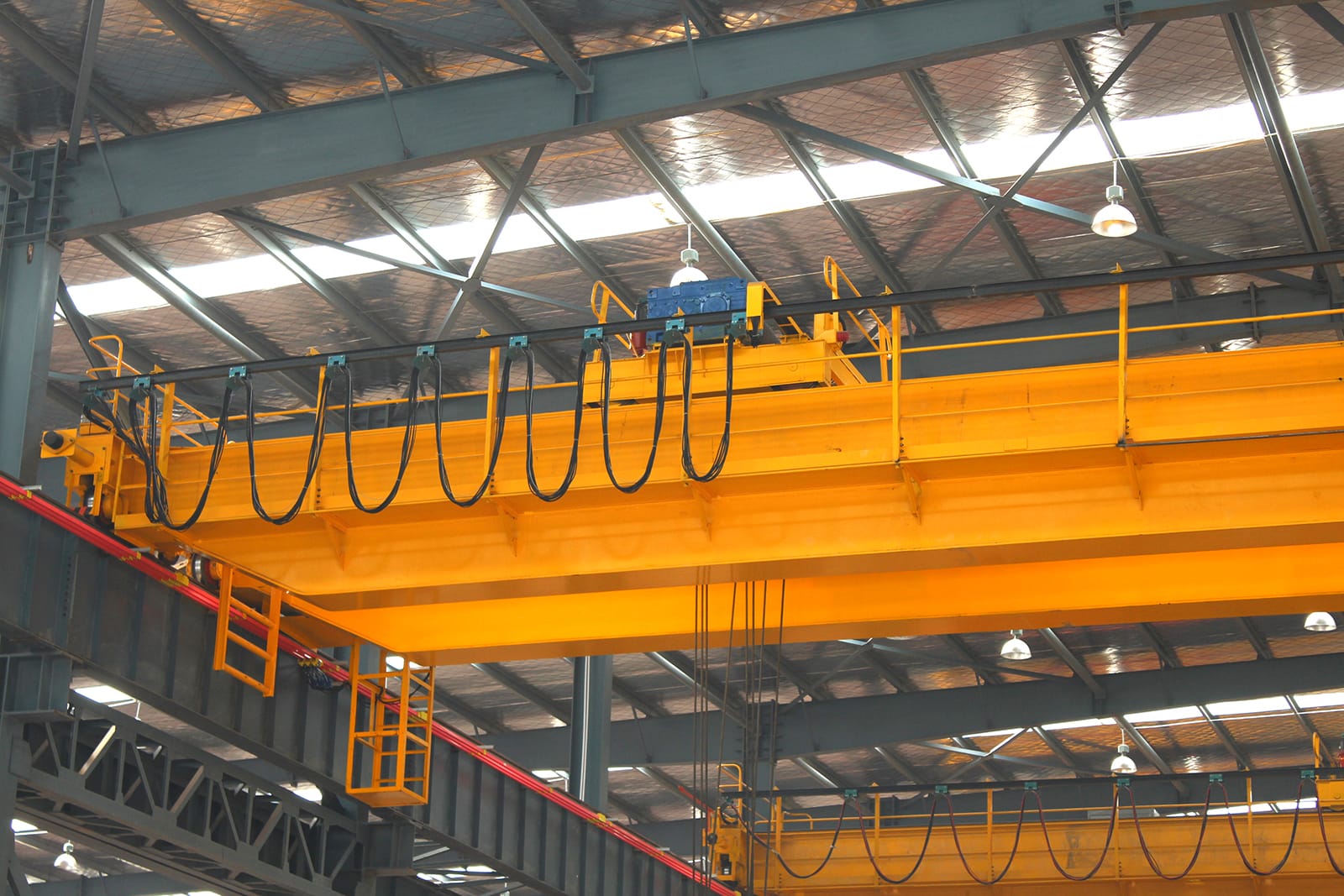

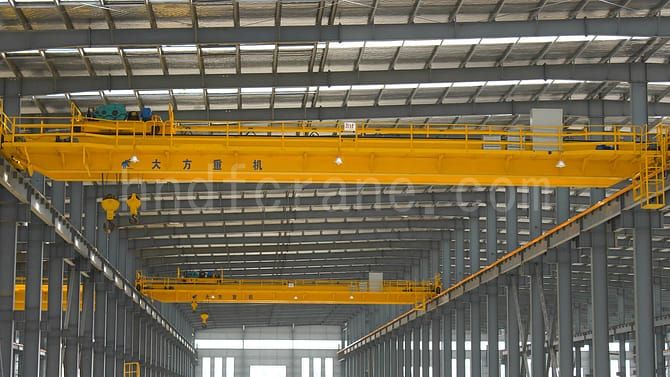

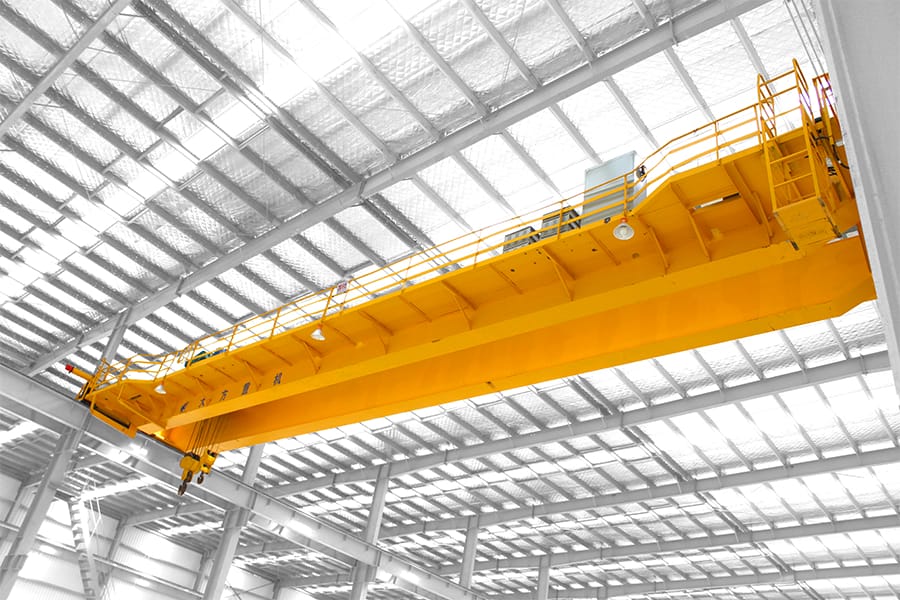

Double is stronger! If you need to transport heavy loads more than 50t across large areas or have high work duty, then double girder traveling cranes are your first choice. Due to various main girder connection options, the double girder overhead crane integrate well into different building structures, whether new or existing.

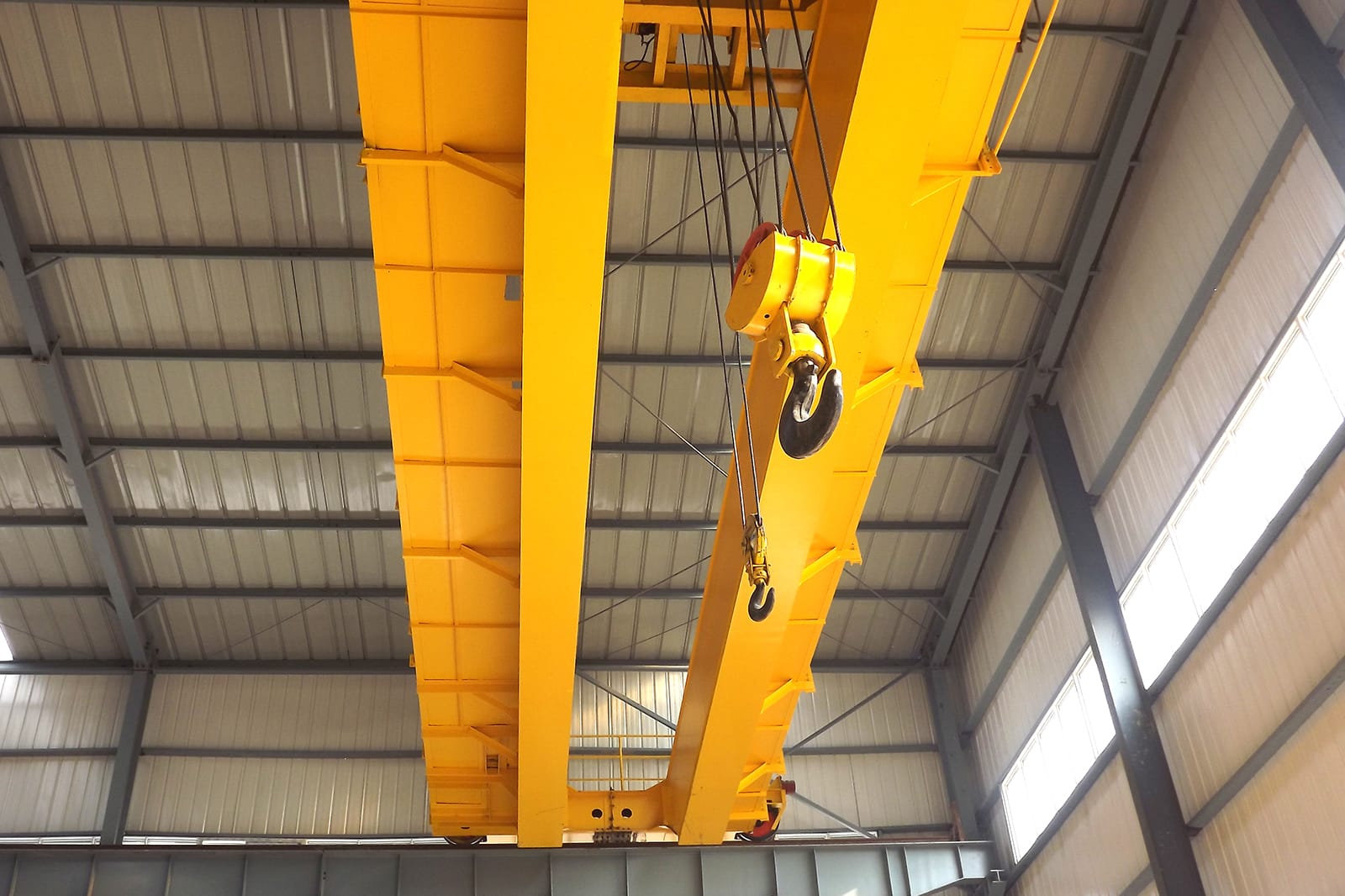

They can be utilized at any capacity where extremely high hook lift is required because the hook can be pulled up between the girders.

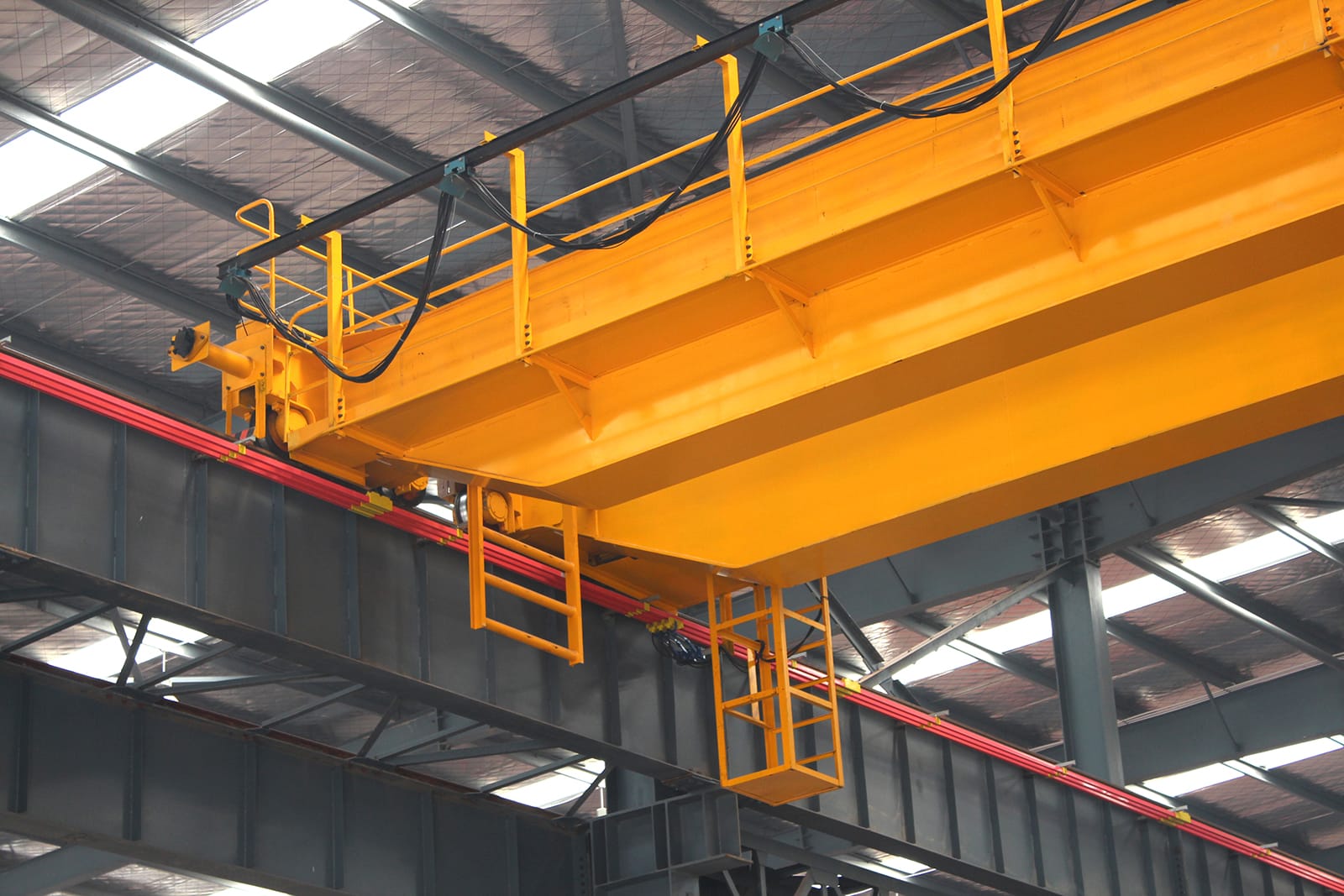

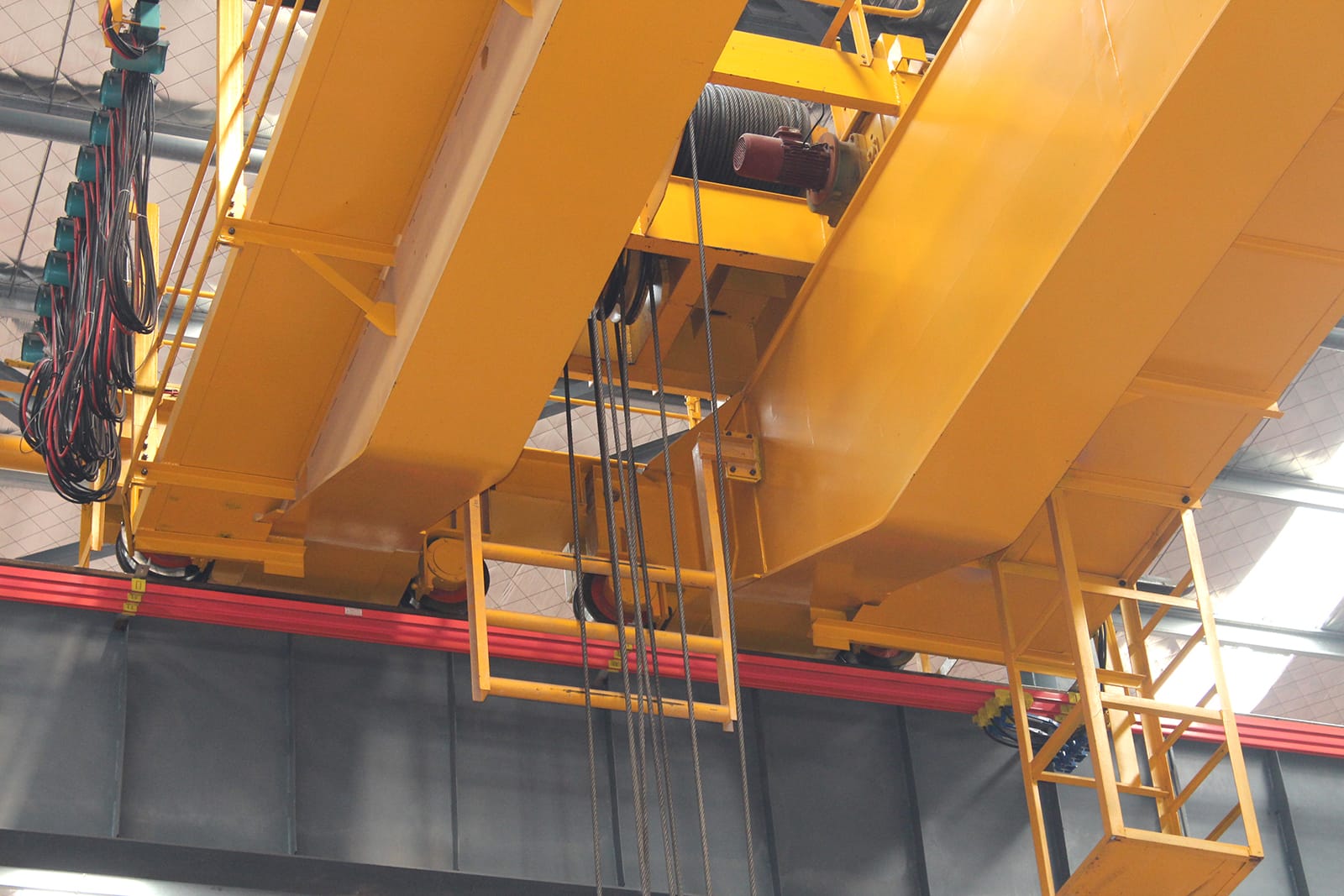

Double girder overhead cranes can be fitted with maintenance platforms under motors, on the rigging or over the full span of the roller beam. It can be offered for a very large range of spans, heights of lift as well as customized speeds depending on your application. They can also be provided with multiple hoisting trolleys running on the same bridge or auxiliary hoisting mechanisms on the main trolley.

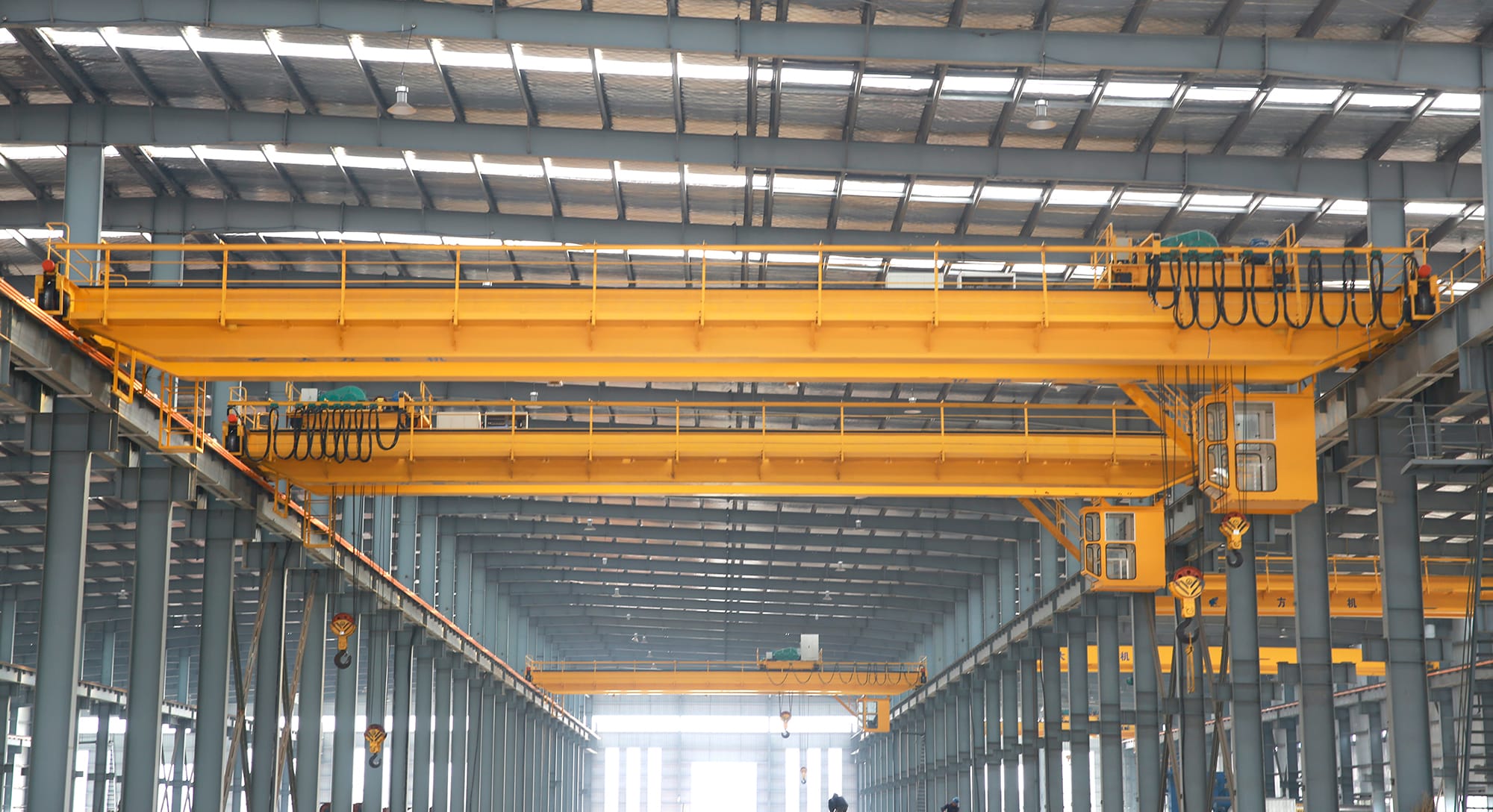

Suitable for machining workshop, metallurgy industry workshop, warehouse, stockyard, power station, light and textile industry workshop, food industry workshop.
- High long and cross-travel speeds thanks to high-performance double-girder design
- Light dead weight reduces investment layout
- Crane girders can be adapted to building structure requirements
- Minimum approach dimensions thanks to compact traveling hoist design
- Crane control to meet application requirements: Remote control, control pendant or cabin control
- Maintenance platform and accessible crab facilitate maintenance of building interior fittings (optional)

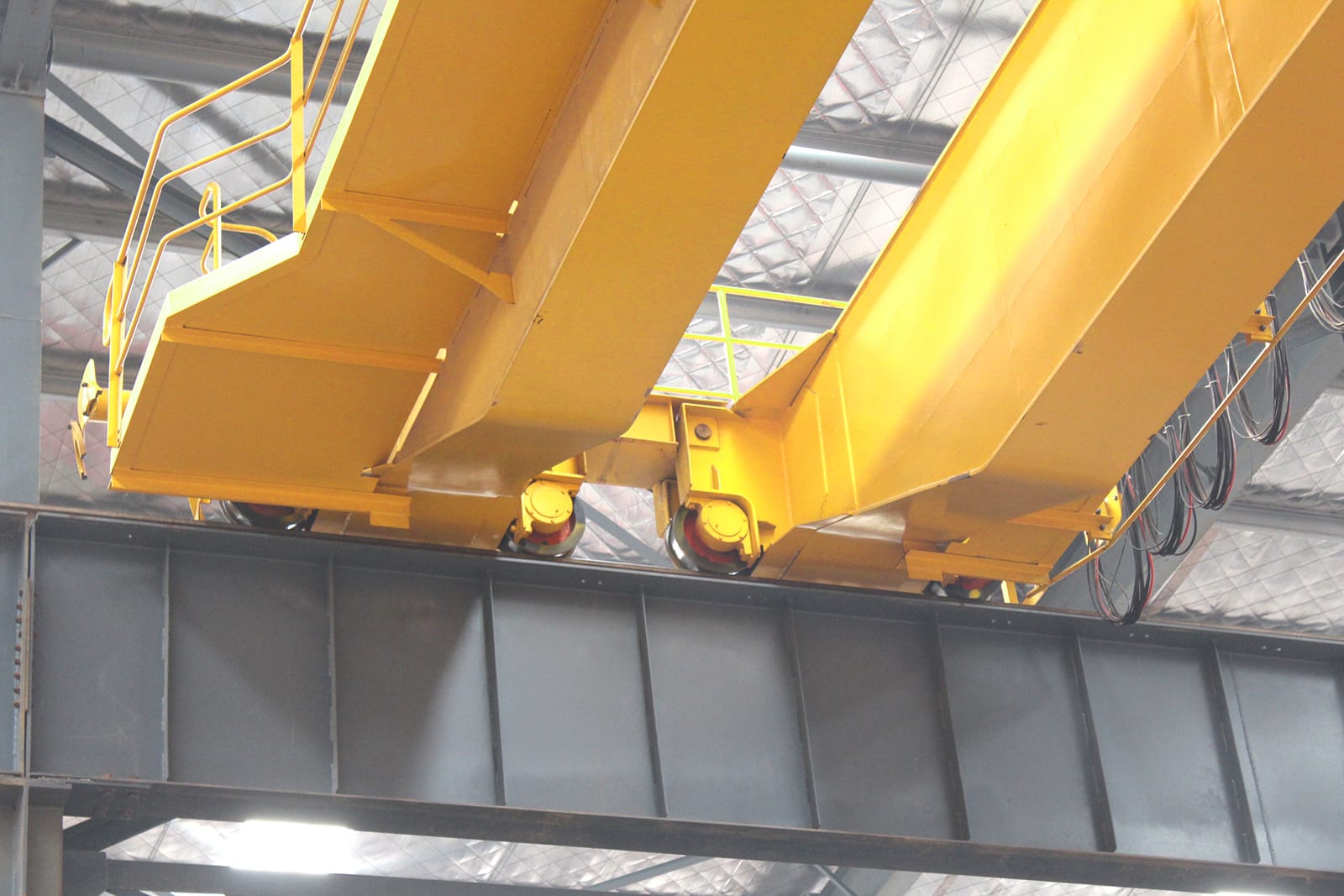

- End carriages of torsion rigid, welded box-section design
- Soft starting helps to avoid load sway
- Limit switches protect the hoist and load from damage
- Anti-collision protection and crane distance controls ensure the safe operation of several cranes on one runway

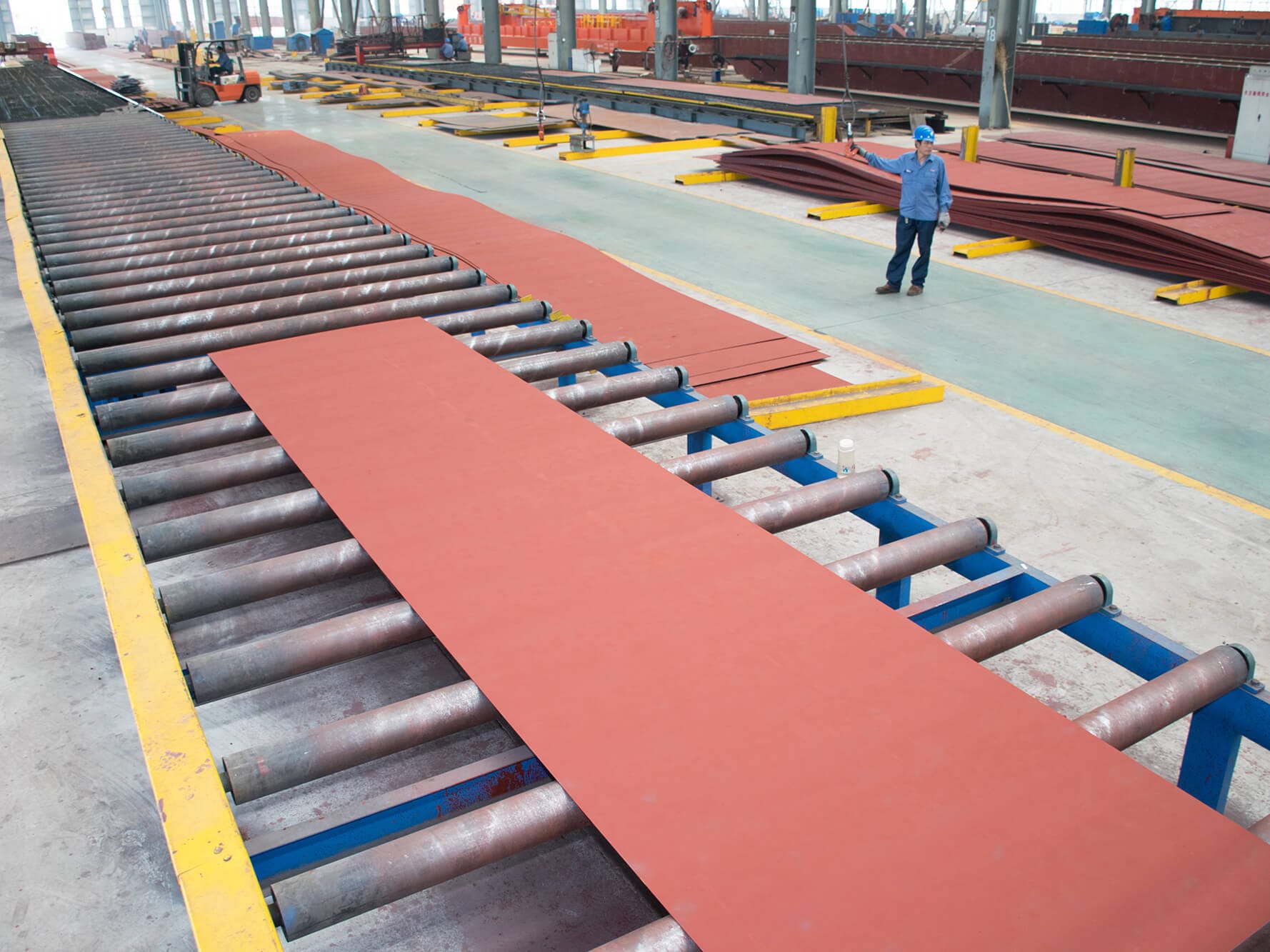

Q235/Q345 carbon structural steel. And all steel plates for double girder crane must have shot blasting.

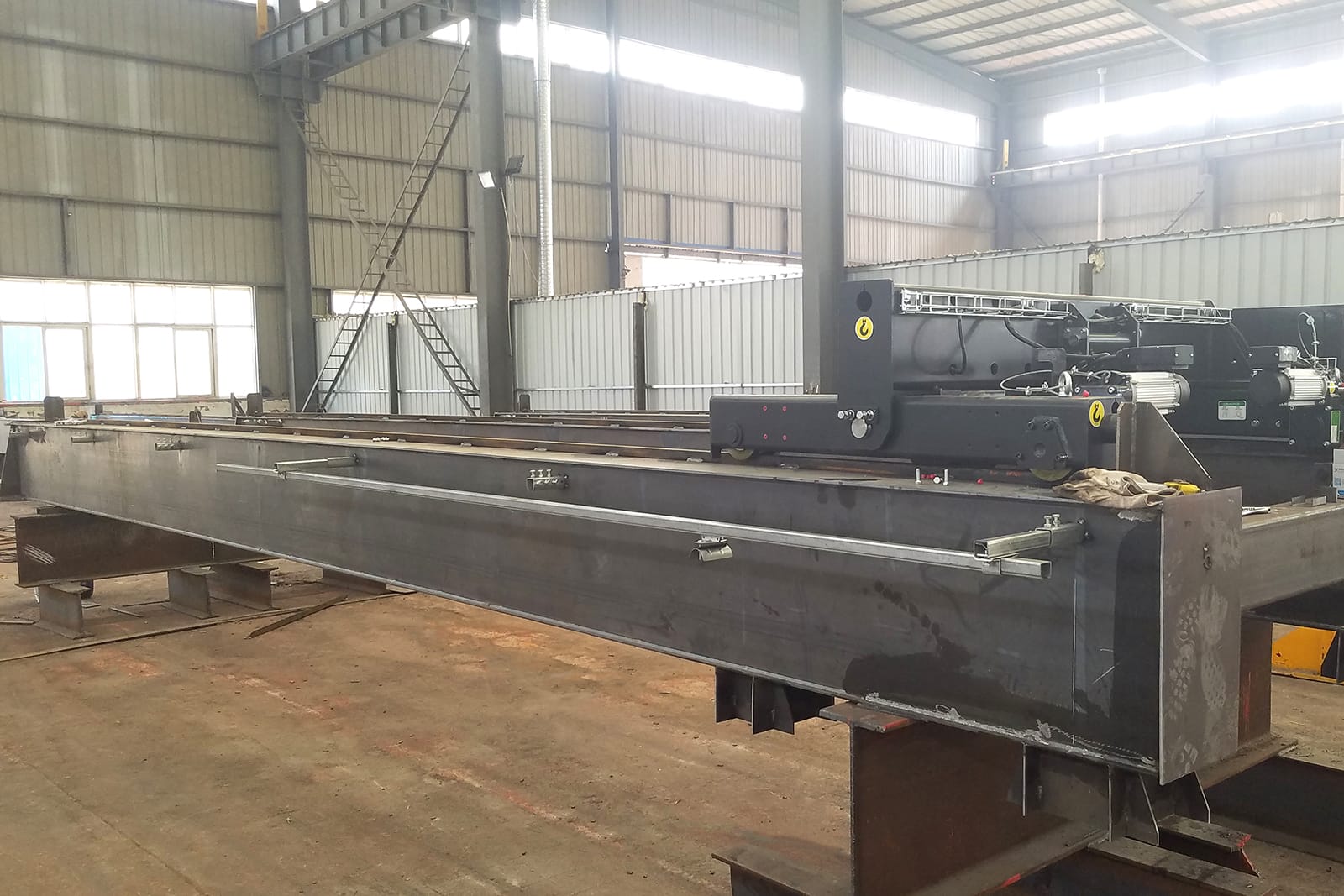

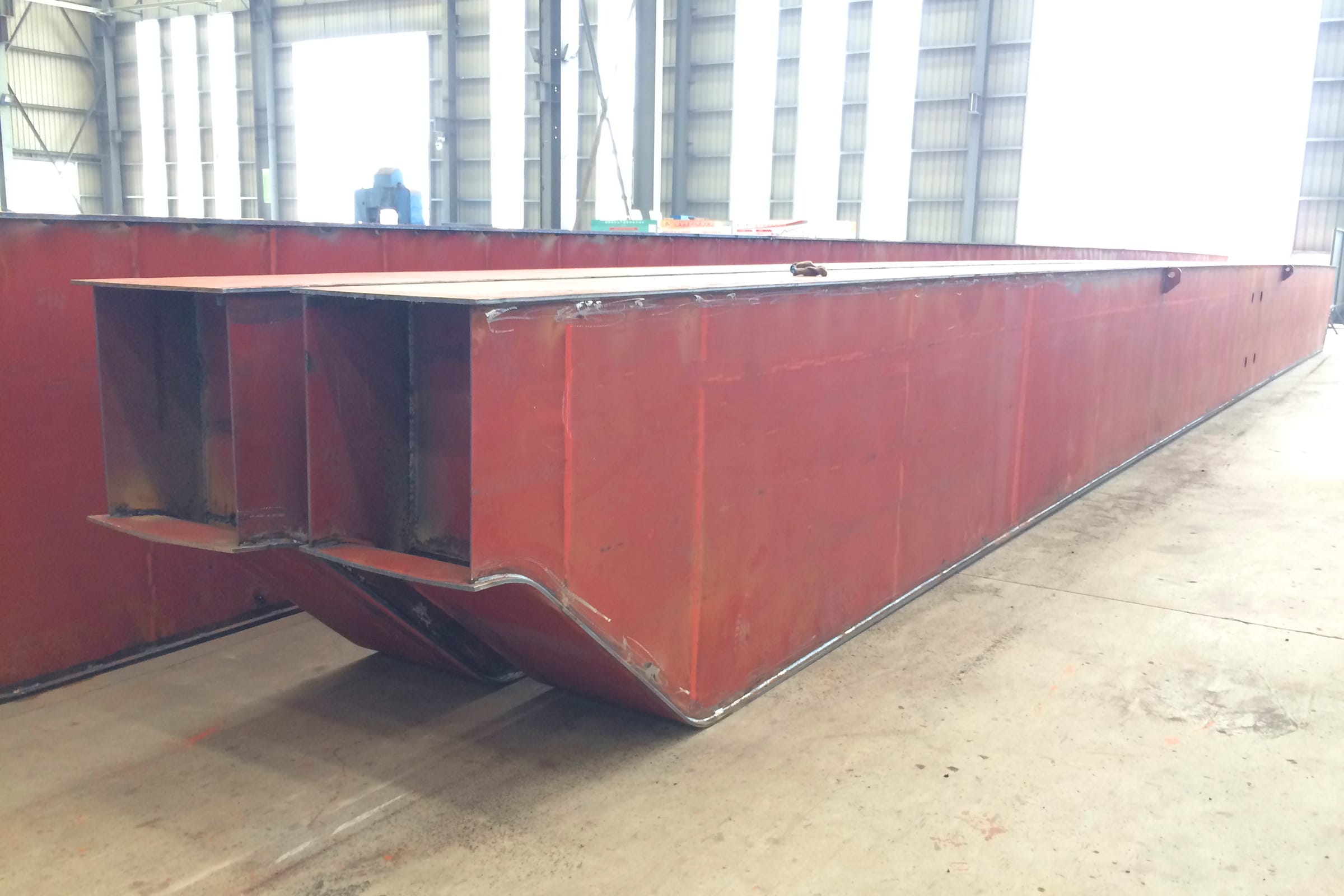

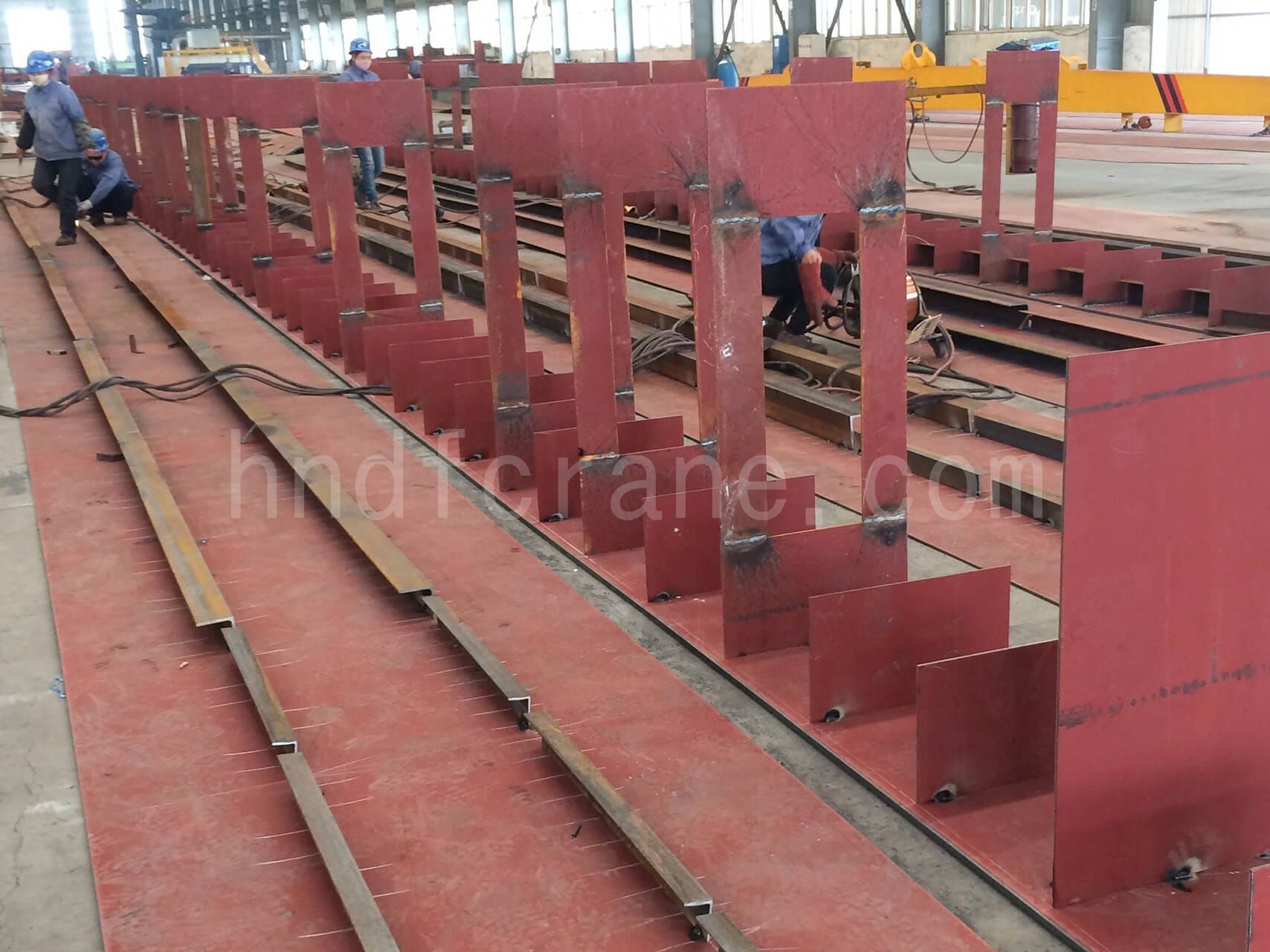

Main beam with strong box type and standard camber. There will have reinforcement plate inside the main beam

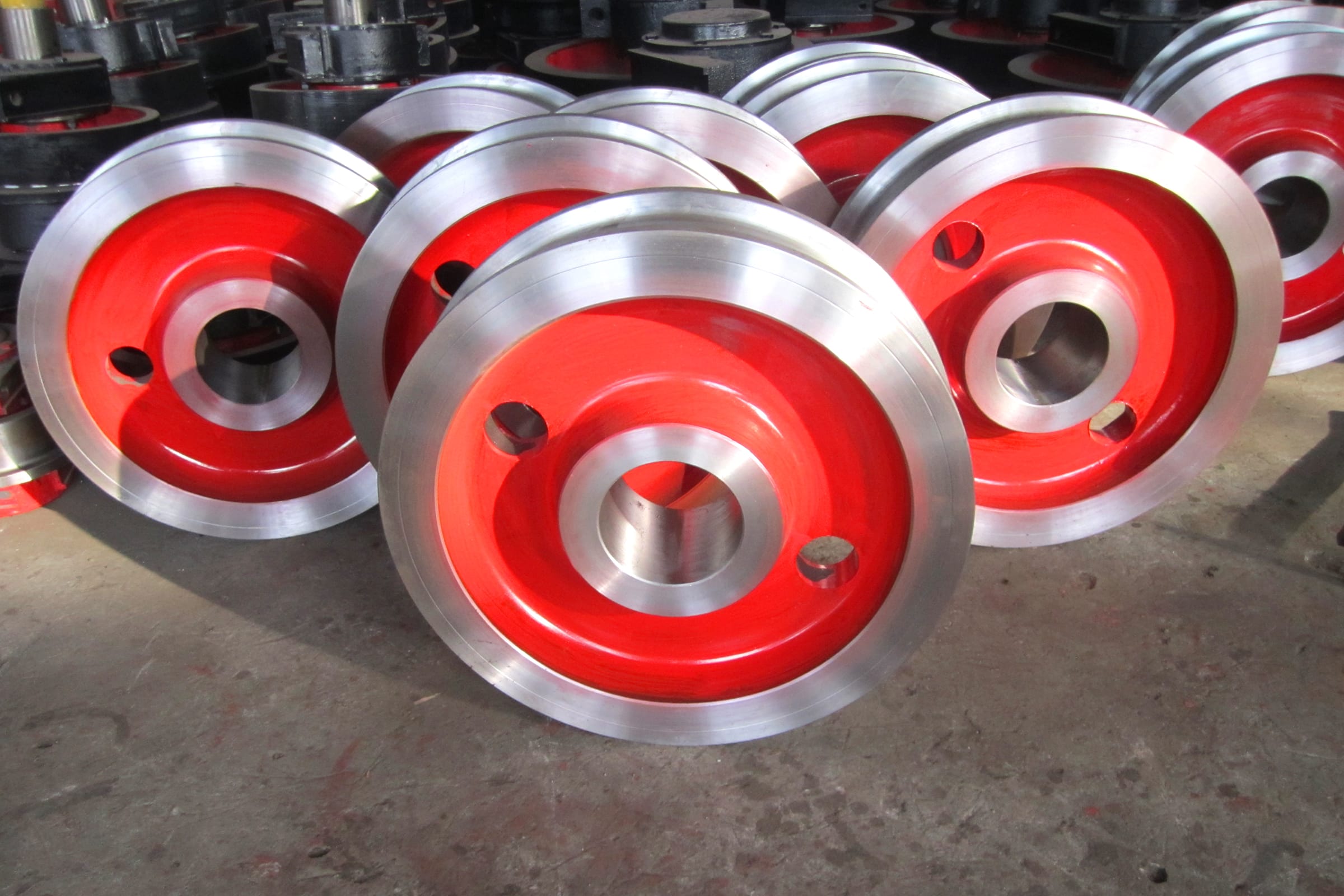

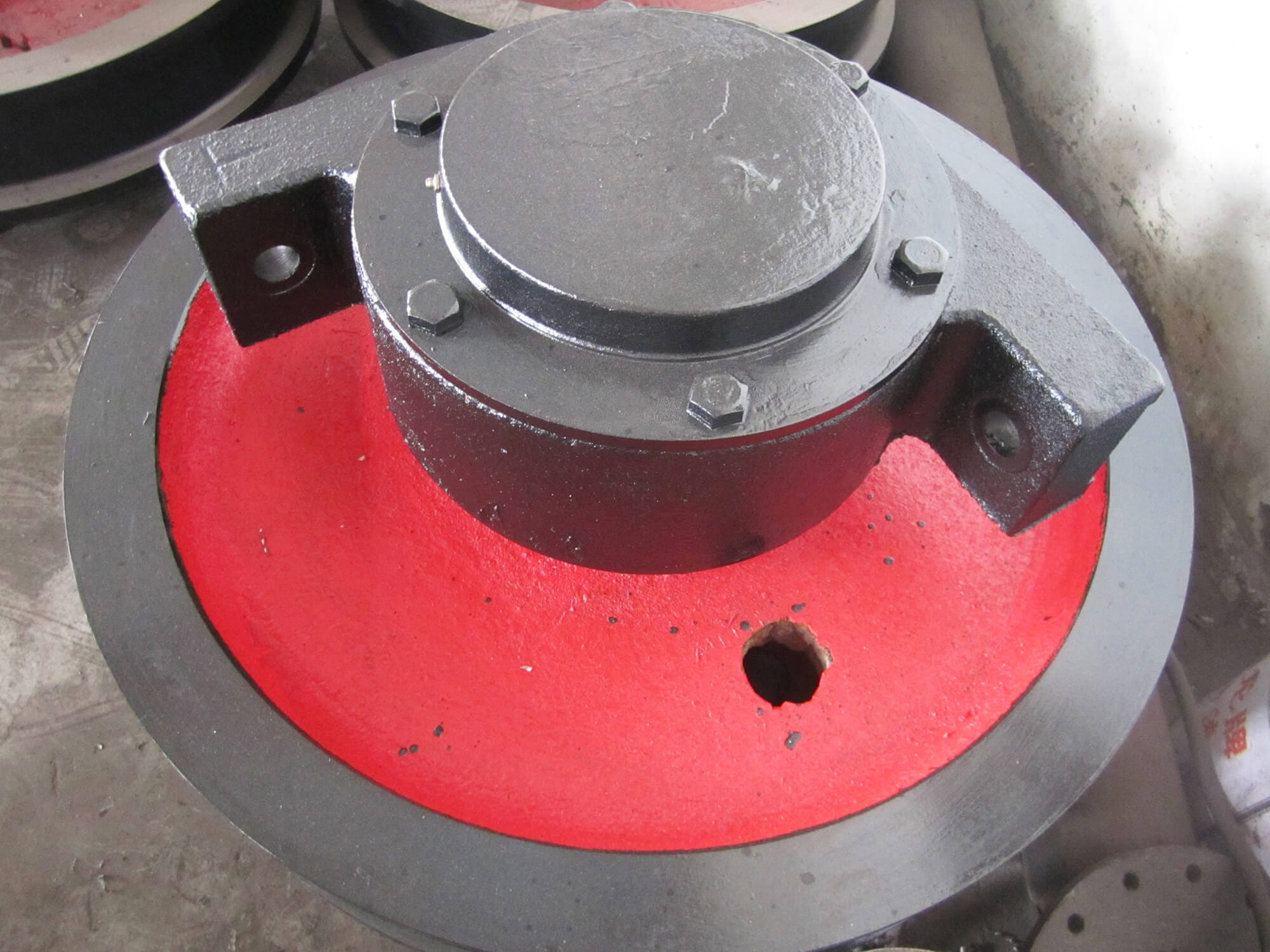

Equipped with high quality forged or casting wheel, which will have heat treatment to ensure wheel's performance.
To be convenient for transport by container, main girder are divided.3 times connection steel plates and high strength bolts can ensure the division part's rigidity.

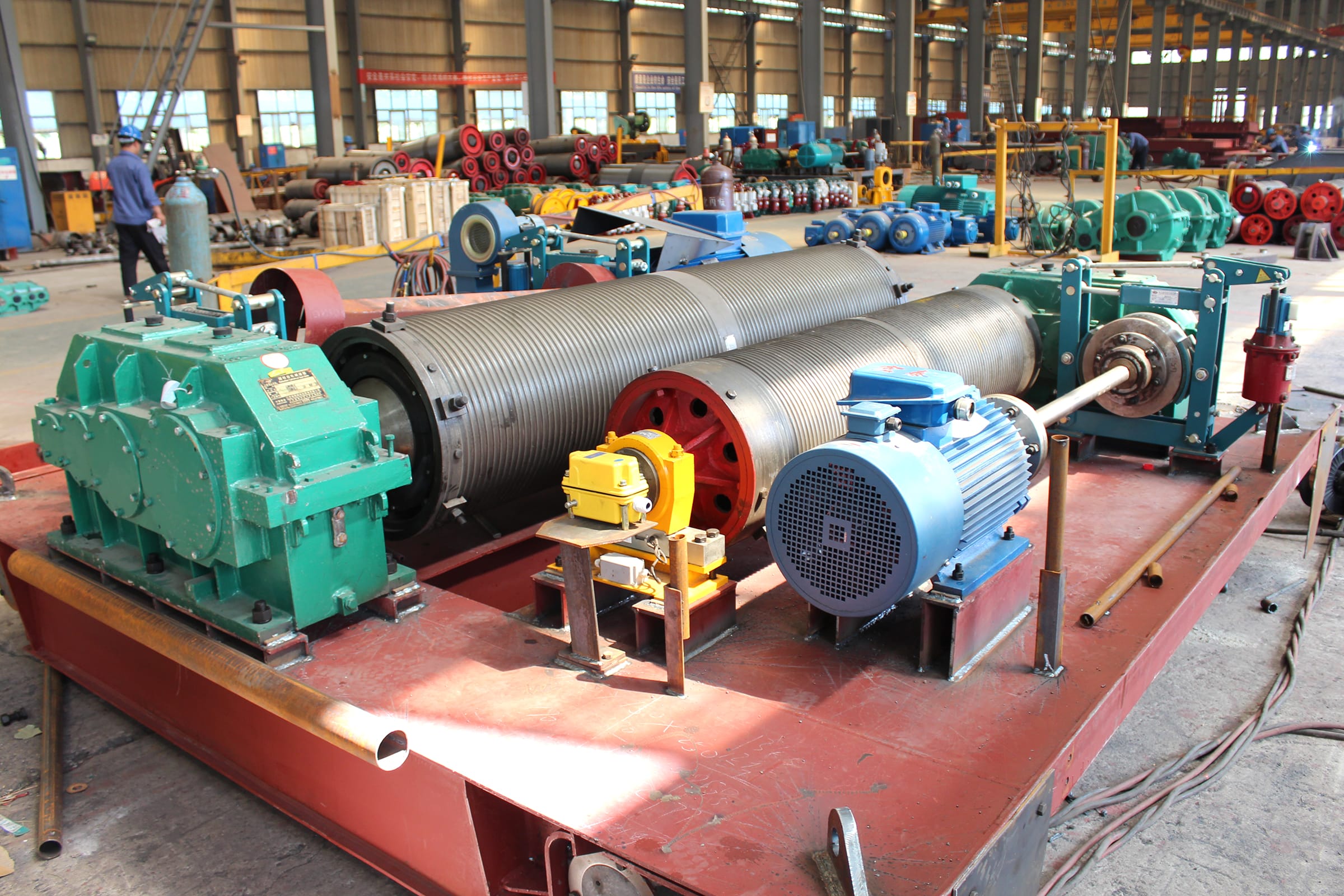

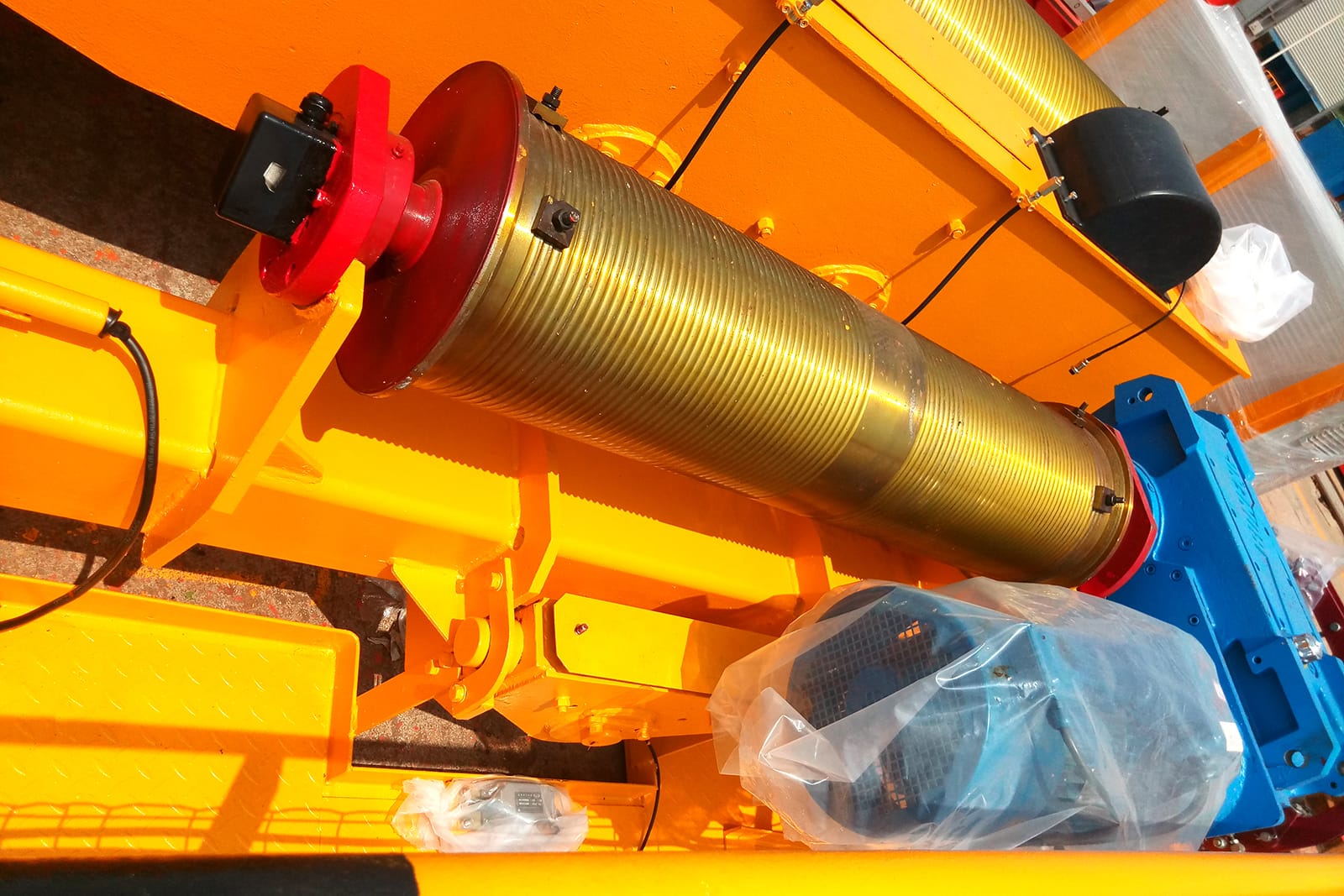

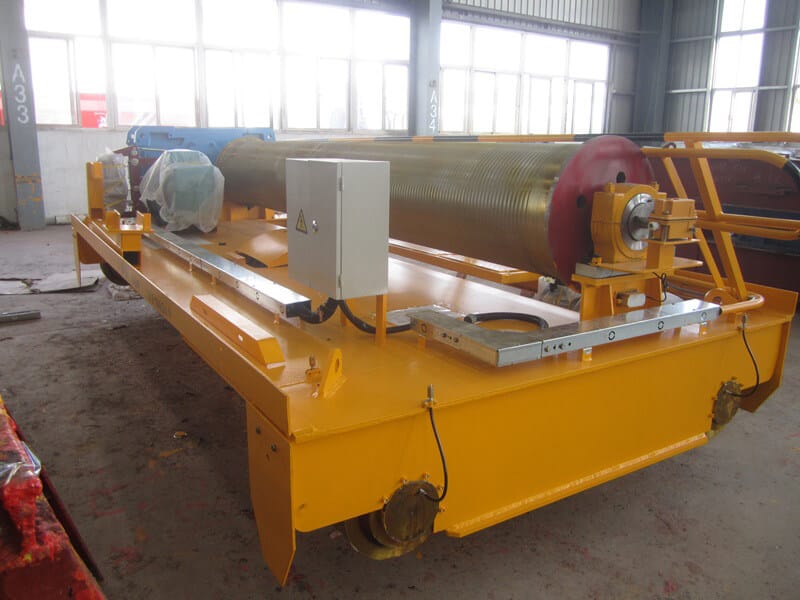

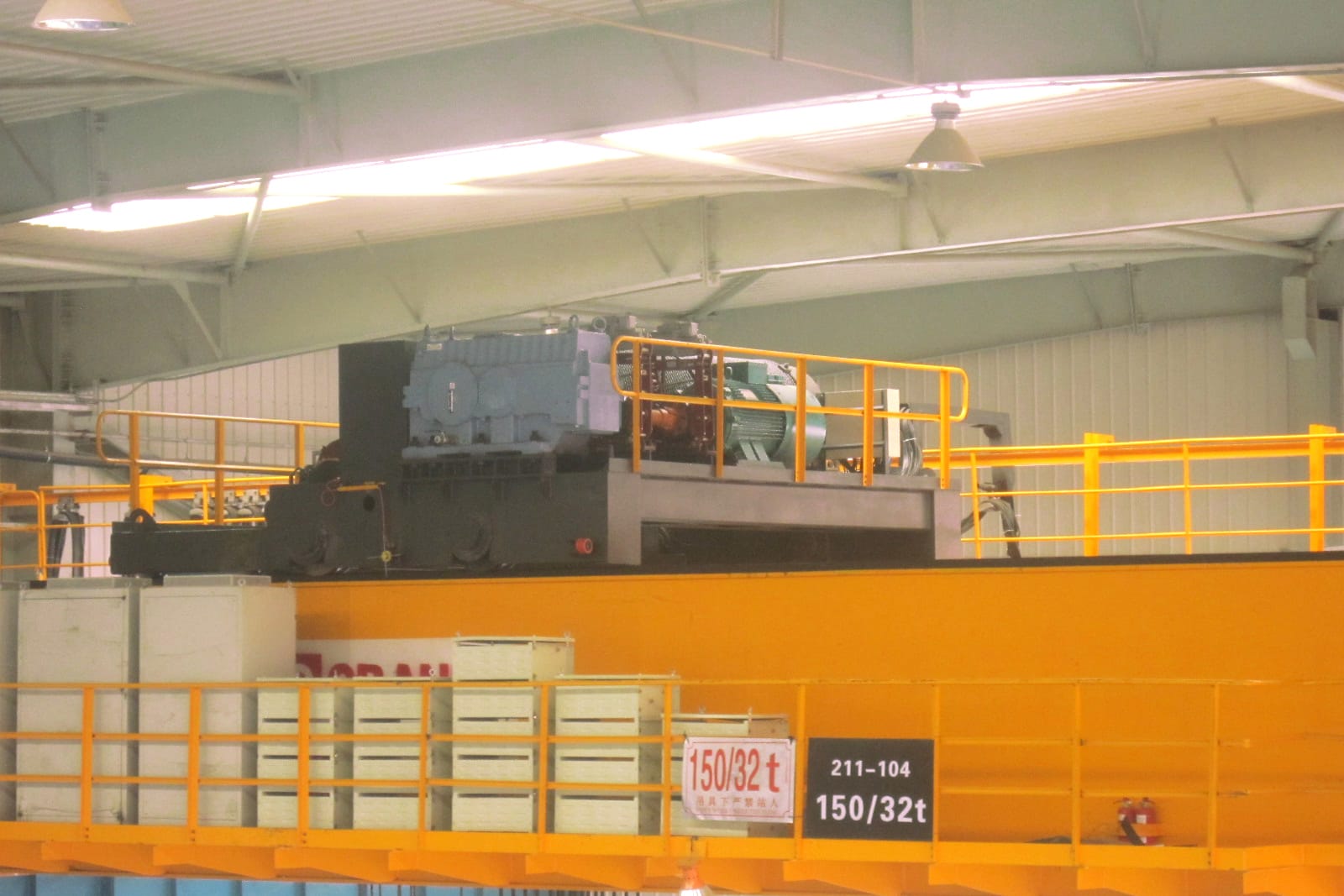

With heavy capacity and high work duty, was developed specifically for lifting that requires accurate and smooth movement

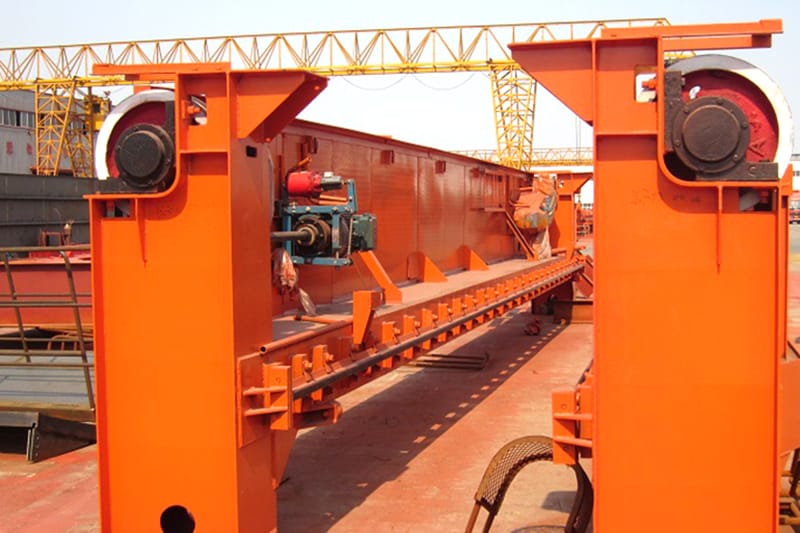

Connected to main girders by high-strength bolts. Wheels with roller bearings and permanent lubrication. Motor with smooth starting and stopping characteristic
|QD Type Double Girder Overhead Crane||LH Type Double Girder Overhead Crane|
|1||Trolley Electrical||Schneider Brand|
|2||Motor（Trolley Lift）||Wuxi hongtai|
|Brake（Trolley Lift）||Jiaozuo Changjiang|
|3||Motor（Trolley & Crane Travel）||Boneng Three-In-One|
|Reducer（Trolley & Crane Travel）|
|Brake（Trolley & Crane Travel）|
|4||Inverter,Yaskawa Brand||Inverter,Yaskawa Brand|
|We can offer higher configuration, please|
You might be interested in the following questions
- What situation you choose double girder overhead crane?
Usually it is for high duty, and frequency working, also we will according to your actual usage choose suitable solution, LH or QD type crane.
- Whether you can offer customized crane?
Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell all the needed information.
- What information shall we offer to get precise quotation & best design?
- Span: ?
- Lift Height: ?
- Lift Capacity: ?
- Lift What: ?
- Lift Speed: Single/Double/Variable?
- Travel Speed: Single/Double/Variable?
- Use Environment: Any explosive, combustible air? Temperature?
- Workshop practical situation? Drawing.
- Use frequency? How many hours/day? How many times/hour?
- As for overhead crane, if the height from runway beam's surface to workshop's lowest point is too low, what special design can make?
- Different connection of main beam and end beam can reduce the height;
- Different crane design can shorten crane's self height.
- Whether you can offer the matched spare parts?
Yep, as crane manufacturer, we offer all the related spare parts, such as motor, hoists, drums, wheels, grabs, hooks, rails, travel beams, enclosed bus bar etc.
