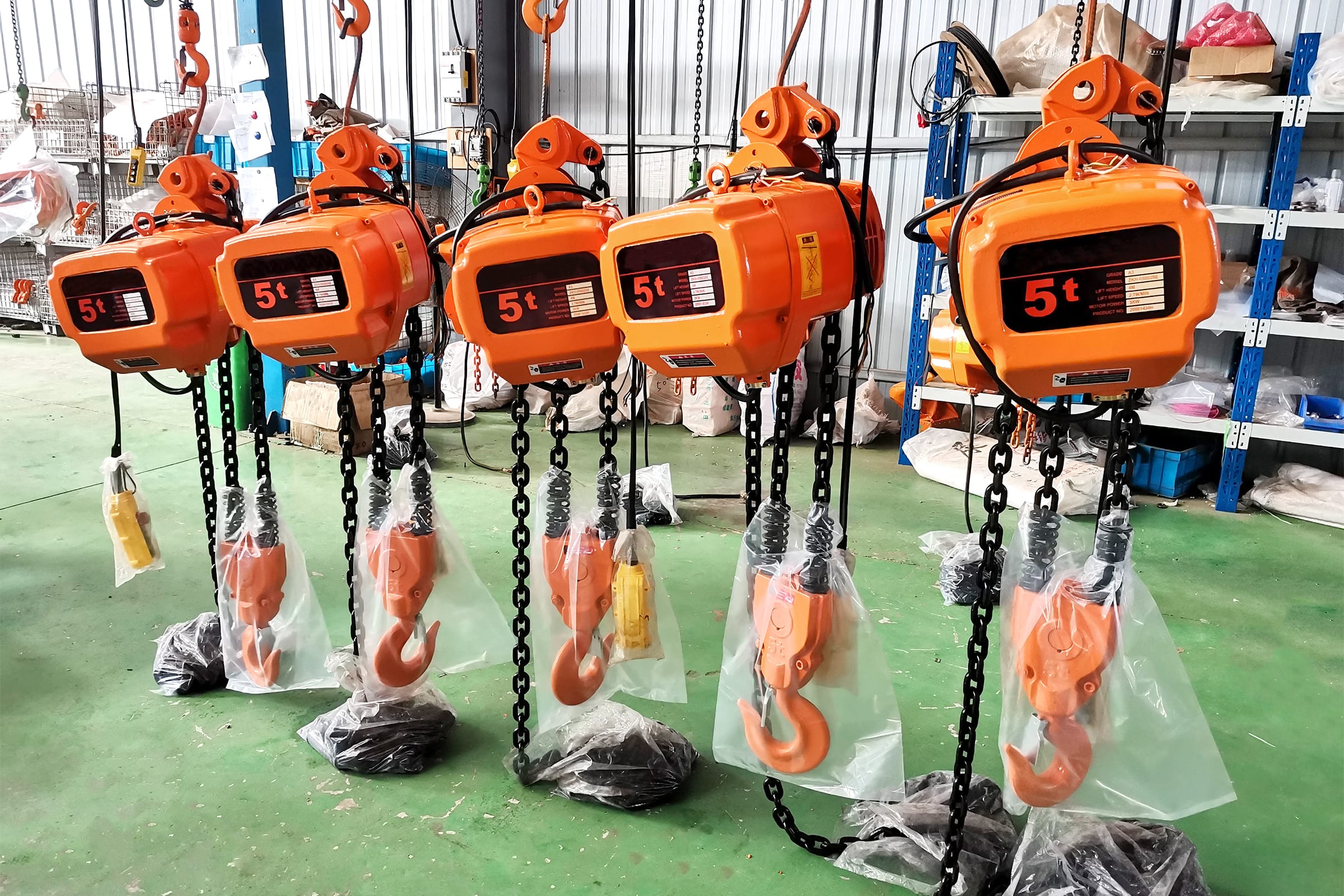

Electric Chain Hoists

Electric chain hoist is a light and small lifting equipment, which can be used alone or installed on hoist single beam bridge crane, single girder gantry crane, and jib crane. It is one of the commonly used lifting equipment in factories, mines, ports, warehouses, freight yards, shops, etc. It is an essential machinery for improving labor efficiency and improving working conditions.
Lifting capacity: 0.5-35t.
Lifting height: 3-30m;
Control mode: Pendant control with line, wireless remote control;
OEM available;

Join Mailing List, Get Product Price List Directly to Your Inbox.

Documents

Dafang Overhead Crane and Gantry Crane Catalogue

9.81 MB

Loading data, please wait ...

Product Introduction

Electric chain hoist are domestic mature product, has compact structure, small volume and light weight. DAFANG brand electric chain hoist has the characteristics of high working level, good safety performance, long mechanical life, easy maintenance, high cost performance, reliable operation, convenient operation, low failure rate and wide application range. And the chain of the hoist runs in sprockets, which is not easy to fall off or jump jobs, and is more stable in use.

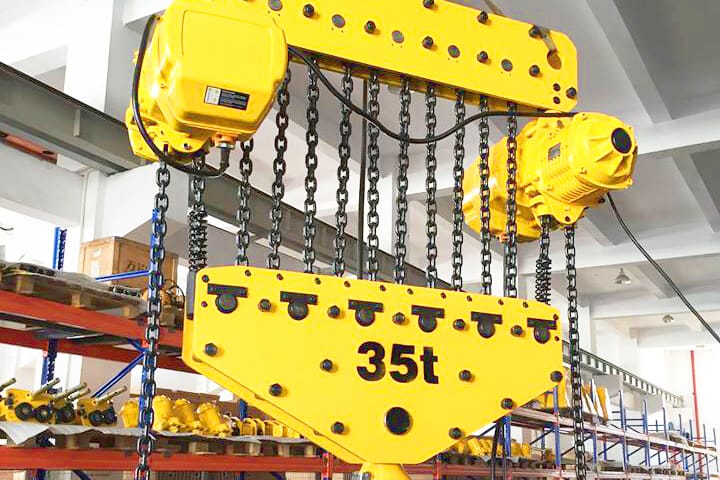

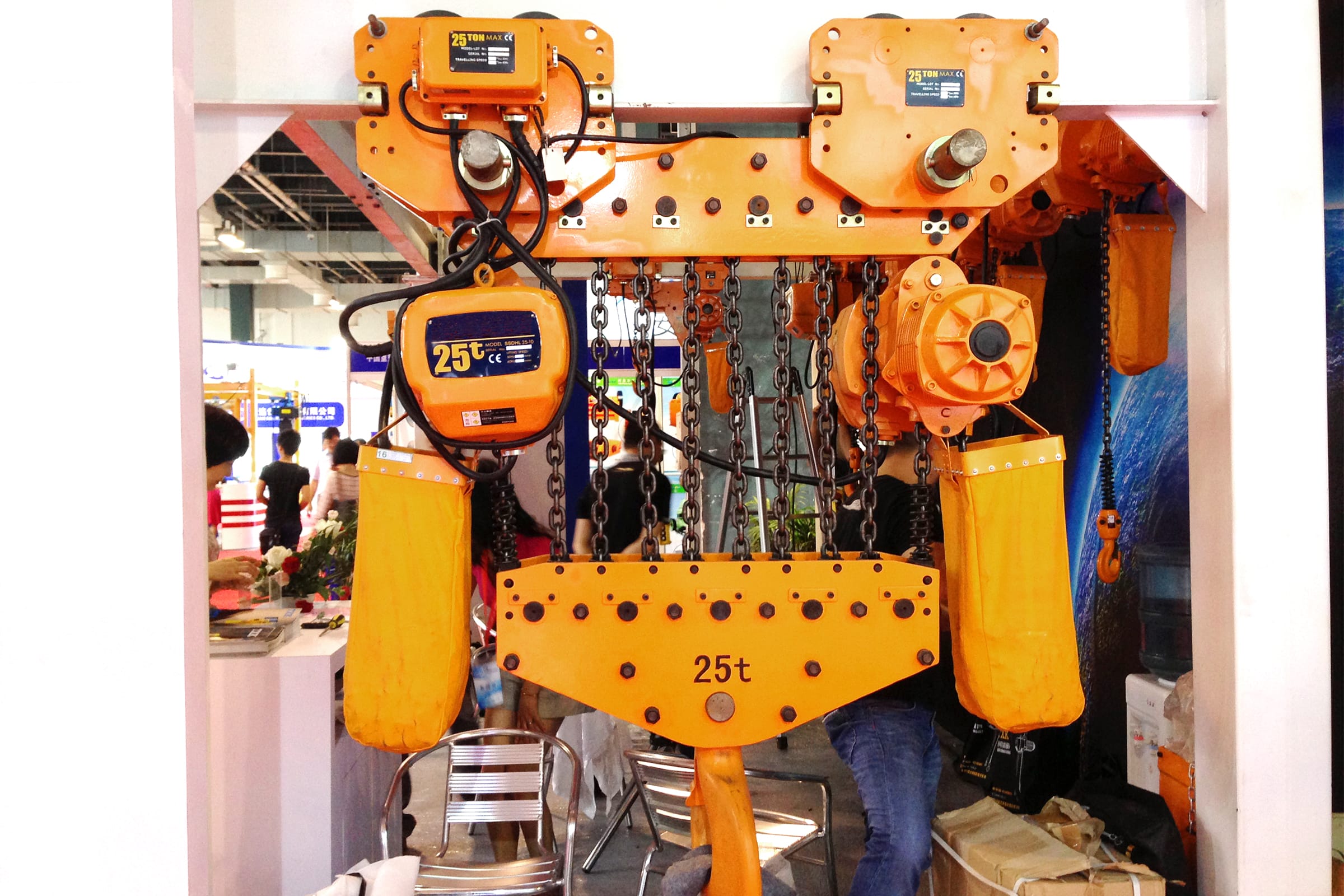

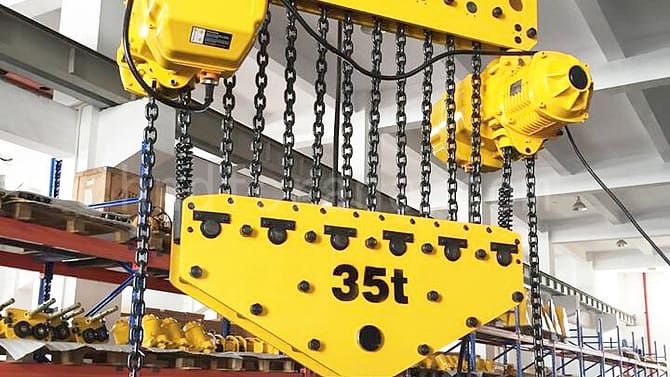

Lifting capacity: 0.5-35t.
Working class: M3 or M4.

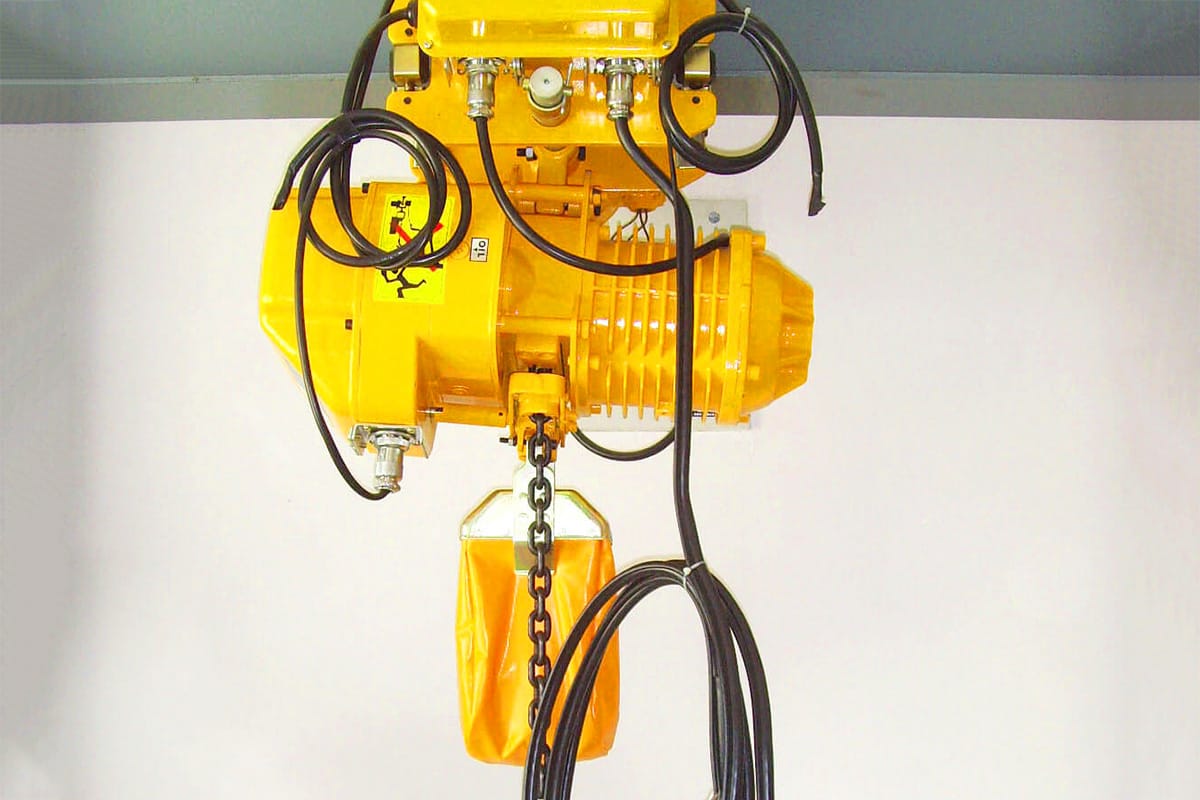

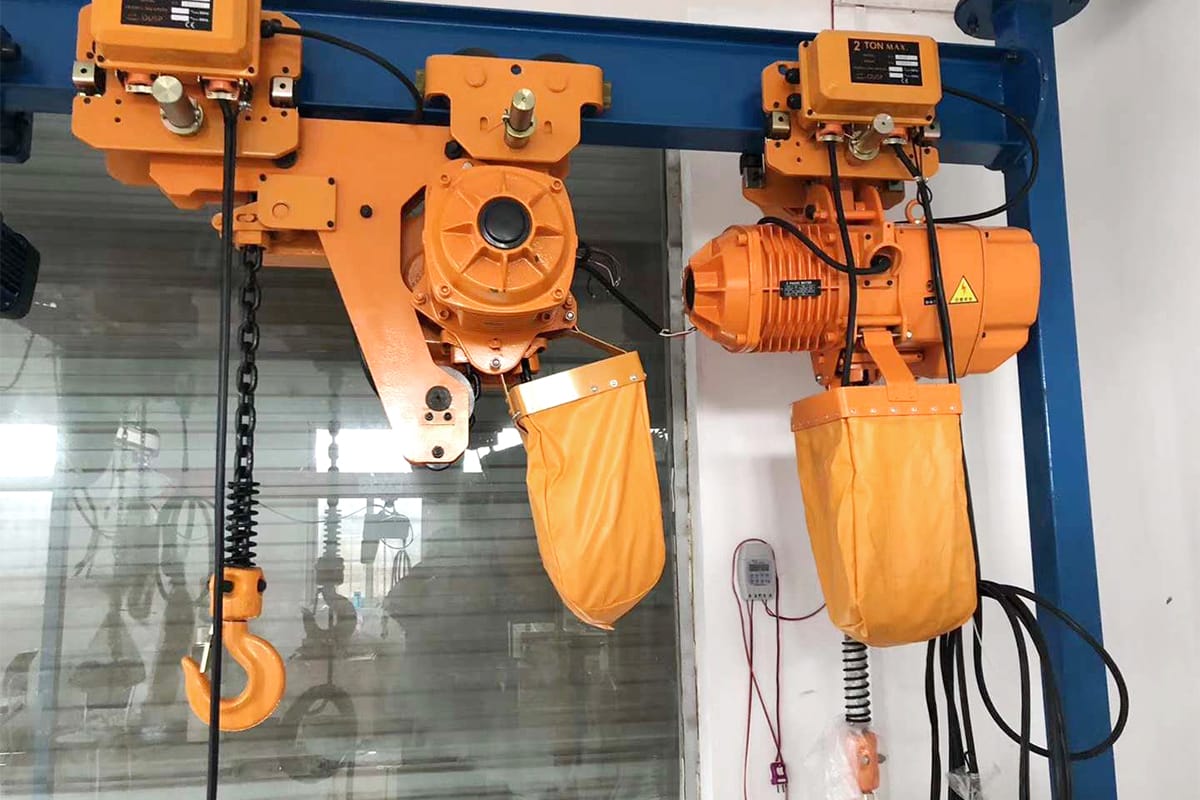

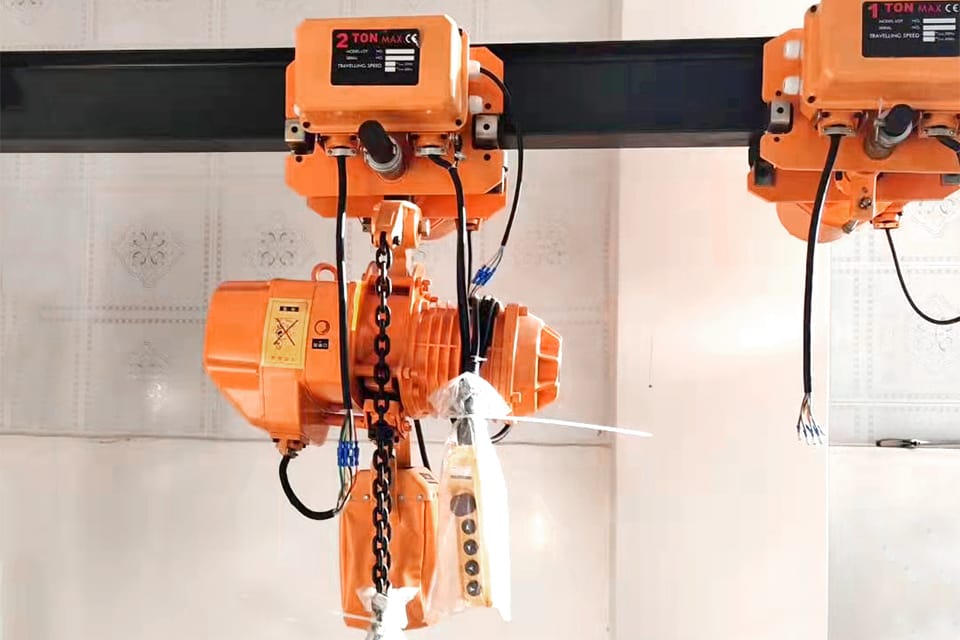

Model: Fixed model with hook, Movable model with manual trolley, Movable model with electric trolley;
Lifting height: 3-30m;
Protection level: IP44/IP54;
Lifting speed: single, double;
Traveling speed: 11/21m/min;
Control mode: Pendant control with line, wireless remote control;
Industrial power voltage, 220V/380V/415V, 50HZ/60HZ, 3Ph, or customized;
OEM available;

Compared with electric wire rope hoist, electric chain hoist has small size and light weight, but speed is a little slower than electric wire rope hoist. If your required light height is high and fast lifting speed, we suggest using electric wire rope hoist.

Our Electric Chain Hoist offer outstanding performance and reliability in everyday operation. We have international advanced technology to manufacturer the hoist.

It is the light hoisting equipment, and of advanced technology; its main body is composed by high-strength alloy metel, therefore it's of small volumn, light weight, compact structure, easy operation, handsome modeling, etc.

Its normal lifting capacity is 125-2000kg; we can also offer the 2.5t, 3t, 5t capacity, for your individual request.

Application

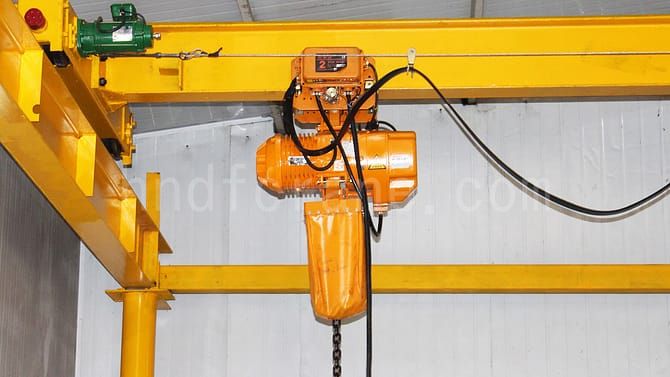

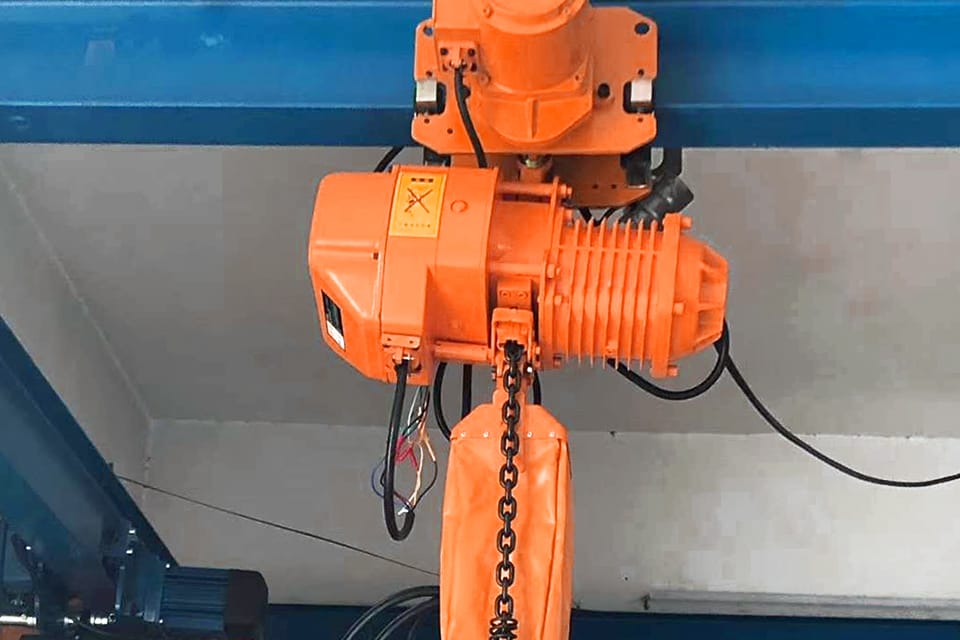

Electric Chain Hoist as a lifting equipment can help people improve work efficiency. It will used on overhead crane, gantry crane and jib crane.

Features

Safe and Reliable
Sturdy and Durable
Easy to Maintain
Convenience and Efficiency

Configuration

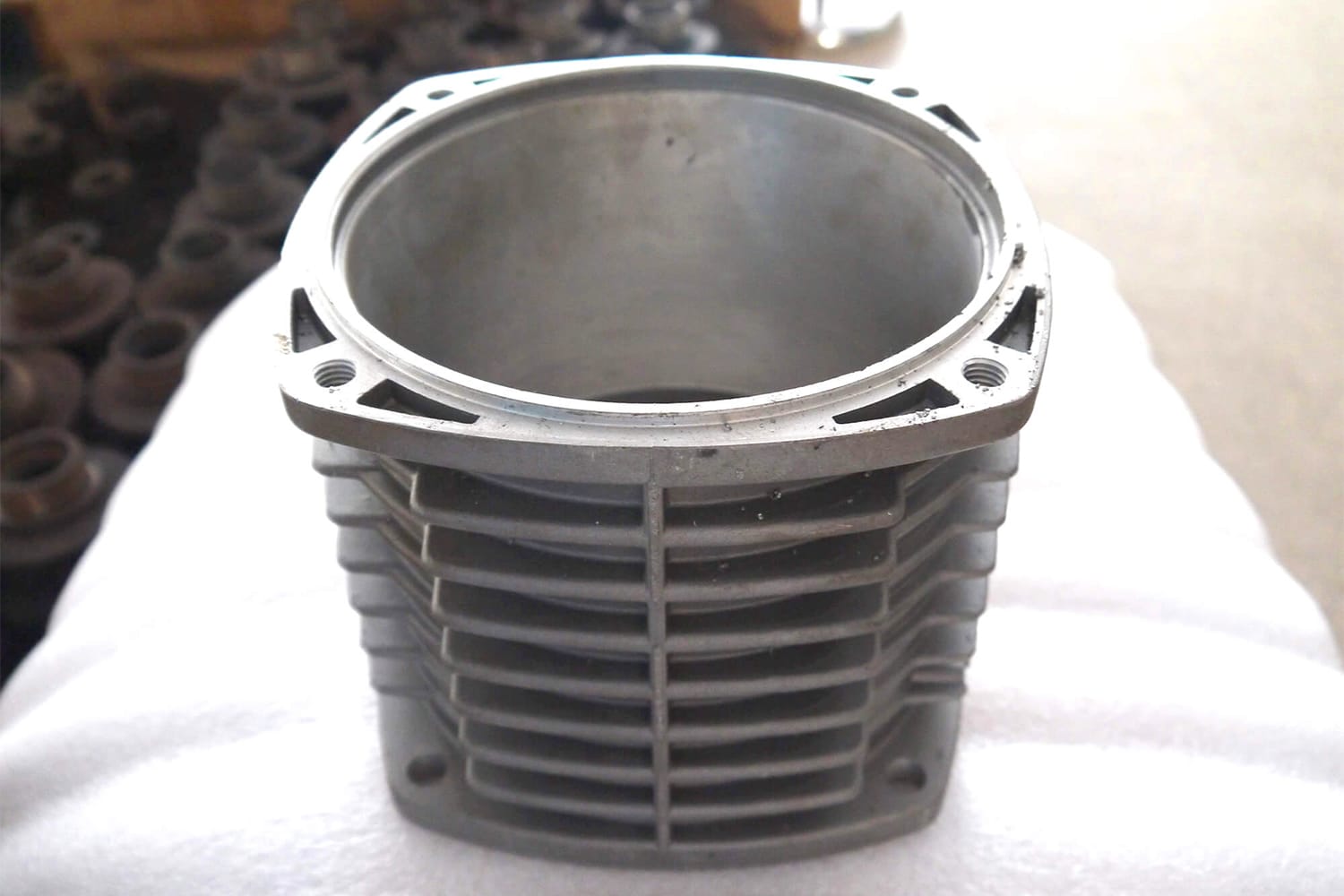

Shell	Light aluminum alloy shell shall be adopted, which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
Inverse Phase Sequence Protecting Device	It is the special electrical installation which controls the circuit not to work in case of wiring error in the power supply.
Limit Switch	The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.

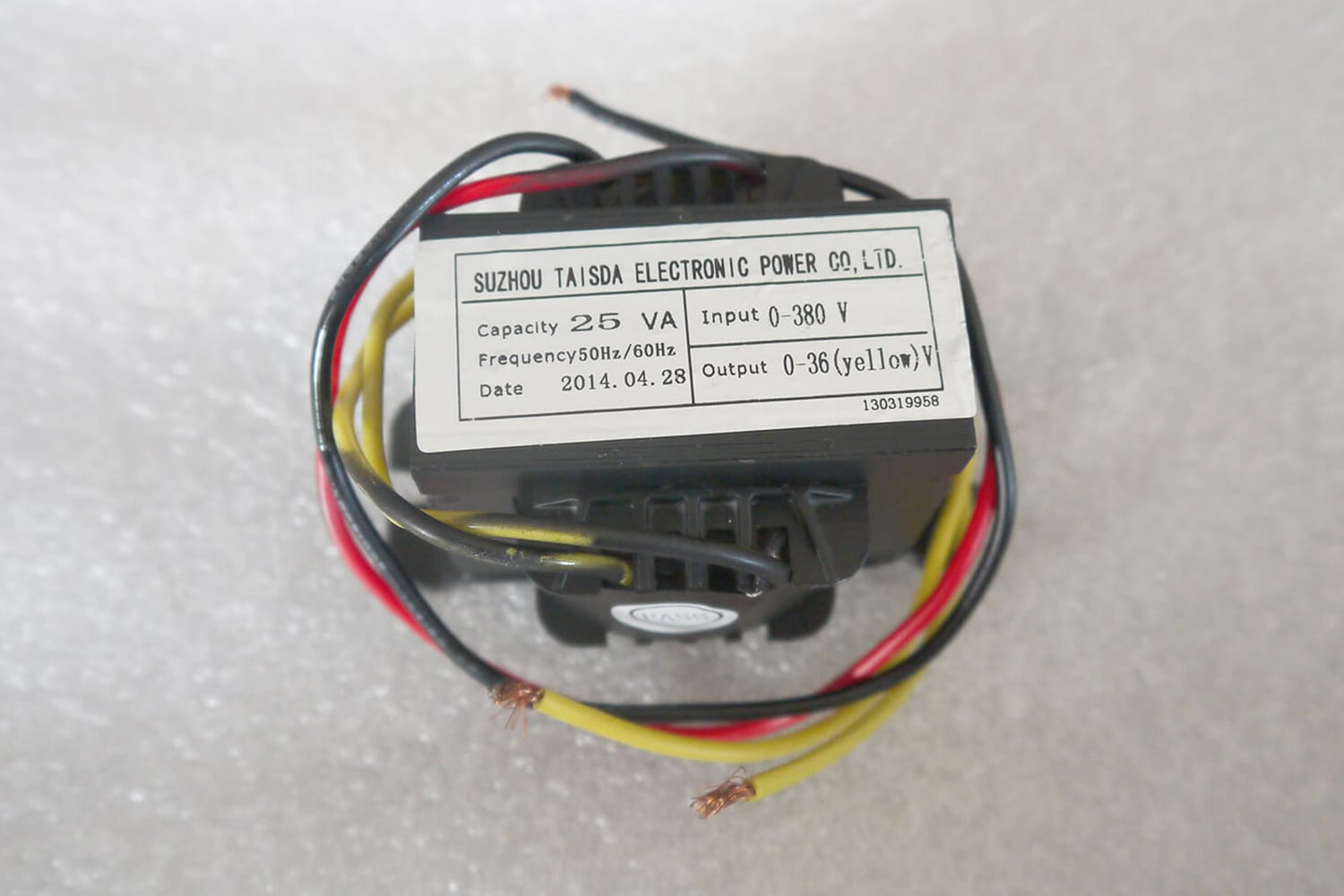

24/36V Device	It is used to prohibit the emergencies from occurring in case of the leakage in the switch.

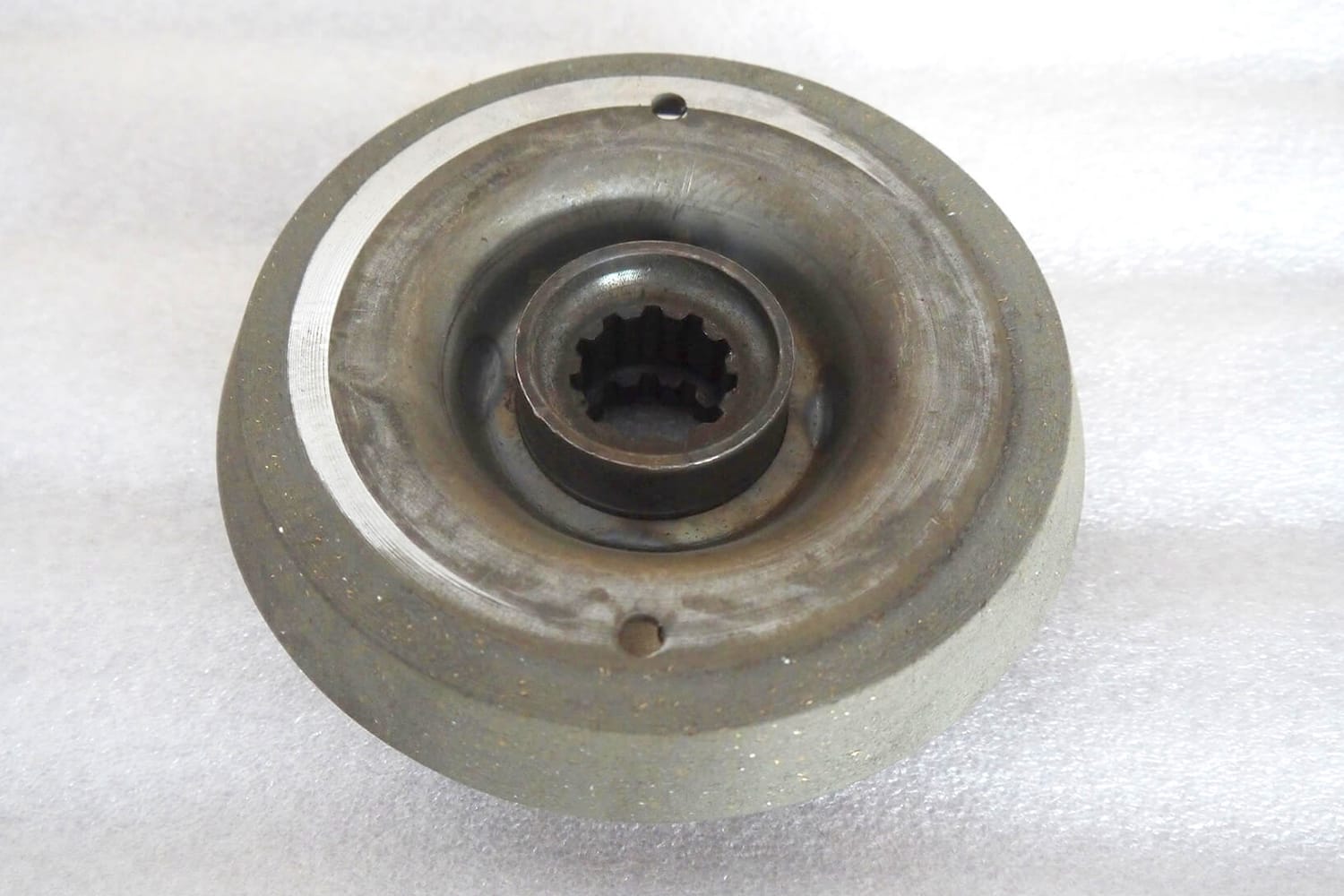

Side Magnetic Braking Device	This device shall realize the instant brake in case of the power dump.
Chain Bag	It shall be light, handsome and durable.
Chain	The chain shall adopt the imported FEC G80 ultra heat-treatable aluminum alloy chain.
