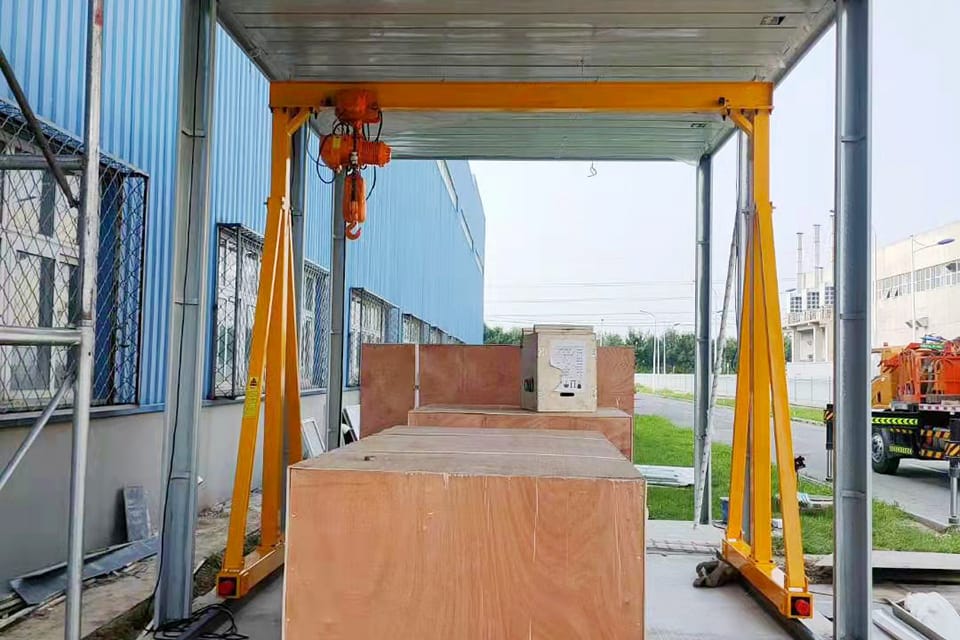

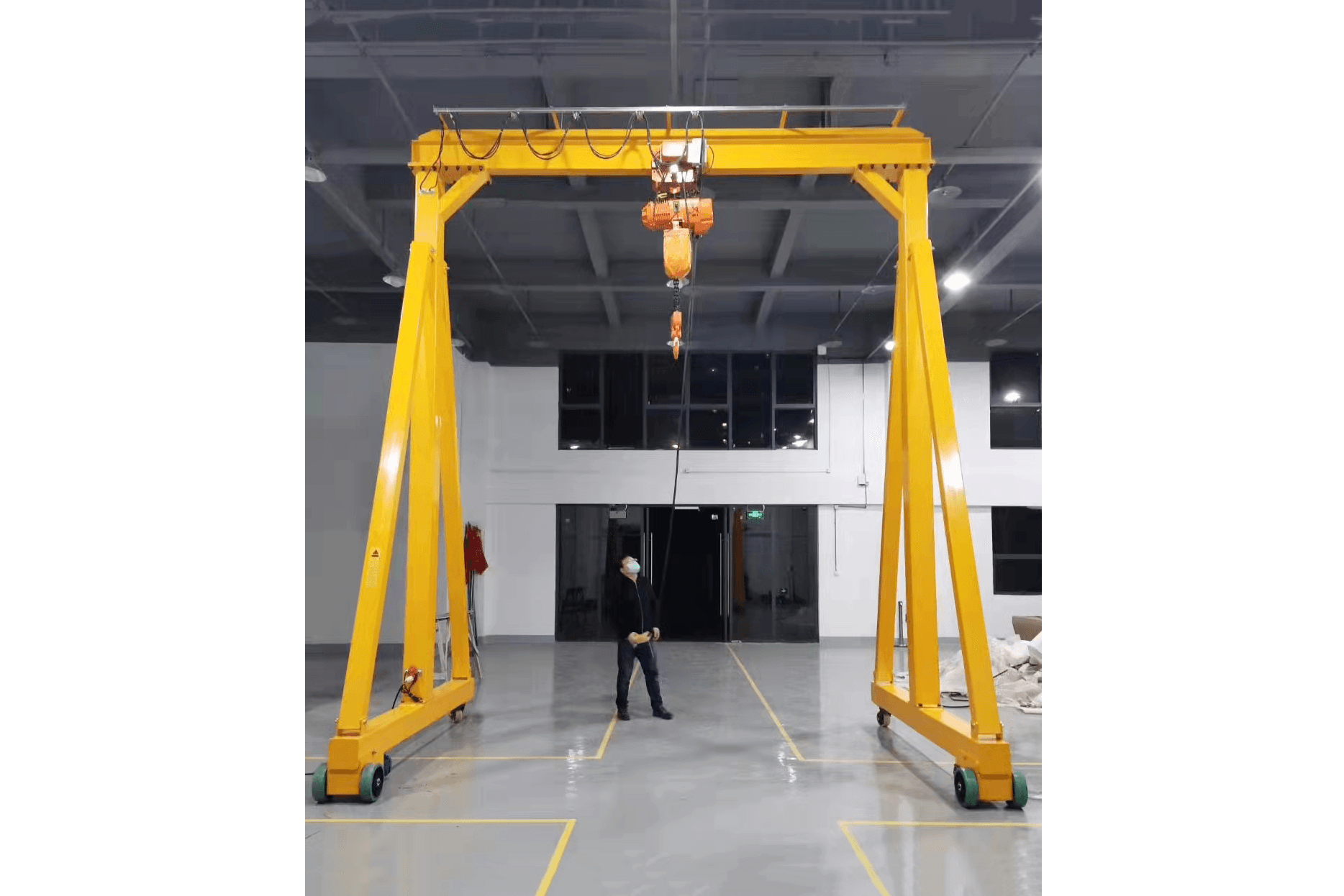

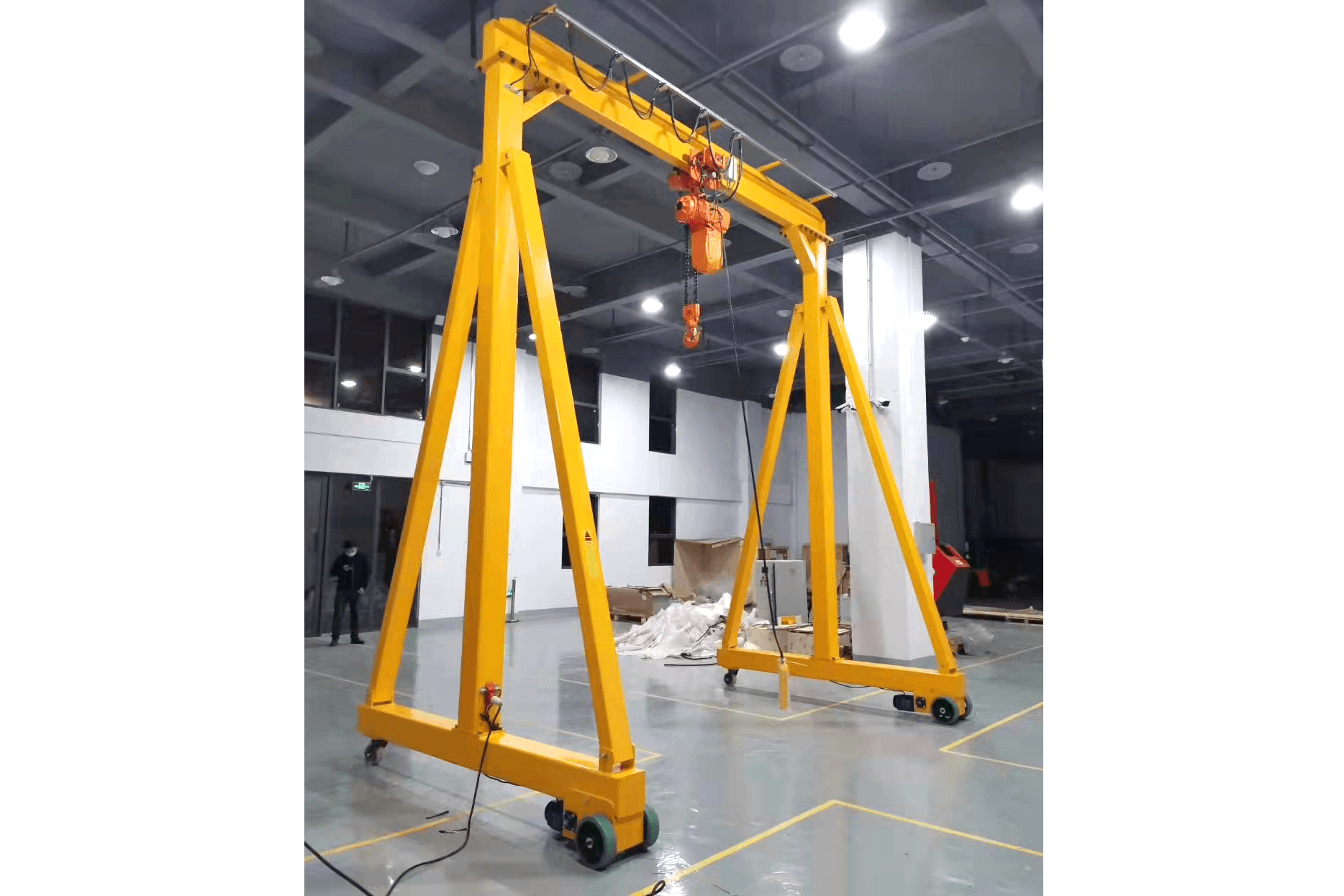

Portable Gantry Cranes
- Capacity: up to 10t
- Span Length: up to 10m
- Duty Group: A3-A5
- Work Environment Temperature: -25°C〜+50°C, relative humidtiy ≤95%
- Applications: Indoor and outdoor
- Advantage: portable, can be disassembled and assembleed easily. No need to pave floor rail
- Reference Price Range: $1000/set-$15000/set
Join Mailing List, Get Product Price List Directly to Your Inbox.
Product Introduction
Gantry Crane is also known as Portal crane or Goliath crane. Include single girder gantry crane, double girder gantry crane, engineer gantry crane, semi gantry crane, and operate on floor mounted rails.
Dafang provides single girder gantry crane solutions from 1 Ton SWL up to 20TonSWL (we also manufacture gantry crane designed according to client special requirement).
According to different situations, single girder gantry crane has four types: L single girder gantry crane, MH single girder gantry crane, truss type single girder gantry crane. Portable gantry crane.
We have the gantry crane for your application. Portable gantry cranes are perfect for applications where you need a portable and economical way to lift materials anywhere in your facility. The durable polyurethane casters to allow ease of movement around your facility
Application
- Lifting materials anywhere in a facility where an overhead crane is needed
- Localized handling utilizing the safety of a gantry crane
- Over machines for maintenance and pulling product using a safer crane alternative in lieu of a forklift
- Anywhere overhead lifting equipment is needed on an infrequent basis
Configuration
| Nam eItem |
Lifting mechanism | Hoist traveling mechanism | Crane traveling mechanism |
|---|---|---|---|
| Motor | Nanjing (IP44, IP54) | Nanjing (IP44, IP54) | Nanjing (IP44, IP54) |
| Reducer | Dafang | Dafang | Dafang |
| Brake | Included in moto | Included in motor | Included in motor |

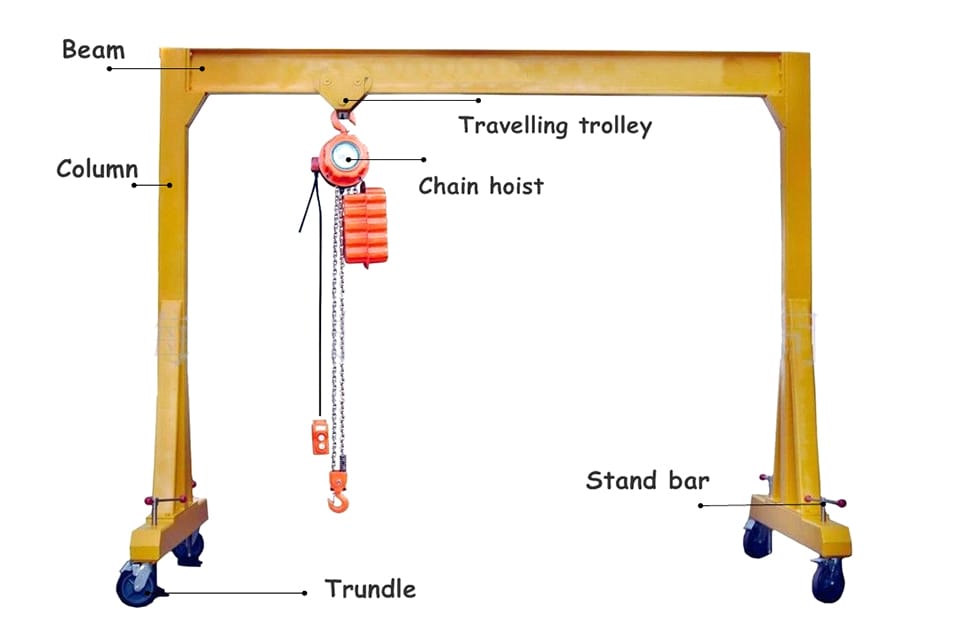

Products Details

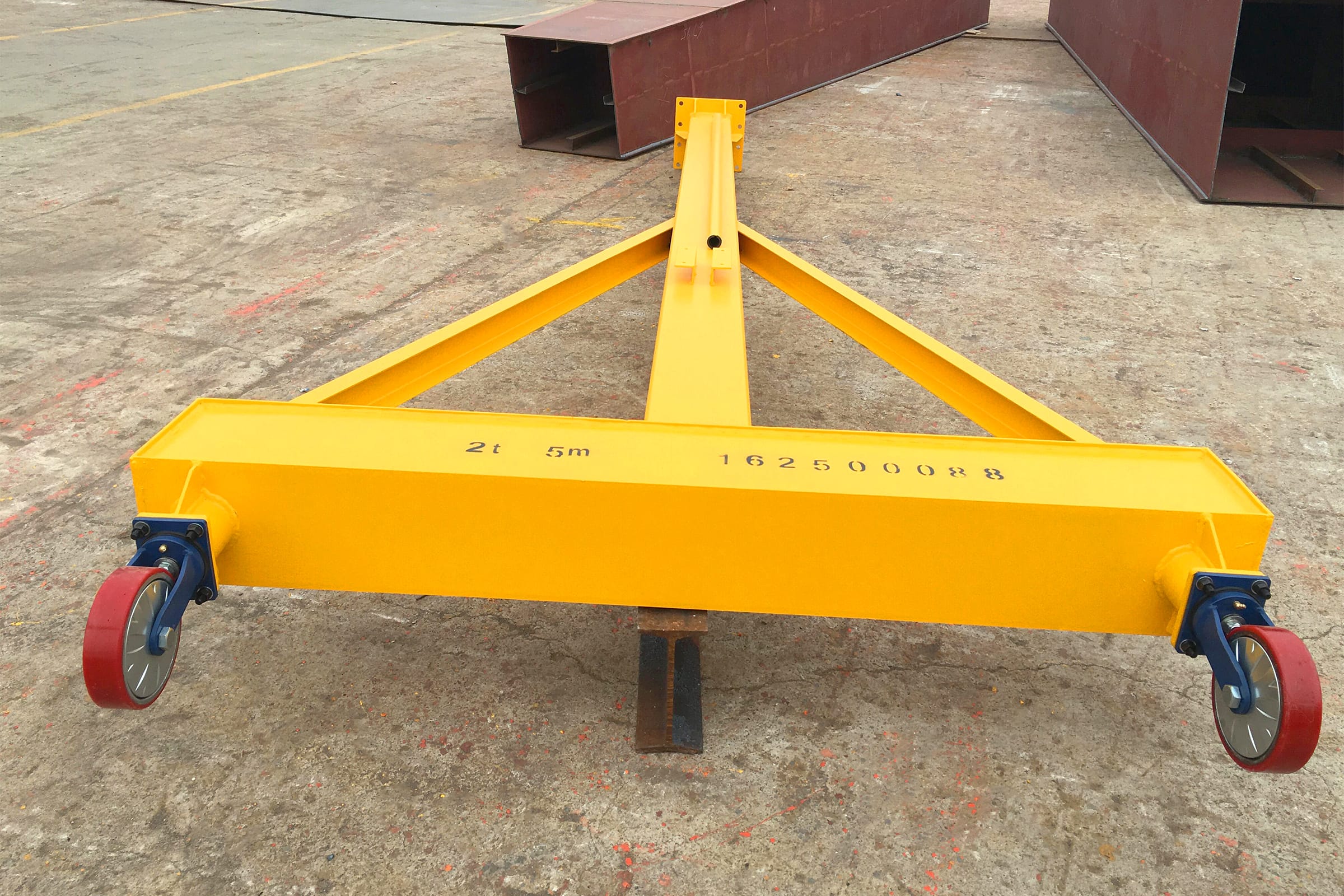

Ground beam
Q235/Q345 carbon structural steel. With Nanjing brand motor

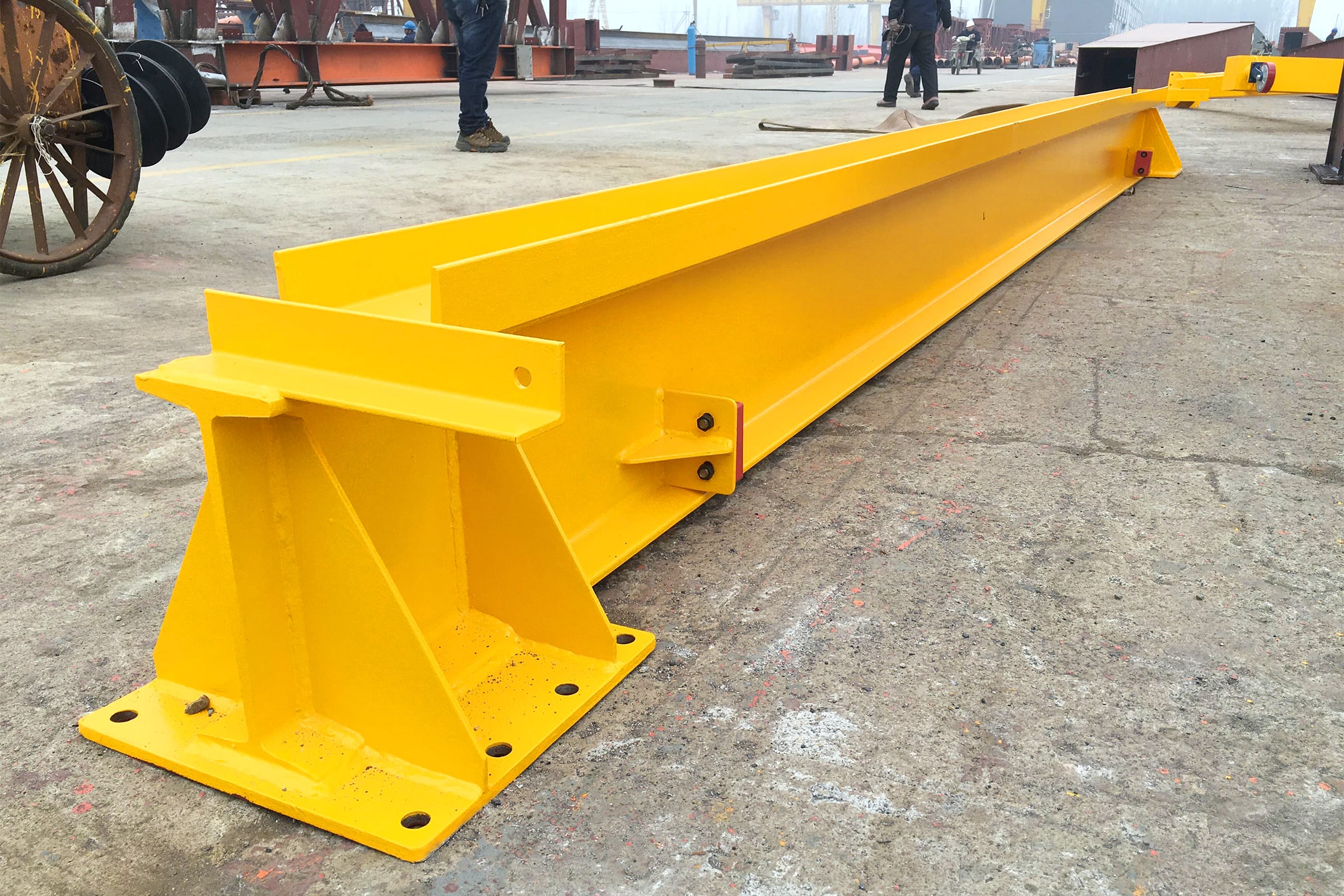

Main Beam
Q235/Q345 carbon structural steel. Strong box type with standard deflection

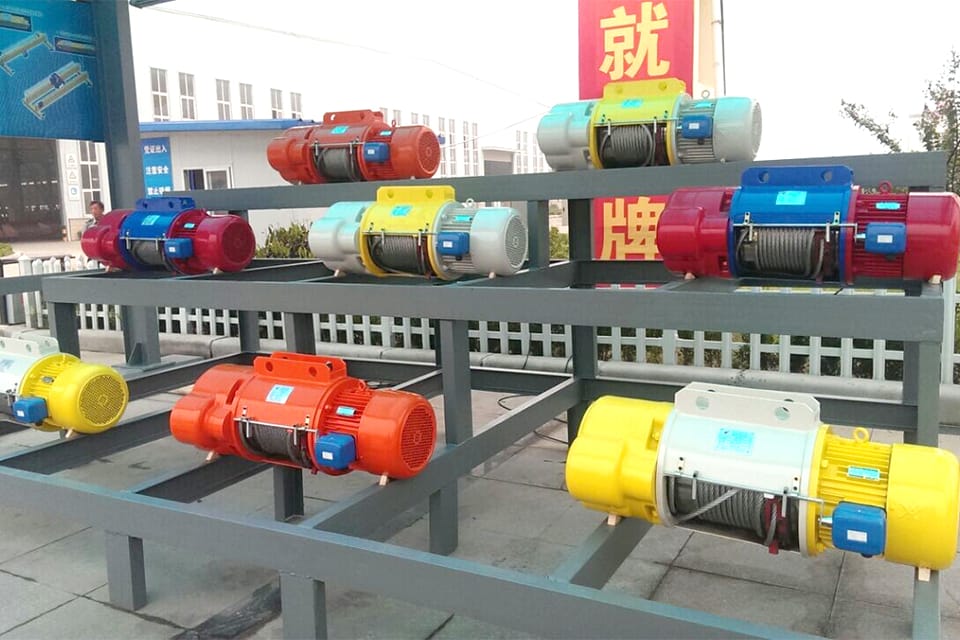

Electric wire rope hoist
CD1/MD1 Electric made by our own group, insulation class IP44 /IP55

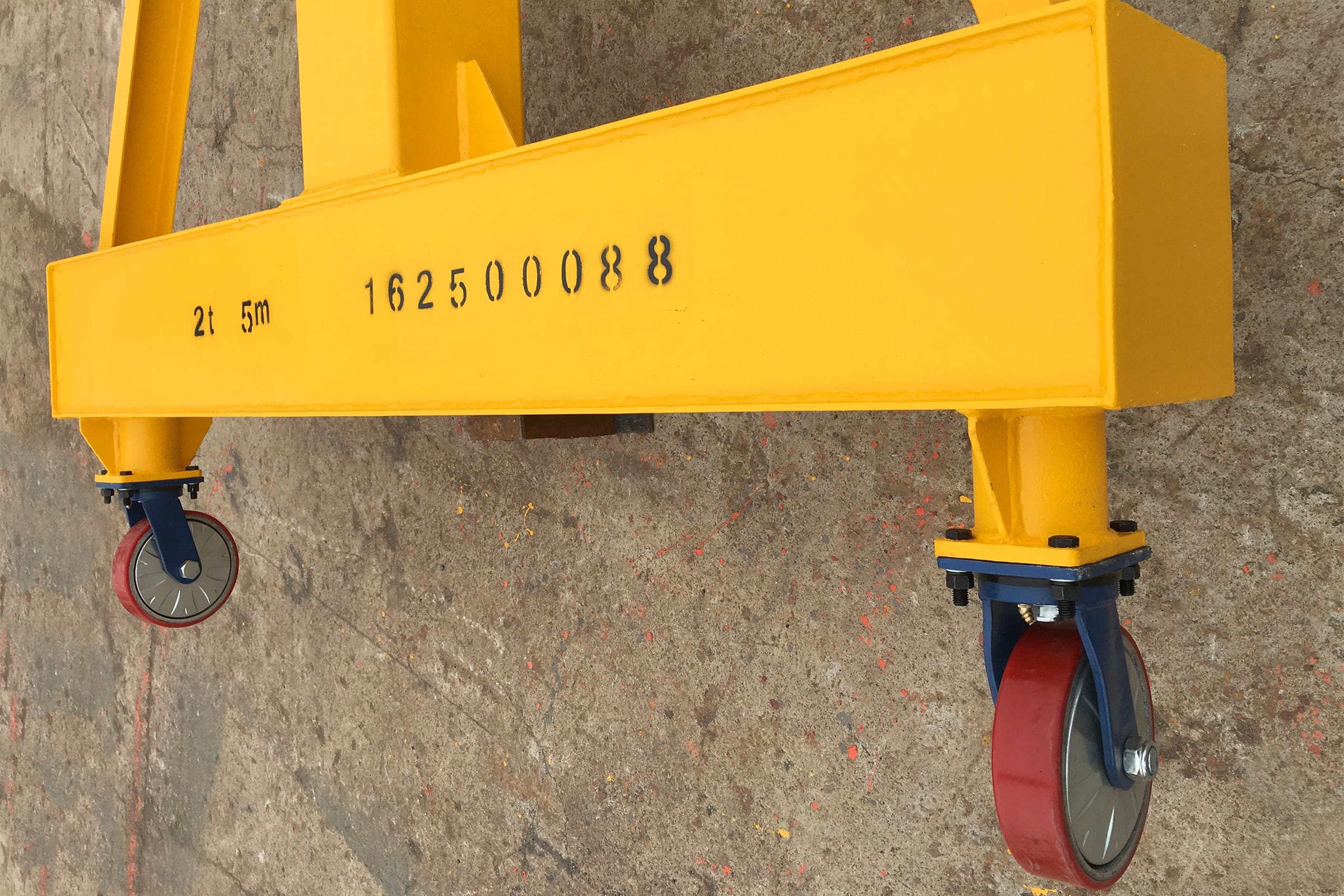

Crane wheel
Universal wheel, it is different than other gantry crane, it can easy move by hand in random direction.

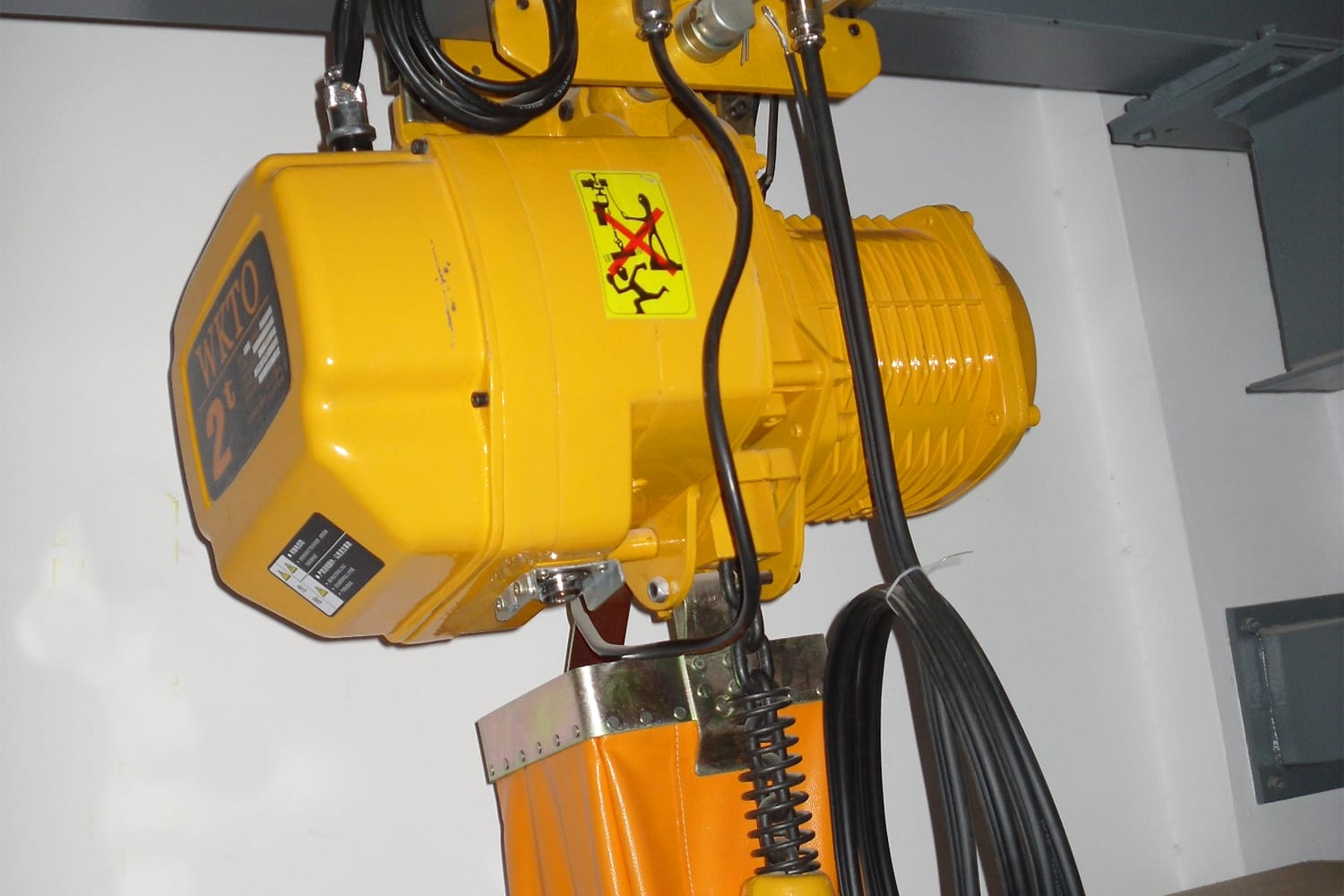

Electric chain hoist
This is type hoist is more light than wire rope hoist, more easily to operate, and and reduce space.

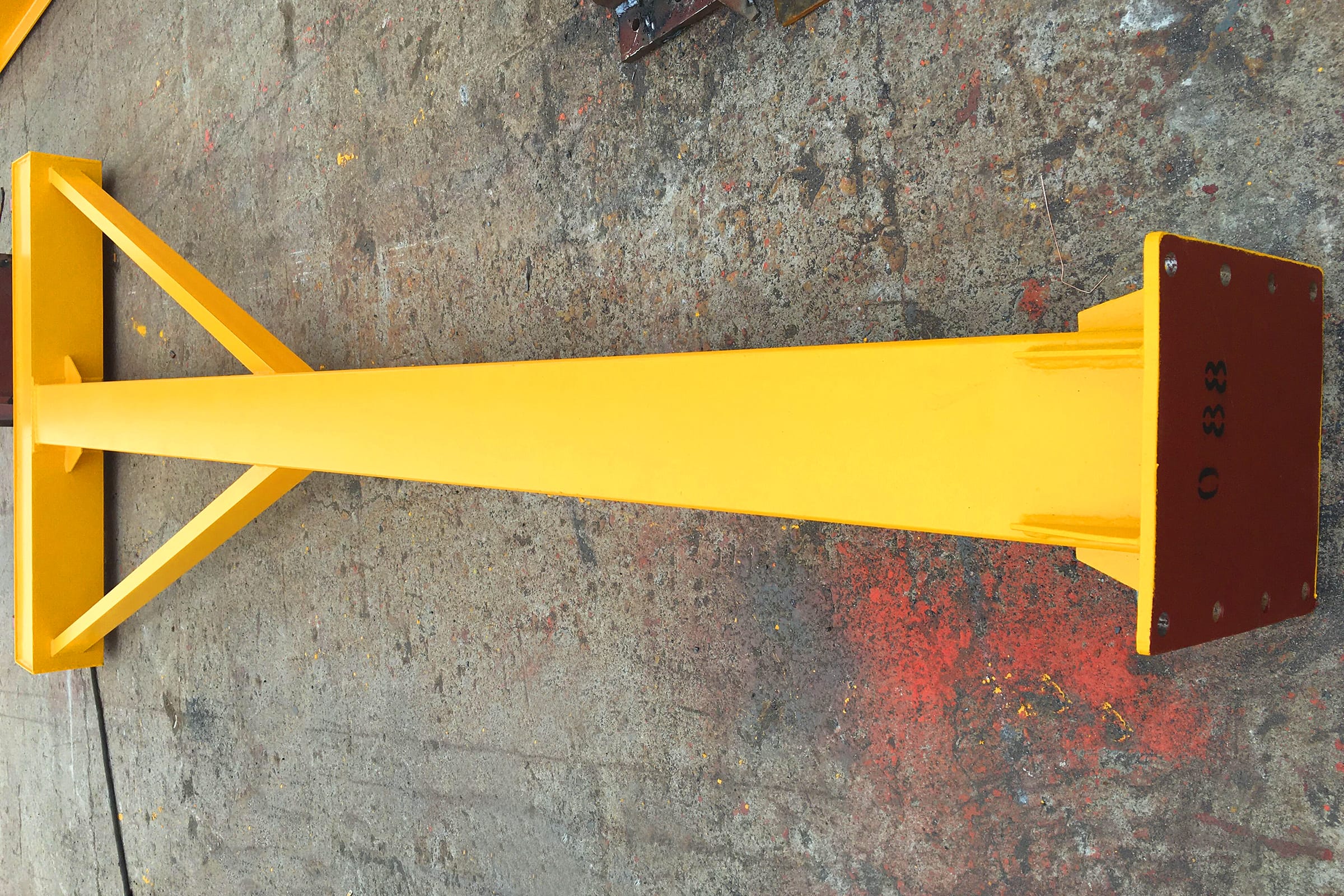

Supportingleg
Q235/Q345 carbon structural steel. Strong box type with two coatsof paint
Different Types of Crane Trolley

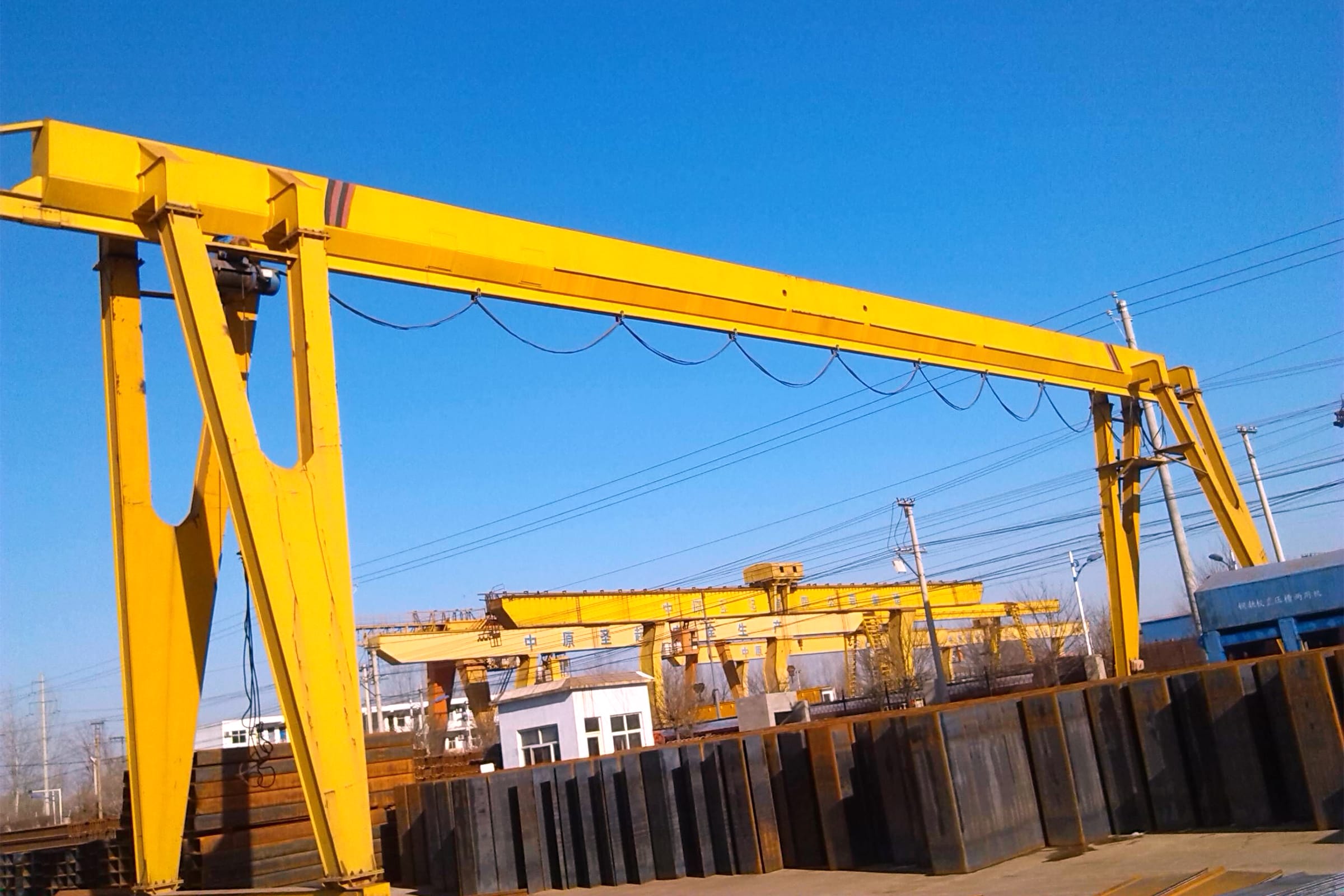

A (MH) Type Single Girder Gantry
- Suitable for indoor and outdoor
- Strong box type
- Crane can be designed with two side cantilever, one side cantilever or no cantilever
- Crane equipped with steel wire rope hoist, hoist traversing under the main girder

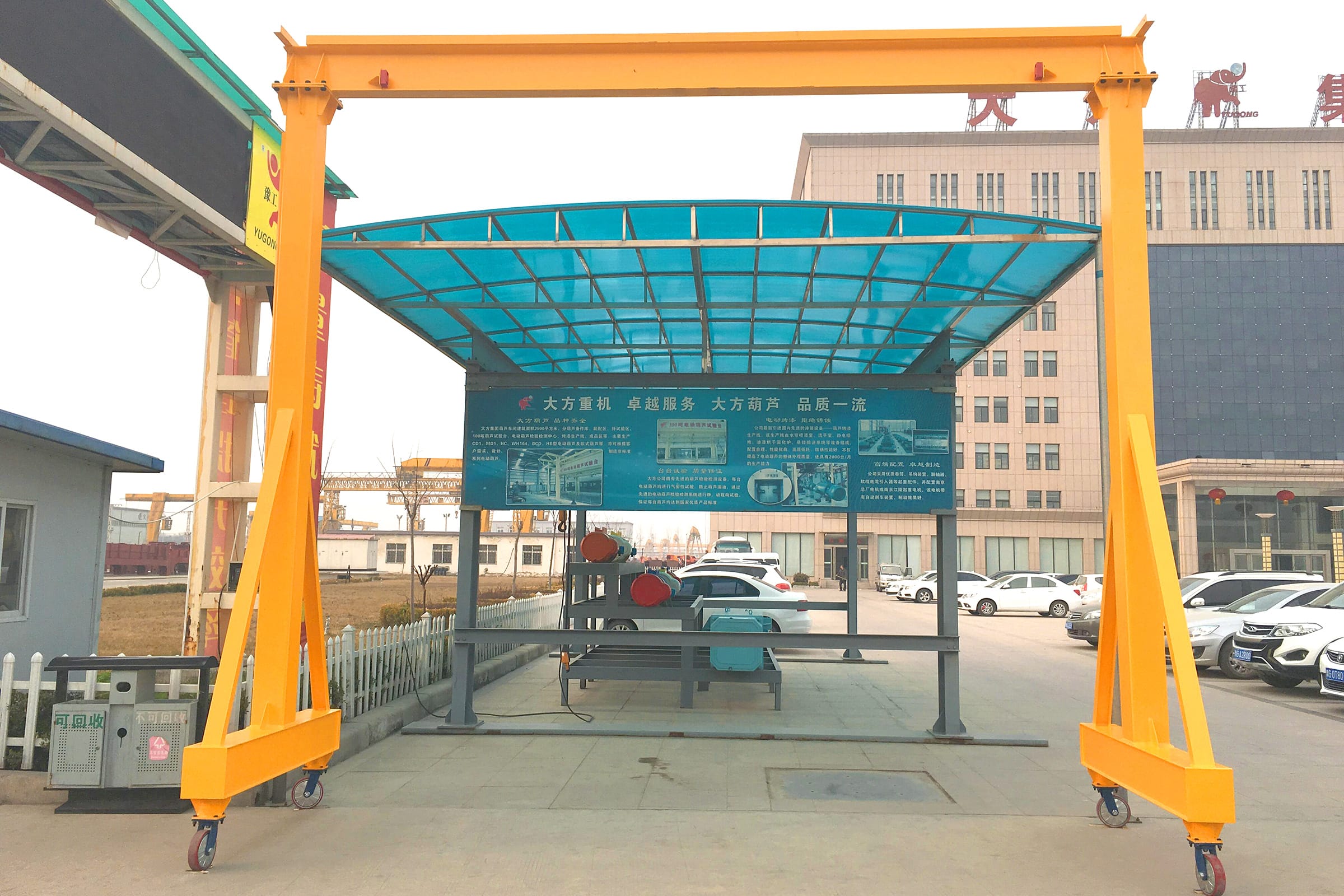

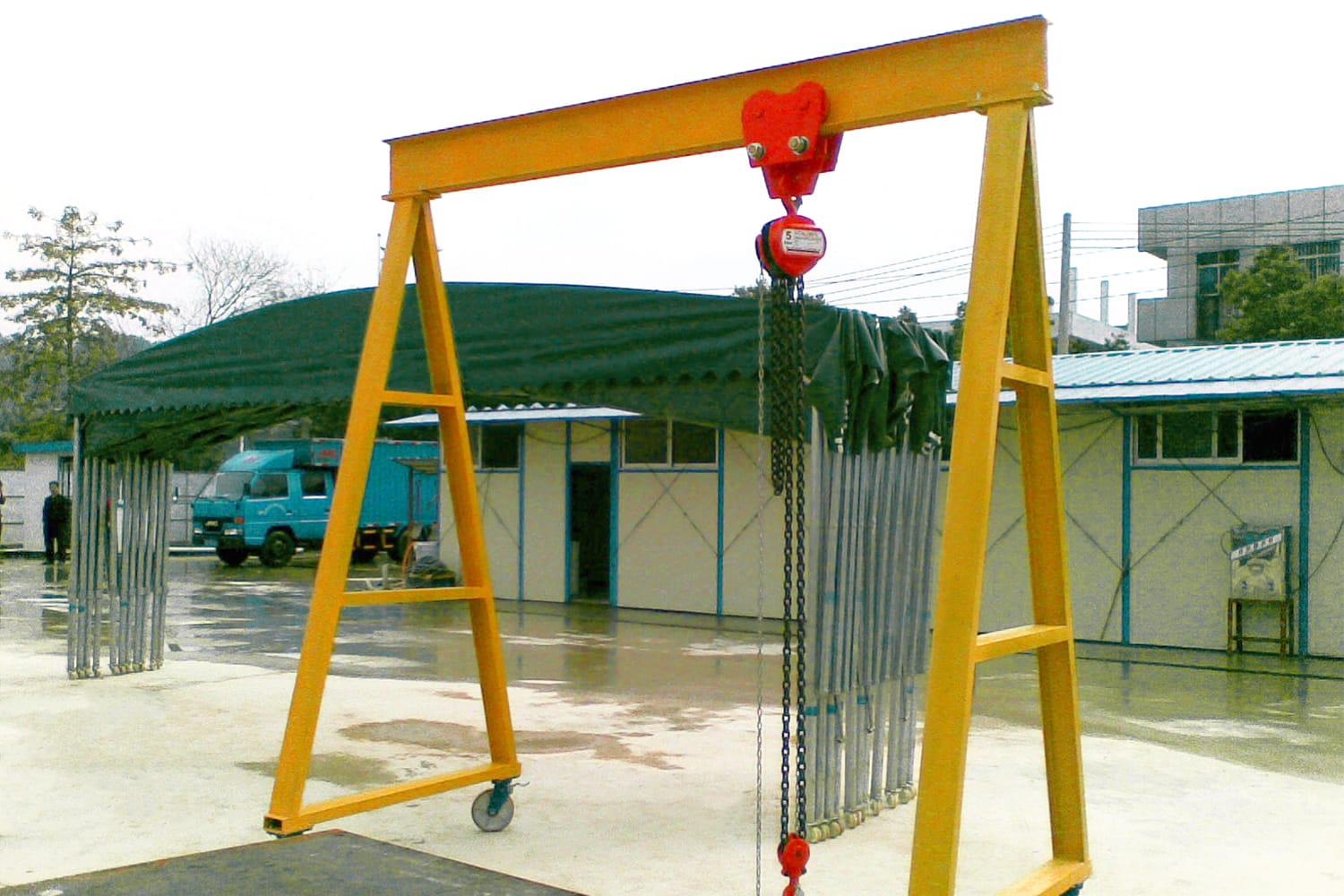

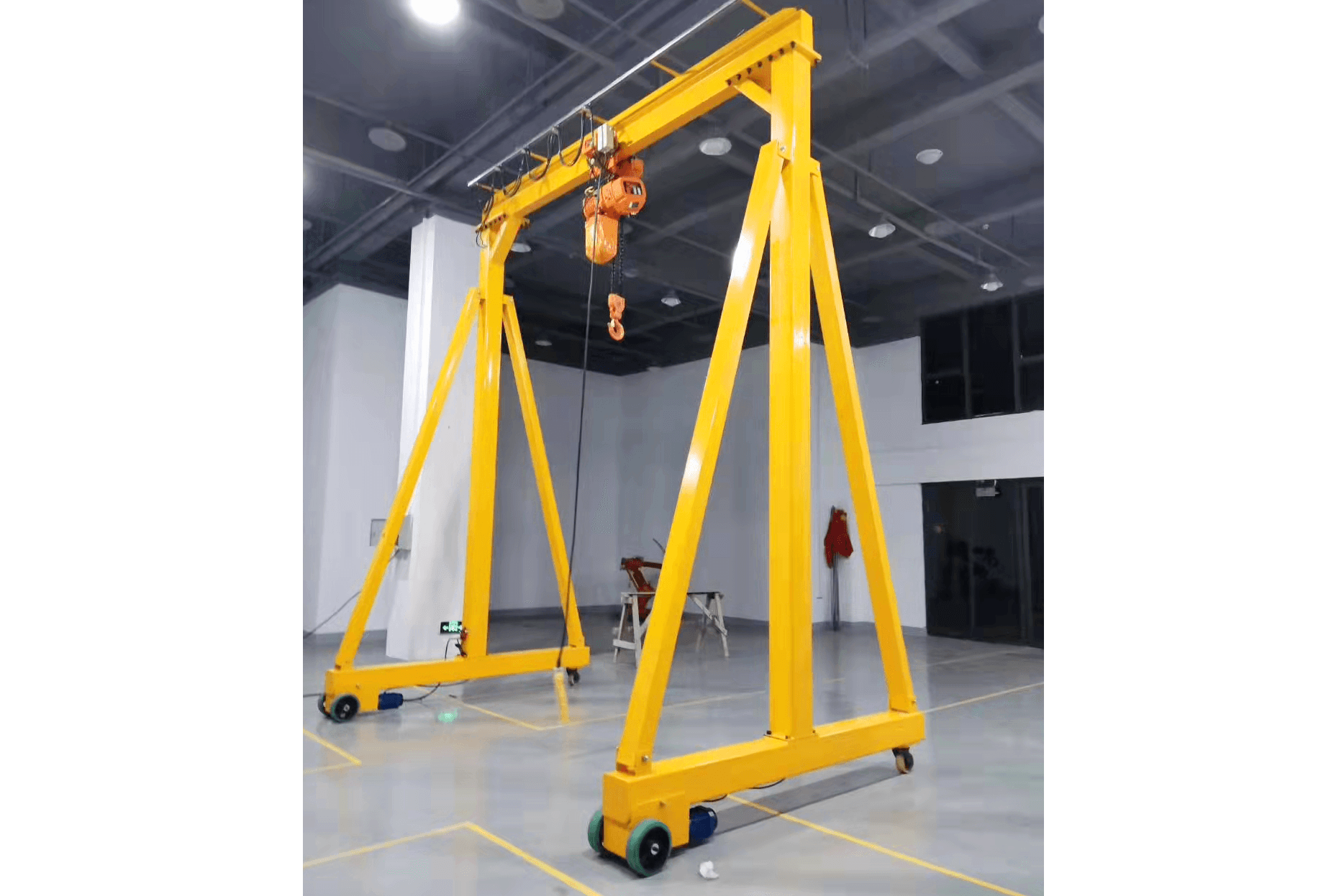

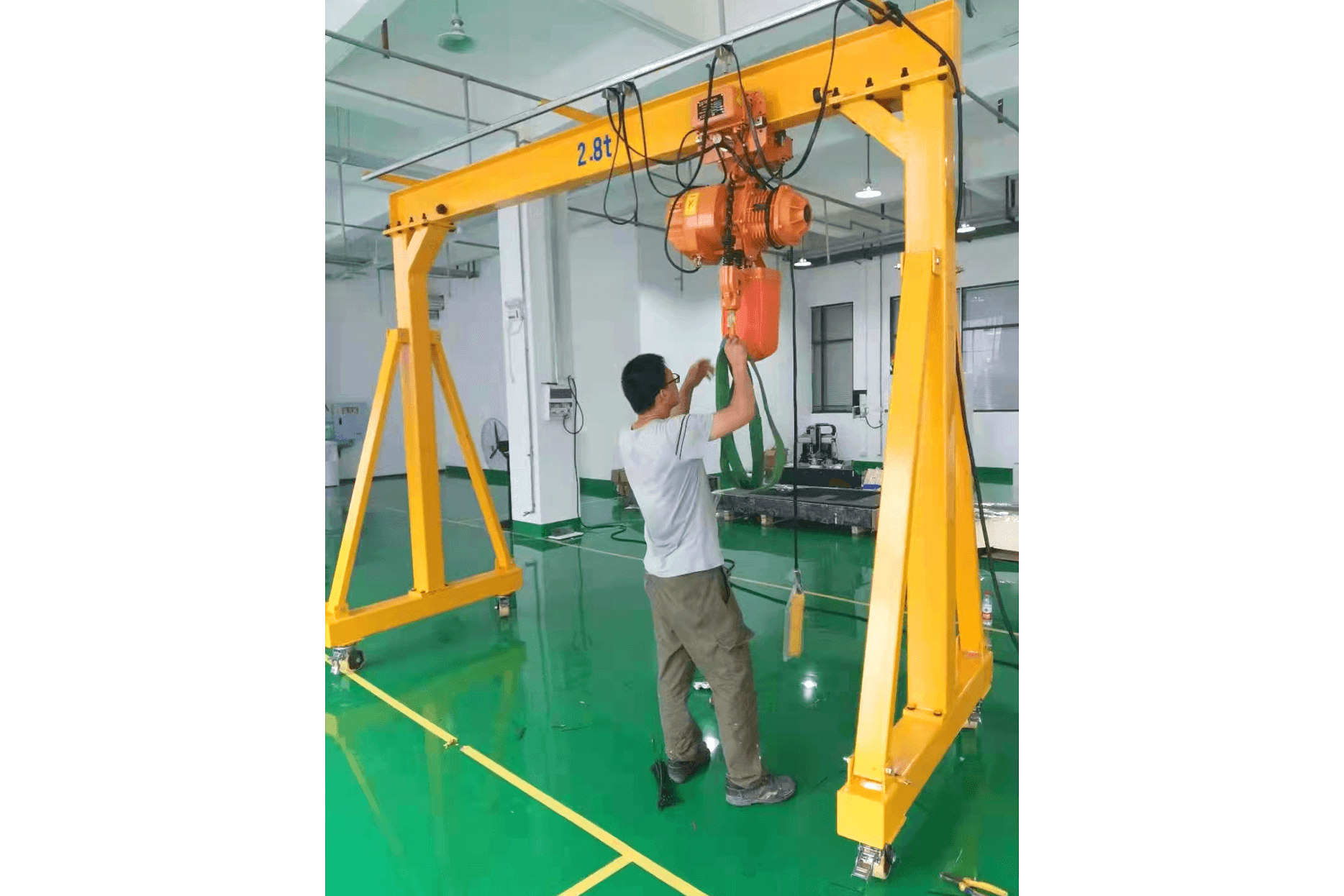

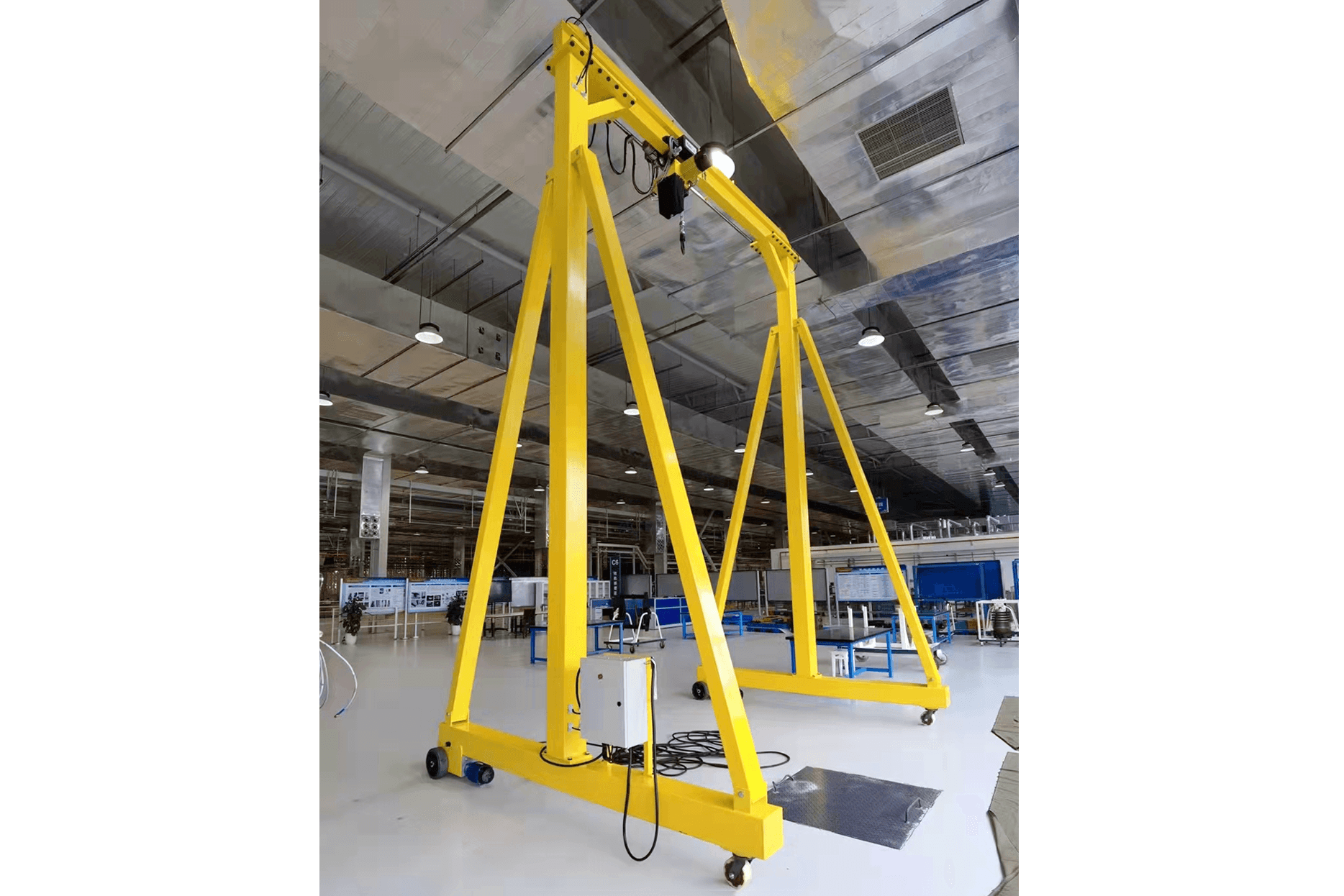

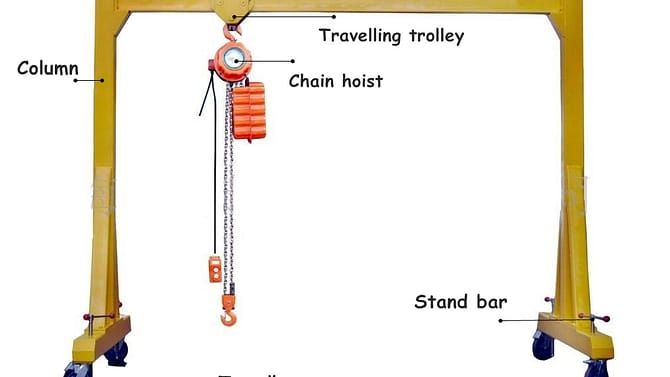

Portable Single Girder Gantry Crane
- Crane main girder and support leg both light type.
- Crane equipped with moveable wheels, can be easily move in any directions.
- Crane equipped with steel wire rope hoist, electric chain hoist traversing under the main girder

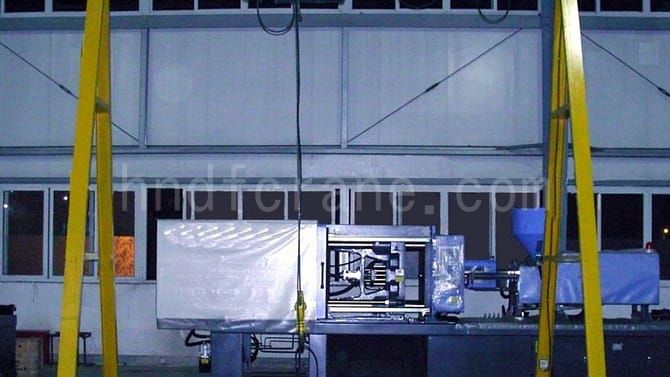

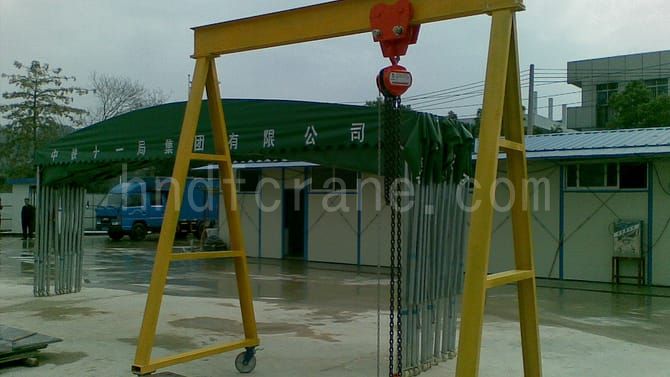

Application Examples
