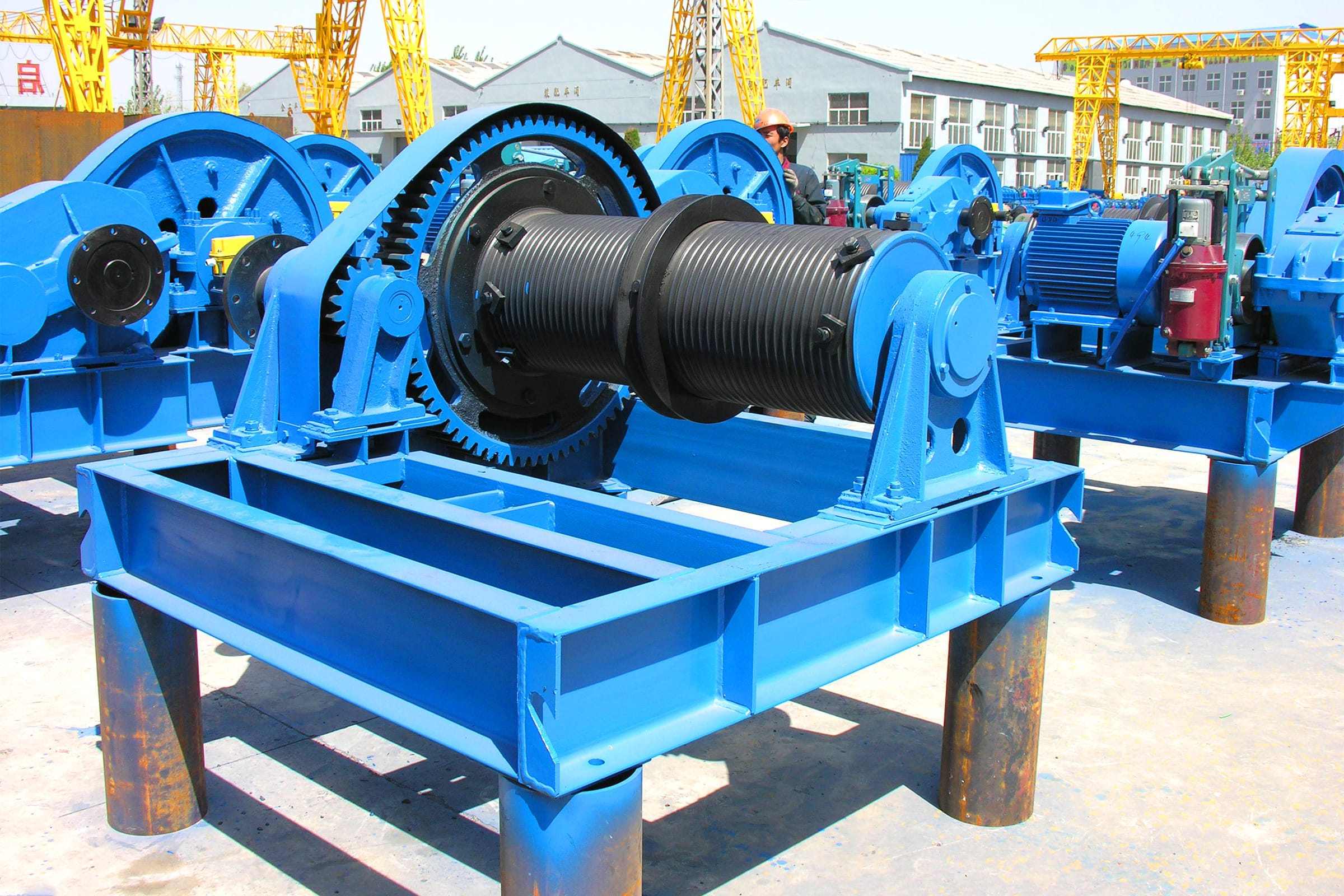

Winch

  • The instantaneous transmission ratio is constant, the operation is stable, the transmission is accurate and reliable, and the motion and power between any two axes in space can be transmitted;
  • Applicable power and speed range;
  • High transmission efficiency;
  • Reliable operation and long service life;
  • Small outline size and compact structure.

Join Mailing List, Get Product Price List Directly to Your Inbox.

Product Instruction

Winch, a light and small lifting device that uses a drum to wind a steel wire rope or chain to lift or haul heavy objects, also known as a winch. The winch can lift heavy objects vertically, horizontally or tilted. It can be used alone or as a component of machinery such as lifting, road building and mine hoisting. It is widely used because of its simple operation, large rope winding volume and convenient displacement. Mainly used in construction, water conservancy projects, forestry, mines, docks, etc. for material lifting or flat towing.

The classification of winches and their different characteristics The winches include construction winches.

The main products of coaxial winches are:

  • JM electronically controlled slow-speed large-tonnage winches,
  • JM electronically controlled slow-speed winches,
  • JK electronically controlled high-speed winches,
  • JKL hand-controlled fast-running winches,
  • 2JKL Manual-controlled double-quick-running winches, electronic-controlled manual-operated dual-purpose winches,
  • JT speed-regulating winches,
  • KDJ miniature winches, etc.

Can only be used on the ground, and can be modified for use on ships.

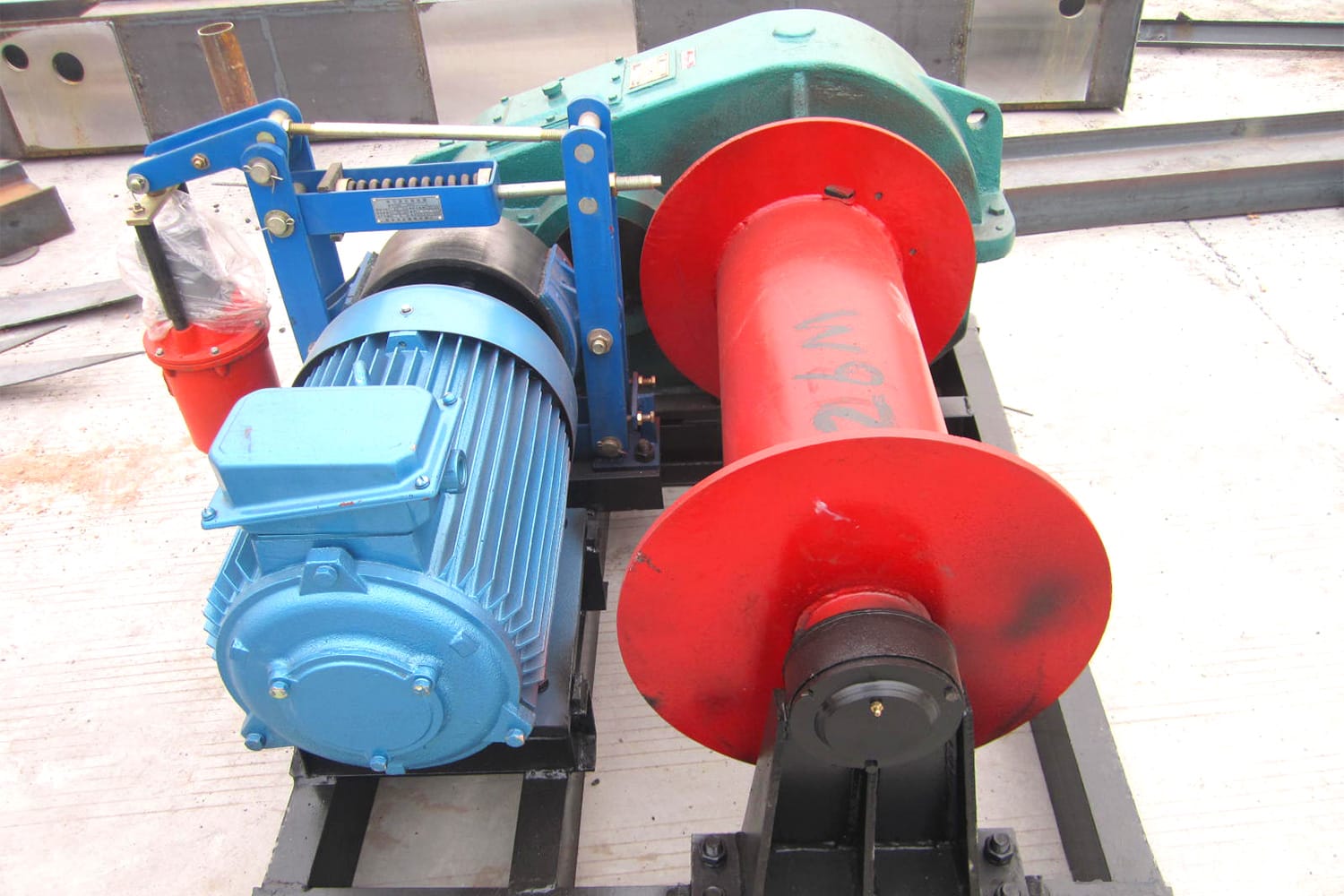

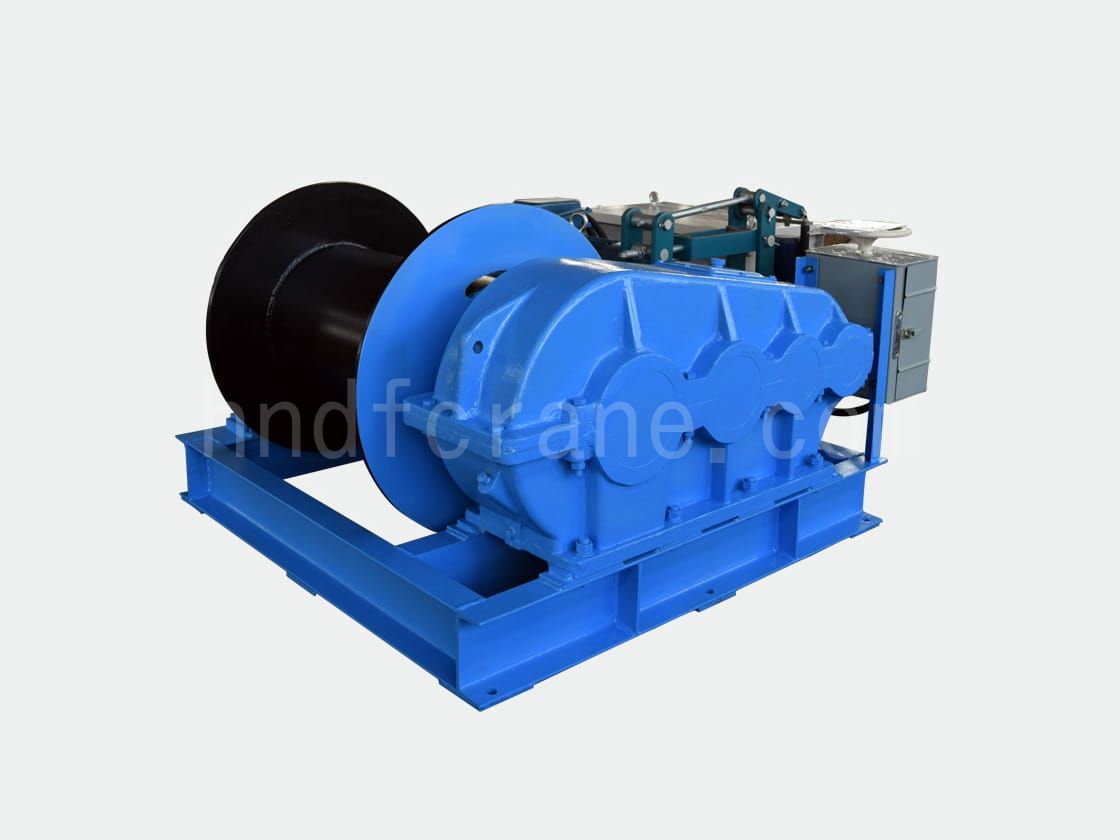

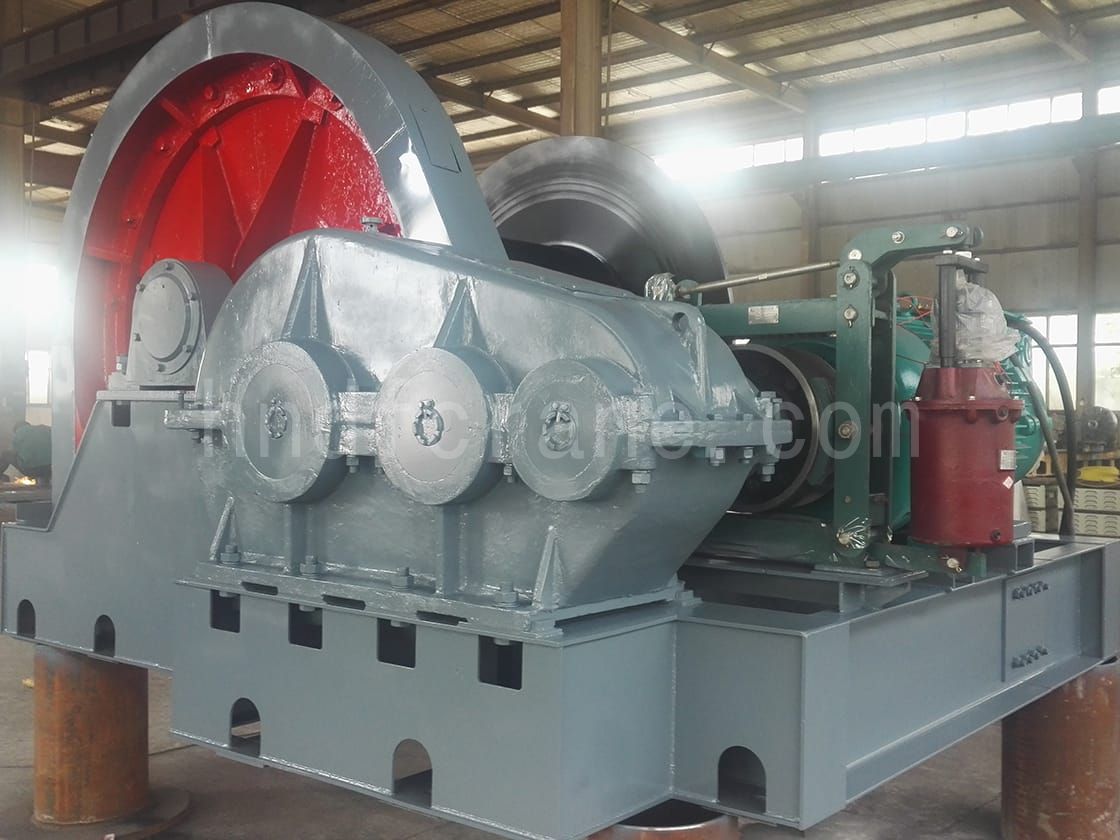

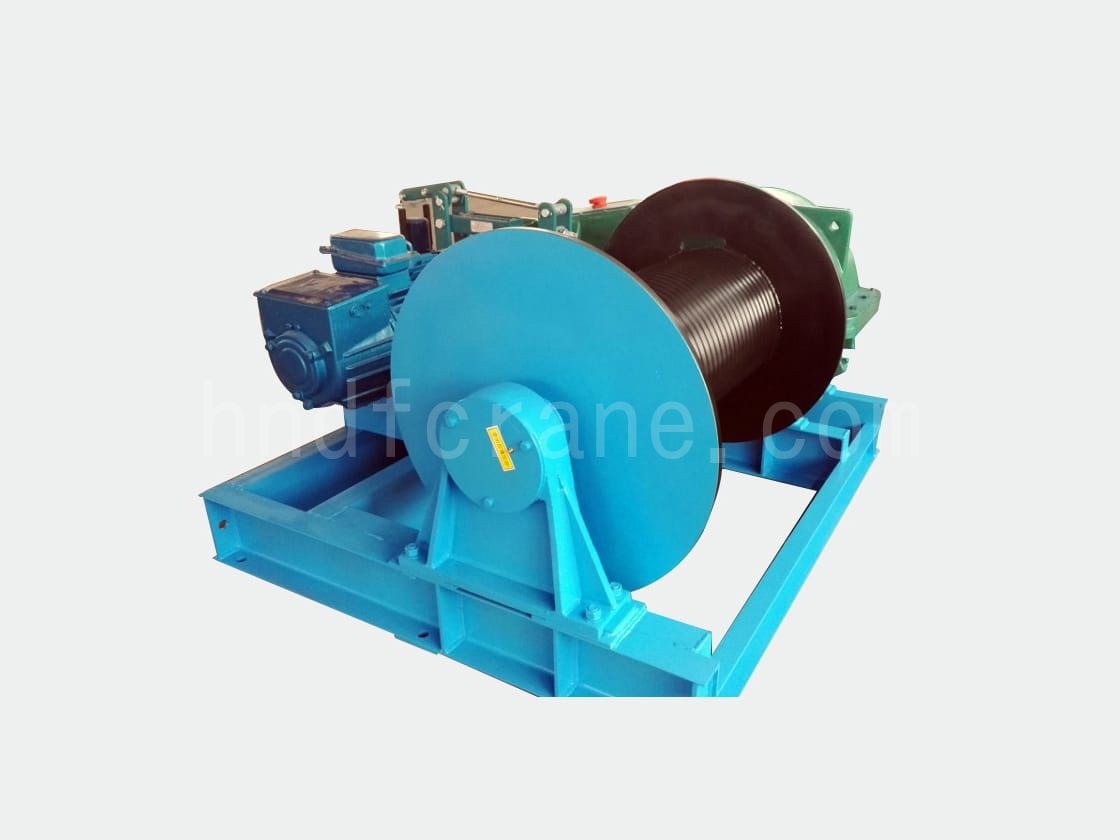

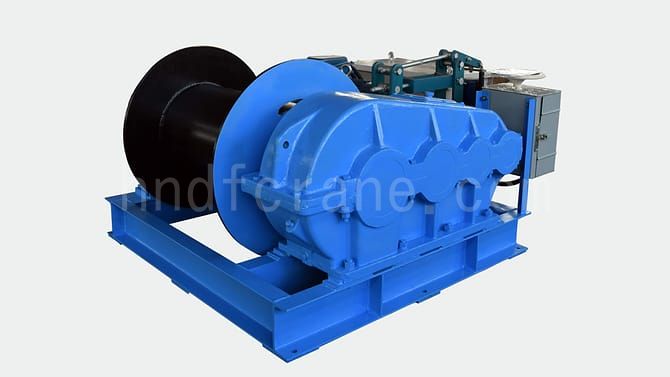

JM Slow Speed Winch

  • This series winch mainly used for the installation or disassembly of large and oversize concrete construction and steel structure.
  • This structural feature is that wire rope able to orderly arrangement, lifting is safe and reliable.
  • It is suitable for bridge port, road, bridge engineering and large mine engineering equipment’s installation.
Type Load KN Speed m/min Rope Capacity m Rope Dia Motor Type Motor Power KW Reducer Self Weight KG
JM1 10 15 80 9 Y112M-6 2.2 ZQ250 270
JM1.6 16 16 115 12.5 Y132M-6 5.5 ZQ350 500
JM2 20 16 100 12.5 Y160M-6 7.5 ZQ350 550
JM3.2 32 9.5 150 15.5 Y160M-6 7.5 ZQS470 700
JM5 50 9.5 240 21.5 YZR160L-6 11 ZQS670 1100
JM6 60 9.5 200 24 YZR180L-6 15 ZQS670 1300
JM8 80 8 250 26 YZR180L-5 15 ZQS740 2000
JM10 100 8 200 30 YZR200L-6 22 ZQS790 2200

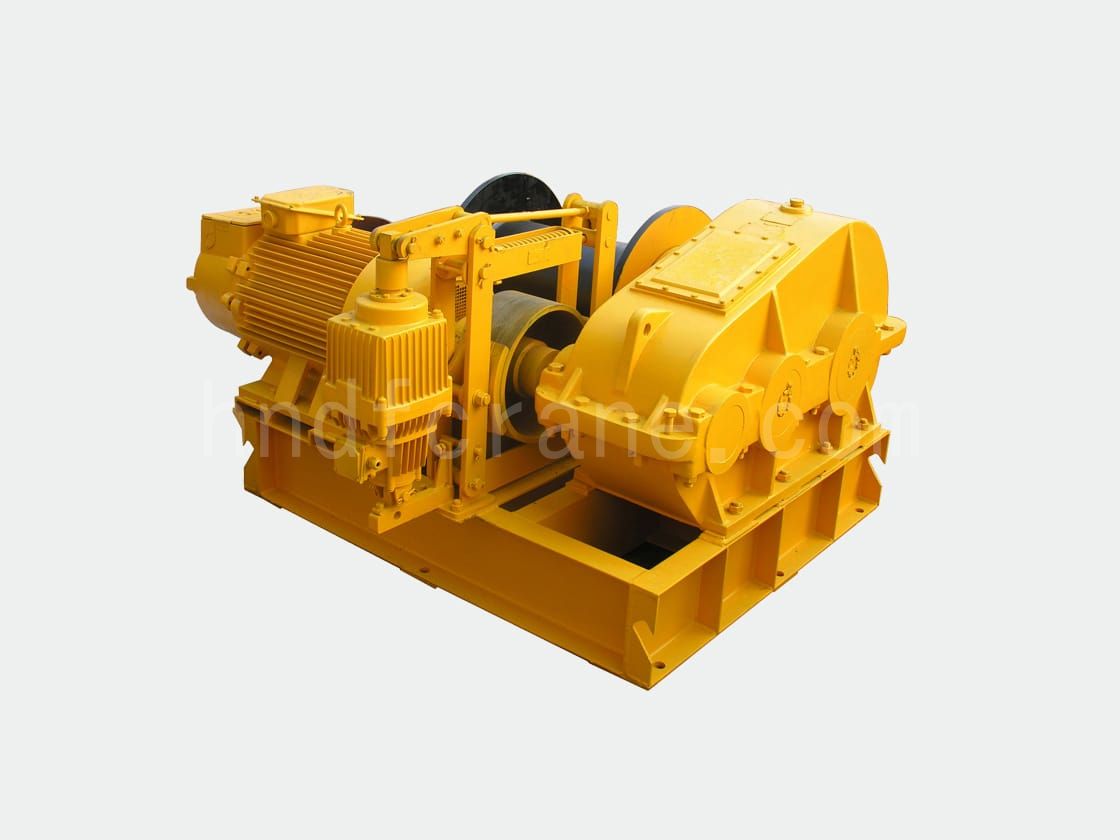

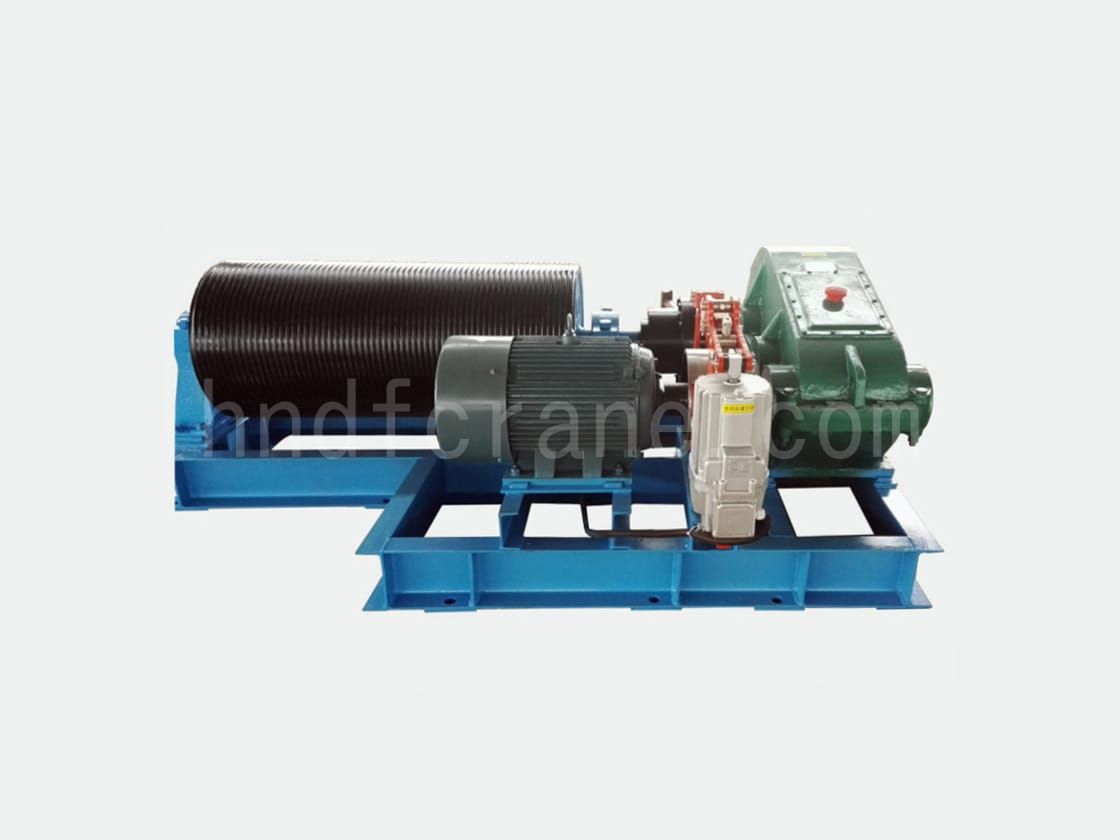

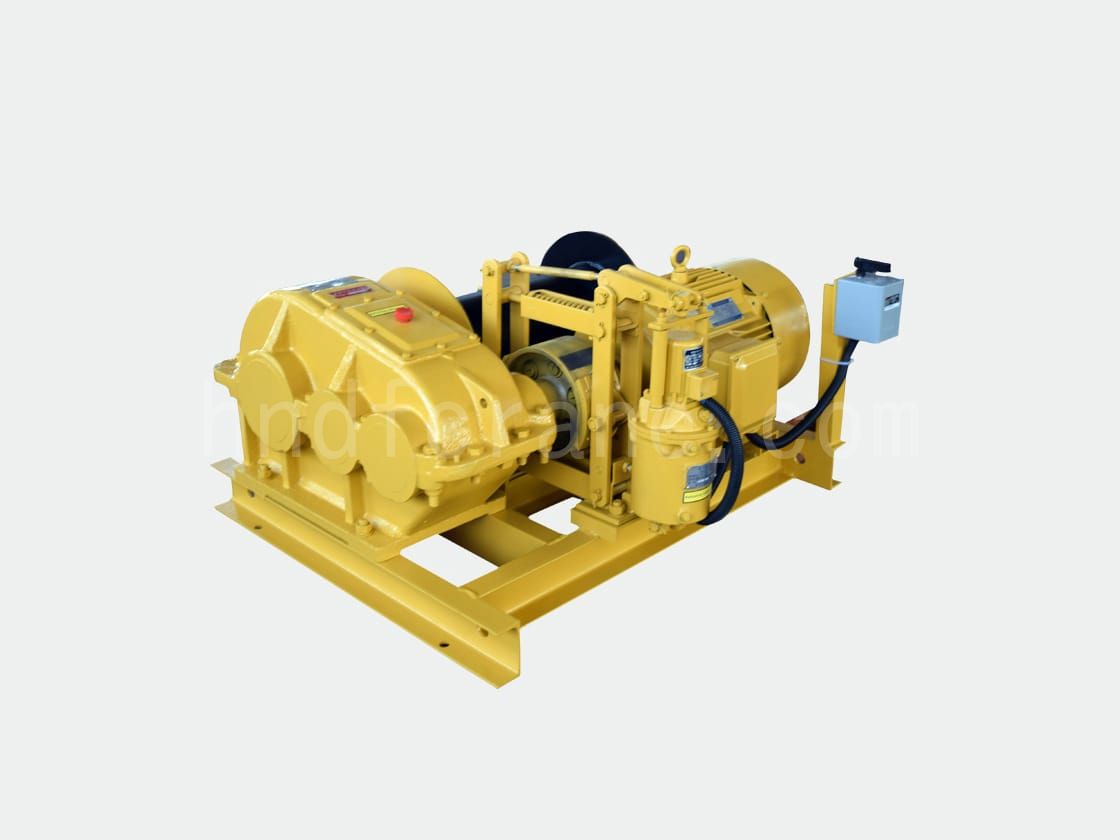

JK Fast Speed Winch

  • This series winch mainly used for materials lifting and traction the heavy goods during construction.
  • It also used for crane as main hoist; it is the special winch of derrick and gantry frame and lifting trolley.
  • Suitable for construction and small equipment installation of construction mine lifting factory.
Type Load KN Speed m/min Rope Capacity m Rope Dia Motor Type Motor Power KW Reducer Self Weight KG
JK0.5 5 22 110 7.5 Y100L2-4 3 ZQ250 200
JK1 10 22 80 9.3 Y112M-4 4 ZQ350 300
JK1.6 16 24 115 12.5 Y132S-4 5.5 ZQ350 500
JK2 20 24 110 12.5 Y132M-4 7.5 ZQ350 550
JK3.2 32 30 250 15.5 YZR180L-6 15 ZQ400 1150
JK5 50 30 240 21.5 YZR225M-6 30 ZQ650 2500
JK8 80 30 210 26 YZR280S-8 45 ZQ750 3500
JK10 100 30 300 30 YZR315S-8 55 ZQ850 5100

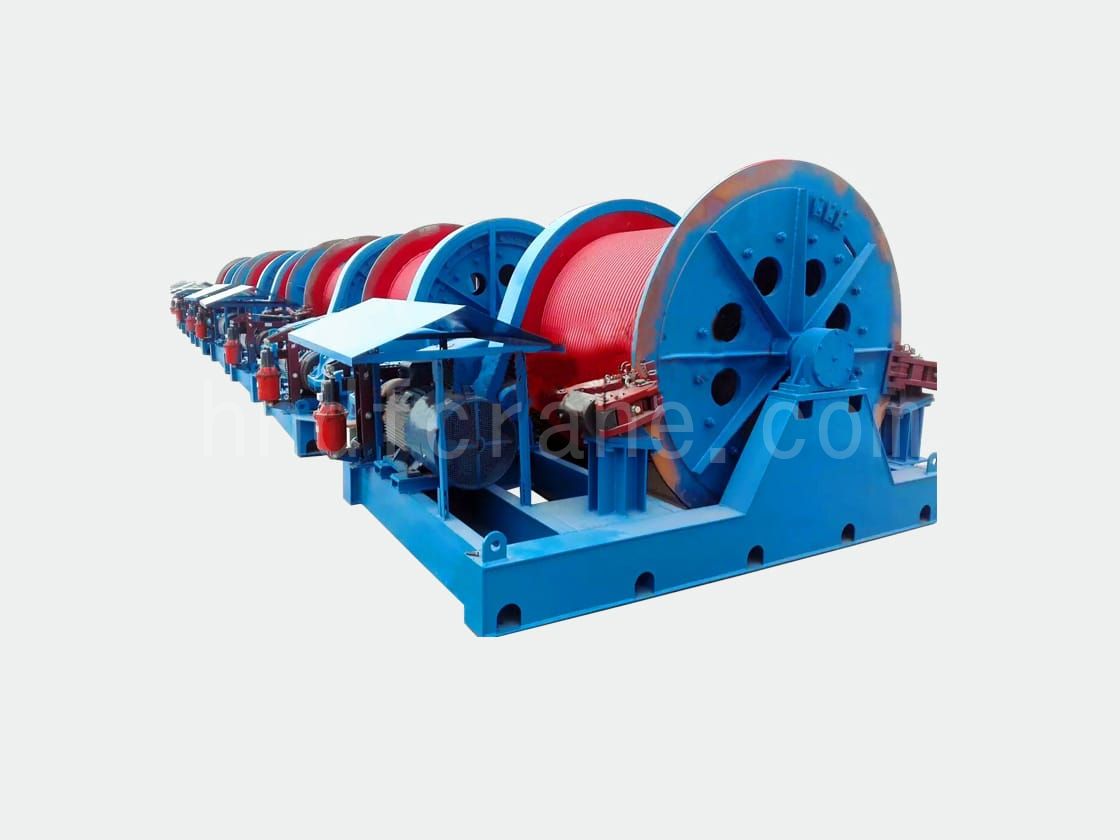

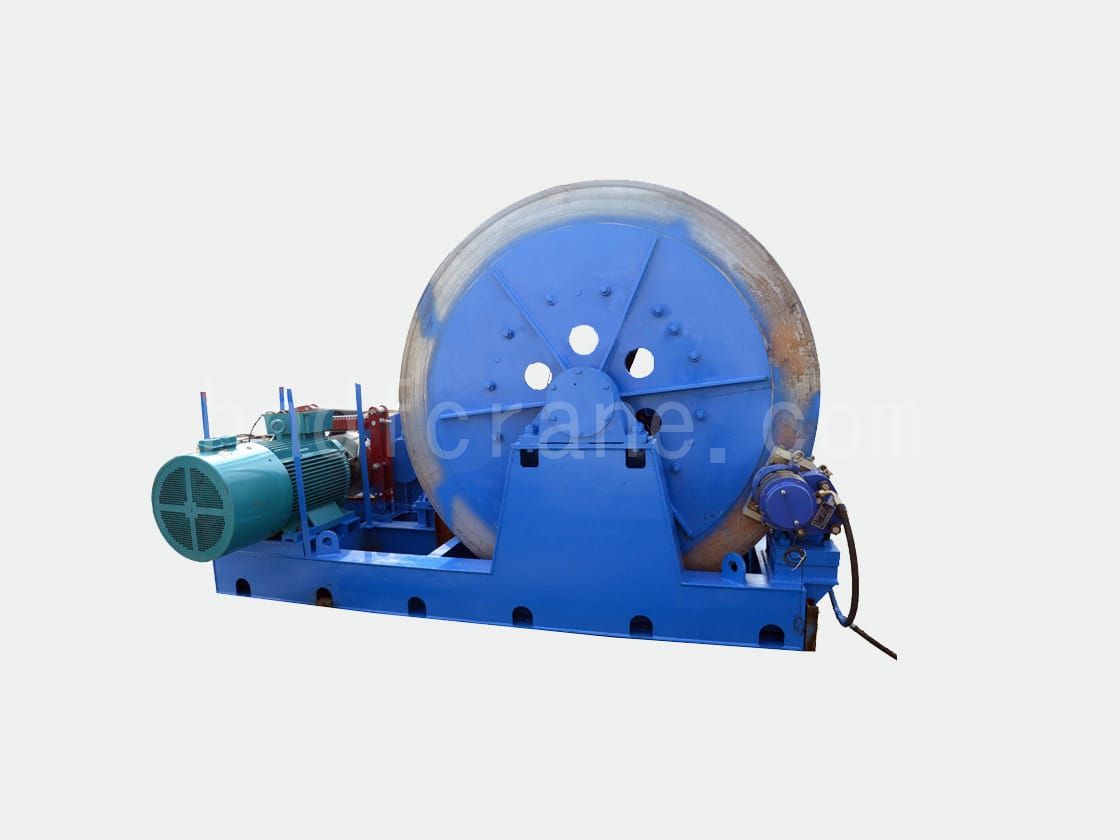

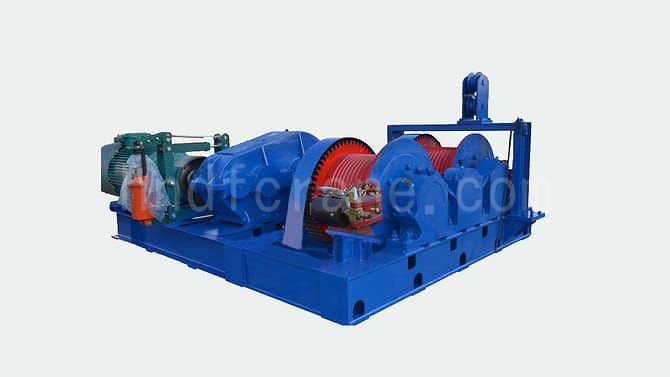

Large Capacity Winch

Type Load
KN
Speed
m/min
Rope Capacity
m
Rope Dia Motor Type Motor Power
KW
Size mm Self Weight
KG
JM10 100 8 200 ф30 YZR200L-6 22 2280*1500*950 3800
JM12.5 125 10 300 ф34 YZR225M-6 30 2880*2200*1550 5000
JM16 160 10 500 ф37 YZR250M-8 37 3750*2400*1850 8800
JM20 200 10 600 ф43 YZR280M-8 45 3950*2560*1950 9900
JM25 250 9 700 ф48 YZR280M-8 55 4350*2800*2030 13500
JM32 320 9 700 ф52 YZR315S-8 75 4500*2850*2100 20000
JM50 500 8 800 ф60 YZR315M-8 90 4930*3050*2250 38000
JM65 650 10 2400 ф64 LA8315-8AB 160 5900*4680*3200 46000

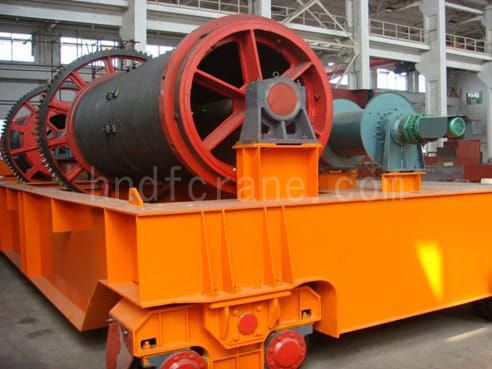

QPQ Winch for Water Resources and Hydro-power Engineering

Type Type Hoist
Capacity KN
Hoist Height m Hoist
Speed
m/min
Motor Self
Weight,KG
Type Power KW
Single Lift Point(Single Drive) QPQ-60 60 8 2.20 Y112M-6 2.2 720
QPQ-100 100 8 2.14 Y132M1-6 4 1050
QPQ-160 160 8 2.25 Y132M2-6 5.5 1780
QPQ-250 250 9 2.13 Y160M-6 7.5 2560
QPQ-400 400 9 1.85 Y160L-6 11 4060
QPQ-630 630 10 1.56 Y180L-6 15 6135
Double Lift Point(Centralized Drive) QPQ-2×60 2×60 8 2.14 Y132M1-6 4 1470
QPQ-2×160 2×160 8 2.3 Y160L-6 11 3590
QPQ-2×400 2×400 9 1.38 Y200L2-6 22 8170
Double Lift Point(Single Drive) QPQ-2×630 2×630 10 1.56 Y180L-6 2×15 12270
QPQ-2×800 2×800 10 1.5 Y200L2-6 2×22 15600
QPQ-2×1250 2×1250 12 1.19 Y280S-8 2×37 24620

Non-Standard Winch

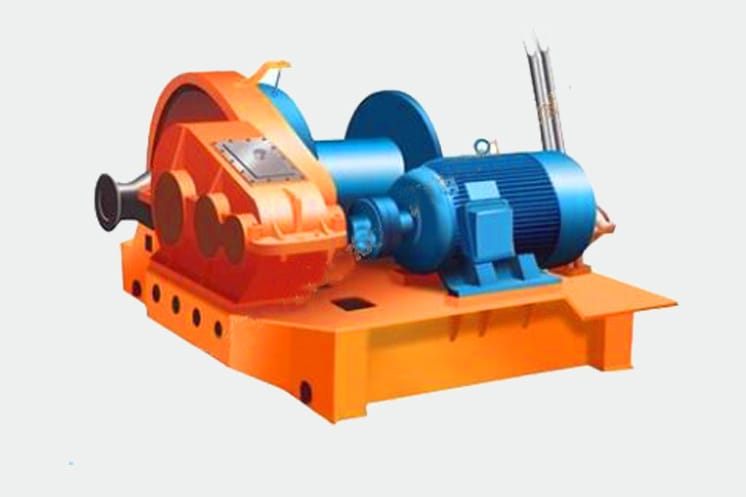

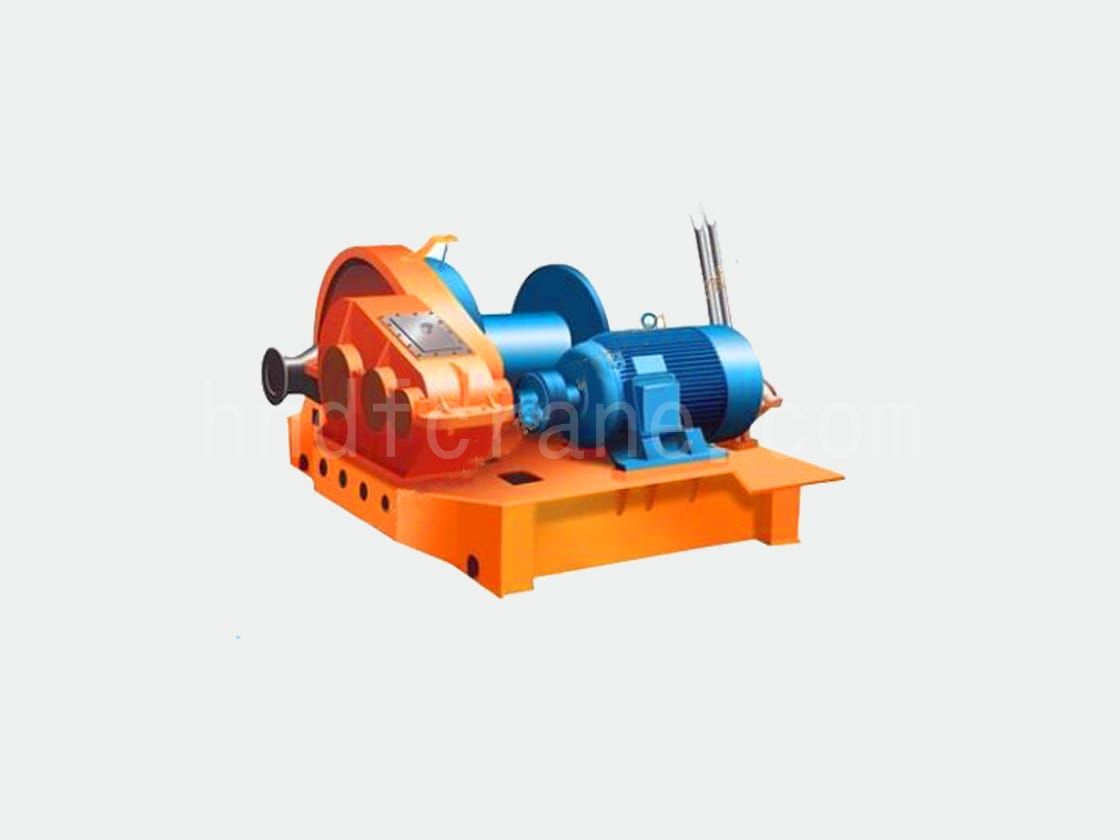

JML Winch

JML Winch

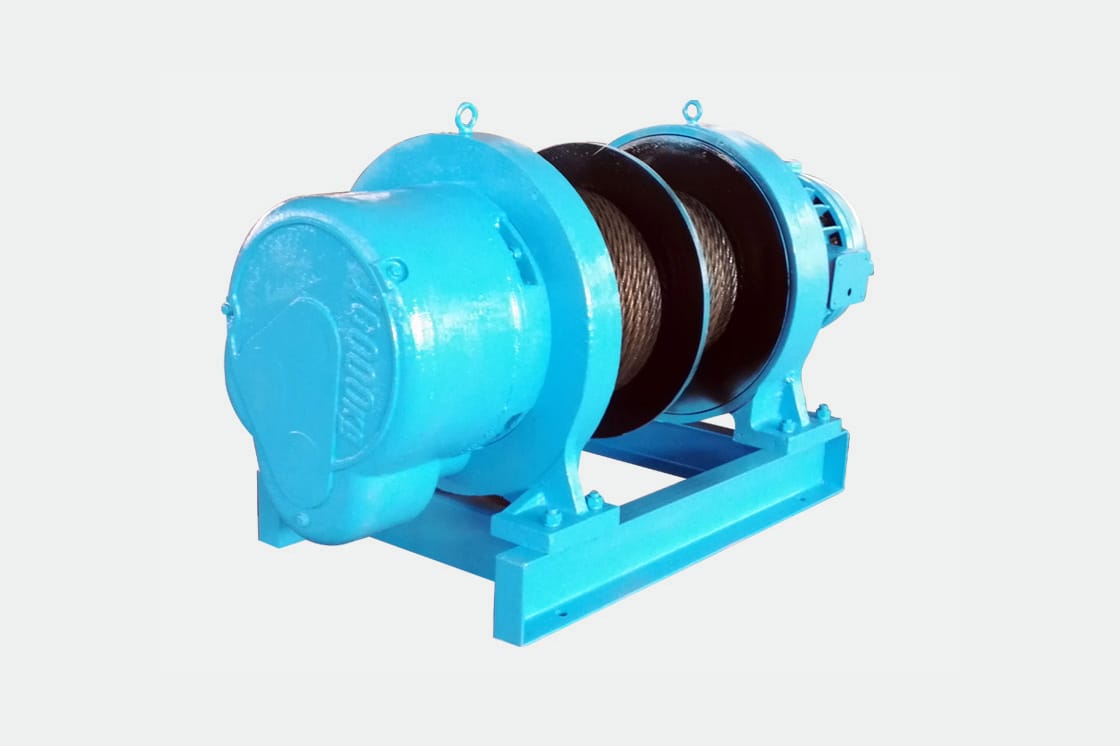

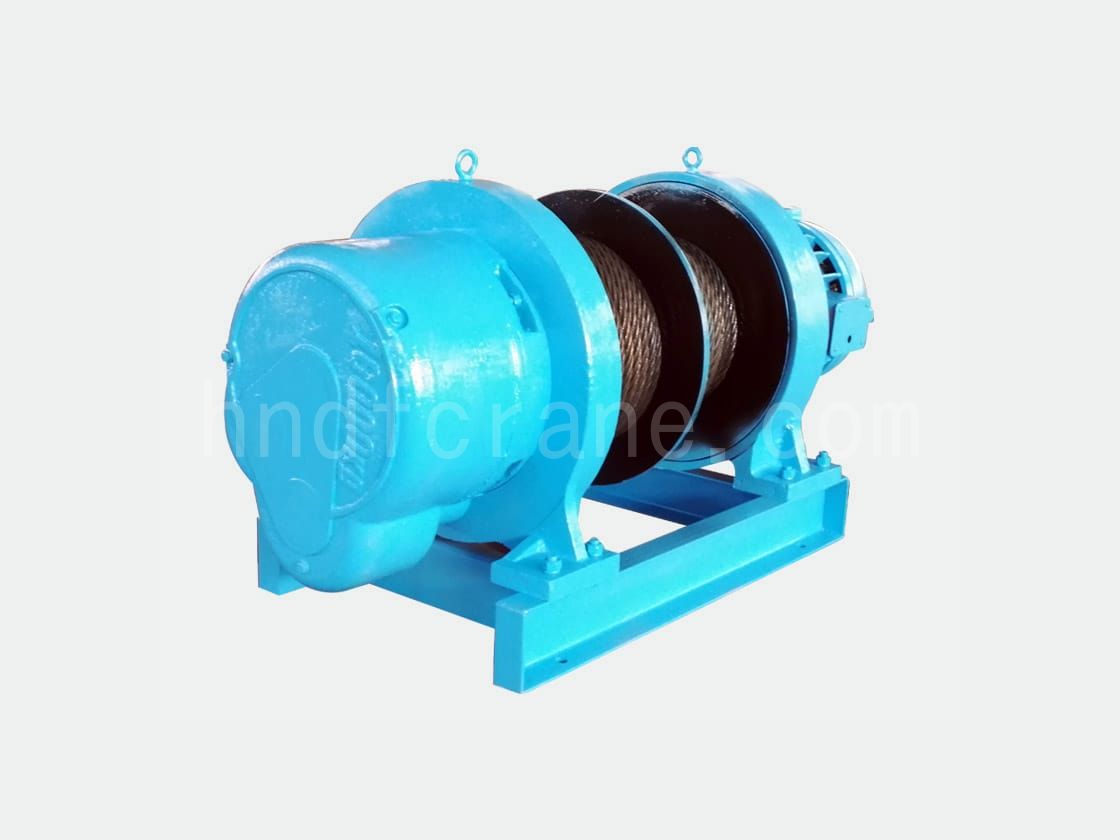

JMY One Word Winch

JMY One Word Winch

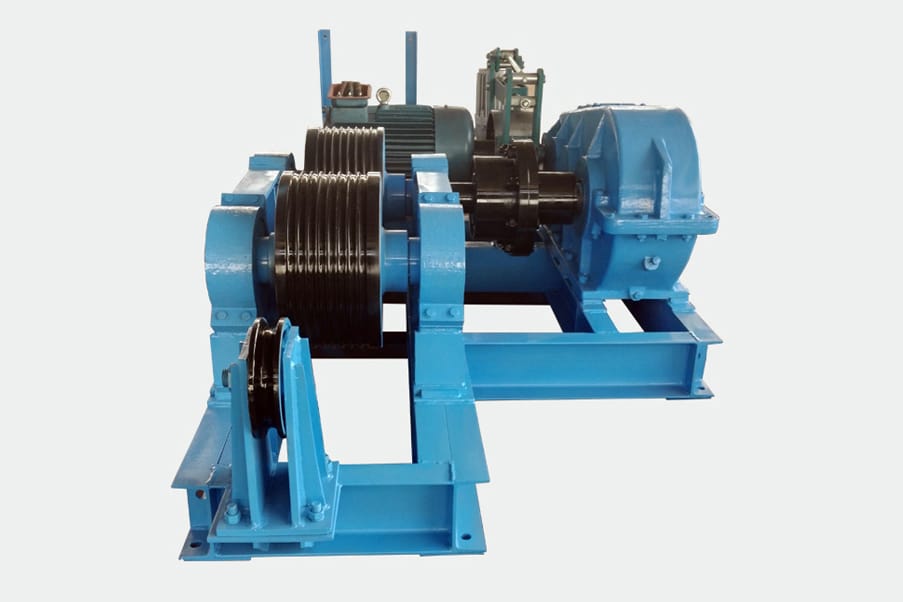

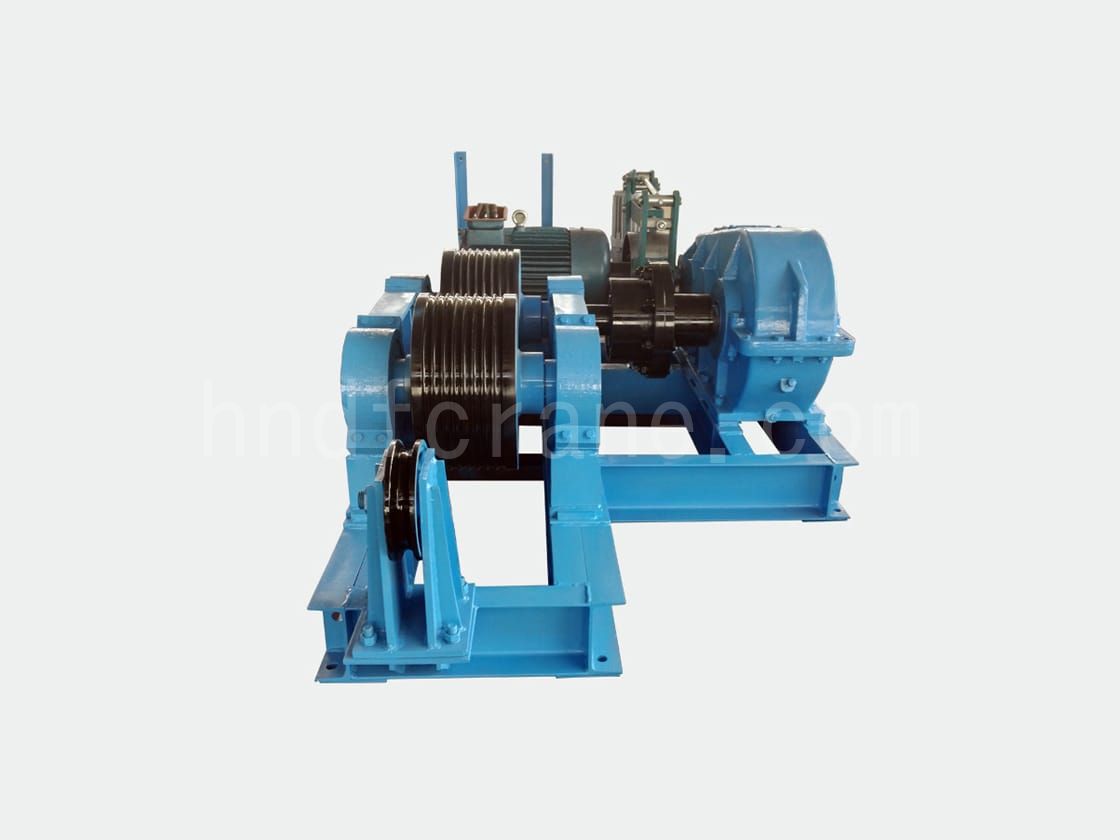

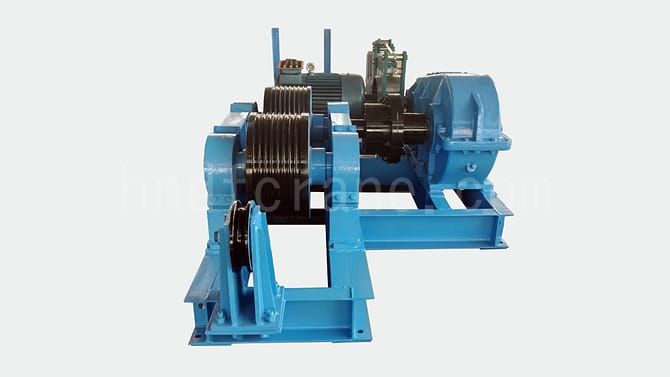

JMM Winch

JMM Winch

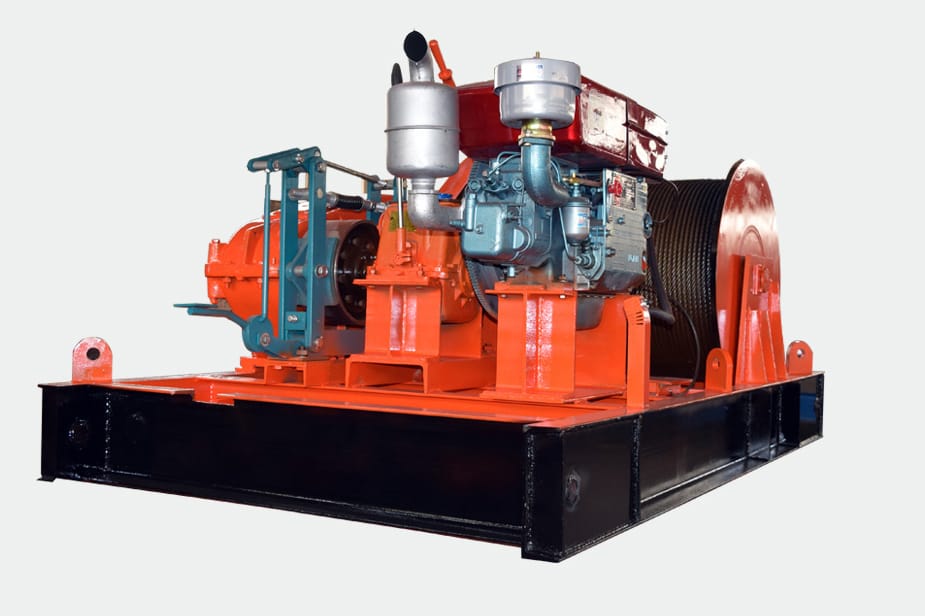

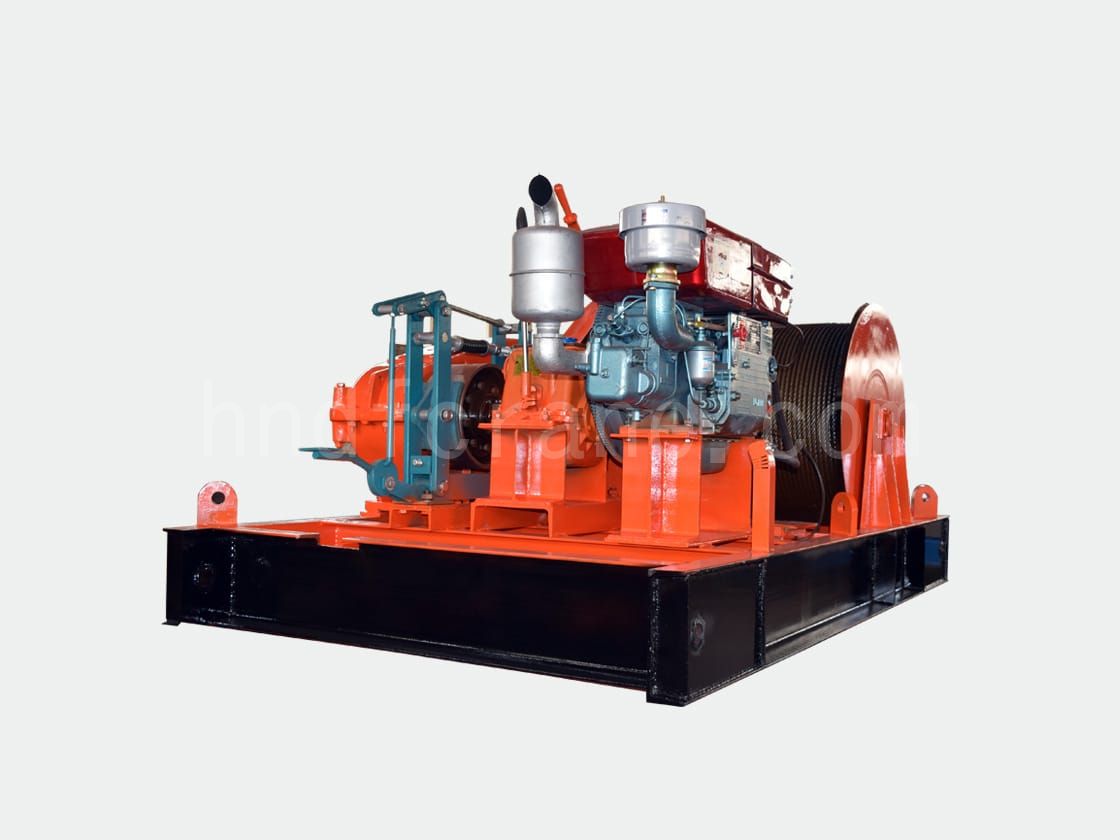

JMC Diesel Winch

JMC Diesel Winch

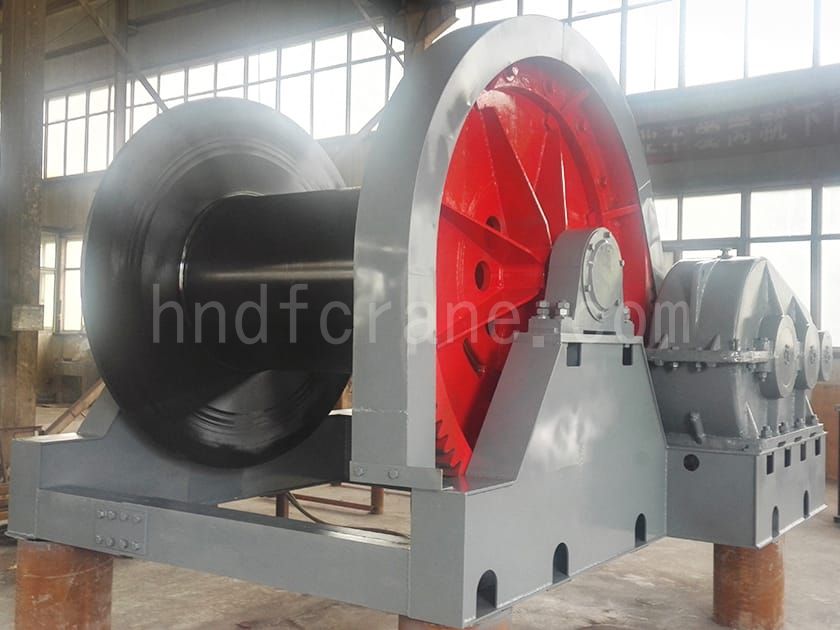

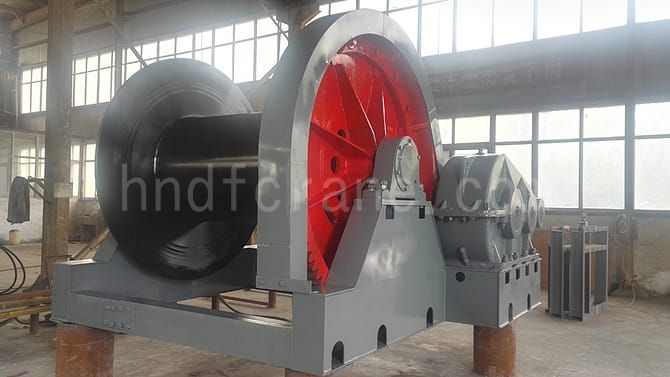

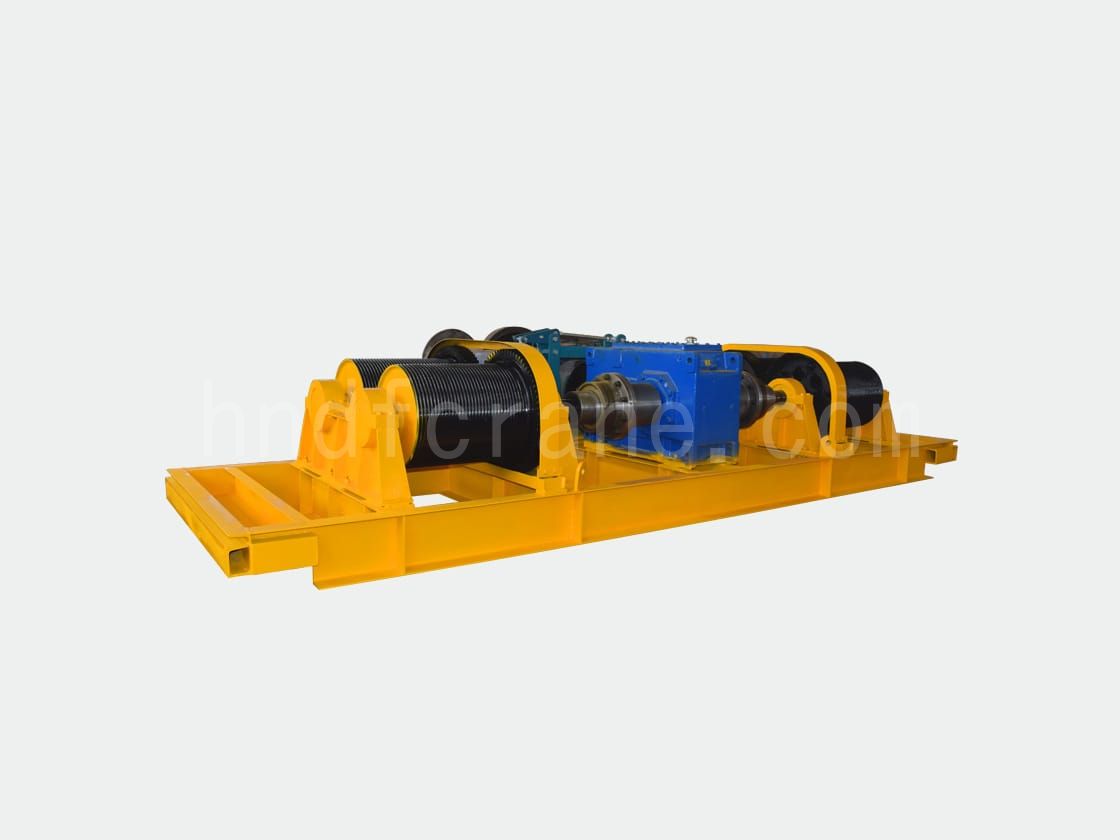

Heavy Capacity Winch

Heavy Capacity Winch

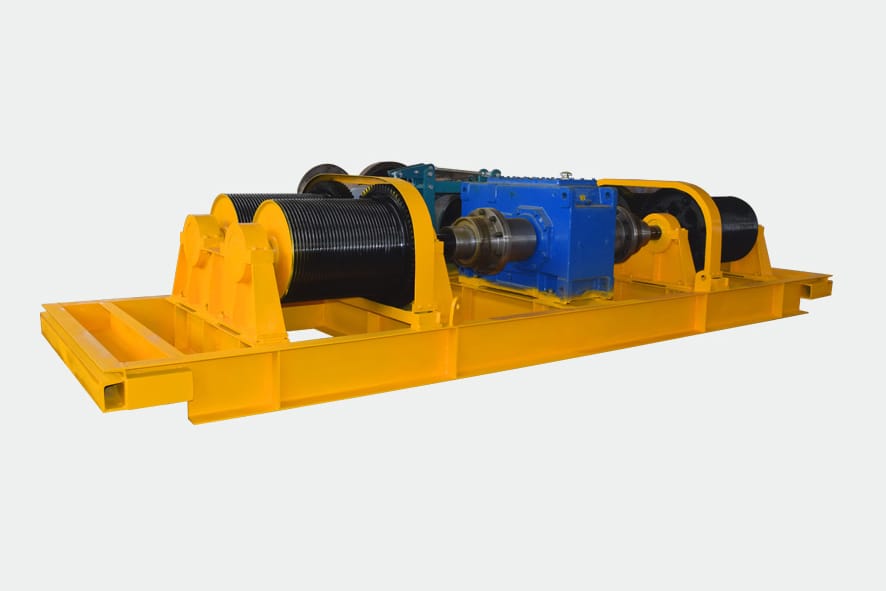

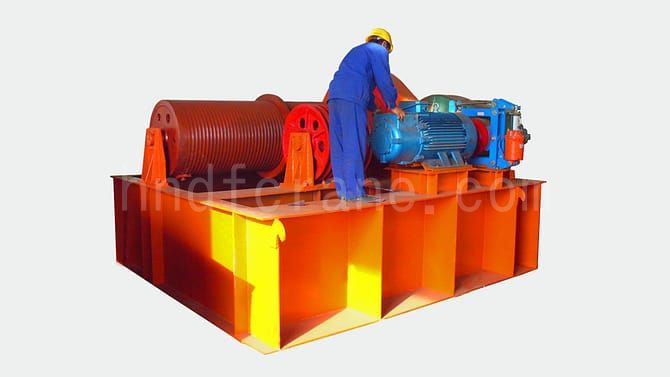

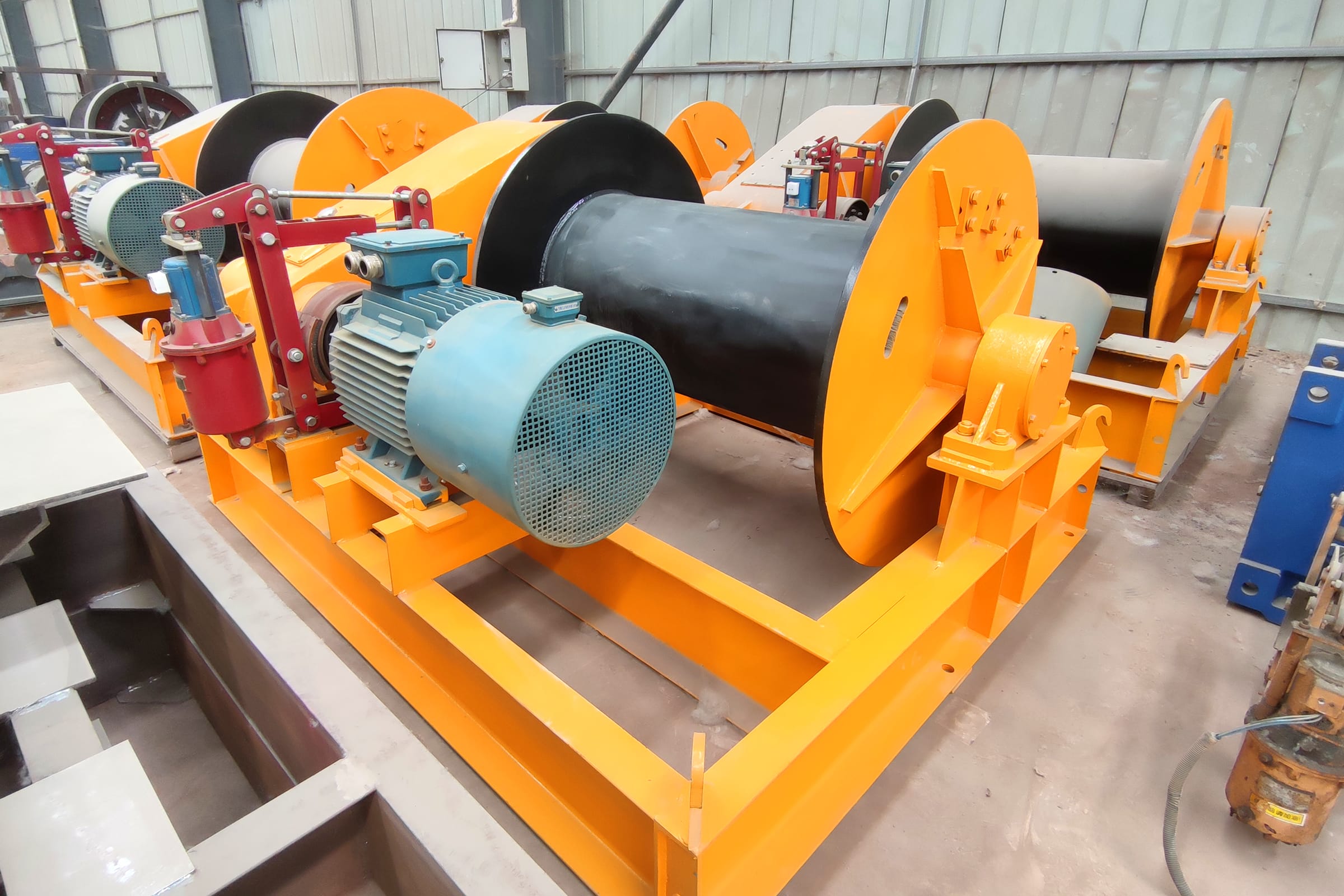

Different Customized Winch

Different Customized Winch
