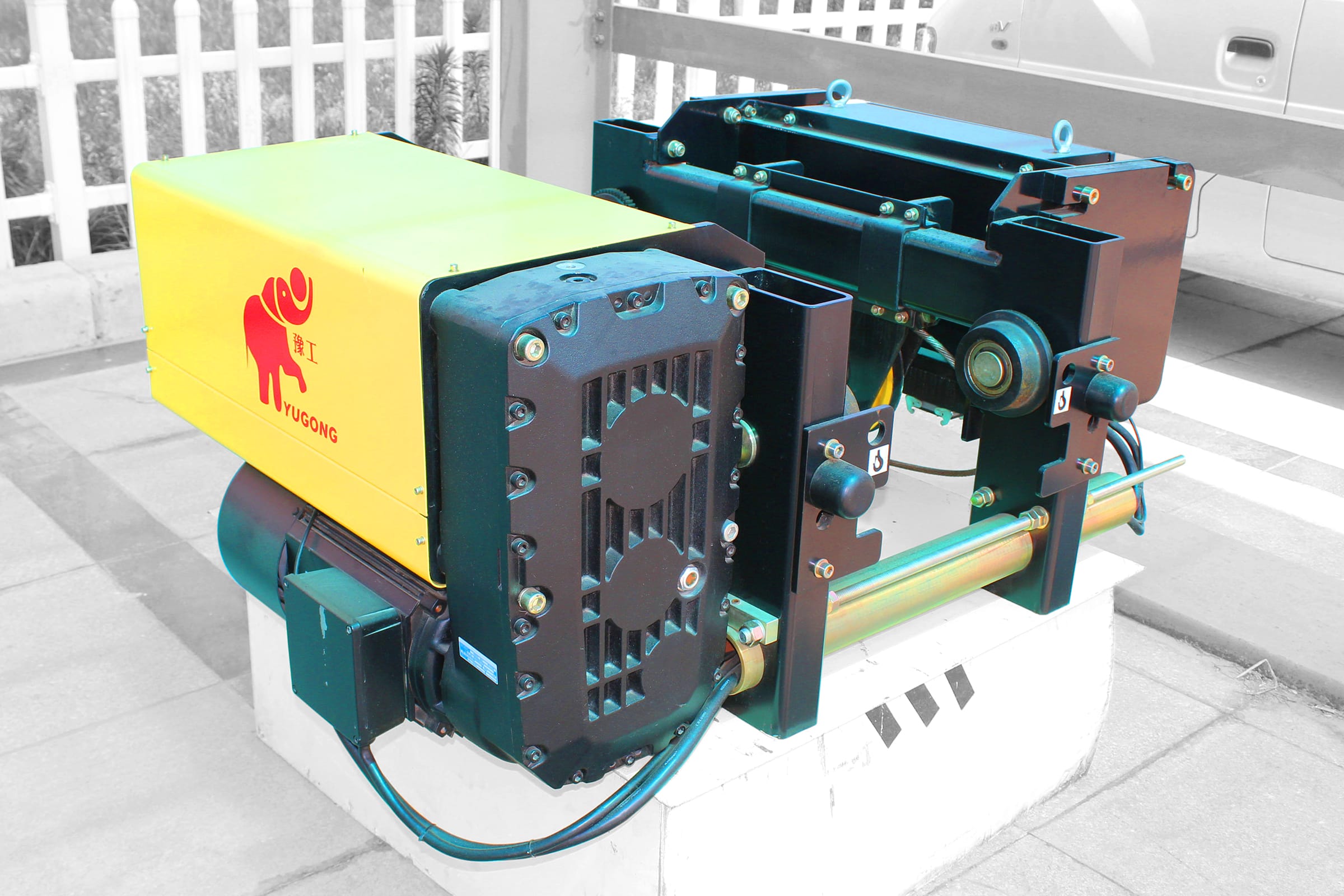

European Type Electric Hoists

With advanced technology and rich industry experience, our factory has developed European-style electric wire rope hoist with multiple patents based on the needs of customers and the concept of modular design.

It adopts the trendy C-shaped design, with compact structure, stable operation, accurate positioning, and many new technologies are applied such as frequency conversion control, braking energy feedback and safety monitoring system, so that our European-style wire rope electric hoist has always been in the forefront of the industry.

Our European-style electric wire rope hoists can provide you with logistics solutions to ensure the reliability and safety of equipment operation.

Join Mailing List, Get Product Price List Directly to Your Inbox.

Product Introduction

European type electric wire rope hoist create maximum value for our customers with its excellent durability, quality and cost-effectiveness. Based on FEM European standard and Germany DIN standards design and manufacturing, are new energy saving product, and this type hoist will be more widely used and developed tendency.

This design has double lifting speed: slow and fast speed, slow speed has accurate positioning function, and suitable for installation and maintenance; Fast speed can make hoist working is more efficient and convenient.

From structure difference, it can be classified single beam crane used electric wire rope hoist and double beam crane used electric trolley type.

Product Advantages

  • Compact structure, light weight, small wheel pressure, maximize utilization use, and comprehensive cost-effective.
    Advanced technology promotes the limit size of the product, and the structure is more compact under the premise of ensuring high-efficiency performance. In the same workshop and working area, European type electric wire rope hoist can cover a larger operating range, increase the utilization rate of the internal area of the workshop, and reduce the blind area.
  • Selected high-quality components, safe and reliable, durable.
    High-quality components are the basis of quality, from lifting motor to reducer, from drum to wire rope, from safe and reliable electrical components to structural components that strive for perfection, our produced European type electric hoist takes every component seriously, because only each component good quality and performance can ensure whole hoist performance and quality.
  • Accurate positioning, efficient operation, and improved logistics efficiency.
    High-quality drive unit ensures safe, stable and efficient operation, compact structure design ensures the hook size smaller offset, provide standard configuration of double lifting speed(variable speed is optional) and traveling variable speed, to ensure the crane efficient operation and improve logistics efficiency, ensure client's ‘ various work plans are implemented as scheduled.
  • Safe and reliable, operation monitoring, easy maintenance.
    Our produced European hoist patented technology product has a variety of monitoring and protection functions to ensure safe and reliable operation of the crane. The operation monitoring unit can record the electric hoist operation, the motor running state and the safe working cycle in detail, and give advance warnings. All records can provide data for maintenance, understand the root of problems, and make the crane maintenance more timely and faster.
  • Modular design, low maintenance cost, perfect spare parts service.
    The concept of modular design runs through the design of the entire product, ensuring the standardization and interchangeability of components, and greatly reducing the maintenance cost of the product. All our product series all have a complete inventory of spare parts, and professional service team ensures timely after-sales service to solve customers’ worries after purchasing our product.

Features

  • Easy and adaptable wire rope hoist
  • Rugged and compact
  • Modular construction and easy maintenace
  • Light weight
  • Small volume
  • Clearance height minimum

Configuration

Capacity(t) Working Class Lifting height(m) Lifting speed(m/min) Rope reeving Traveling speed(m/min) Width of Main Beam(mm) Lift side hull beam Travel side hull beam Length of Electric Hoist Hoolk on the limit Max.Wheel Load(KN) Weight(KG)
1.6 M6 6 1.6/10 2/1 2-20 200-300 500 450 930 400 6.1 300
9 500 450 1100 400 6.2 335
12 500 450 1270 400 6.3 370
2.5 M6 6 0.8/5.0 4/1 2-20 200-350 500 450 1180 430 9.1 315
9 500 450 1400 430 9.2 350
12 500 450 1620 430 9.3 385
3.2 M5 6 0.8/5.0 4/1 2-20 250-350 500 450 1180 450 11.5 335
9 500 450 1400 450 11.6 370
12 500 450 1620 450 11.7 405
6.3 M5 6 0.8/5.0 4/1 2-20 300-450 490 450 1170 500 22 400
9 490 450 1400 500 22.1 450
12 490 450 1630 500 22.2 500
8 M6 6 0.8/5.0 4/1 2-20 300-450 550 540 1120 650 28 580
9 550 540 1290 650 28.1 610
12 550 540 1460 650 28.2 640
10 M5 6 0.8/5.0 4/1 2-20 300-450 560 550 1120 700 34.7 650
9 560 550 1290 700 34.8 690
12 560 550 1460 700 34.9 730
10 M5 6 0.66/4.0 4/1 2-20 300-450 560 550 1140 700 34.7 650
9 560 550 1320 700 34.8 690
12 560 550 1500 700 34.9 730
12.5 M5 6 0.66/4.0 4/1 2-20 300-500 560 550 1140 700 43.3 660
9 560 550 1320 700 43.4 700
12 560 550 1500 700 43.5 740

Products Details

Dafang Crane European Model Electric Hoist01

Overload Limit

Dafang Crane European Model Electric Hoist02

Rolling wheel gear

Dafang Crane European Model Electric Hoist03 01

Rope Guide

Dafang Crane European Model Electric Hoist03 02

Rope Guide

Dafang Crane European Model Electric Hoist04

Slab-wall structure

Dafang Crane European Model Electric Hoist05

The level of gear wheel

Dafang Crane European Model Electric Hoist06

Shell

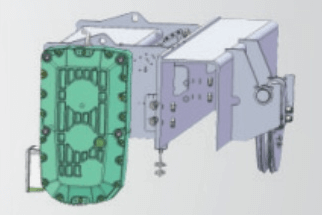

Dafang Crane European Model Electric Hoist07

Pedestal plate and Support shaft fixed structure

Different Types of Hoist

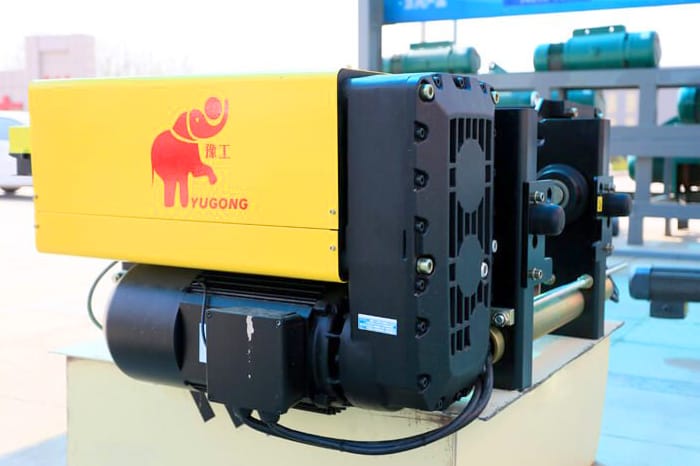

Dafang European Model Wire Rope Electric Hoist

European Type Electric Hoists

  • Performance: Square Box Type
  • Lifting Mechanism: This type adopt the steel plate drum, hardened reducer, antifriction bearing.
  • Movement Device: The wheel is level of gear wheel.
  • Hook: High strength, Forging advanced technology, Reasonable design, High insurance factor, High durability

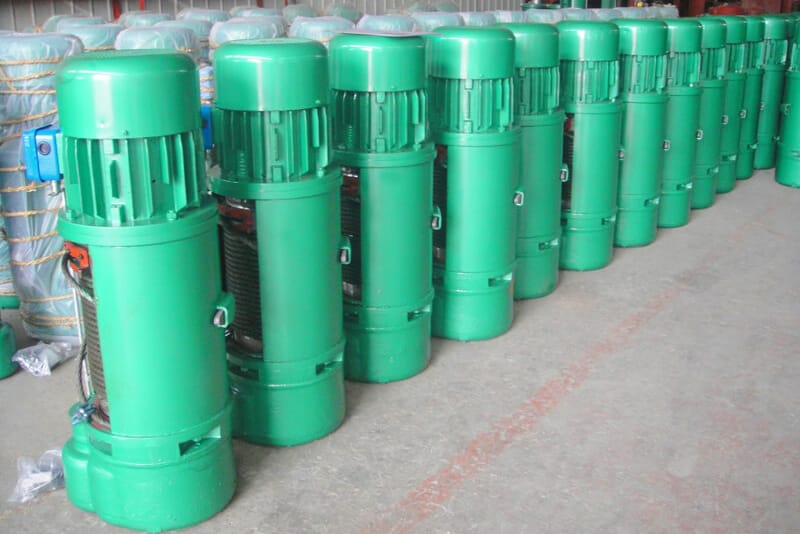

Dafang European Model Wire Rope Electric Hoist

Electric Wire Rope Hoists

  • Performance: General
  • Lifting Mechanism: Wire Rope Electric Hoist uses the ZD type conical rotor motor.
  • Movement Device: This type's wheel is traveling wheel.
  • Hook: Mass production, Process maturity, High quality and inexpensive
