Foundry Overhead Cranes

Capacity: 5-400T
Span length: up to 28m
Duty Group: A7-8
Work Environment:high temperature, high dust and harmful gases, and has thermal radiation
Applications: Suitable for handling and transfer molten iron and molten steel
Reference Price Range: $10,000-800,000/set

Join Mailing List, Get Product Price List Directly to Your Inbox.

Documents

Dafang Overhead Crane and Gantry Crane Catalogue

9.81 MB

Loading data, please wait ...

Product Introduction

Foundry crane is used in the heat and high dust severe environment and lifting molten metal frequently with working duty A7. Main working process: used in converter adding material bay to charge hot metal to the converter and lift hot metal in refine bay to refine furnace or molten steel bay that lift molten steel to ladle turret. The crane is comprised of the bridge, trolley, long travel system, electrical equipment, etc. All of work operation can be finished in the cabin.

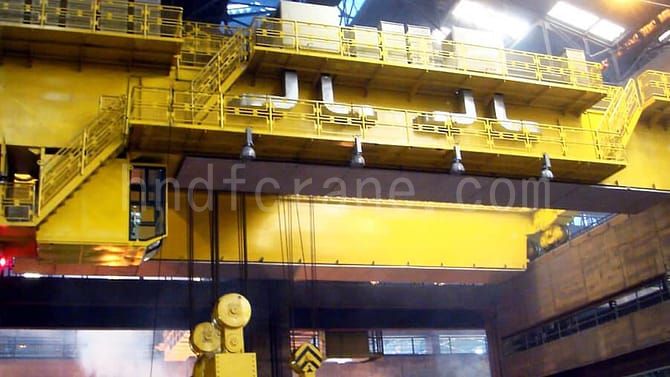

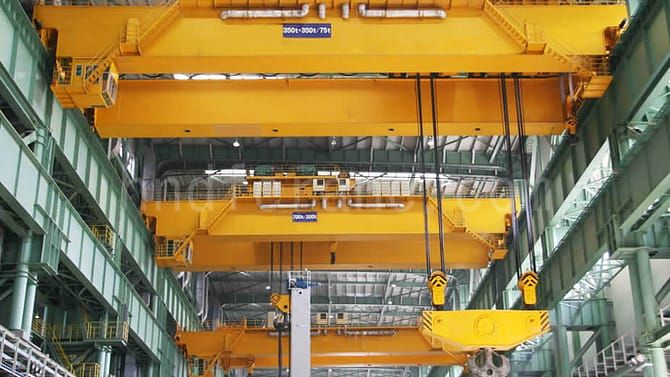

According to the needs of users and the working conditions of the crane, foundry cranes are generally divided into double-girder single trolley, four-girder four-track double-trolley type, and for the casting bridge crane of extra-large tonnage, the four-girder six-track double trolley structure type is adopted.

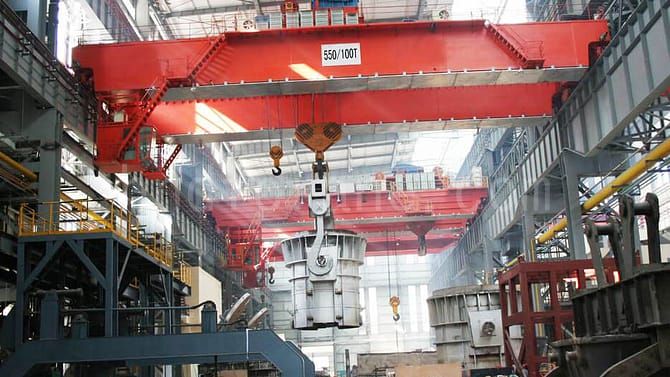

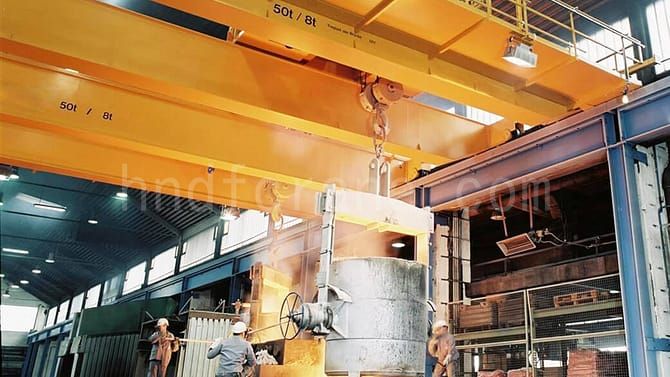

The Foundry crane is mainly composed of the main trolley, the auxiliary trolley, the bridge structure, the trolley operating mechanism, the gantry hook group, and the electrical control. The fixed gantry hook group is suspended on the main trolley by the wire rope, and the distance between the two hooks is fixed to lift the ladle. The two trolleys can be operated independently to complete various lifting operations, and can also be used together to complete the ladle tipping, residual steel, and waste slag operations.

Application

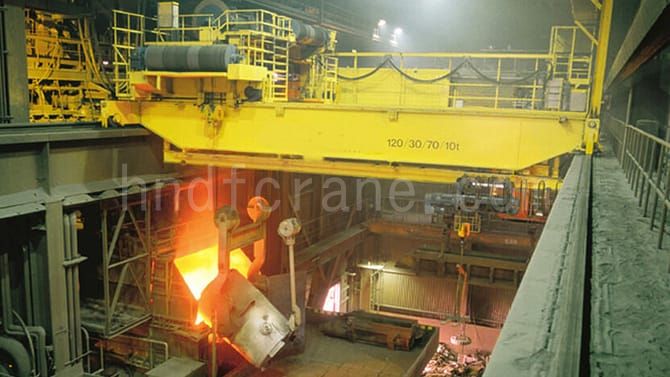

It is mainly used in the continuous casting technology of steel making for pouring melted iron from additive bay of converter to converter; lifting molten steel from refining bay to refining furnace or lifting molten steel from molten steel bay to ladle turret of continuous casting machine.

According to different use situation, suitable for high temperature steel workshop, aluminum workshop, copper workshop, heat treatment workshop and so on.

Technical Features

Overload protection
Main lifting motor with thermal protection
P type Hooks with latch
Rubber buffers
Protective earthing
Crane switch and travel end switch
Insulated Cabin with tempered glass
High Temperature-resistant Cable
Middle Hardened Reducer
Rolling pulley
Steel-Cored Wire Rope
Bottom thermal-protective coating
Double emergency brake can stop all movement when any dangerous happened.

H Beam & I Beam for Monorail Hoist

Lifting Capacity		t	32/5	50/10
Span		m	13.5-31.5
Working duty			A7
Max Lifting Height	Main Lifting	m	16	12
	Auxiliary		18	16
Trolley Speed	Main Lifting	m/min	7.7	6.3
	Auxiliary		12.75	10.5
Travelling Speed	Crab		37.6	31.8
	Crane		90.9 \| 77	77 \| 77.8
Trolley Motor	Main Lifting	kw	63	75
	Auxiliary		15	22
Travelling Motor	Crab		5.5	7.5
	Crane		2*13	213-218.5
Rail recommend		trolley	43kg/m
		crane	QU70	QU80
Power Source			3 Phase 380V 50Hz
