Truss Gantry Cranes

  • Capacity: up to 200t
  • Span Length: up to 100m
  • Cantilver length: 5m-15m
  • Duty Group: A3-A5
  • Work Environment Temperature: -25°C〜+50°C, relative humidtiy ≤95%
  • Applications: open yard
  • Advantage: Trussed structure can bear large wind pressure, best choice for open yeard.
  • Reference Price Range: $5000/set-$100000/set

Join Mailing List, Get Product Price List Directly to Your Inbox.

Product Introduction

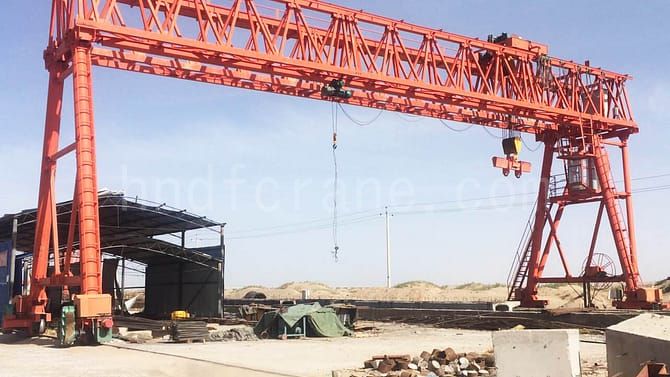

Gantry cranes or Goliath Cranes are very versatile cranes used typically for activities in steel warehouse, precast yards, construction sites, port, train station, powe plant and other outdoor applications.

Include single girder gantry crane, double girder gantry crane, semi gantry crane, trussed gantry crane. Suitable for indoor and outdoor usage.

These cranes can be completely customized for SWL, span, lifting height, speeds, control method and class of duty to suit the actual applications.

In general, truss gantry crane have three kinds of uses.:

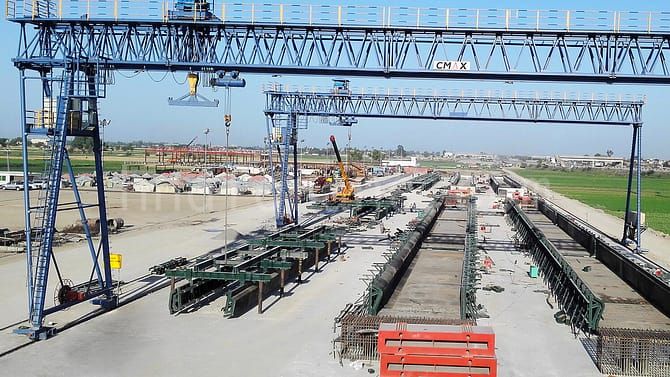

  • First, trussed gantry crane usually used in concrete beam yard, for lift beam girder which is used in bridge build.

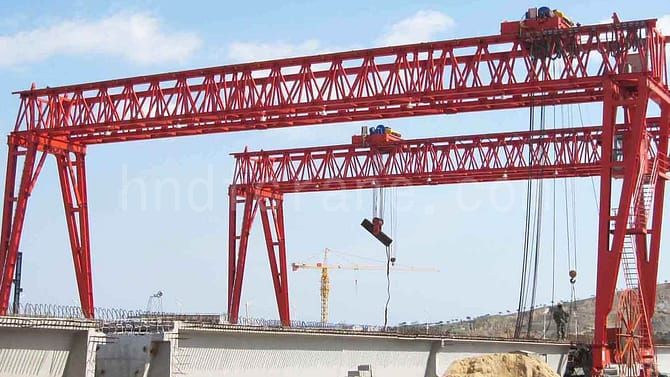

  • Second, trussed gantry crane will used near to the bridge approach, for construct bridge approach, after finished, engineer gantry crane also for lift concrete beam from ground transporter to bridge transporter, help launcher crane to build the whole bridge.
  • Third, engineer gantry crane is used for disassemble and re erect launcher crane.

In order to facilitate move the gantry crane from one erect point to next erect point and save cost, usually, we will provide moveable steel box foundation for engineer gantry crane.

Technical Features

  • Gantry cranes are more quickly and easily for installed and disassembled, it is ideal choice for use in a rented factory or in multiple work place
  • Equipped with all the necessary safety device: overload limit switch, travel limit switch, height limit switch, hook safety latch
  • High reliability component:hook, winch, drum, wheel, motor etc
  • High work duty, can bearing heavy capacity and longer span
  • Needn't any column, runway beam, just travel on the ground's rail
  • Suit for both of outdoor and indoor
  • Trussed structure is best choice for open yeard.

Configuration

Name Lifting mechanism Hoist traveling mechanism Crane traveling mechanism
Motor Wuxi Hongda Guomao three-in-one Guomao three-in-one
Reducer Purui Guomao three-in-one Guomao three-in-one
Brake Jiaozuo Changjiang Guomao three-in-one Guomao three-in-one

Safety Feature

No. Safety Measures Foundation
1. Loss of pressure fault phase protection
  1. When the voltage is too low, the electricity will disconnect.
  2. When the phase is changes, the electricity will disconnect.
2. Over voltage or over current protection
  1. When the voltage is too big, the electricity will disconnect.
  2. When the current is too big, the electricity will disconnect.
3. Overload limit switch 1. When the lift capacity is more than the max rated lift capacity, the electricity will disconnect, crane will stop work.
4. Weight limit
  1. Supervise the decrease of hook. There is a limit height. The hook cannot fall any more if reach this limit.
5. Fire limit
  1. Supervise the up and down limit position of Hook. Avoid the over increase and over decrease, protect hoist.
6. Crane travel limit switch
  1. Supervise the travel of crane, and stop crane travel more than rated travel distance.

A Standard Semi Gantry Cranes Will Be Produced in 50 Days.

Tips: Lead time of cranes with different voltage may be 10-15 days longer, as electrical components need to be customized by our supplier.

Products Details

Ladder Protection Cage

Ladder Protection Cage

Main Beam 1

Main Beam

Mobile drivers cab

Mobile driver's cab

Support Lges

Support Lges

Travel Trolley 1

Travel Trolley

Winch 1

Winch
