2 Sets MG 30T Engineer Double Girder Gantry Crane Delivered To Pakistan

December 07, 2015

Package by 20 sets Container 4 拷贝2 Sets MG 30T Engineer Double Girder Gantry Crane Delivered To Pakistan
preboard
2015-12-07

Key Facts

Country:
Pakistan
Date:
2015-12-07
Qty:
2 sets

Technical Parameter

  1. Lift Capacity: Main Hook 30t/Aux Hook 10t;
  2. Span: 40m
  3. Lift Height: Main Hook 14m/Aux Hook 12.2m
  4. Lift Speed: Main Hook 1 m/min
                            Aux Hook 7 m/min
  5. Travel Speed: Main Hook 1 m/min
                                  Aux Hook 7 m/min

Detailed Informaiton

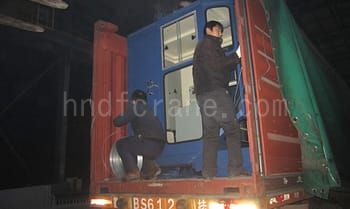

There are 2 sets 30t Double Girder Gantry Crane are delivered to Pakistan at 7th Dec, 2015, totally use 10sets’ 40′ containder, including 6sets 40′ OH, 2sets 40′ OT, and 2sets 40′ HQ. To be loaded by 40′ container, we divide the 43m main girder into 4 parts, and every connection is flexible. This is very convenient for client’s reinstallation and usage in future.

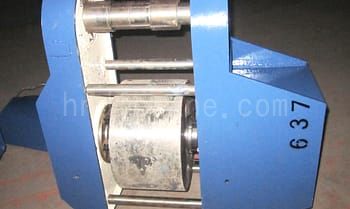

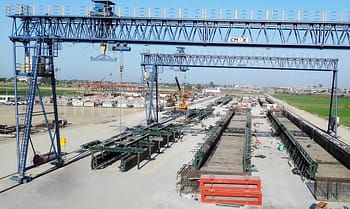

Since these 2 sets 30t Double Girder Gantry Crane will be used on concrete bridge girder to assist the girder erection, and the 2sets will work together to lift one piece concrete girder, we equip with wireless remote control. Then the 2 sets MG 30t Double Girder Overhead Crane can be operated synchronously. Besides, the engineer gantry cranes will be used on open plant, therefore we design trussed type, which can ventilate freely. What’s more, we also add correction device and rail clamp.

To make client's installation more convenient, we make marks on every connection.

Our Henan Dafang Heavy Machinery Co.,Ltd will try our best to offer the most suitable design for our client. Welcome to connect with us any time if you have need of gantry crane, beam launcher,overhead crane etc!
