Wall Mounted Jib Cranes

  • Used in conjunction with electric chain hoist or electric wire rope hoist.
  • Easy operation, reliable operation and convenient maintenance.
  • Can be directly installed on the wall or column
  • Can also be installed on the machine equipment
  • No need to occupy any ground space

Join Mailing List, Get Product Price List Directly to Your Inbox.

Product Introduction

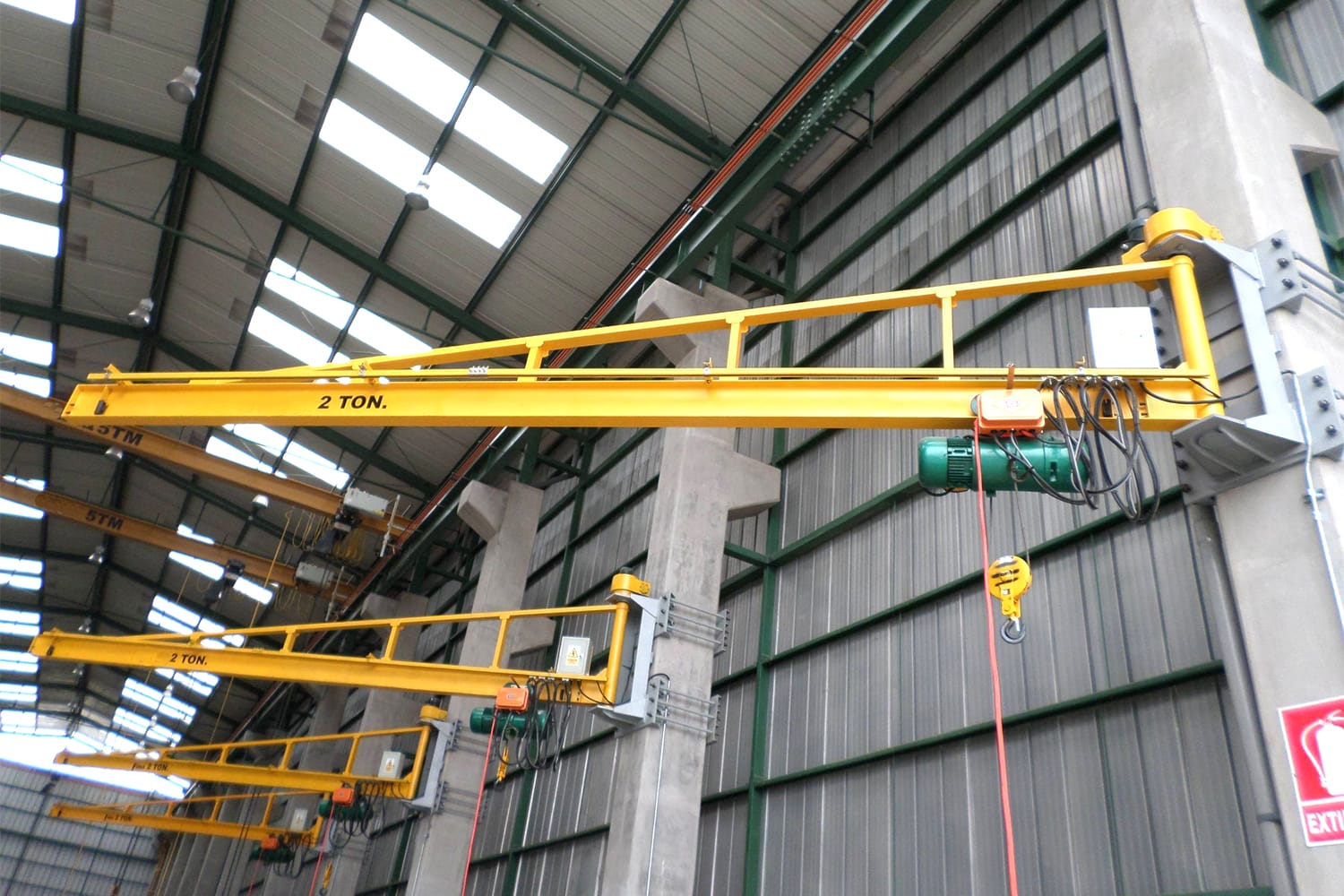

BZQ jib crane is a kind of lifting equipment used in conjunction with electric chain hoist or electric wire rope hoist. It has the characteristics of easy operation, reliable operation and convenient maintenance. This model is widely used in the lifting and lowering materials of the machine tool in the workshop, and the lifting of workpieces between processes and production lines. When the jib crane is in operation, the cantilever is driven by the reducer gear or pull ring pushed by hand to realize the movement of the hoisted object. The biggest advantage of the jib jib crane is that it can be directly installed on the wall or column, or can also be installed on the machine equipment, so it does not need to occupy any ground space, the installation method is simple, and the lifting capacity is 0.25t-2t.

Dafang Wall Mounted Jib Cranes require no floor space and no special foundations. Low cost method of manipulating loads where lifting space can be limited to between 180 and 270 of rotation provided by a wall or column mounted jib crane and where repetitive lifts are not required. They quickly fold out of the way of large overhead cranes.

Application

Hoist coverage along walls or columns. Supplement to an overhead crane and monorail. Like workshop, warehouse and so on.

Features

  • Full cantilever design.
  • Wall bracket with tie rod supported boom.
  • Design uses a standard.
  • Easy operating.
  • Don't take up the ground space.
  • Easy maintenance.

More Details

Wall mounted jib cranes utilize existing structures for support which eliminates the need to increase floor obstructions by adding additional columns. Costly foundations are not required.

Capacities are limited by the size of your existing walls or columns. (In some cases we can reinforce existing structures for increased capacity). Lighter loads can be handled with enclosed rail systems while heavier capacities require structural steel beams.

One of the largest disadvantages to the use of wall mounted jib cranes is the high cost of engineering needed to determine if the building structure that they are going to be attached to will support them.

Configuration

Model Lift Capacity(t) L(mm) R1(mm) R(mm) H(mm)
BXS0.25 0.25 3200 250 3000 800
BXS0.5 0.5
BXD1 1 3400 300 950
BXD2 2 3500 450 3000 1150
BXD3 3 4500 500 4000 1350
BXD5 5 4700 550 4000 1500

Different Types of jib Crane

Free Standing Jib Crane

Free Standing Jib Crane

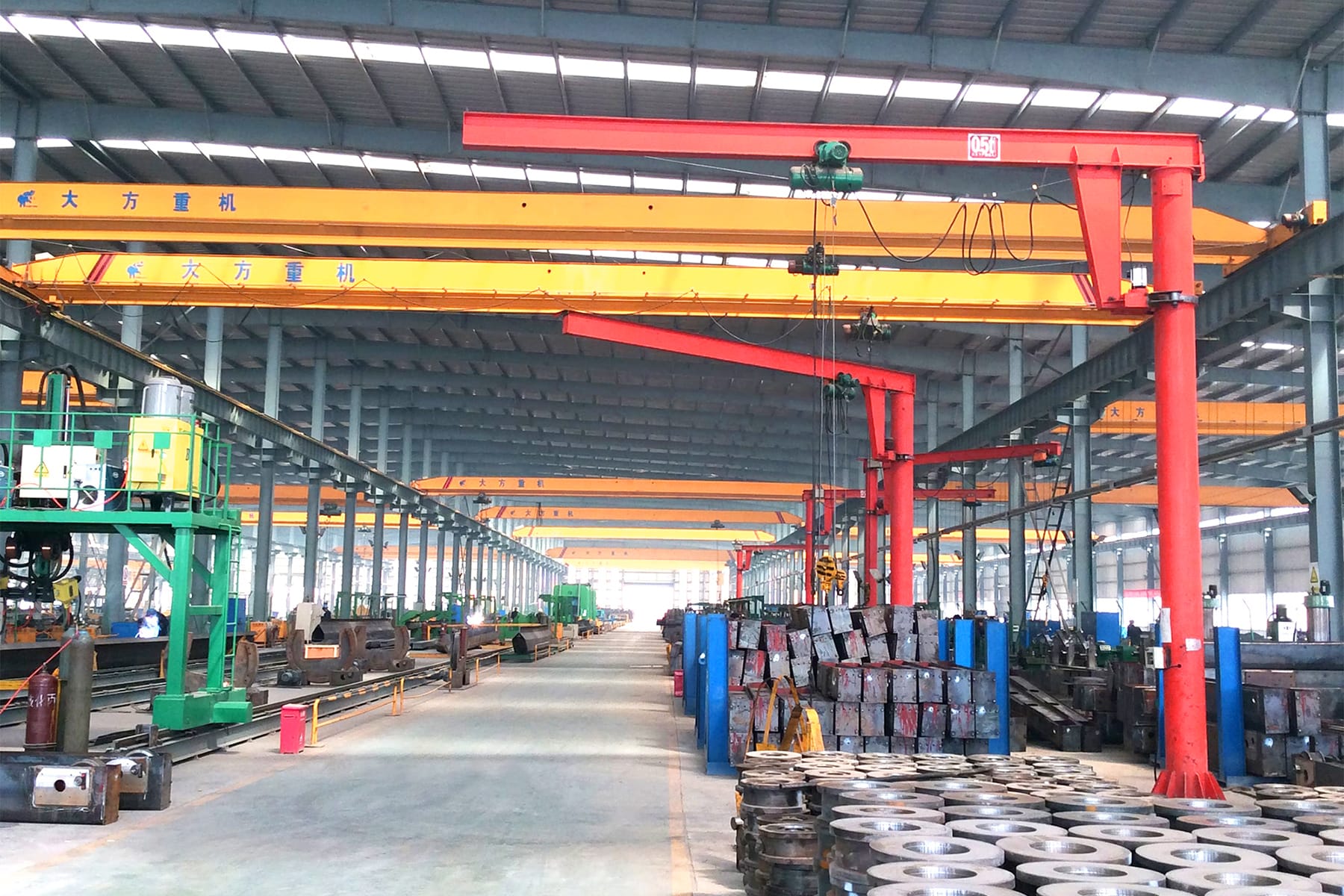

Free Standing Jib Crane have the simple construction. It is from the column, revolving arm, transmission and electric hoist. It can improve work efficiency, improvement working condition.

Wall Traveling Jib Crane

Wall Traveling Jib Crane

Wall-Traveling Jib Cranes provide long lateral movement of materials without taking up floor space or interfering with large overhead cranes. Wall-traveling jibs increase overall plant productivity by quickly handling smaller lifts.
