Free Standing Jib Cranes
- Used with chain hoist or wire rope hoist.
- Fixed on the concrete foundation by anchor bolts
- Simple structure, convenient operation, small occupation space and large working range.
- Ideal lifting equipment for enterprises to improve efficiency and improve working conditions.
- Can replace bridge cranes and gantry cranes in many occasions, with low investment and high efficiency
Join Mailing List, Get Product Price List Directly to Your Inbox.
Documents
Henan Dafang Crane Catalogue
6.15 MB
Product Introduction
Free Standing Jib Crane have the simple construction. It is include the column, revolving arm, transmission and electric hoist. It can improve work efficiency, improvement working condition.
Application
Dafang jib cranes are highly adaptable, and fit well to various workshops and industries.
Features
- Save Space
- 360° Rotation
- Performance Free
- Unique Structure
- Flexible
- Safe and Reliable

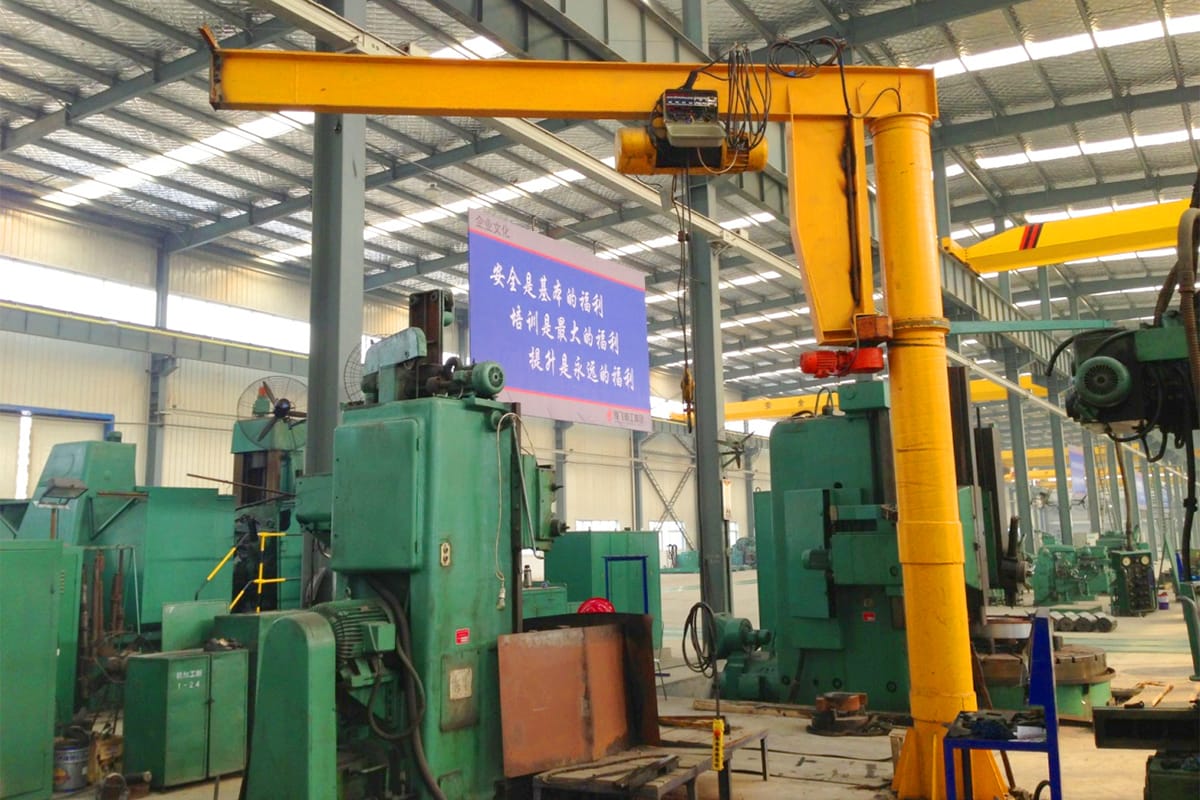

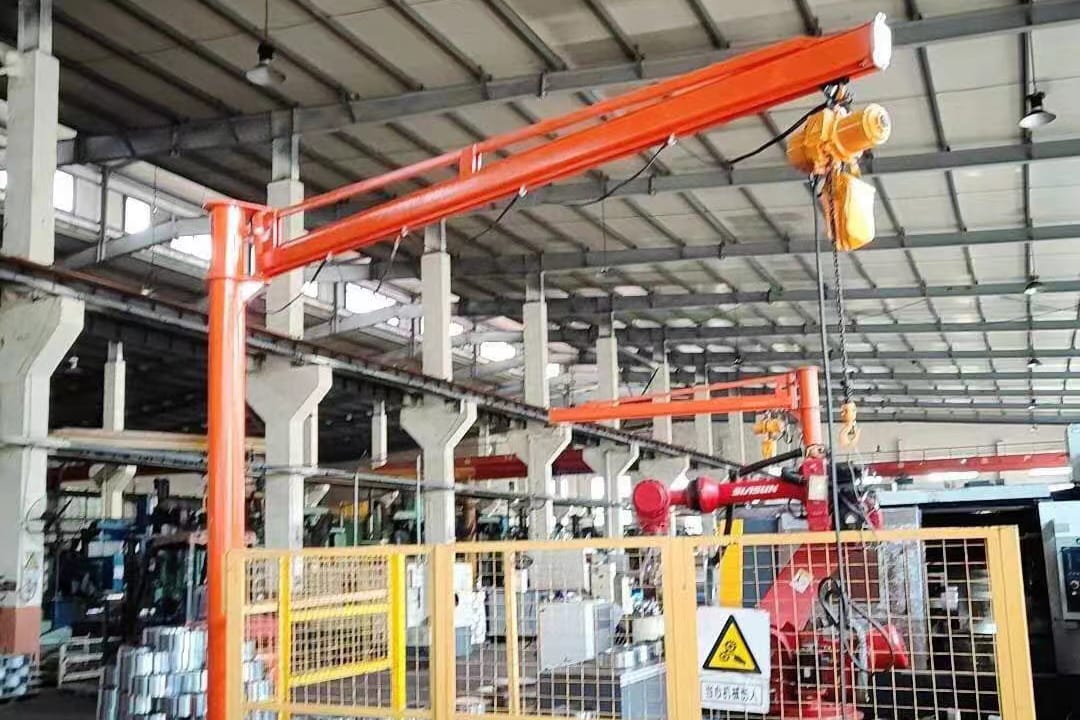

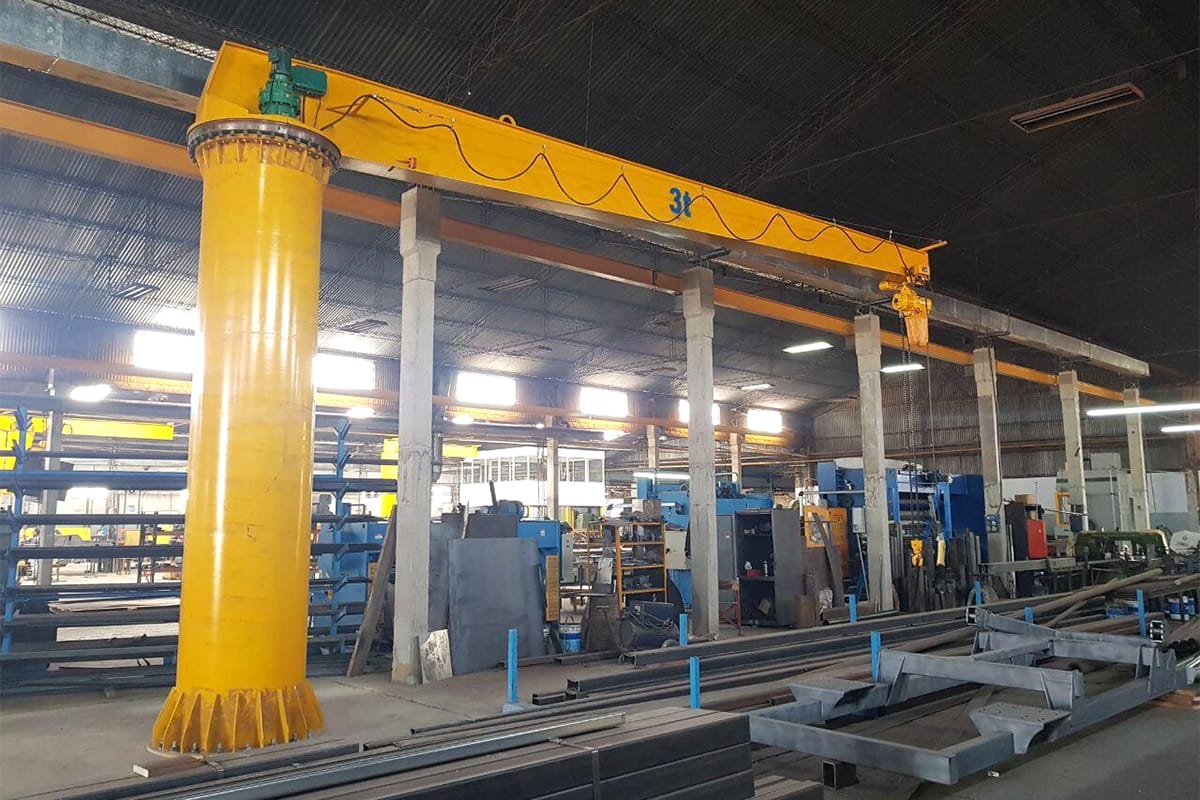

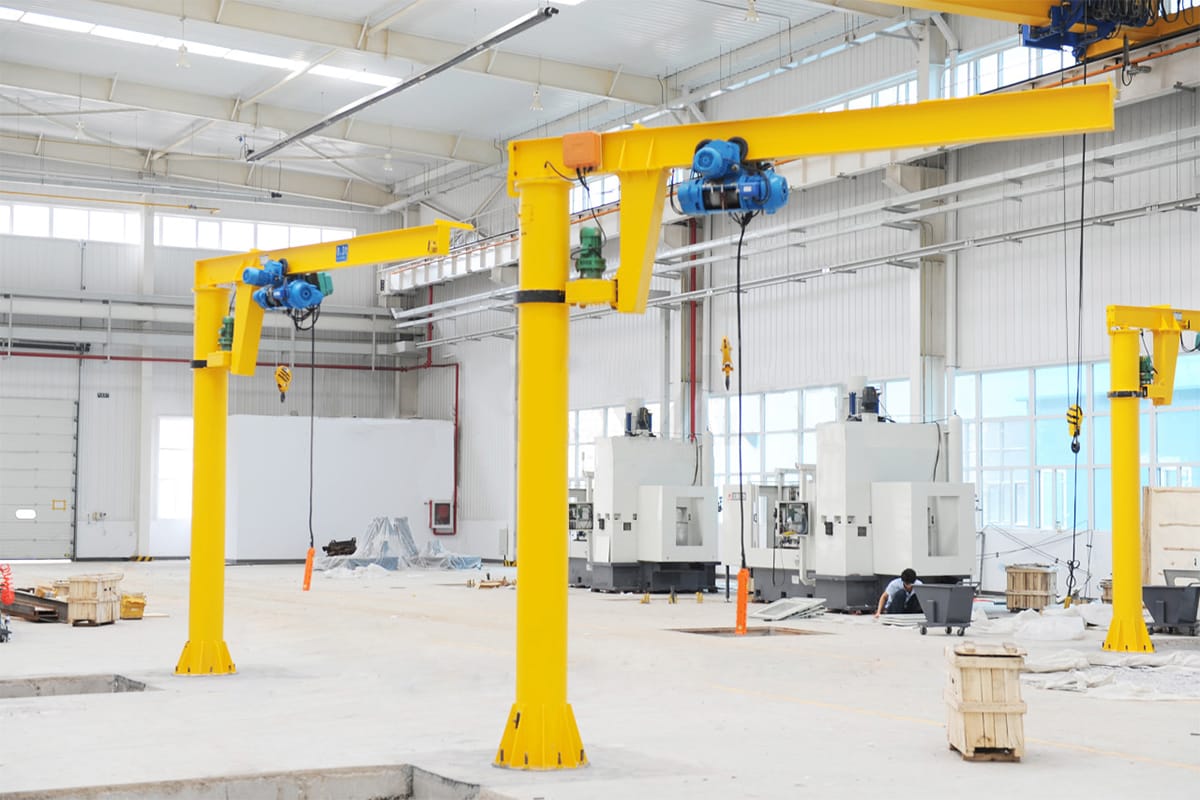

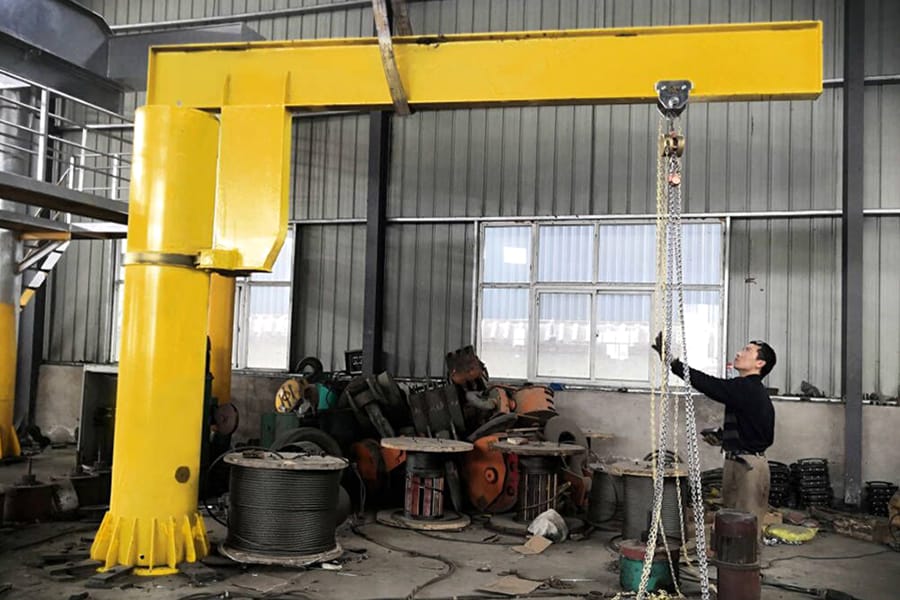

BZ type jib crane
BZ type jib crane is a kind of crane used with chain hoist or wire rope hoist. It consists of column, swing arm, cantilever drive device and electric hoist. The base of the lower end of the column is fixed on the concrete foundation by anchor bolts, the motor drives the reducer drive device to make the cantilever rotate, and the electric hoist runs back and forth on the cantilever I-beam.
BZ type cantilever crane has the characteristics of simple structure, convenient operation, small occupation space and large working range. Widely used for material hoisting operations in machinery manufacturing, automobile, shipbuilding and other modern industrial production lines, assembly lines and in warehouses, docks, laboratories and other occasions. It is an ideal lifting equipment for enterprises to improve efficiency and improve working conditions.

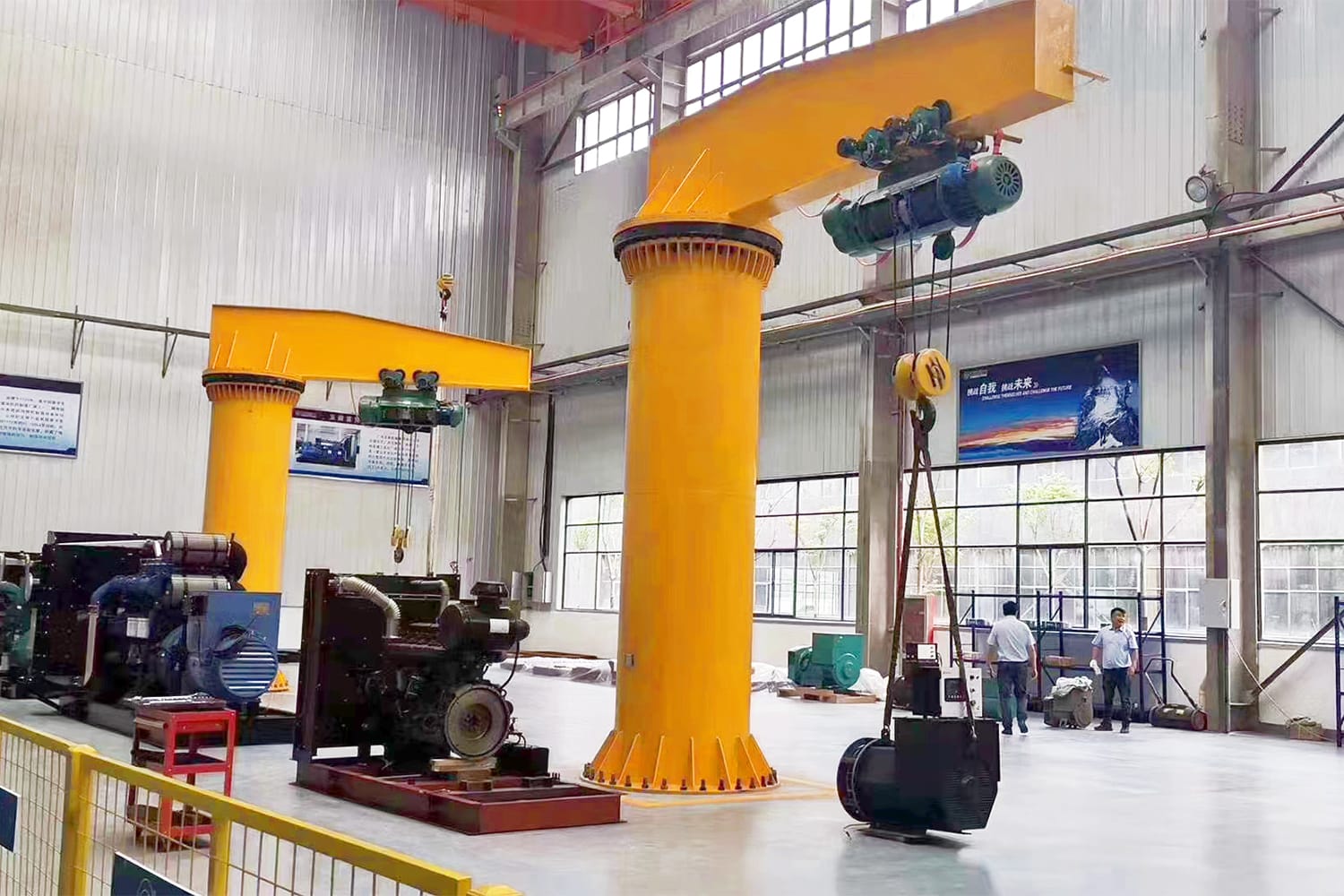

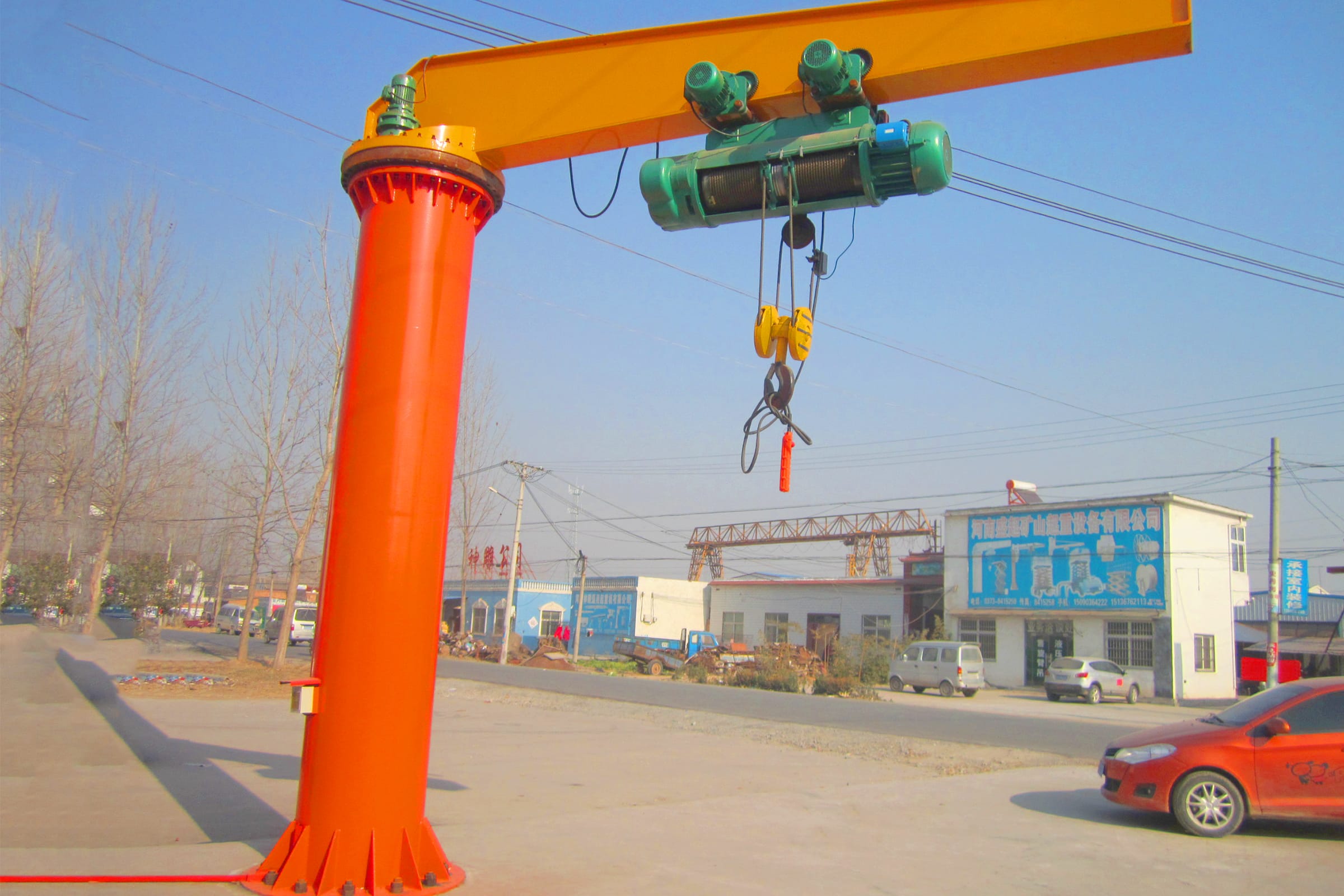

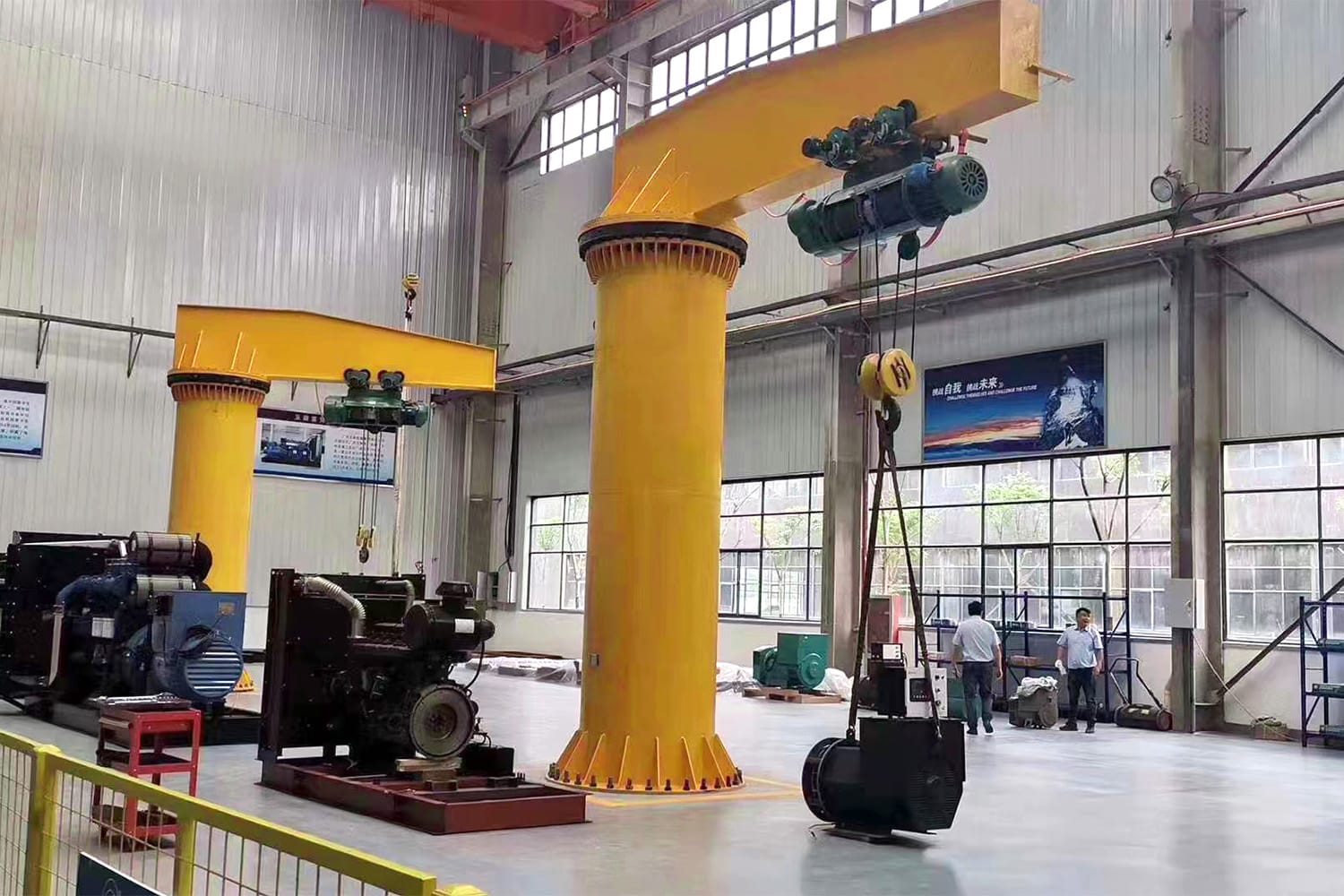

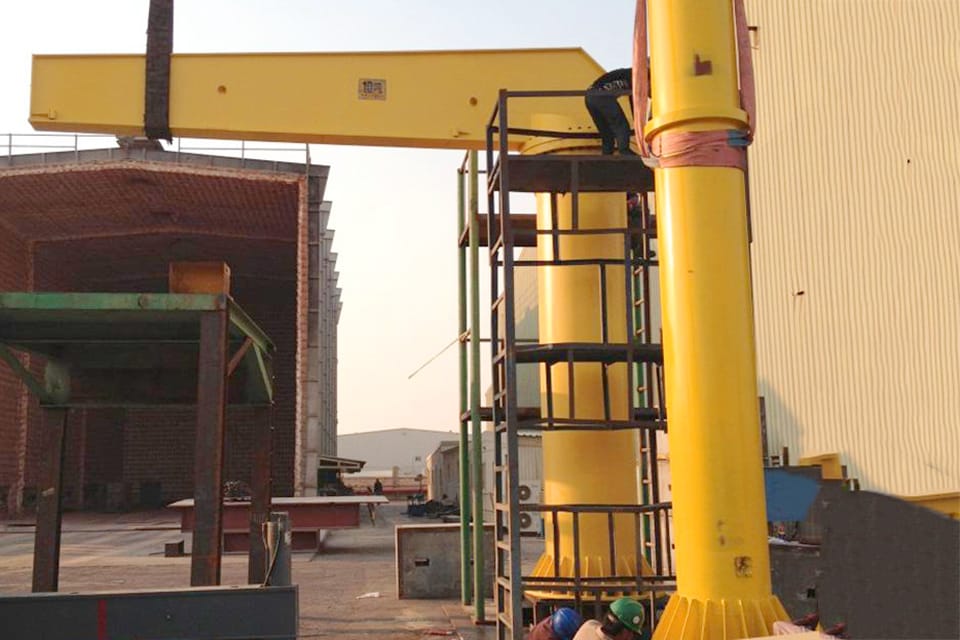

BZZ heavy-duty jib crane
BZZ heavy-duty jib crane is an extension product of free standing column jib crane. This model adopts slewing bearing and variable section arm structure, the lifting height is 2.5-6m, and the ratation radius is 7-12m. In operation mode, users can choose pendant control or wireless remote control. This model is suitable for material hoisting operations in metallurgy, railway, wharf and machinery manufacturing industries. It can replace bridge cranes and gantry cranes in many occasions, with low investment and high efficiency.
Configuration
| Model | BZD0.25 | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 | ||
|---|---|---|---|---|---|---|---|---|
| Lift Capacity | t | 0.25 | 0.5 | 1 | 2 | 3 | 5 | |
| Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 | |
| Maximum Turning Radius | mm | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 | |
| Minimum Swing Radius | mm | 1100 | 1250 | 1300 | 1300 | 1200 | 1100 | |
| Rotation Angle | 360° | 360° | 360° | 360° | 360° | 360° | ||
| Lifting Speed | m/min | Normal Speed |
4,10,8 | 5,10,8 | 5,8 | 4,8 | 8 | 8 |
| Slow Speed |
1,2.5,0.8 | 1.25,2.5 | 1.25,2,0.8 | 1,0.8 | 0.8 | 0.8 | ||
| Height of contour H | mm | 3650 | 3900 | 4100 | 4230 | 5500 | 5750 | |
| Overall width L | mm | 3340 | 3363 | 3400 | 3415 | 4450 | 4600 | |
| Traveling Speed | NormalSpeed | 14,20 | 14,20 | 14,20 | 14,20 | 20 | 20 | |
| Rotating Speed | m/min | 0.7 | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 | |
| Weight | KG | 950 | 1100 | 1800 | 2100 | 3500 | 4500 | |
Products Details

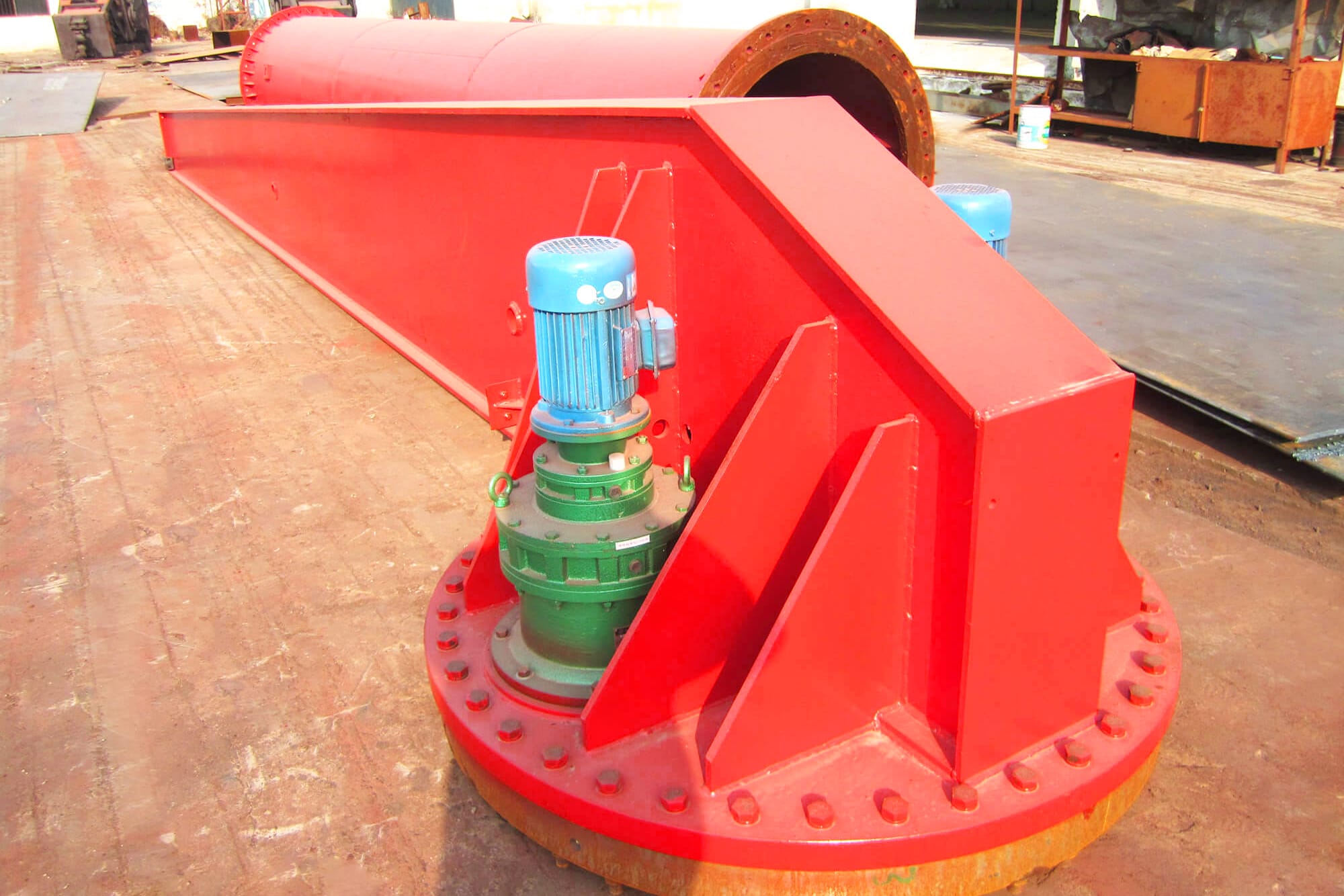

Arm Heavy Jib Crane

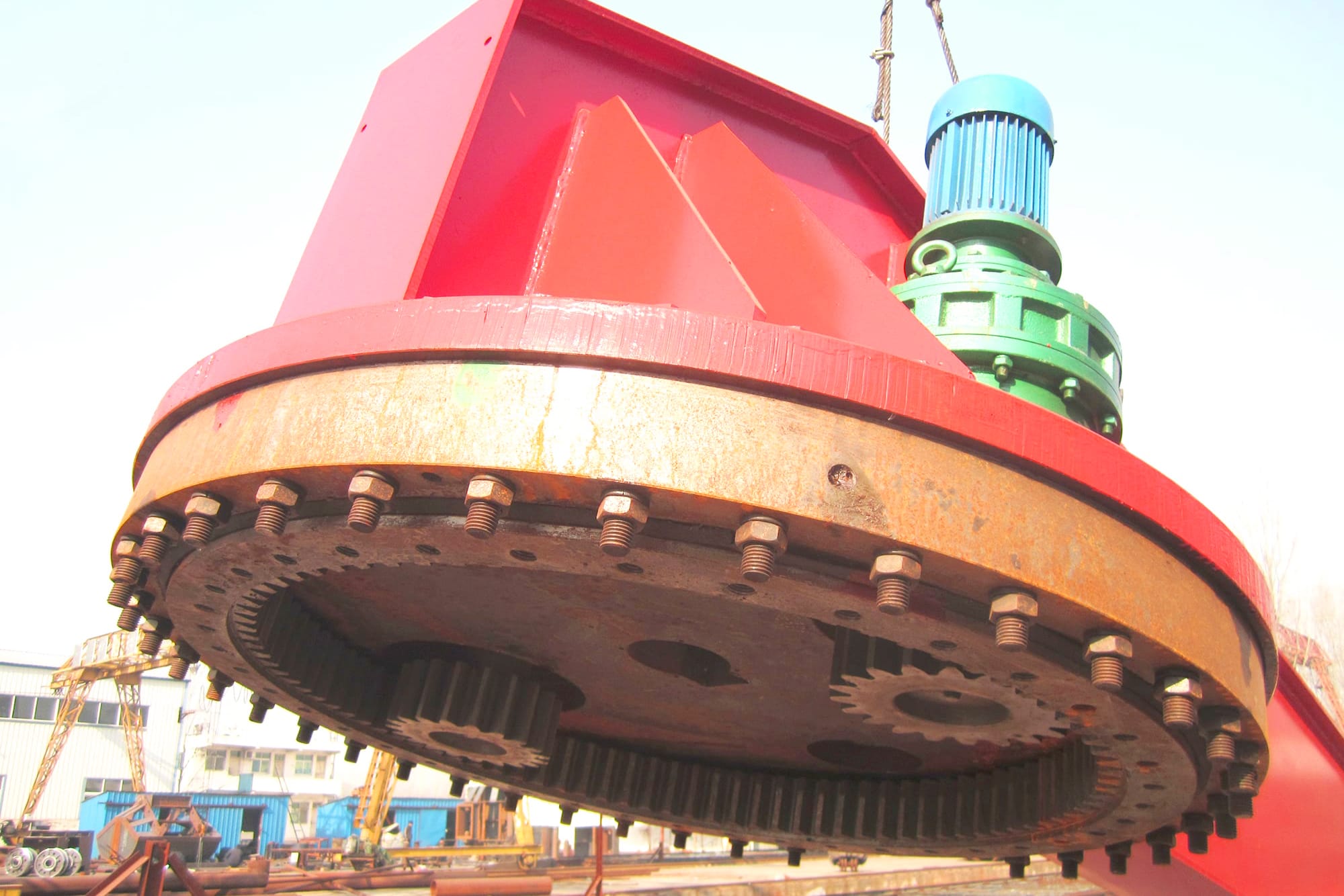

Rotation Mechanism Heavy Jib Crane

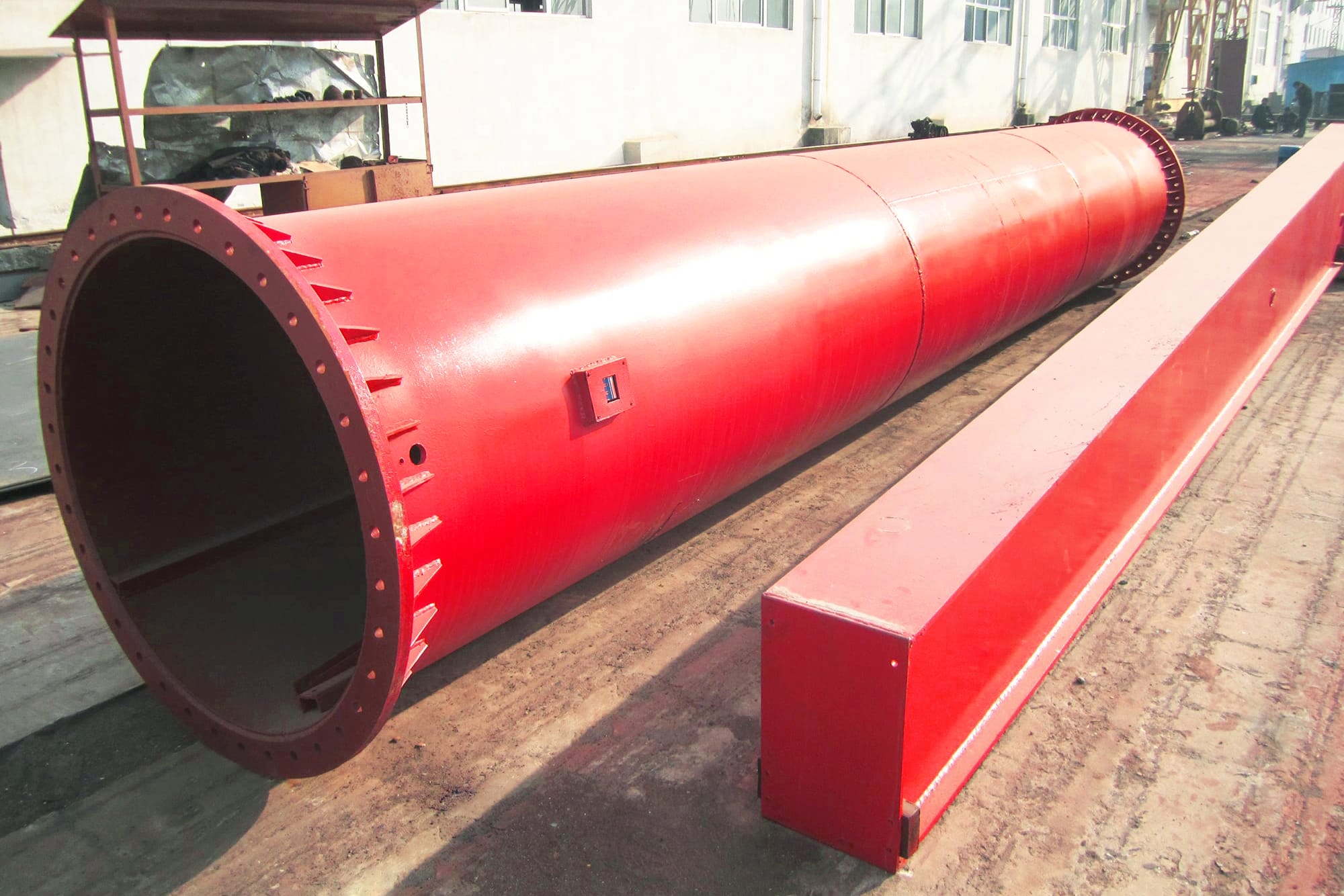

Stand Column Heavy Jib Crane

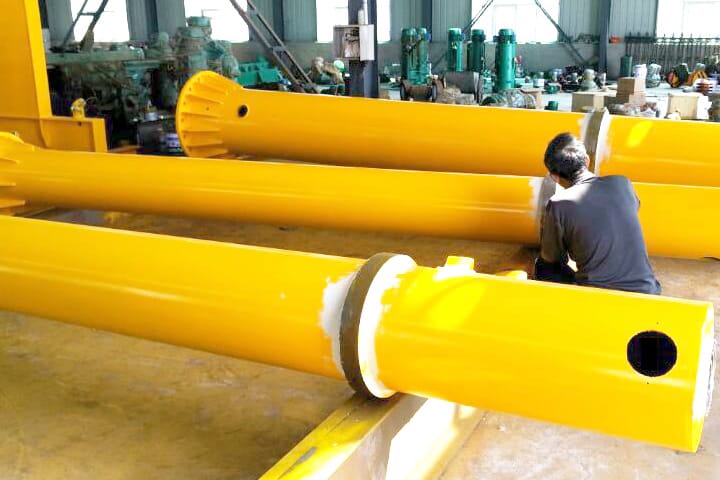

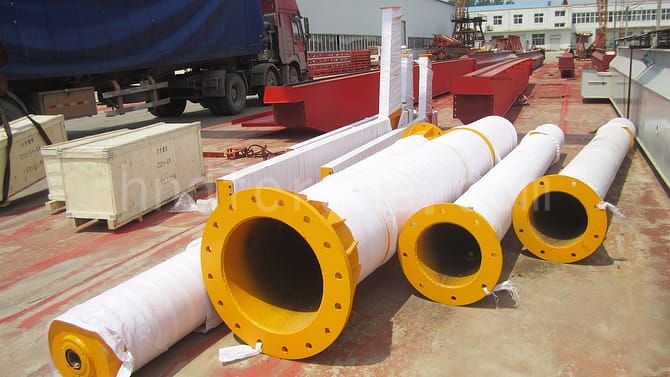

Column

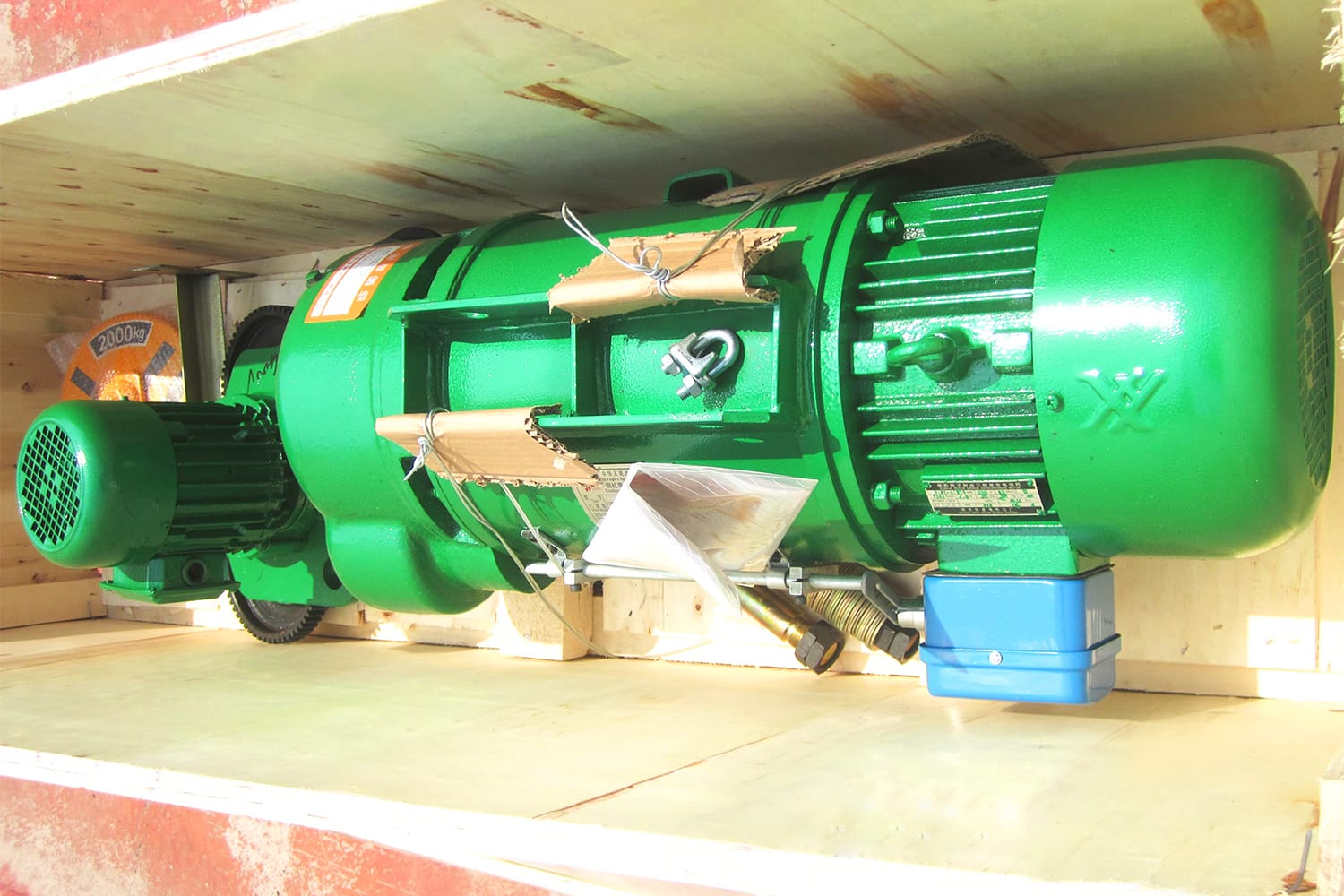

Electric Hoist

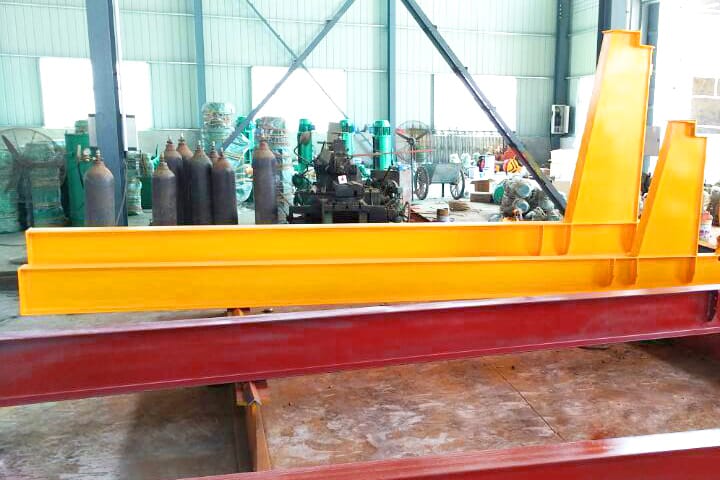

Slewing Bearing and Arm
Different Types of jib Crane

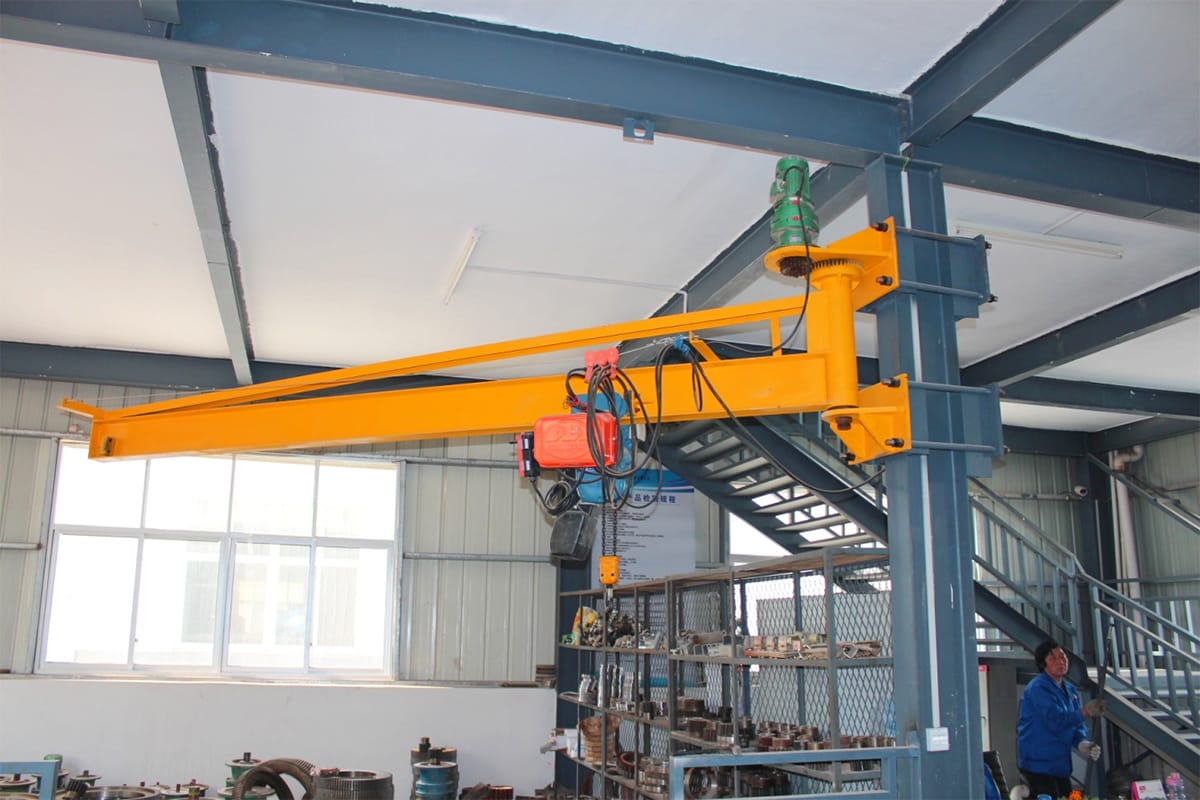

Wall Mounted Jib Crane
Wall Mounted Jib Cranes require no floor space and no special foundations. They quickly fold out of the way of large overhead cranes.

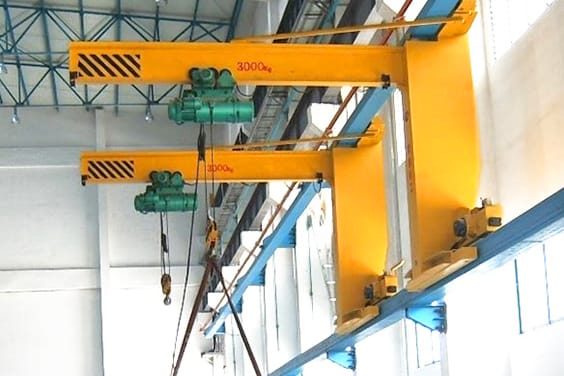

Wall Traveling Jib Crane
Wall-Traveling Jib Cranes provide long lateral movement of materials without taking up floor space or interfering with large overhead cranes. Wall-traveling jibs increase overall plant productivity by quickly handling smaller lifts.

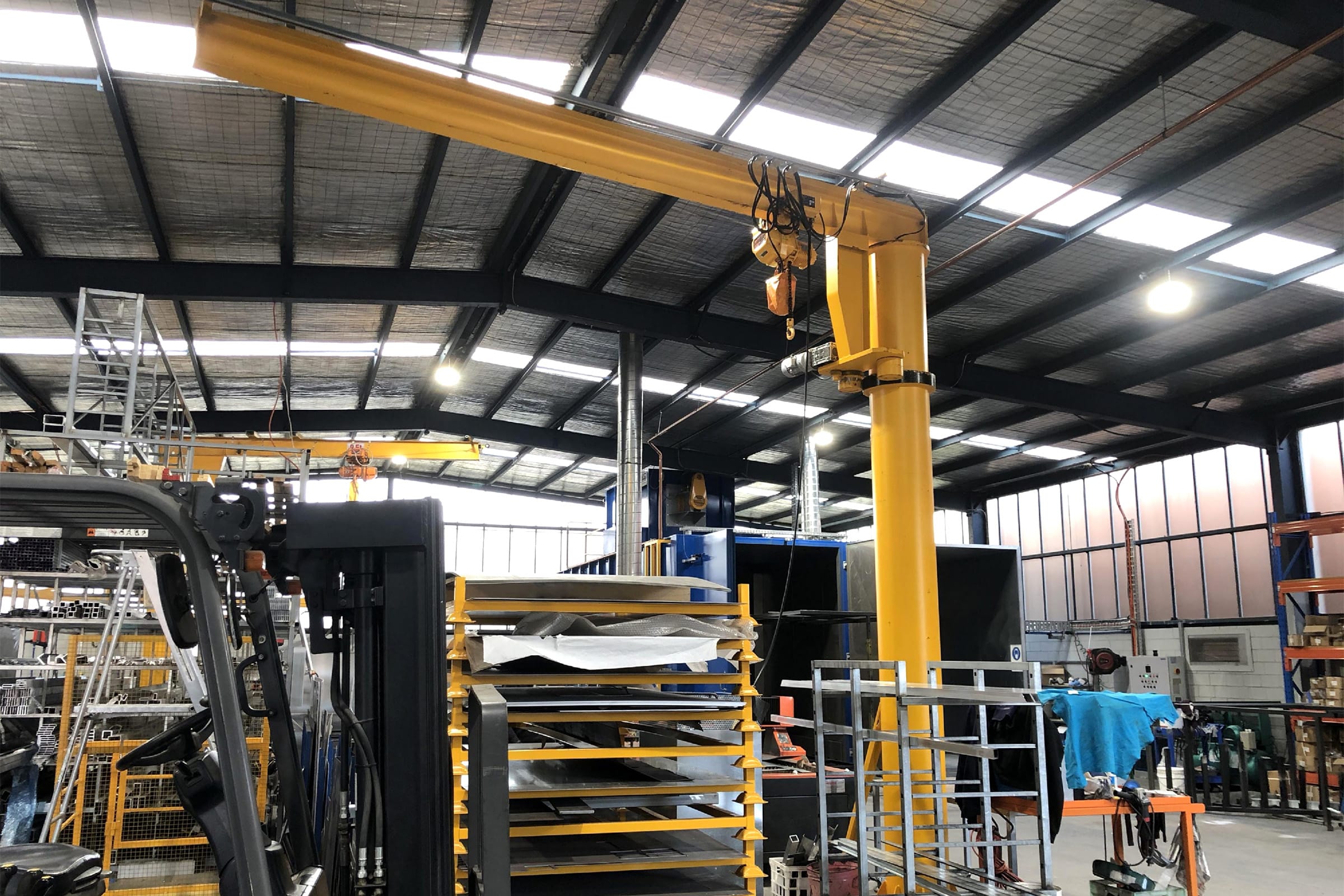

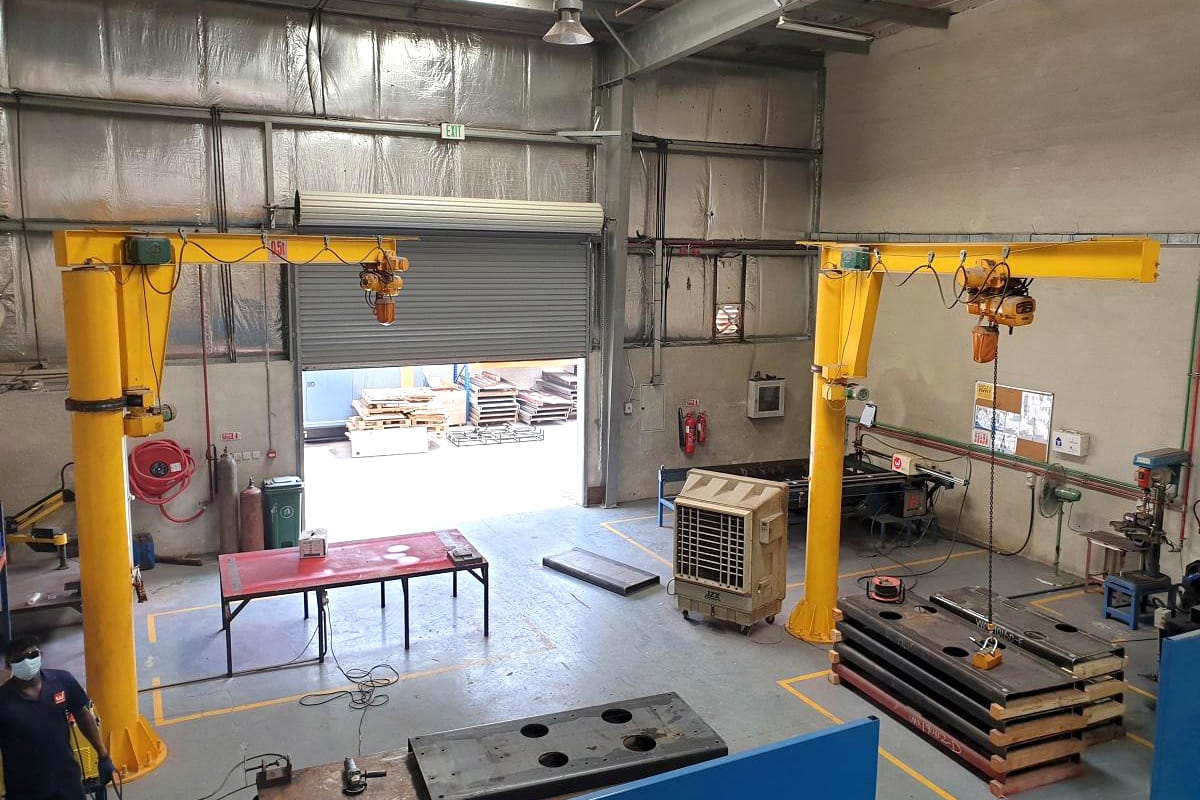

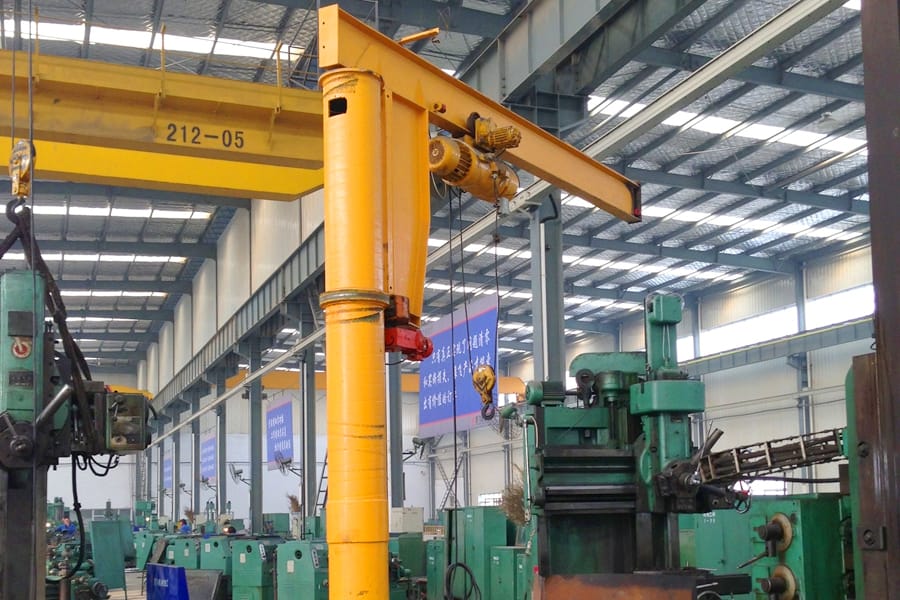

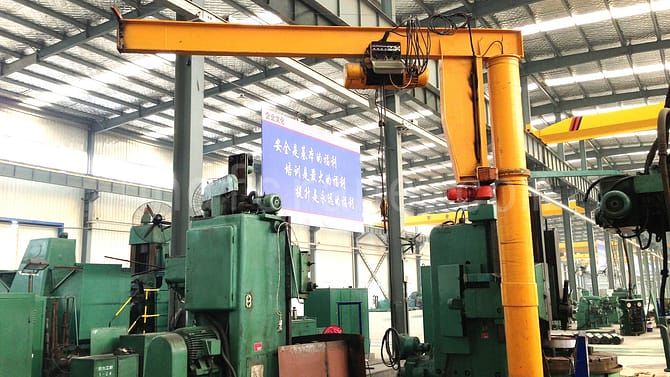

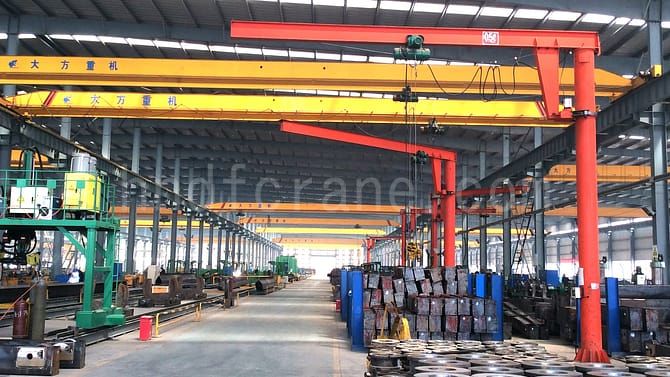

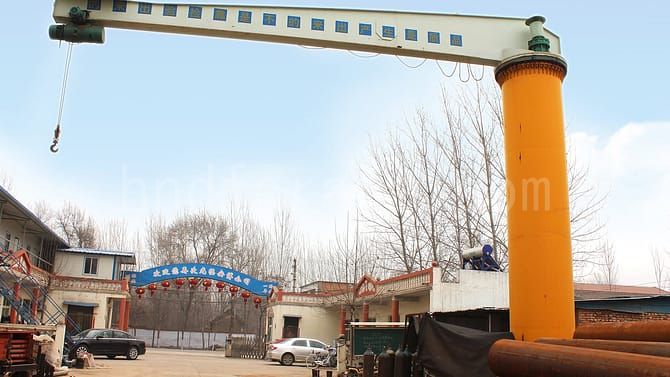

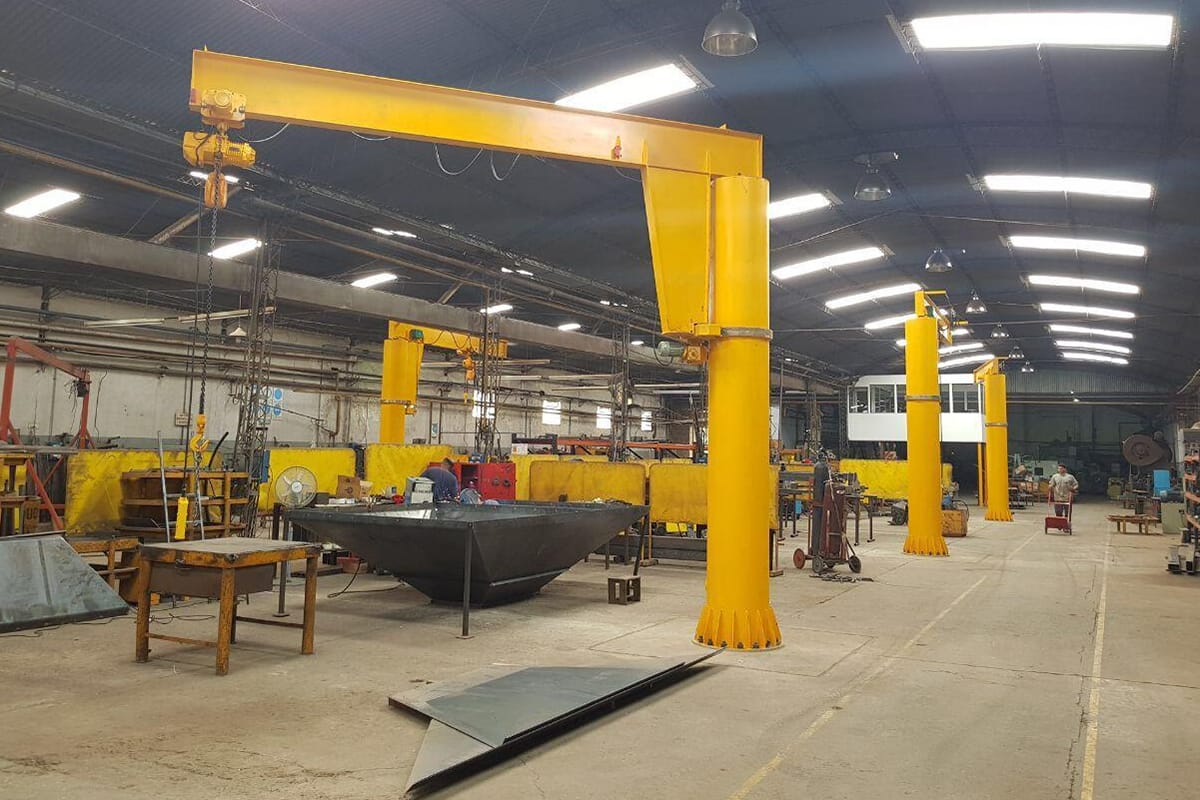

Application Examples
