Container Gantry Cranes
- Capacity: up to 50t
- Span Length: up to 60m
- Cantilver length: 5m-15m
- Duty Group: A5-A7
- Work Environment Temperature: -25°C〜+50°C, relative humidtiy ≤95%
- Applications: Indoor and outdoor
- Reference Price Range: $10000/set-$600000/set
Join Mailing List, Get Product Price List Directly to Your Inbox.
Product Introduction
Gantry cranes or Goliath Cranes are very versatile cranes used typically for activities in steel warehouse, precast yards, construction sites, port, train station, powe plant and other outdoor applications.
Include single girder gantry crane, double girder gantry crane, semi gantry crane, trussed gantry crane. Suitable for indoor and outdoor usage.

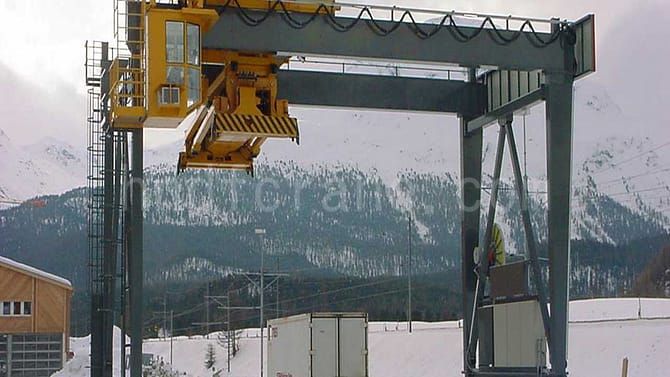

Container gantry crane is a type of large wharf gantry crane which at container terminals for loading and unloading intermodal containers. It is available with span of 5~8 containers wide (plus a truck width) and with lifting height from 1 over 3 to 1 over 6 containers high.

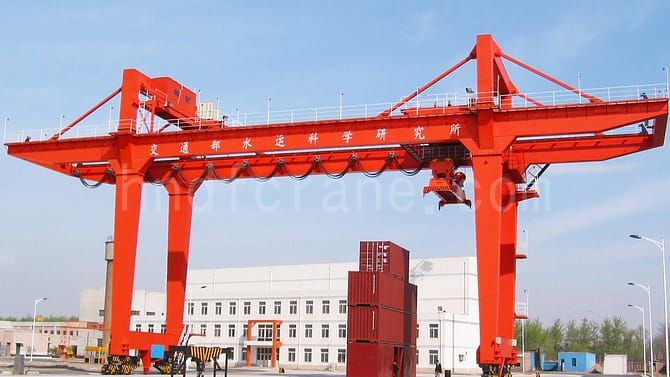

Container gantry crane composed of a gantry structure that can traverse the length of a wharf or yard on a rail. Instead of general hook, container gantry crane equipped with a specialized handling tool usually we called it spreader, which will be lowered on top of the container and used for locks onto the container's four corner casting. Gantry crane normally lift one set container at once.
Technical Features
- Container gantry crane is specialized in lift container
- Equipped with specific spreader
- High reliability component
- Span of 5~8 containers wide (plus a truck width)
- Suitable for 40' container, 20' container
- Lifting height from 1 over 3 to 1 over 6 containers high
Configuration
| Name | Lifting mechanism | Hoist traveling mechanism | Crane traveling mechanism |
|---|---|---|---|
| Motor | Wuxi Hongda | Wuxi Hongda | Boneng tree-in-one model |
| Reducer | Purui | Purui | Boneng tree-in-one model |
| Brake | Jiaozuo Changjiang | Jiaozuo Changjiang | Boneng tree-in-one model |
Compare Products
| No. | Safety Measures | Foundation |
|---|---|---|
| 1. | Loss of pressure fault phase protection |
1. When the voltage is too low, the electricity will disconnect 2. When the phase is changes, the electricity will disconnect |
| 2. | Over voltage or over current protection |
1. When the voltage is too big, the electricity will disconnect 2. When the current is too big, the electricity will disconnect |
| 3. | Overload limit switch | 1. When the lift capacity is more than the max rated lift capacity, the electricity will disconnect, crane will stop work |
| 4. | Weight limit | 1. Supervise the decrease of hook. There is a limit height. The hook cannot fall any more if reach this limit |
| 5. | Fire limit | 1. Supervise the up and down limit position of Hook. Avoid the over increase and over decrease, protect hoist |
| 6. | Crane travel limit switch | 1. Supervise the travel of crane, and stop crane travel more than rated travel distance. |
A Standard Semi Gantry Cranes Will Be Produced in 50 Days.
Preassemble Test of Legs
Primer Painting
Production of Main Beam
Production of Platform
Production of Saddle
Weld Line Test
Tips: Lead time of cranes with different voltage may be 10-15 days longer, as electrical components need to be customized by our supplier.
Products Details
Container Hanger
Professtional container gantry crane need to equip with professional container hanger to unload containers. It can be hydraulic type or electric type.
Main Beams
Q235/Q345 carbon structural steel. Main beam with strong box type and standard deflection. The main weld line is maked by submerged-arc welding.
Ground Beam
When crane capacity or span is large, to reduce wheel load, need to use crane trolley trolley.
Ground beam connect the support legs and crane travel trolley.
Crane Travel Trolley
To largely reducer crane wheel pressure and ensure crane travel's stability, container gantry crane trolley is complex and flexible.
Support Legs
Each gantry crane have four pcs support legs, which connect gantry crane's main beam and ground beam.
Winch
The work duty for professional container gantry crane normally is A8. The lift mechanism will include two sets drums, motors, so that can ensure container's stability.
